Overview

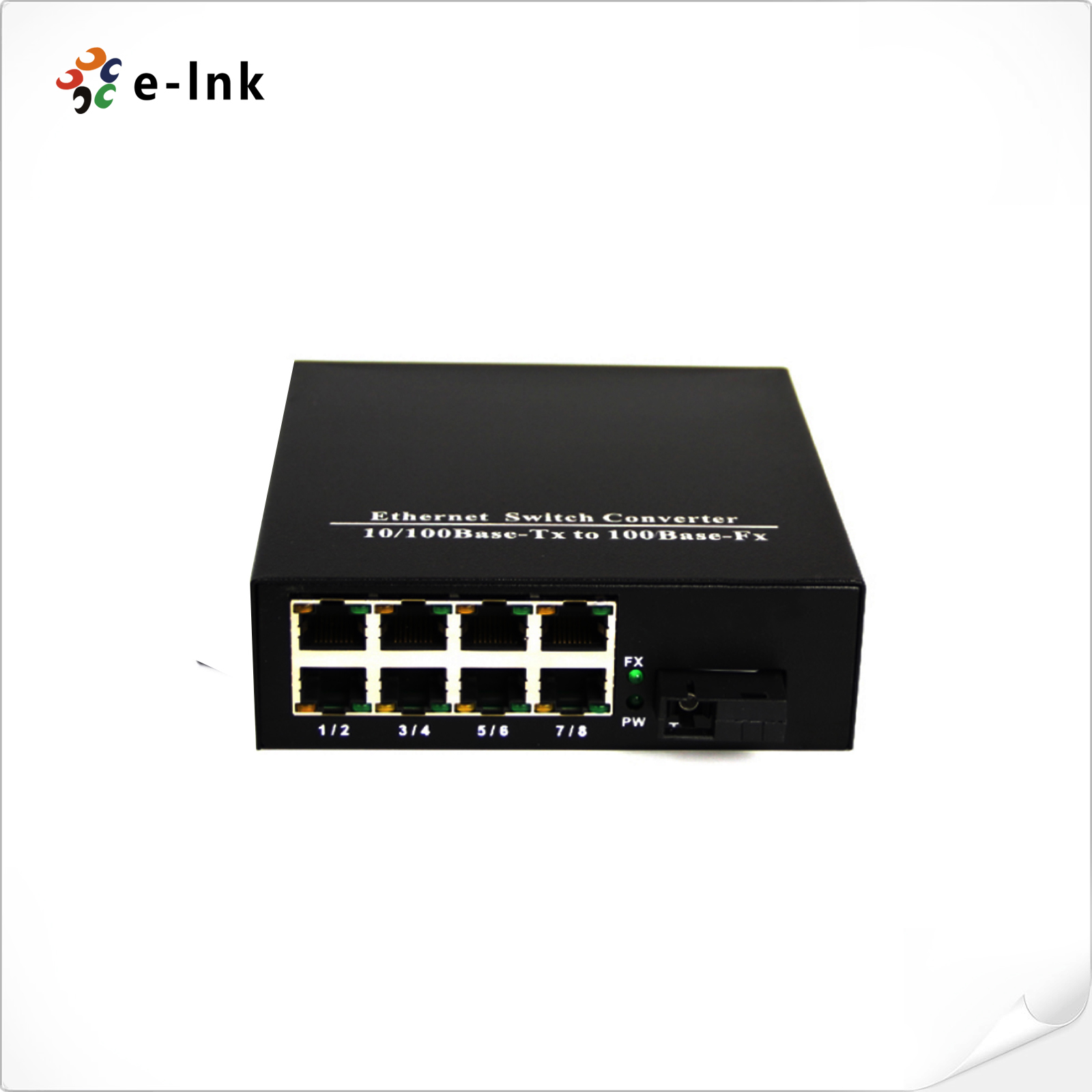

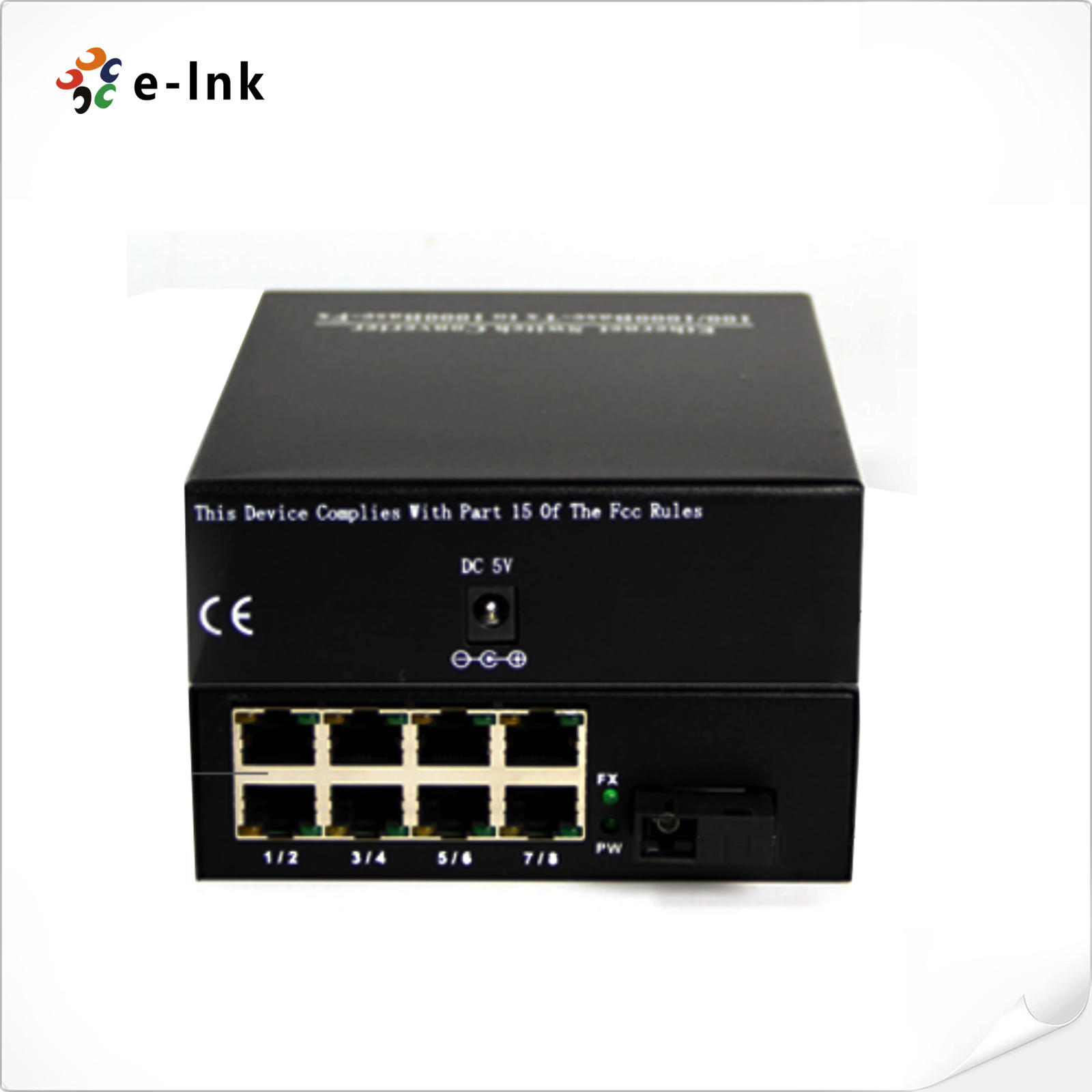

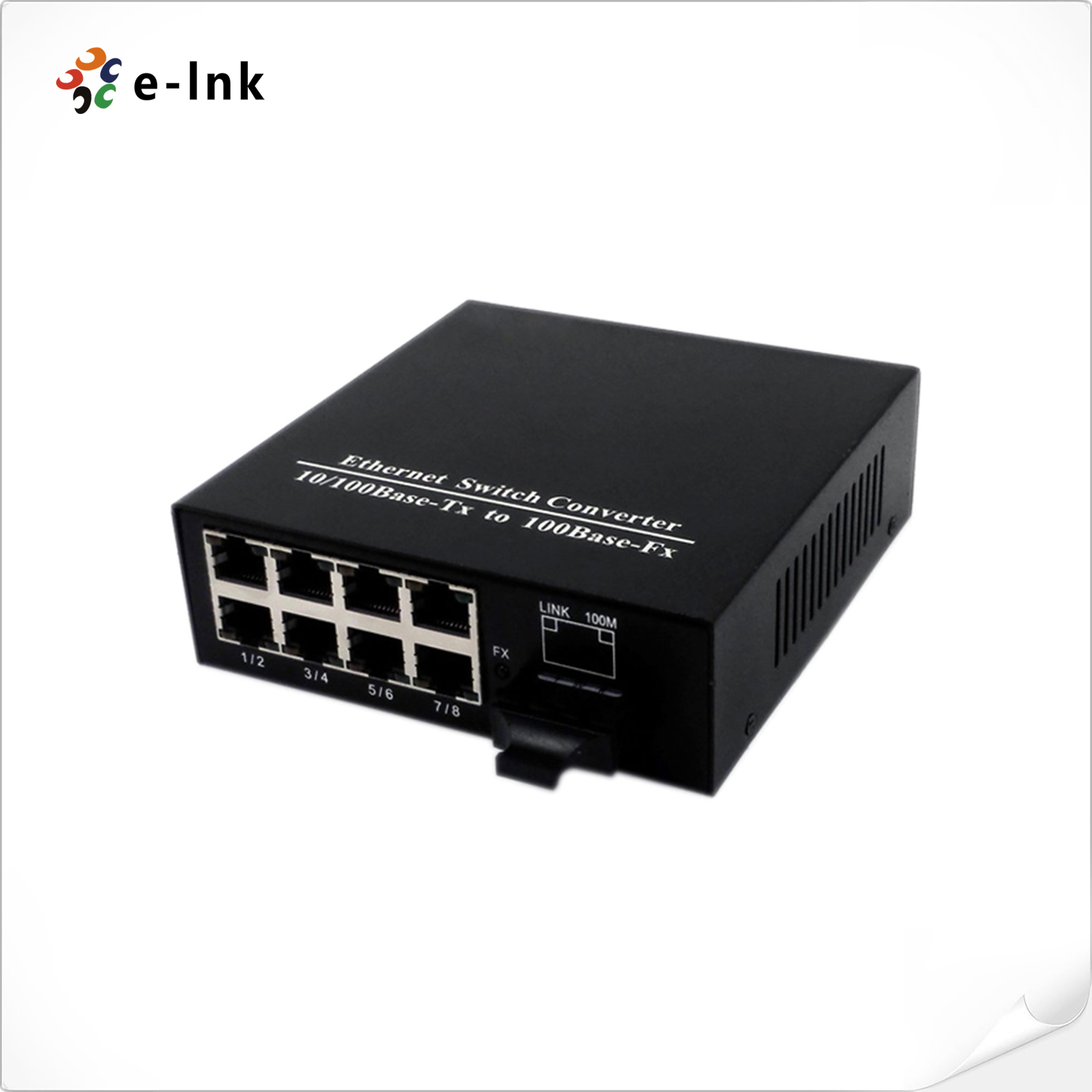

The LNK-1800 Series is a 10/100Mbps adaptive fast Ethernet Fiber Optic Switch. It's with eight 10/100Mbps UTP ports and one 155Mbps fiber port. It extends the transmission distance of a network from 100m via copper cables to 120km. It can extend the transmission distance, and also with many other advantages such as isolation protection, good data security, working stable and easy to maintain. It supports two different types of network connection media, 10/100Base-TX and 100Base-FX. By switching technique and storage & forwarding technique, it realizes the data transmission between two network connection media.It supports optical transmission under dual-fiber multi-mode, dual-fiber single mode, and single fiber single mode.

Feature

►   Converts 10/100Base-T to 100Base-FX

►   8x10/100Base-TX Port to 1x100Base-FX

►   RJ45 support auto MDI/MDI-X function

►   Auto-negotiation speed, half/full-duplex

►   Support IEEE802.1d Spanning Tree

►   Supports high performance QoS function on each port

►   Support broadcast storm protection

►   Wide-range redundant power design ( 4.5~20VDC )

►   Support custom the ISOLATE-USER-VLAN

►   Support max forwarding packet length 1552 bytes option

►   Low power consumption

►   Compact size

Specifications

• Download FileName：E-link LNK-1800 8FE+1Fiber Ethernet Switch Datasheet V1.0.pdf Size： 550KB

Order Information
