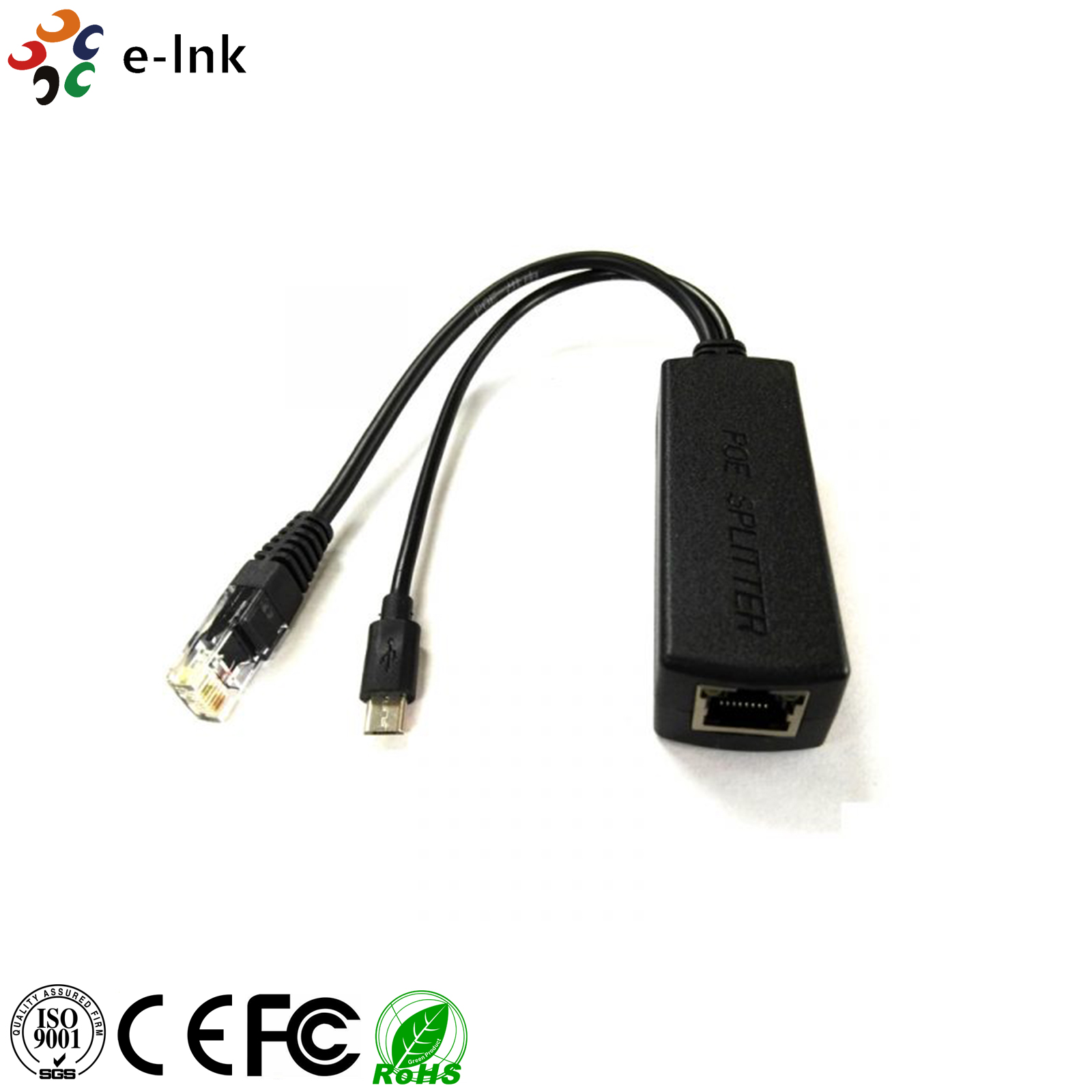

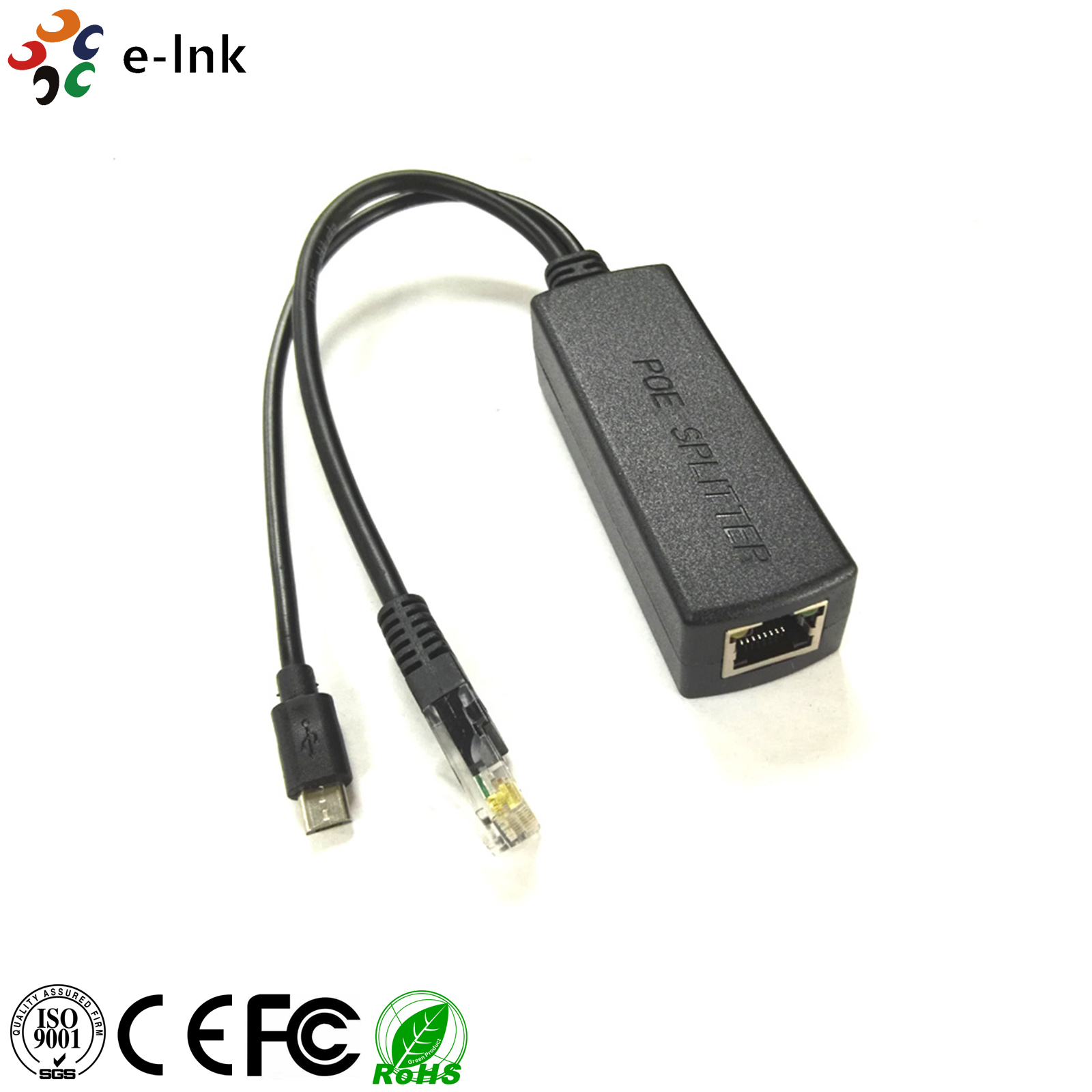

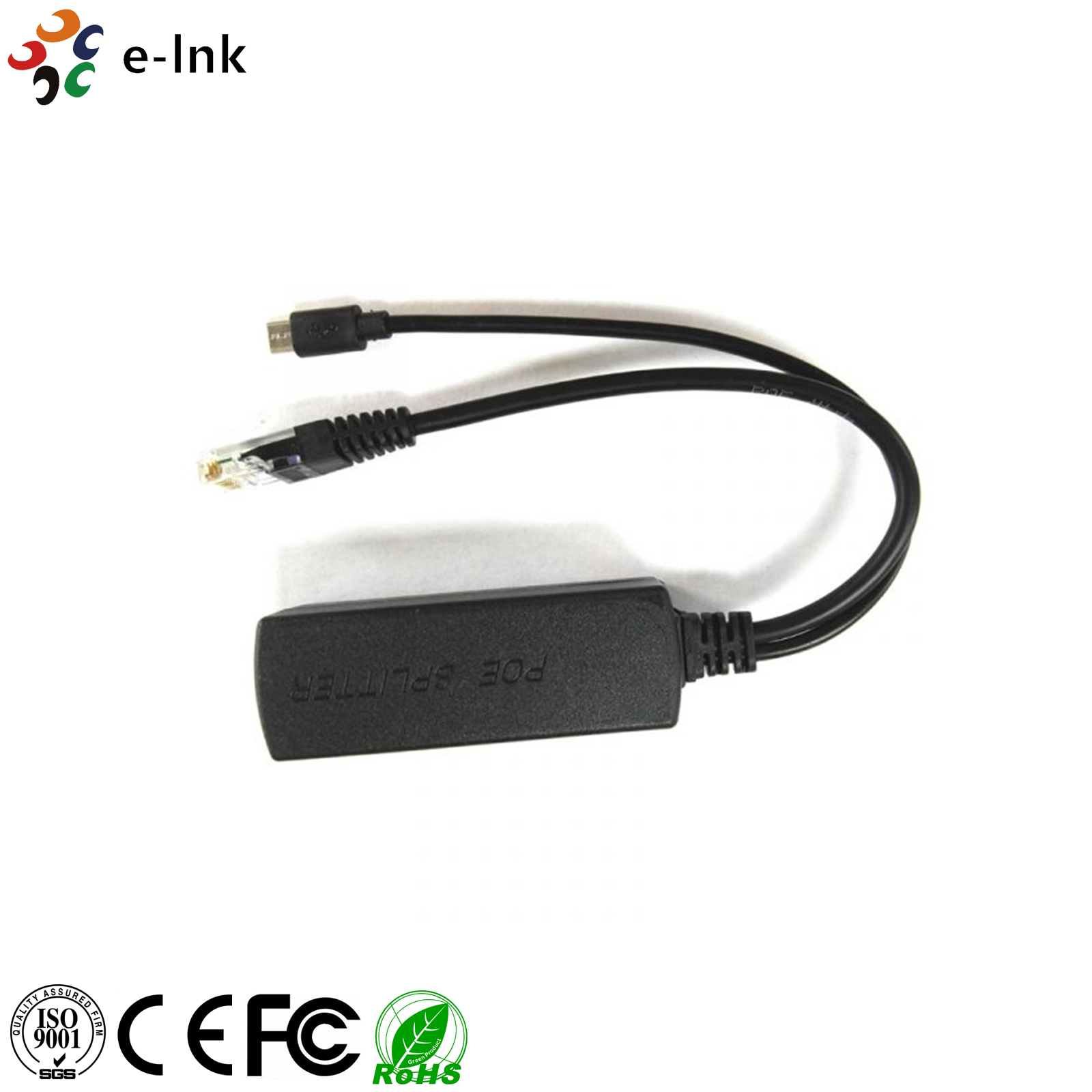

10/100/1000M 5V 2A PoE Splitter with Micro USB port
Model:LNK-SP5VG-USB
► Compliant with IEEE 802.3af
► Isolation: 2.5kV
► Power Input: DC48V
► Power Output: DC5V 2.4A
► Data Output Port: RJ45 Male
► Power Output Port:Micro USBPower Plug
► Data Transfer Rate: 10/100/1000Mbps
Overview
The LNK-SP5VG-USB is designed specially to fill the demand of the micro USB power input products such as iPad, Dropcam, Raspberry Pi ,Android, Tablet etc. It can be transmitted power and data signals through the cable transmission.
LNK-SP5VG-USB support the use of PSE equipment which meet IEEE802.3af standard, such as POE Switch series and so on. The LNK-SP5VG-USB is a ideal solution to delivering data and power to network devices directly via the RJ45 port interface without the need of installing extra power outlets and electrical cabling.Features
► Compliant with IEEE 802.3af
► Isolation: 2.5kV
► Power Input: DC48V
► Power Output: DC5V 2.4A
► Data Output Port: RJ45 Male
► Power Output Port:Micro USBPower Plug
► Data Transfer Rate: 10/100/1000Mbps
► Devices will be detected before poe input
► Power Pin: support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)

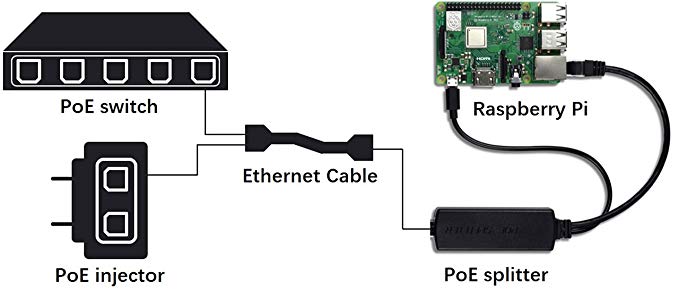

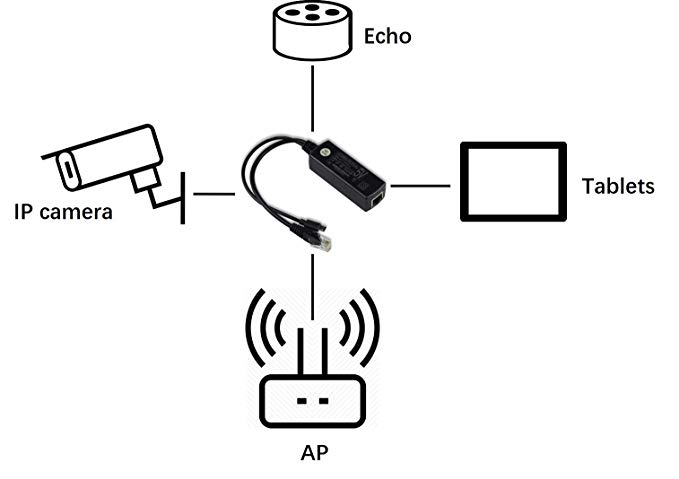

Application
Technical Indexes
|
Model |
LNK-SP5VG-USB |
|
Standard |
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af |
|
Power Pin |
1/2(+), 3/6(-); 4/5(+), 7/8(-) |
|
Power Input |
44-57V DC |
|
Power Output |
5V 2.4A DC |
|
Date Rate |
10/100/1000Mbps |
|
Distance |
10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) 1000BASE-T: cat 5 and above UTP(≤100m) |
|
LED Indicator |
POE input indicator; PD output indicator |
|
Environmental |
Working Temperature: 0°C~55°C Storage temperature: -20°C~75°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing |
|
Radiation |
CE mark,commercial,FCC Part 15 Class B，RoHS |
|
Product Size |
83 x 28 x 22mm |
|
Weight |
59g |
- Download FileName：E-link LNK-SP5VG-USB POE Splitter with Micro USB Port Datasheet V1.0.pdf Size： 317KB
Ordering Information
|
Model |
Description |
|
LNK-SP5VG-USB |
10/100/1000M 5V 2.4A POE splitter with Micro USB port |
