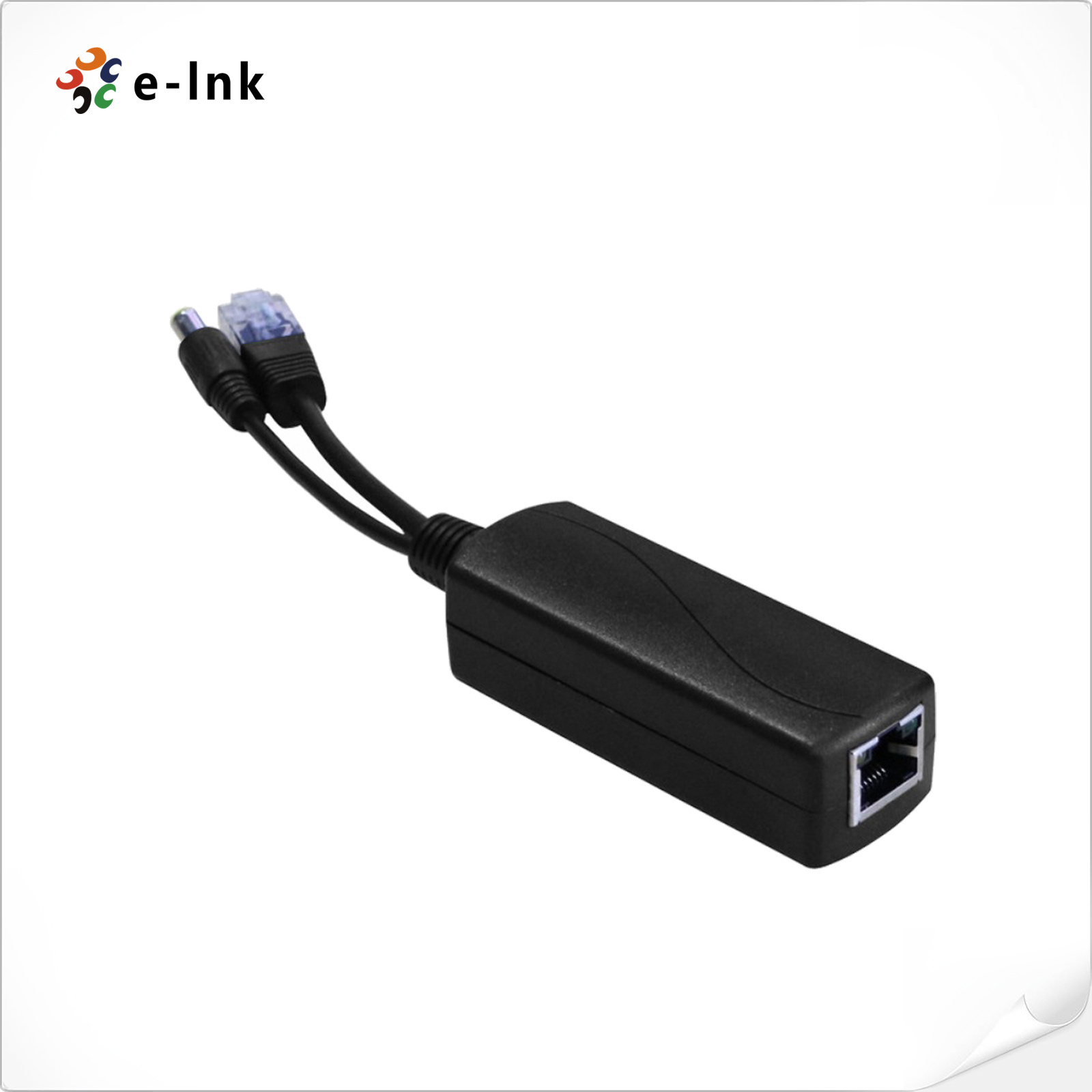

10/100M 24V 1A PoE Splitter

Model:LNK-SP24W

►   DC output 24V 1A

►   52V: MAX transmission 150M (With full copper low resistance network lines)

►   Comply to IEEE802.3af/at

►   Power Input:DC16~55V

Overview

LNK-SP24W PoE splitter, Develop used for Ethernet power supply application scenarios, device does not support POE input Situation; support“IEEE 802.3af”and“IEEE 802.3at”POE power supply; DC output 24V 1A; The POE signal can be separated into network signal and electric power. PoE splitter, output voltage of 24V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

Features

►   DC output 24V 1A

►   52V: MAX transmission 150M (With full copper low resistance network lines)

►   Comply to IEEE802.3af/at

►   Power Input:DC16~55V

►   Plug&Play

►   Built-in high performance chip and high specification circuit board

►   Stable:AKros AS1138, with lightning protection

►   RJ45 full shield port

►   Full bridge design, non polarity input

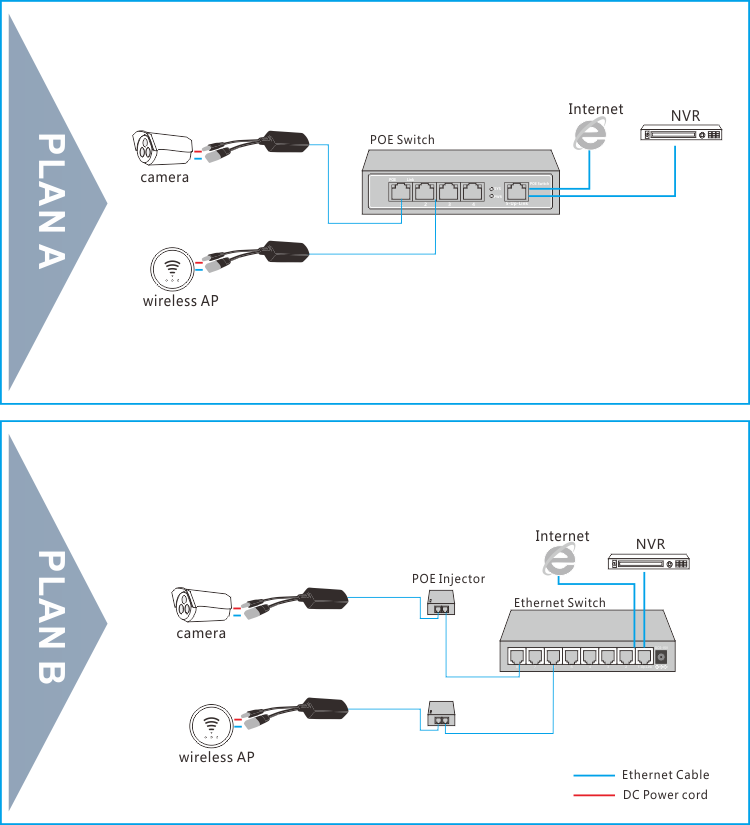

Application



Technical Indexes

Model

LNK-SP24W

DC out

24V 1A

Power

25W

distance

10BASE-T: cat 5 UTP(≤100m)

100BASE-TX: cat 5 and above UTP(≤100m)

Port

1 FE(10/100M) POE input+1 Network+1 DC output

POE

IEEE POE++/IEEE 802.3af /IEEE802.3at,

IEEE802.1af DTE Power via MDI

Network

protocol

IEEE 802.3i 10BASET;

IEEE 802.3u 100BASETX;

IEEE 802.3x Flow Control

Environmental

Working Temperature:-20°~55°C

Storage temperature:-40°~85°C

Working Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~90% RH non-condensing

Radiation

CE mark,commercial,FCC Part 15 Class B,RoHS

Product Size

200mm*22mm*23mm

Weight

0.2kg

  • Download FileName:E-link LNK-SP24W PoE Splitter Datasheet V1.0.pdf Size: 346KB

Ordering Information

Model

Description

LNK-SP24W

PoE Splitter: 1x10/100M POE input + 1xNetwork +1xDC output, MAX 25 watts, DC output 24V 1A
