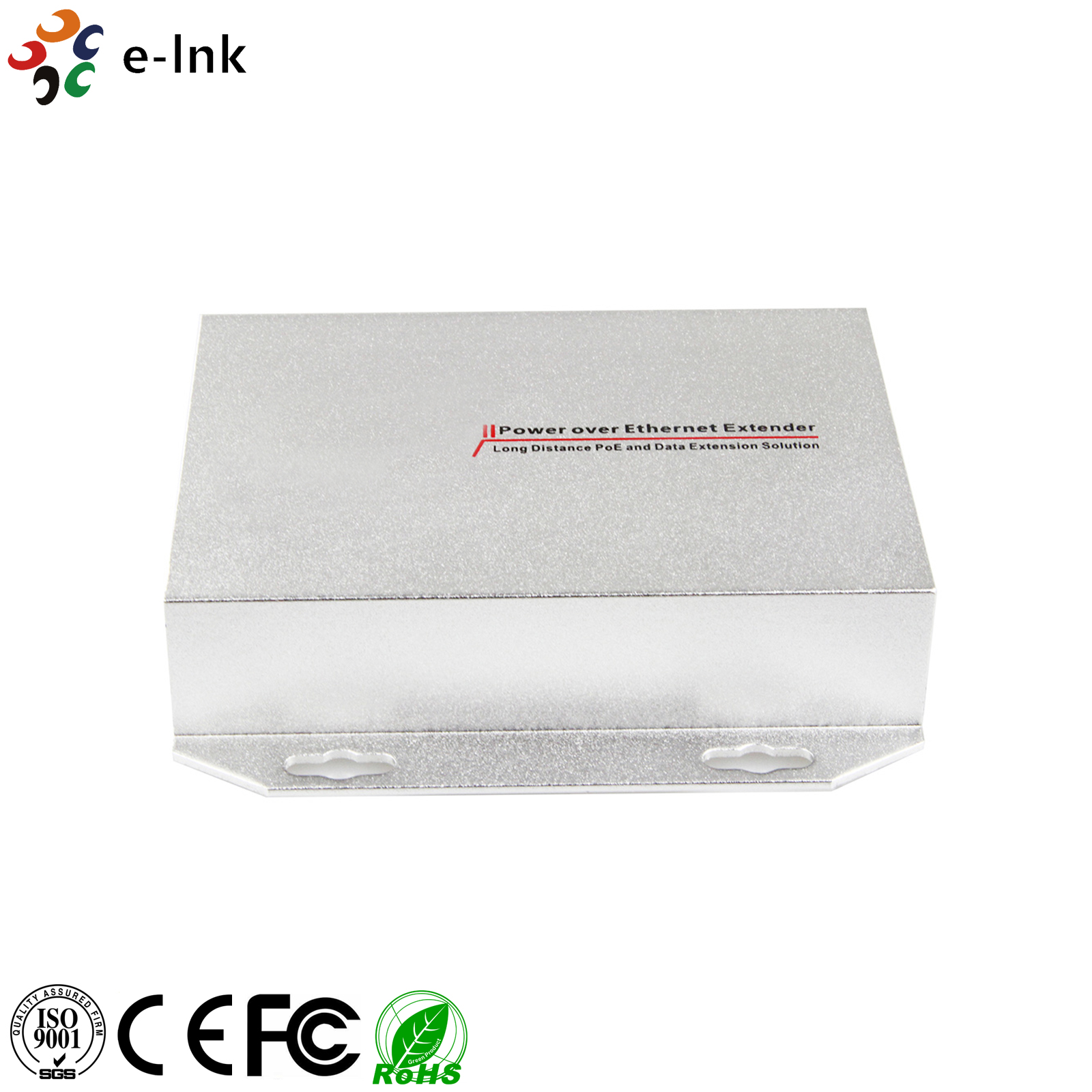

10/100/1000M PoE Extender 15.4W
Model:LNK-GPoE-E1
► Complies with IEEE 802.3af Power over Ethernet
► Extends the range of PoE an additional 100 meter
► Forwards both Ethernet data and PoE power to remote devices
Overview
LNK-GPoE-E1 is a simple device which can extend the 100m standard data transmission to 200m through CAT5e/6 UTP cable, by just plug and play but no additional power supply or set up required. It offers you great flexibility to extend the distance of PoE network to triple, quadruple further in length or more. And this device supports forwards both Ethernet data and PoE power to remote devices.
For the cost saving and power management purpose, this device can be widely used for City intelligent traffic monitoring system (ITS), safe city, and wireless city; large industrial factory & enterprise security surveillance system; Highway surveillance system, electronic road surveillance, snapshot system; Remote multimedia teaching & campus surveillance, video conferencing systems; Building intercom, wireless communications, video surveillance.Features
► Complies with IEEE 802.3af Power over Ethernet
► Extends the range of PoE an additional 100 meters
► Forwards both Ethernet data and PoE power to remote devices
► Automatically detects and protects PoE equipments from being damaged by incorrect installation
► Multiple units, daisy-chain installation support
► No external power cable required for installation
► Compact size, Wall-Mountable design
► Plug-and-Play

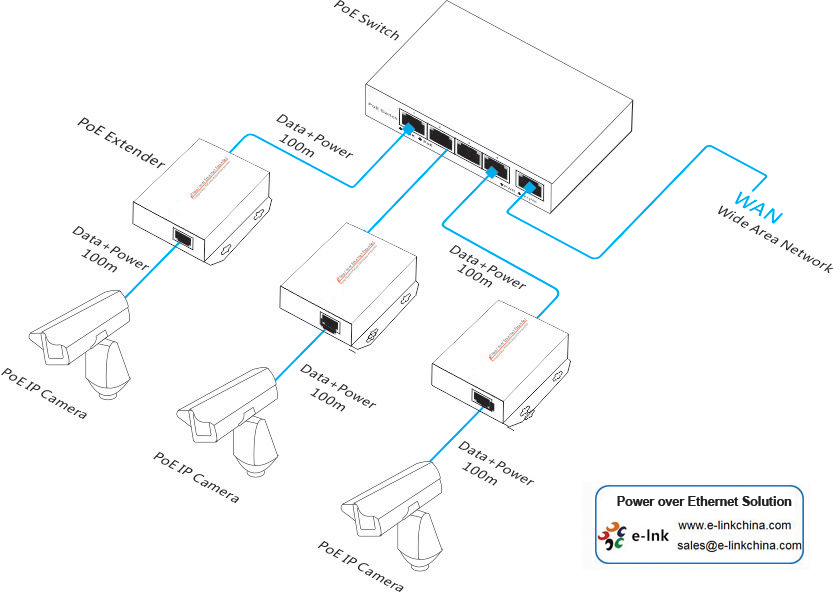

Application
Technical Indexes
|
Product Name |
10/100/1000M PoE Extender 15.4W - Extend 100 Meters |
|
Product Model |
LNK-GPoE-E1 |
|
Description |
10/100/1000M PoE extender, extends the data transmission from 100m to 200m |
|
Connector Type |
1x RJ45 PoE input port; 1x RJ45 PoE output port |
|
Network Medium |
Cat5 or more UTP(≤100 meter) |
|
Bandwidth |
8Gbps |
|
MAC Address Table |
1K |
|
Network Protocol |
IEEE 802.3i 10BASET; IEEE 802.3u 100BASET; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af |
|
PoE Port |
1x RJ45 PoE input port; 1x RJ45 PoE output port |
|
PoE Port Power |
15.4W |
|
PoE Standard |
IEEE802.3af |
|
PoE Power Supply Type |
Default: end-span(1/2+, 3/6-) . Optional: Mid-span(4/5+, 7/8- ) |
|
Certifications |
FCC Class A, CE, RoHS |
|
LED Display |
ACT/LINK: Network status , PoE: PoE working status |
|
Product Size |
74.5x103.5x25.5mm |
|
Working Environment |
Operating temperature: 0 to 55° C; Storage temperature: -20 to 75°C; Working Humidity: 10%～90%, non-condensing |
|
Warranty |
1 year warranty |
Order Information
| Item | Description |
| LNK-GPoE-E1 | 10/100/1000M PoE Extender 15.4W, extends the data transmission from 100m to 200m |
