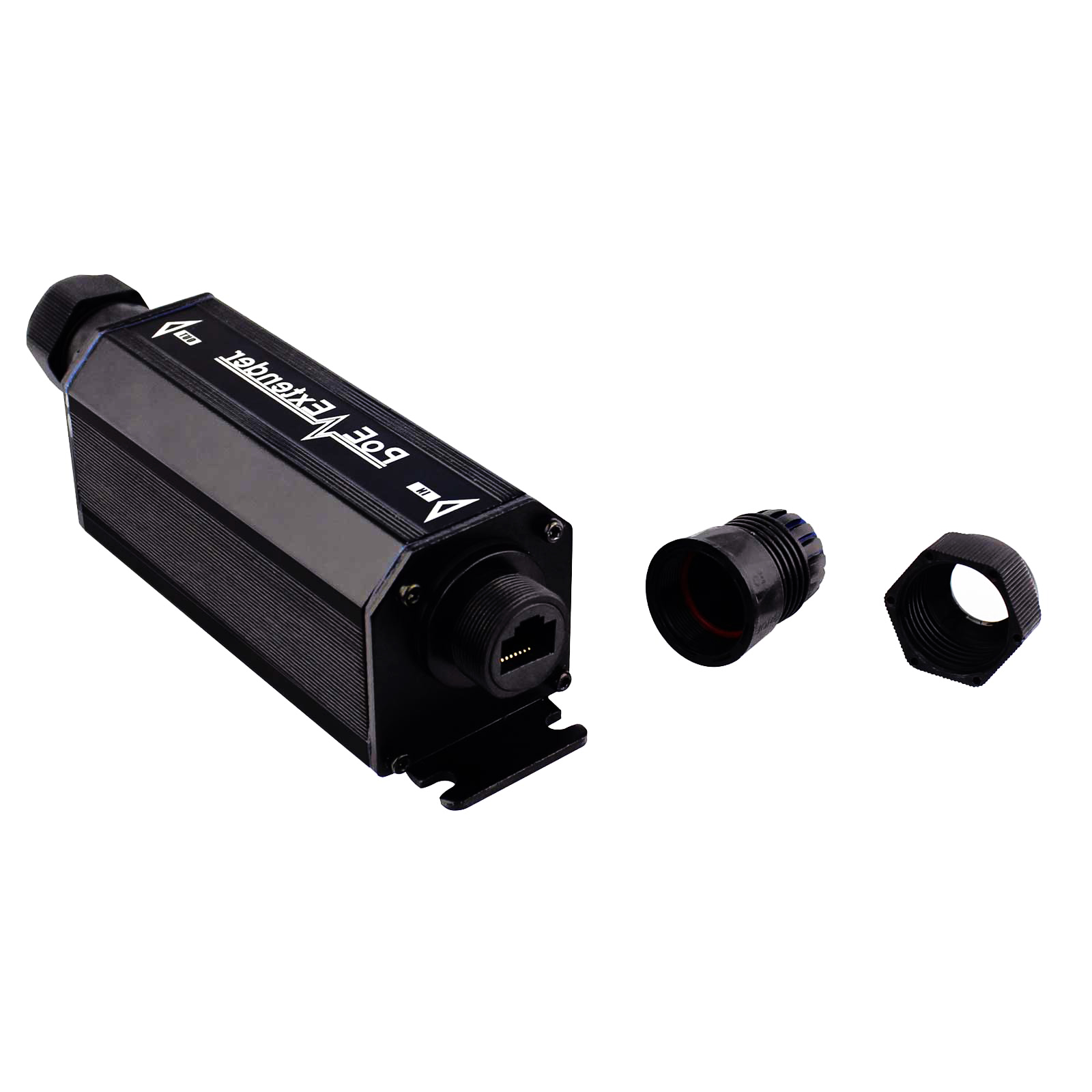

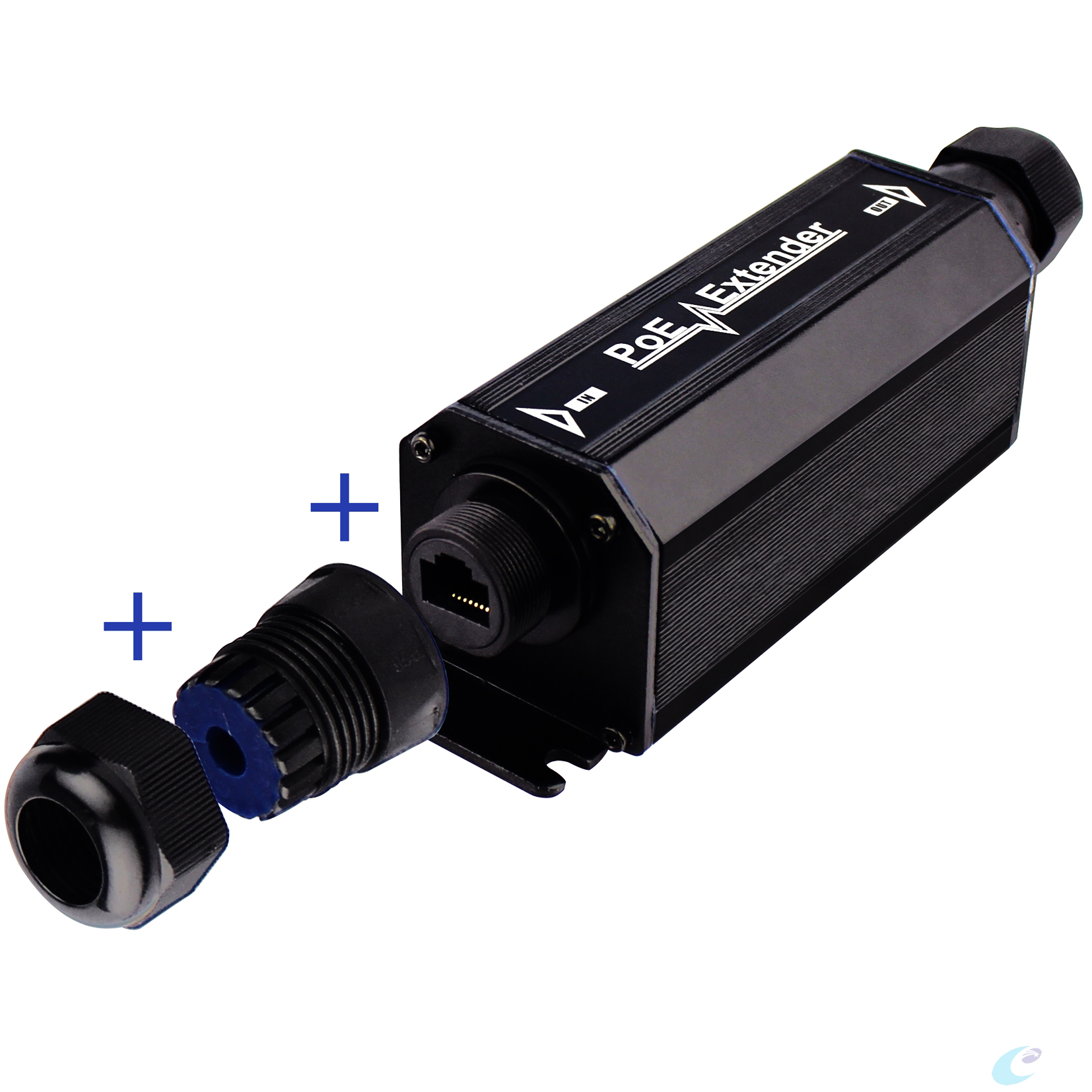

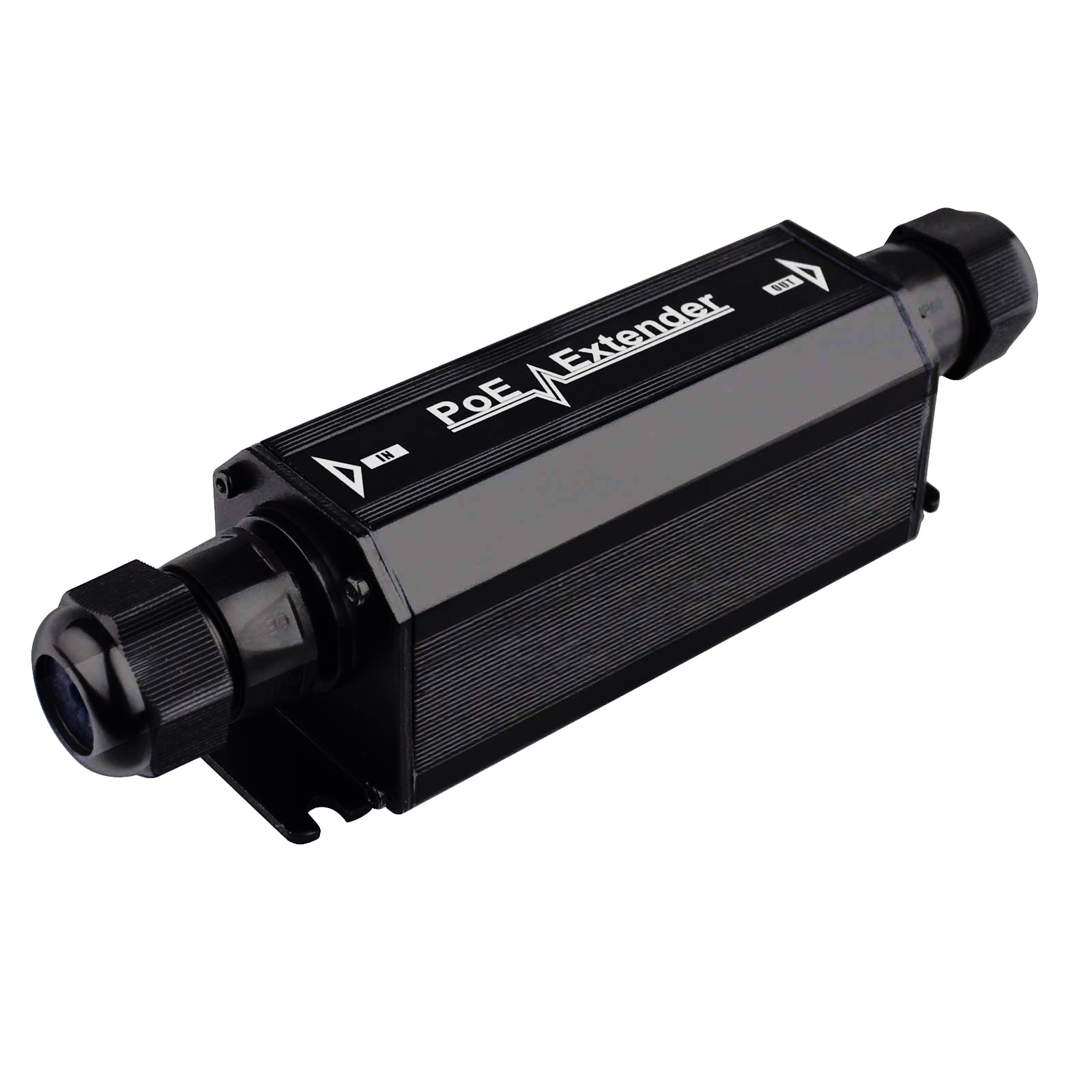

Water-Proof Outdoor Industrial Gigabit PoE Extender

Model:LNK-WP001G

►   Compatible with IEEE802.3af and IEEE802.3at

►   Extends the range of PoE and Ethernet an additional 100 meter

►   No additional power supply is required

Overview

Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect an PoE Extender in-line with the Cat-5e or Cat-6 calbe.

With PoE Extender, PDs (such as IP Security Cameras, VoIP telephones, wireless access points) can be installed at greater distances than 100 meters from one another. By connecting PoE Extender for every extra 100 meters of cable, both Ethernet and PoE can be extended to 200 meters, 300 meters, or even greater distances, depending on PDs power required and power source.

PoE Extender does not require any additional power supply and the connected PDs is fed by an single PoE switch or mid-span, which simplifies installation. PoE Extender offers two Ethernet ports, which are both configured automatically for link speed, duplex and crossover and the full-rate network throughput is main-tained.

Features

►   Compatible with IEEE802.3af and IEEE802.3at

►   Extends the range of PoE and Ethernet an additional 100 meters

►   No additional power supply is required

►   Automatically detects and protects PoE equipments from being damaged by incorrect installation

►   Full-rate network throughout the whole extended distance

►   Compact size, Wall-Mountable design

►   Easy plug-and-play installation

►   IP65 aluminum case

►   Operating Ambient Temperature:-40 to 75℃

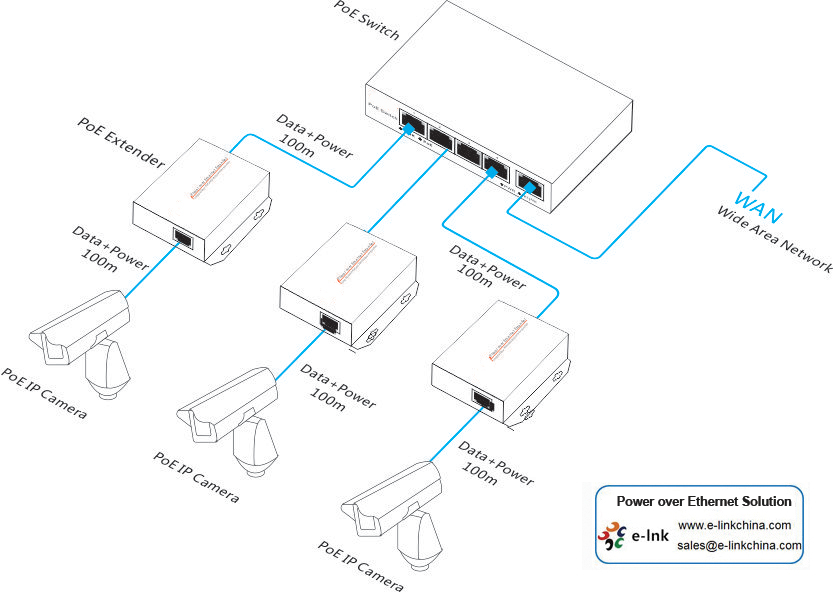

Appication


Technical Indexes

Item

Description

No. of channels

1

Pass Through Data Rates

10/100/1000 Mbps half/full duplex

Power over Ethernet input

Pin Assignment and Polarity:

Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)

Power over Ethernet Output

Pin Assignment and Polarity:

1/2 (-), 3/6 (+)

Output Power: up to 22W

Connectors

Shielded RJ-45, EIA 568A and 568B

Network cables

Shielded category 5 (or higher)

Dimensions

140mm x 40mm x 30mm

Mounting

Wall of shelf

Environment

Outdoor IP65

Environmental Conditions

Operating Ambient Temperature:-40 to 75℃

Operating Humidity:

Maximum 90%, Non-condensing

Storage Temperature:-40 to 75℃

Storage Humidity:

Maximum 95%, Non-condensing

Regulatory Compliance

IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

RoHS Compliant, CE, FCC

Electromagnetic

FCC Part15, Class B

  • Download FileName:E-link LNK-WP001G PoE Extender Datasheet V1.0.pdf Size: 318KB

Ordering Information

Model

Description

LNK-WP001G

10/100/1000M PoE Extender 15.4W/30W, extends the data transmission from 100m to 500mdepending on PDs power required and power source
