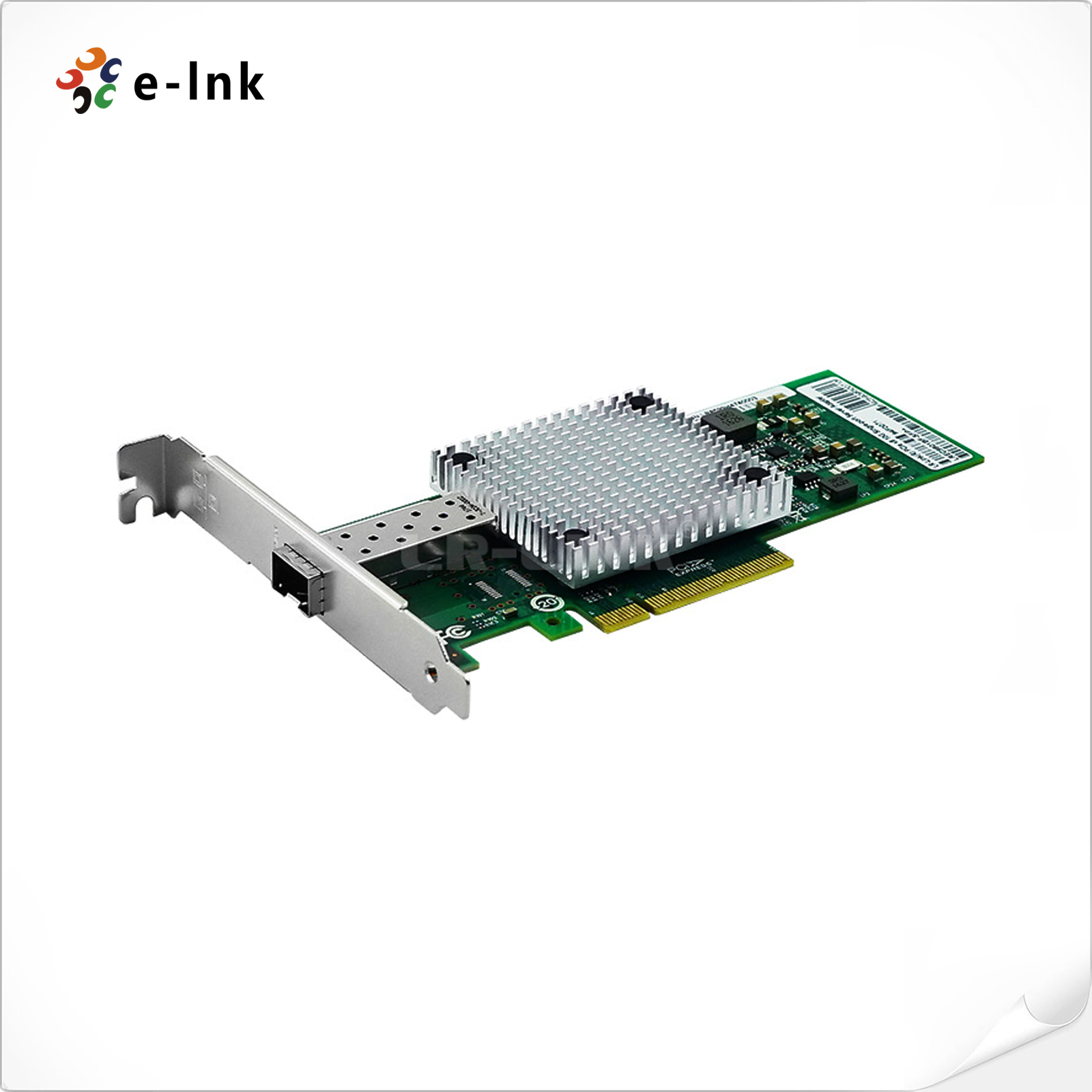

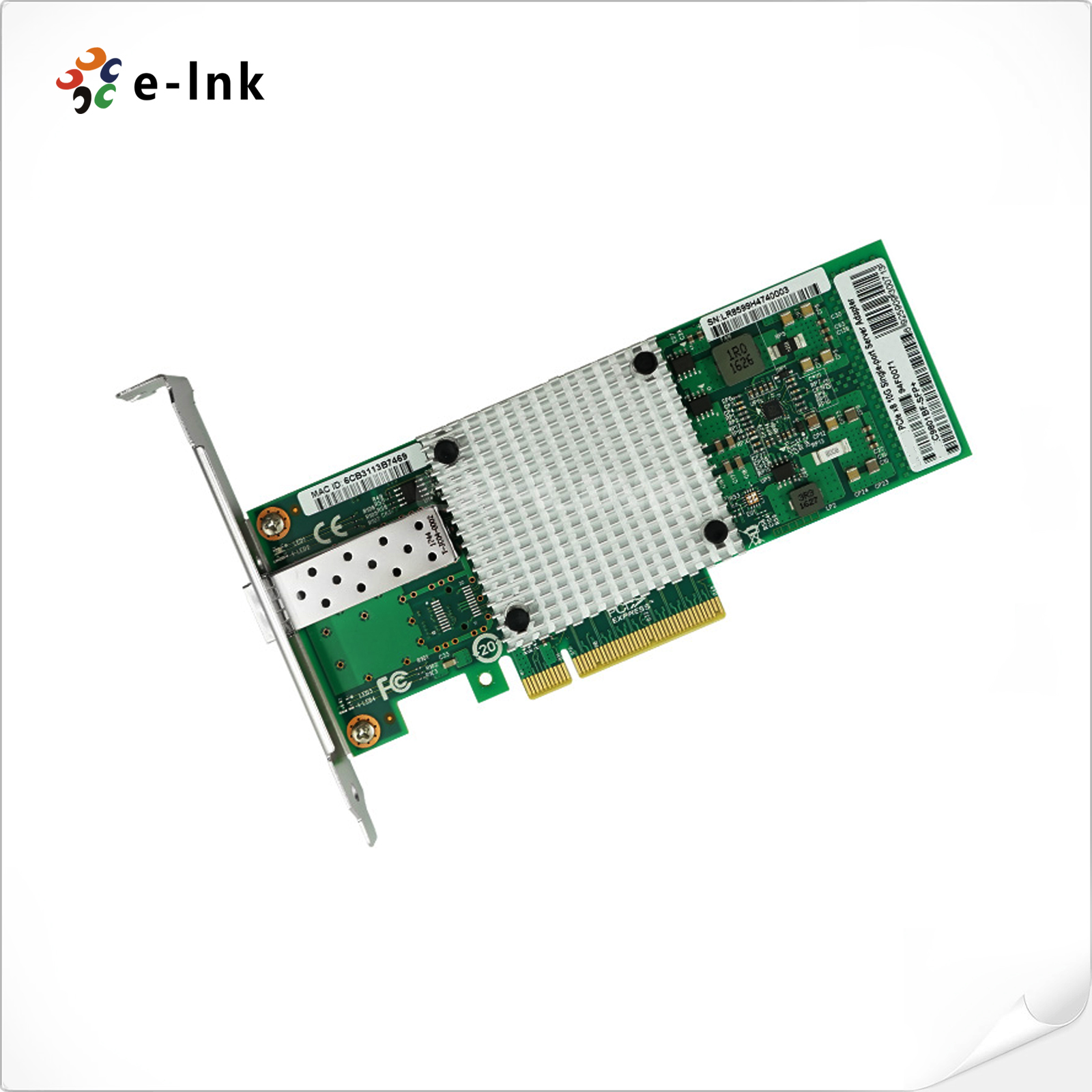

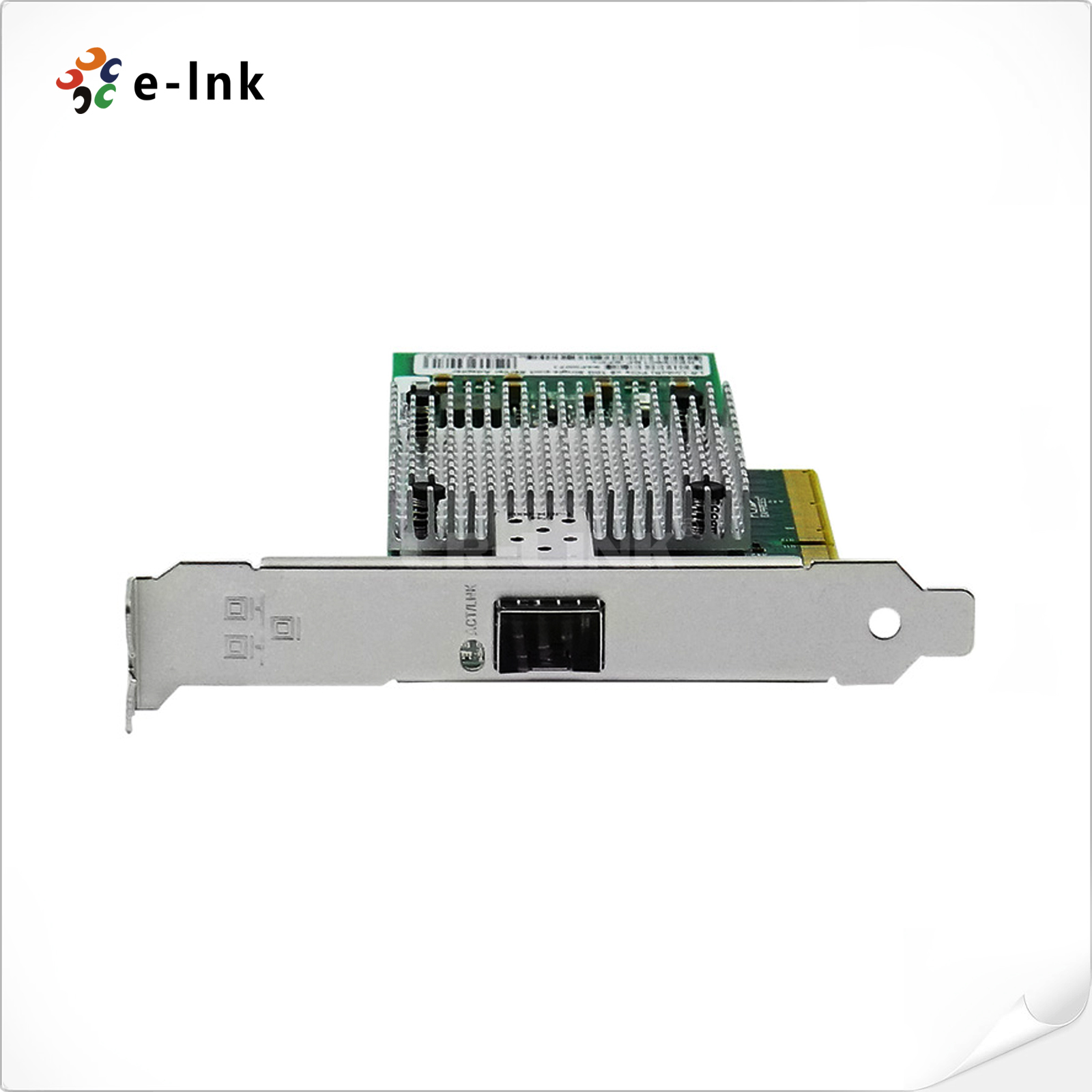

PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)
Model:LNK-C9801BF-SFP+10G
► General Intel® 82599 10 Gigabit Ethernet Controller
► PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes
► Industry standard SFP+ fiber port
► PXE, iSCSI remote boot support
Overview
LNK-C9801BF-SFP+10G Server Adapters with SFP+ connectivity is the most flexible and scalable ethernet adapters to meet the demands of today’s data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High-Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.
The design of this server adapter card is mainly for servers and high-end devices. The Server Adapter LNK-C9801BF-SFP+ Provides a number of hardware optimization features including I/O virtualization, and supports a unified network, transforming the data center with outstanding reliability, scalability, and mobility.
Feature
► General Intel® 82599 10 Gigabit Ethernet Controller
► PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes
► Industry standard SFP+ fiber port
► PXE, iSCSI remote boot support
► Network Virtualization
► Support IEEE 802.1Q VLAN

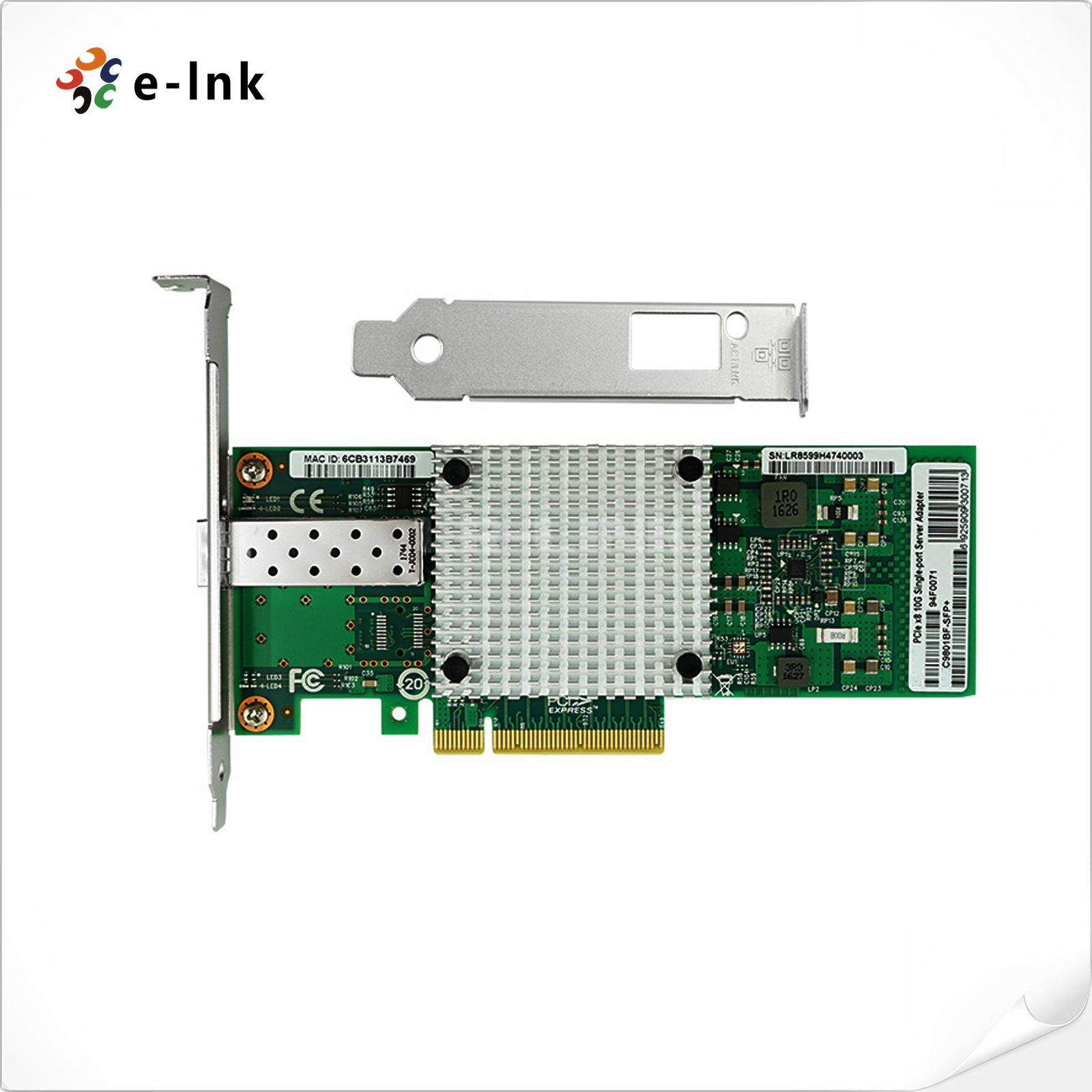

► Low profile and full-height bracket
► Load balancing on multiple CPUs
► Fiber Channel over Ethernet (FCoE) Support
► Support for most network operating systems (NOS)
► Intel® PROSet Utility for Windows* Device Manager
► Time Sync (IEEE 1588, 802.1as)
Specifications
|
Standards: |
IEEE 802.3u 100BASE-TX |
|
IEEE 802.3ab 1000BASE-T |
|
|
IEEE 802.3bz 2.5G/5GBASE-T |
|
|
IEEE 802.3an 10GBASE-T |
|
|
IEEE 802.3ae 10Gbps Ethernet |
|
|
IEEE 802.3x full-duplex flow control |
|
|
PCI-E 1.0 complaint |
|
|
NOS Software Support: |
Windows 7 32-bit (64-bit) |
|
Windows 8 32-bit (64-bit) |
|
|
Windows 8.1 32-bit (64-bit) |
|
|
Windows 10 32-bit (64-bit) |
|
|
Windows Server 2003 32-bit (64-bit) |
|
|
Windows Server 2008 32-bit (64-bit) |
|
|
Windows Server 2008 R2 32-bit (64-bit) |
|
|
Windows Server 2012 32-bit (64-bit) |
|
|
Windows Server 2012 R2 32-bit (64-bit) |
|
|
Linux kernel 2.6.30 or greater (x86_64) (w/ SR- IOV support) |
|
|
FreeBSD 7.2 or laster |
|
|
Linux RHEL 5.6 |
|
|
Linux RHEL 6.x |
|
|
Linux SLES 11 Sp1 |
|
|
Linux SLES 10 Sp4 |
|
|
OS Independent |
|
|
DOS NDIS 2 |
|
|
DOS ODI EFI 1.1 |
|
|
UEFI 2.1 |
|
|
Vmware ESX 4.02 |
|
|
Vmware ESX 4.02 |
|
|
VMware Workstation |
|
|
Controller: |
Intel 82599 |
|
Transmission rate |
10Gbe |
|
Network Virtualization |
FCoe, DPDK |
|
Interface |
|
|
Optical Port: |
1 x SFP+ Fiber (suitable for 10GBASE-SR, 10GBASE-LR,10G SFP+ Copper, 10G SFP+ DAC, 10G SFP+ AOC) |
|
LED Indicators |
|
|
Link/ACT |
LED: off = No Link; on = Link; Green Blinking = Activity |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-25°C to 70°C (-13°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Manageability Features |
|
|
l Preboot eXecution Environment (PXE) Support l Simple Network Management Protocol (SNMP) l Remote Network Monitoring (RMON) Statistic Counters l iSCSI Boot l Watchdog Timer |
|
|
Adapter Product Features |
|
|
l Intel® PROSet Utility l Plug and play specification support Receive Side Scaling l Direct Cache Access (DCA) |
|
|
Advanced Software Feature |
|
|
l Adapter fault tolerance (AFT) Switch fault tolerance (SFT) Adaptive load balancing (ALB) Teaming support l IEEE 802.3ad (link aggregation control protocol) PCIe Hot Plug*/Active Periphera Component Interconnect (PCI) l IEEE 802.1Q* VLANs l IEEE 802.3 2005* flow control support l Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol l (UDP), Internet protocol (IP) l IEEE 802.1p* l TCP segmentation large send offload l MSI-X supports Multiple Independent Queues Interrupt moderation l IPv6 offloading — Checksum and segmentation capability extended to new standard packet type |
|
- Download FileName：E-link LNK-C9801BF PCIE X8 10Gigabit 10Gbe 1XSFP+ Server Ethernet Adapter Datasheet V1.0.pdf Size： 1.59MB
Order Information
|
Model |
Description |
|
LNK-C9801BF-SFP+ |
Intel 82599 PCIe x8 10Gbps Single Port Fiber Server Adapter (1x SFP+), not including SFP+ modules |
