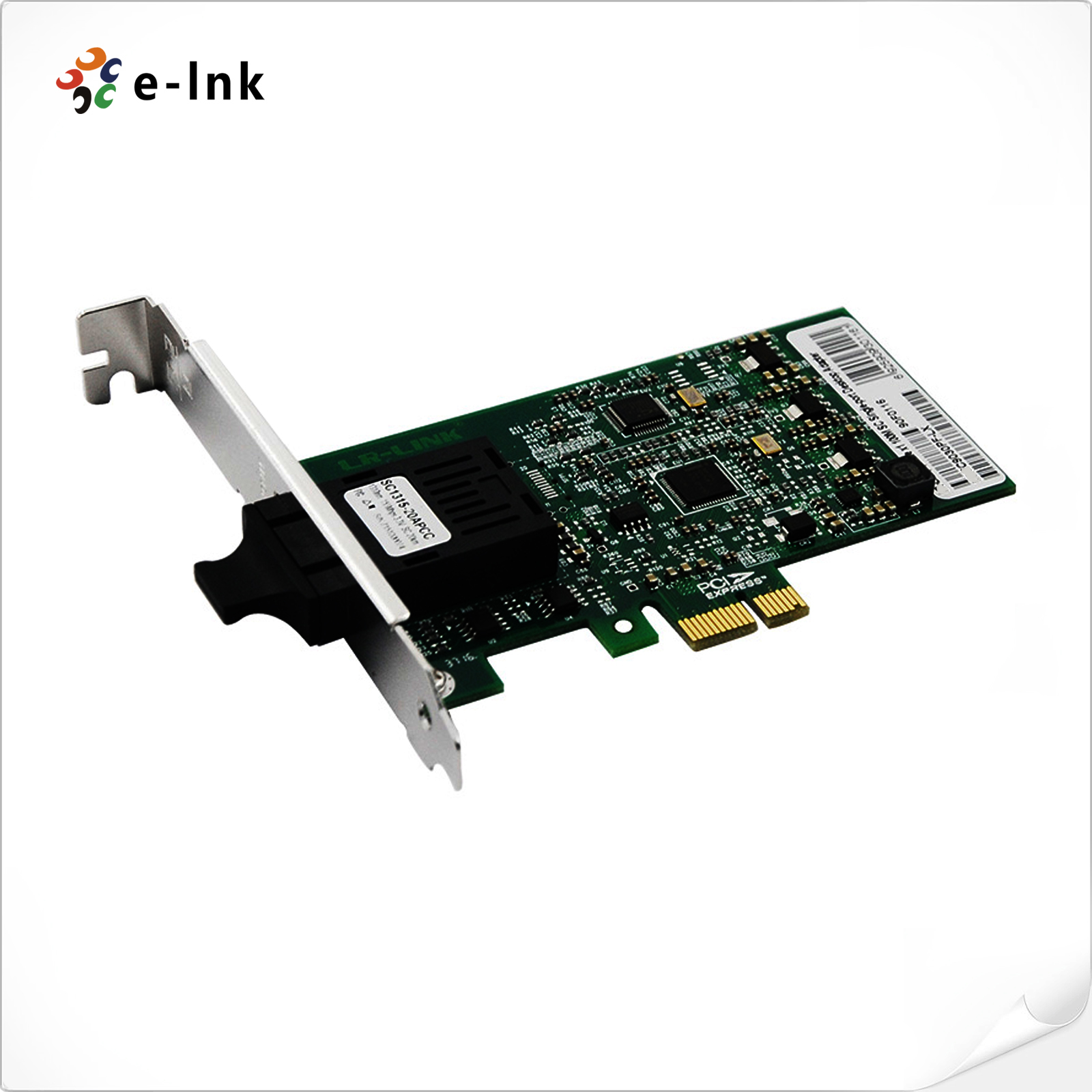

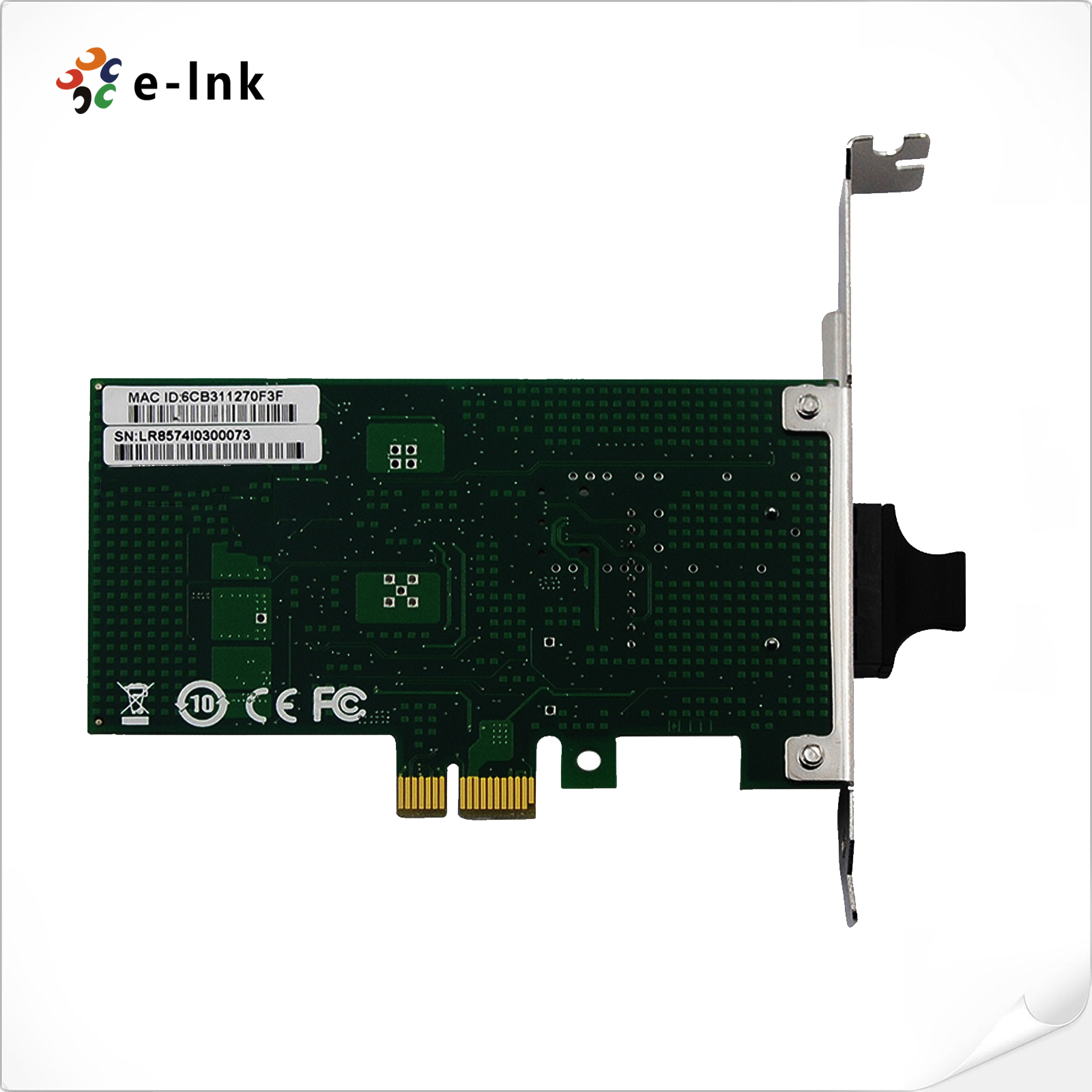

Fast Ethernet Fiber PCI-Express Network Adapters (Intel 82574 Based)
Model:LNK-C9030PF-LX
► PCIe (PCI-Express) x1 interface
► IEEE 802.1x flow control
► IEEE 802.1p-based traffic prioritization
► PXE (2.1) remote boot support
Overview
LNK-C9030PF-LX is a PCI-e bus 100Mbps fiber network card, designed for fiber-to-the-desktop networks that depend on secure and reliable systems. With 1x9 optical transceiver module, it can be matched with different fiber connector or optical transceiver module with different transmission distance according to the requirement of users. The network card can offer users reliable fiber- optic link on fast ethernet internet , particularly it is fit for places where distance of accessing to POI beyond string Cat 5e (>100m).It can completely replace the networking structure of that Ethernet card with RJ45 port connects externally optical transceiver .It can provide users with reliable FTTH and FTTD solutions. Users can select the optical interface parameters (including connectors, single- mode/ multi-mode fiber, working distance, etc) according to occasion.
Feature
► PCIe (PCI-Express) x1 interface
► IEEE 802.1x flow control
► IEEE 802.1p-based traffic prioritization
► PXE (2.1) remote boot support
► Plug and play
► PCI-E X1 compliant
► Available with LC, SC or ST fiber connections
► 100Mbps fast ethernet, Full duplex or half- duplex, reach 200Mbps in full duplex Support IEEE 802.3x flow control
► Support IP Unicast broadcast and multicast address filtering mechanism
► Support priority queue
► Support IEEE 802.1Q VLAN tagging
► Support IP multicast packet filter reduces host CPU use
Specifications
|
Standards: |
IEEE 802.3u Fast Ethernet |
|
IEEE 802.3u 100BASE-FX |
|
|
IEEE 802.3x Flow control auto-negotiation |
|
|
IEEE 802.1q VLAN tagging |
|
|
GVRP VLAN registration protocol |
|
|
IEEE 802.1p Quality of Service priority control |
|
|
PCI-E 1.0 complaint |
|
|
ACPI 2.0 power manage functions |
|
|
NOS Software Support: |
Windows 2000 |
|
Windows XP 32-bit (64-bit) |
|
|
Windows Server 2003 32-bit ( 64-bit) Windows Vista 32-bit (64-bit) |
|
|
Windows 7 32-bit (64-bit) |
|
|
Windows 8 32-bit (64-bit) |
|
|
Windows 10 32-bit (64-bit) |
|
|
Windows Server 2008 32-bit (64-bit) Windows Server 2008 R2 32-bit (64- bit) |
|
|
Windows Server 2012 32-bit (64-bit) DOS, Novell ODI |
|
|
Novell Netware 5.x, 6.x |
|
|
Linux 2.4 series kernel and 2.6.x, 3.x |
|
|
FreeBSD 7.x and later |
|
|
UnixWare / OpenUNIX 8 |
|
|
Sun Solaris x86 |
|
|
VMWare |
|
|
Controller: |
Intel 82574L |
|
Transmission rate |
100M |
|
Jumbo Frame Support: |
Up to 9.5 KB |
|
Network Virtualization |
VXLAN, MACinUDP, NVGRE, IPinGRE |
|
Interface |
|
|
Connector: |
1x RJ45 |
|

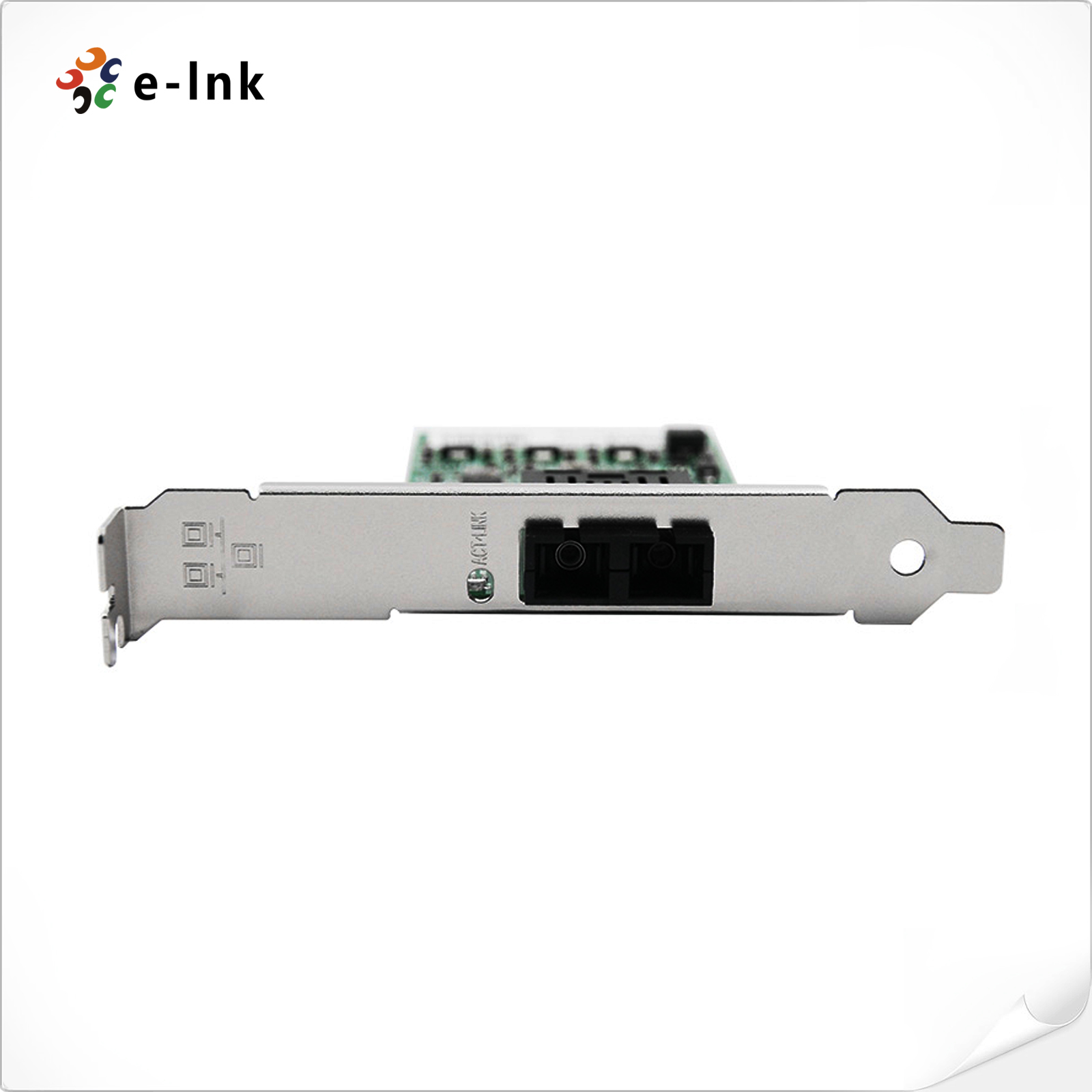

Optical Port: |
1 x 100M Fiber (SC (default), LC, ST, MT-RJ) |
|
LED Indicators |
|
|
Link/ACT |
Green Blinking:100M |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-25°C to 70°C (-13°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Advantages |
|
|
Use the 6-layer PCB, double copper thickness,5OZ heavy gold plate Optimize designation, improved the distribution line and integral network arrangement Use the high-power control Use the USA Marvell original photoelectric controller Improved the functions and quality |
|
- Download FileName：E-link LNK-C9030PF Fast Ethernet Fiber PCI-Express Network Adapters Datasheet V1.0.pdf Size： 1.69MB
Order Information
|
Model |
Description |
|
LNK-C9030PF-SFP |
Intel 82574L PCIe x1 100Base-FX Single Port SFP Fiber Desktop Adapter, not including SFP modules |
|
LNK-C9030PF |
Intel 82574L PCIe x1 100Base-FX Single Port SC Fiber Desktop Adapter, MM 2KM |
|
LNK-C9030PF-20 |
Intel 82574L PCIe x1 100Base-FX Single Port SC Fiber Desktop Adapter, SM 20KM |
|
LNK-C9030PF-20S |
Intel 82574LPCIe x1 100Base-LX Single Port BIDI SC Fiber Desktop Adapter, SM 20KM |
