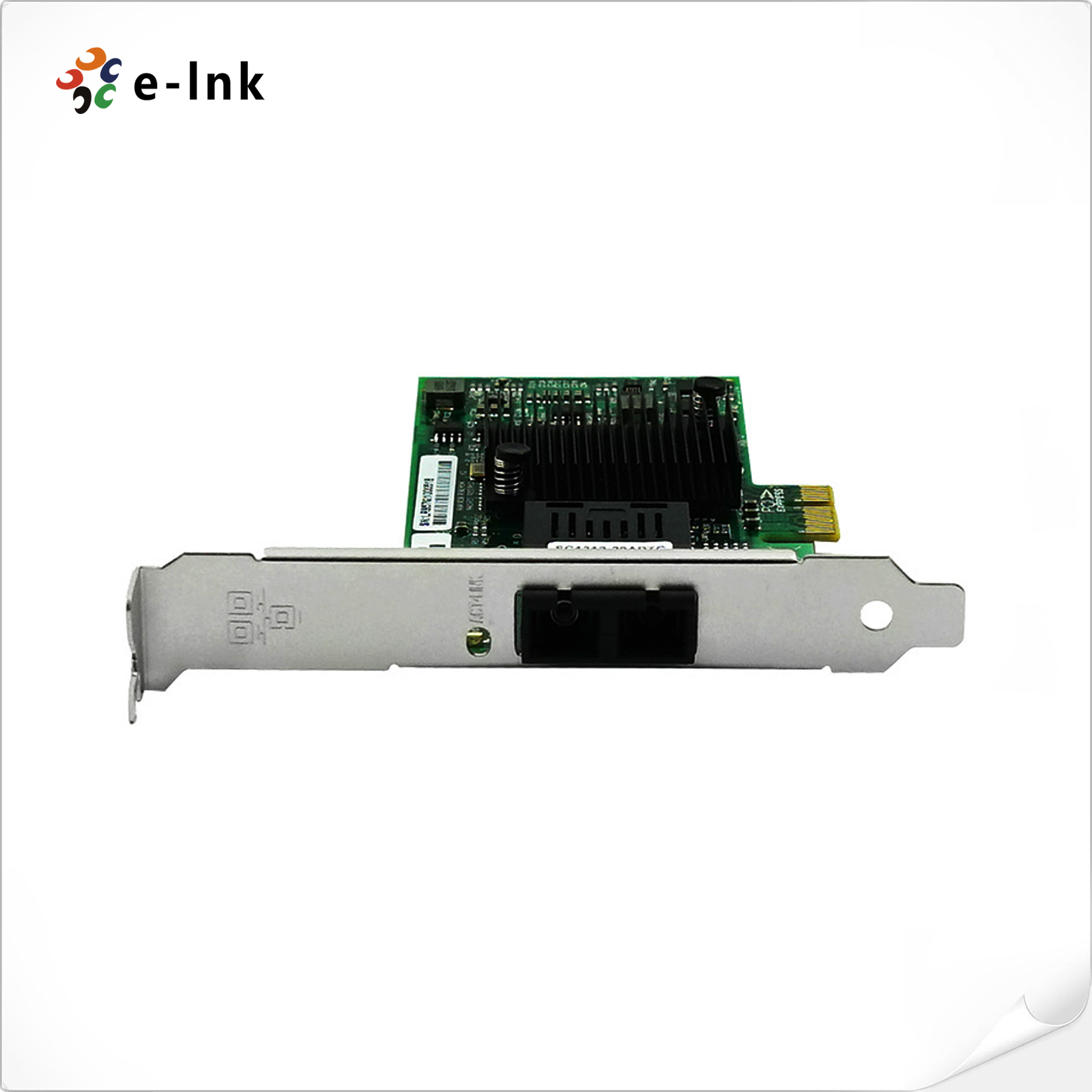

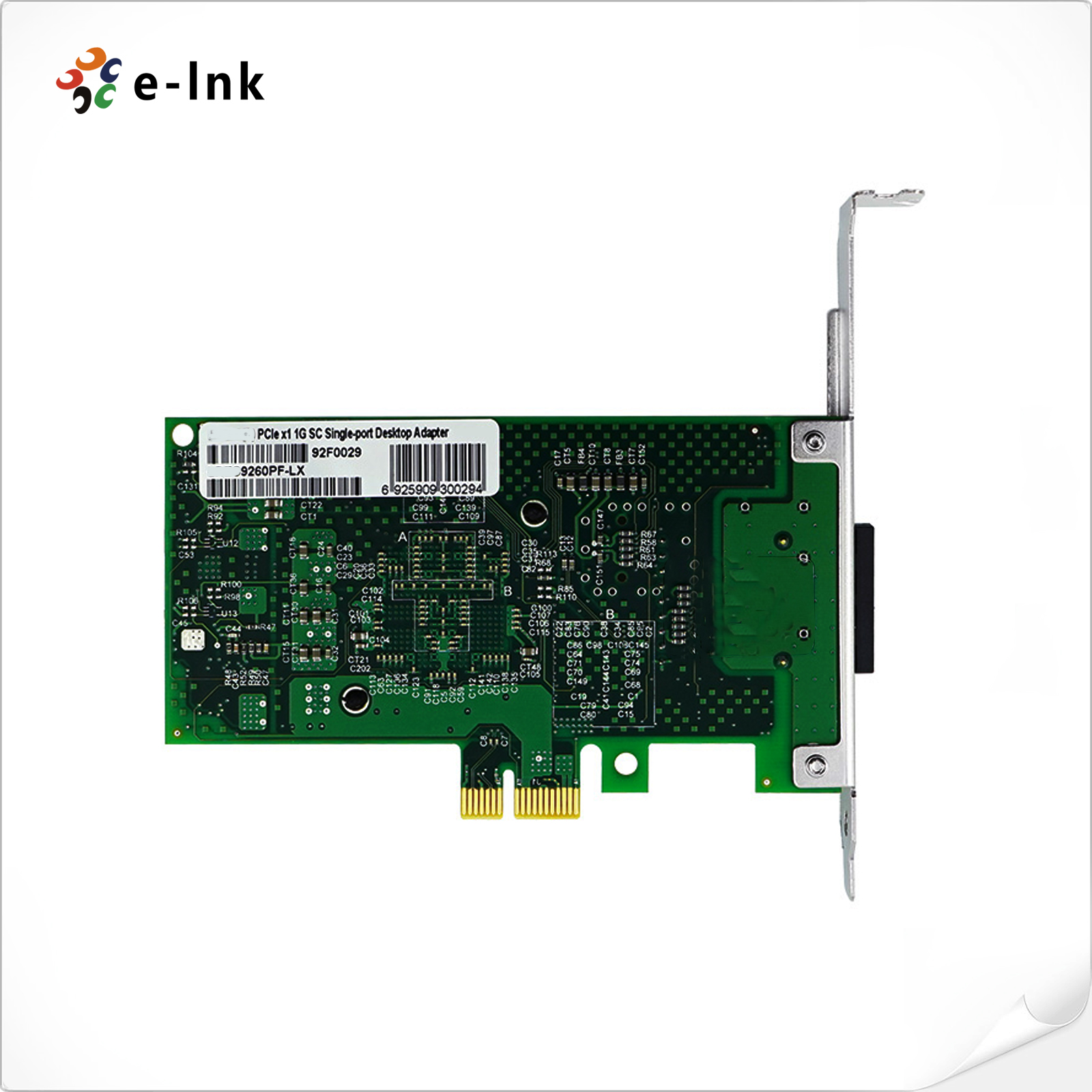

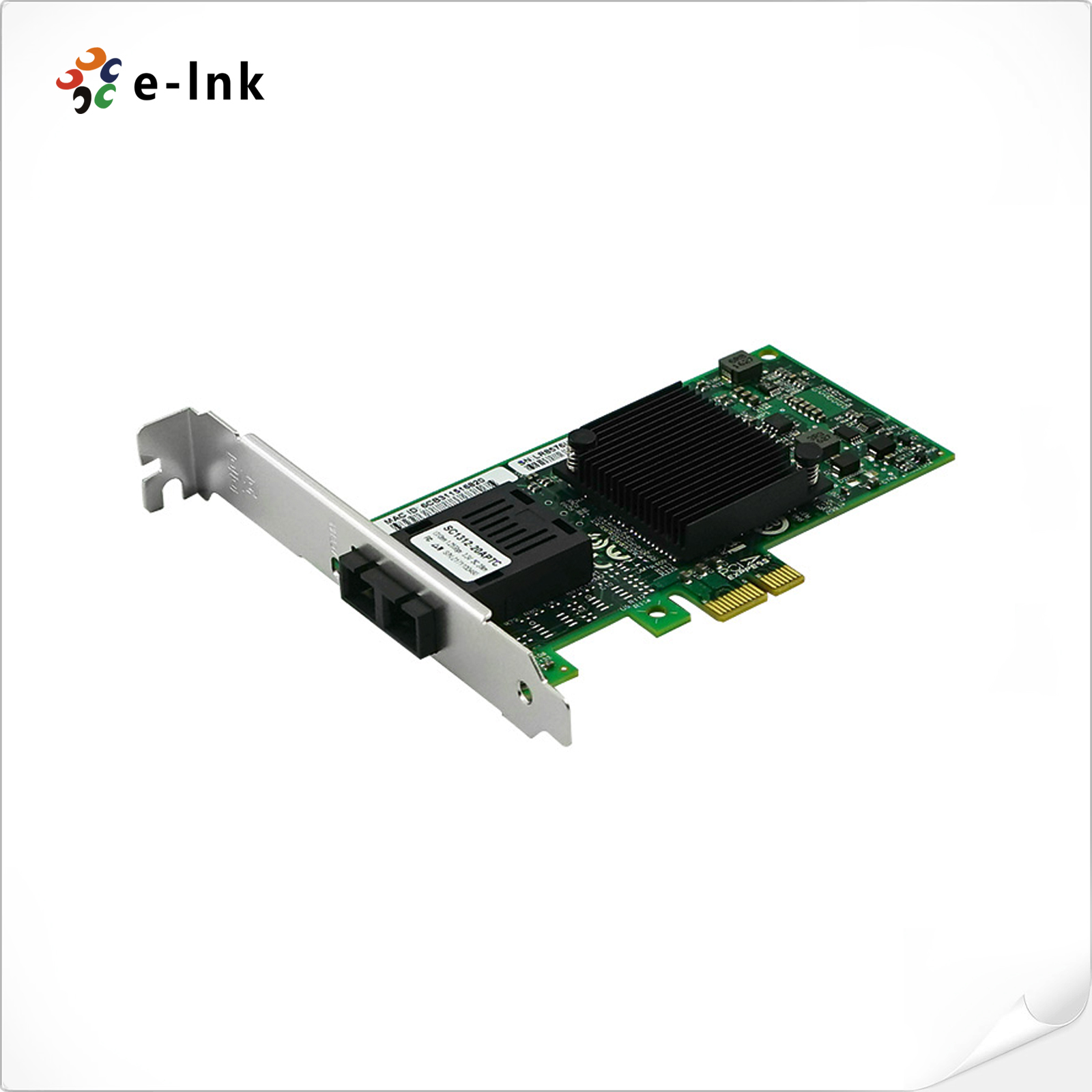

Gigabit Ethernet Fiber PCI-Express Network Adapters (Intel 82576 Based)
Model:LNK-C9030PF-LX
► PCIe (PCI-Express) x1 interface
► IEEE 802.1x flow control
► IEEE 802.1p-based traffic prioritization
► PXE (2.1) remote boot support
Overview
LNK-C9030PF-LX is a Gigabit PCI-e fiber network card, designed for fiber-to-the-desktop networks that depend on secure and reliable systems. LNK-C9260PF is a PCIe x1 1Gbps Single-Port Ethernet Fiber Desktop Adapter based on Intel 82576EB chipset. It is compatible with PCIe x8 and x16 slot and low-profile PCI Express slots. The adapter performance has been optimized while being designed to make system I/O no longer the bottleneck of network application. It can be grouped up together by other adapters to achieve fault tolerance as well as combine the communicating routing from the faulted port with others in the same group to guarantee its non-stop network communications. The Fiber Network Adapter with excellent noise immunity is applicable for Gigabit Ethernet Network. Its power supply has been changed into American TI high-efficiency supply management controller with low heat release, high efficiency and high stability.
Feature
► PCIe (PCI-Express) x1 interface
► IEEE 802.1x flow control
► IEEE 802.1p-based traffic prioritization
► PXE (2.1) remote boot support
► Plug and play
► Available with LC, SC or ST fiber connections
► Single-port 1000Mbps adapter
► PCI Express (PCIe) 2.0, 2.5 GT/s, x1 lane
► Network Virtualization
► ISCSI remote boot support
► Load balancing on multiple CPUs
► Support for most network operating systems (NOS)
► Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters
► Low profile and full -height Bracket
Specification
|
Standards: |
IEEE 802.3ab 1000BASE-T |
|
IEEE 802.3z 1000BASE-SX/LX |
|
|
IEEE 802.3x Flow control auto-negotiation |
|
|
IEEE 802.1q VLAN tagging |
|
|
GVRP VLAN registration protocol |
|
|
IEEE 802.1p Quality of Service priority control |
|
|
PCI-E 1.0 complaint |
|
|
ACPI 2.0 power manage functions |
|
|
NOS Software Support: |
Windows 2000 |
|
Windows XP 32-bit (64-bit) |
|
|
Windows Server 2003 32-bit ( 64-bit) Windows Vista 32-bit (64-bit) |
|
|
Windows 7 32-bit (64-bit) |
|
|
Windows 8 32-bit (64-bit) |
|
|
Windows 10 32-bit (64-bit) |
|
|
Windows Server 2008 32-bit (64-bit) Windows Server 2008 R2 32-bit (64- bit) |
|
|
Windows Server 2012 32-bit (64-bit) DOS, Novell ODI |
|
|
Novell Netware 5.x, 6.x |
|
|
Linux 2.4 series kernel and 2.6.x, 3.x |
|
|
FreeBSD 7.x and later |
|
|
UnixWare / OpenUNIX 8 |
|
|
Sun Solaris x86 |
|
|
VMWare |
|
|
Controller: |
Intel82576EB |
|
Transmission rate |
1000Mbps |
|
Jumbo Frame Support: |
Up to 9.5 KB |
|
Network Virtualization |
VXLAN, MACinUDP, NVGRE, IPinGRE |
|
Interface |
|
|
Connector: |
1x RJ45 |
|
Optical Port: |
1 x 1000M Fiber (SC (default), LC, ST, MT-RJ) |
|
LED Indicators |
|
|
Link/ACT |
1000Mbps/s:Link Green constant, ATC Yellow blink |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-25°C to 70°C (-13°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Advantages |
|
|
Use the 6-layer PCB, double copper thickness,5OZ heavy gold plate Optimize designation, improved the distribution line and integral network arrangement Use the high-power control Use the USA Marvell original photoelectric controller Improved the functions and quality |
|
- Download FileName：E-link LNK-C9260PF Gigabit Ethernet Fiber PCI-Express Network Adapters Datasheet V1.0.pdf Size： 1.8MB
Order Information
|
Model |
Description |
|
LNK-C9260PF-SFP |
Intel 82576EB PCIe x1 1000Base-X Single Port SFP Fiber Desktop Adapter, not including SFP modules |
|
LNK-C9260PF |
Intel 82576EB PCIe x1 1000Base-SX Single Port SC Fiber Desktop Adapter, MM 550m |
|
LNK-C9260PF-20 |
Intel 82576EB PCIe x1 1000Base-LX Single Port SC Fiber Desktop Adapter, SM 20km |
|
LNK-C9260PF-20S |
Intel 82576EB PCIe x1 1000Base-LX Single Port BIDI SC Fiber Desktop Adapter, SM 20km |
