► 9~48V input. Plug Play, no configuration
► IEEE 802.3at/at compliant
► Includes Passive Injector & Splitter Sides
► Works with all DC powered non-PoE devices
► Support10/100/1000M BASE-TX
► Ethernet Cable Data rate: 10/100/1000Mbps
► Input Voltage: 9V~ 48V
Overview

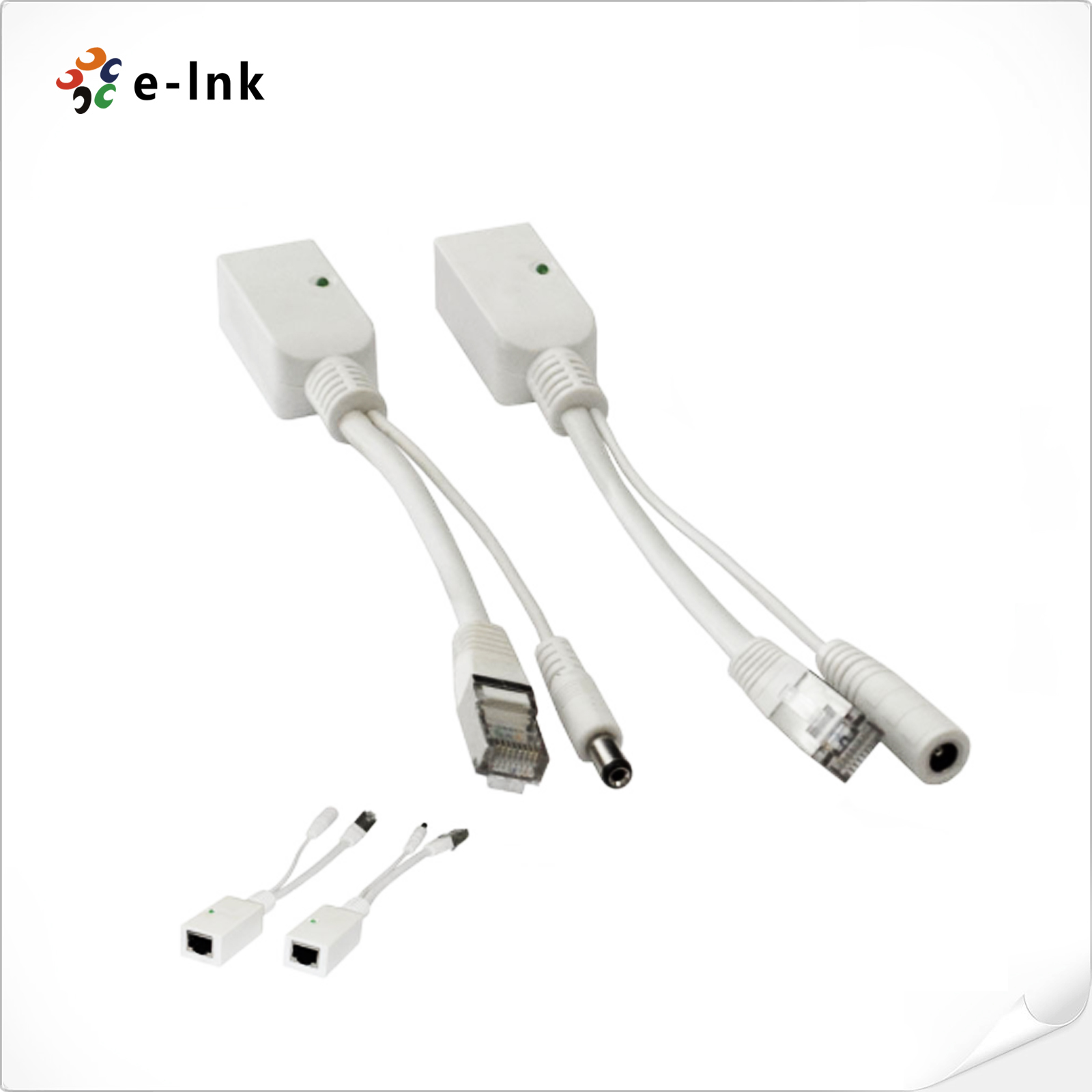

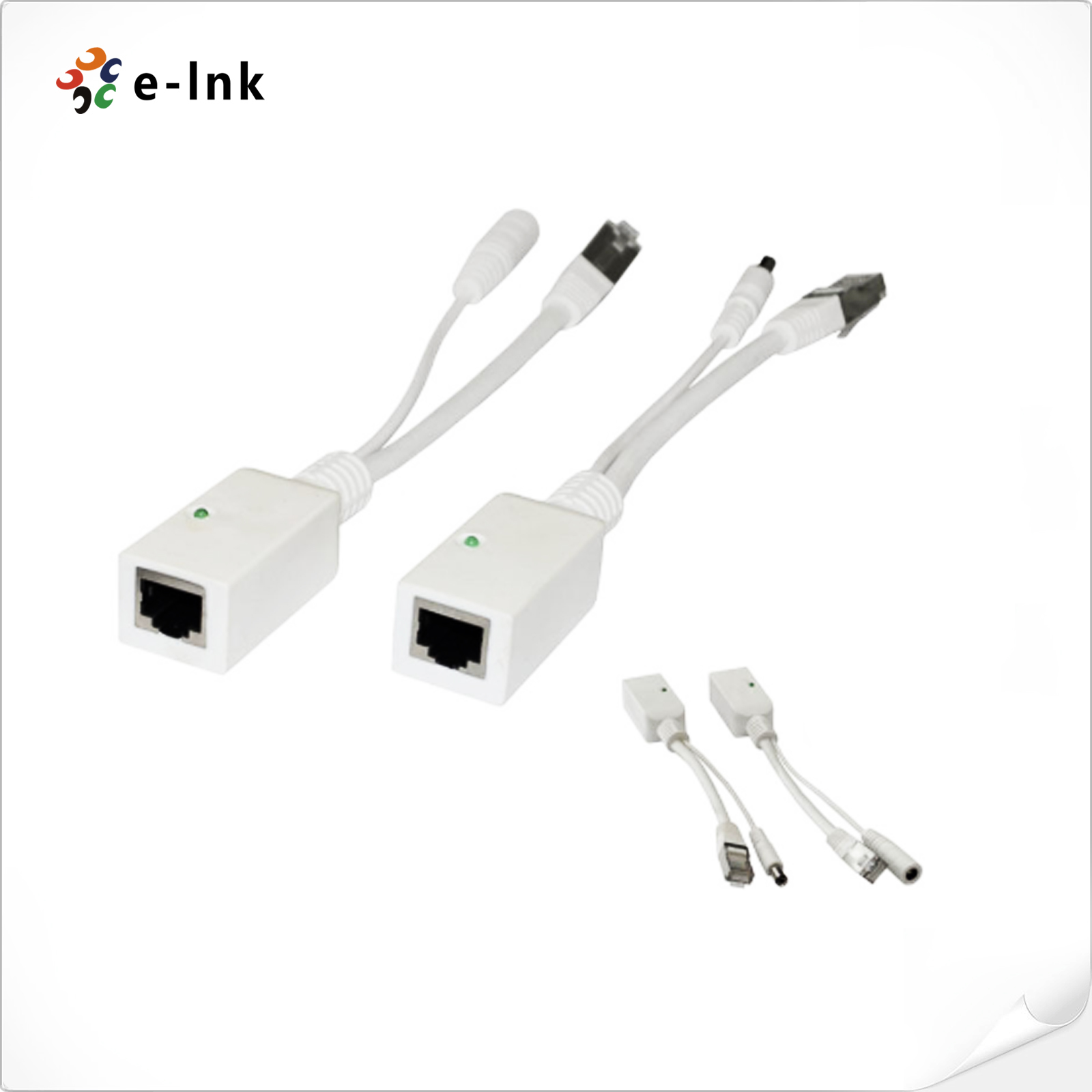

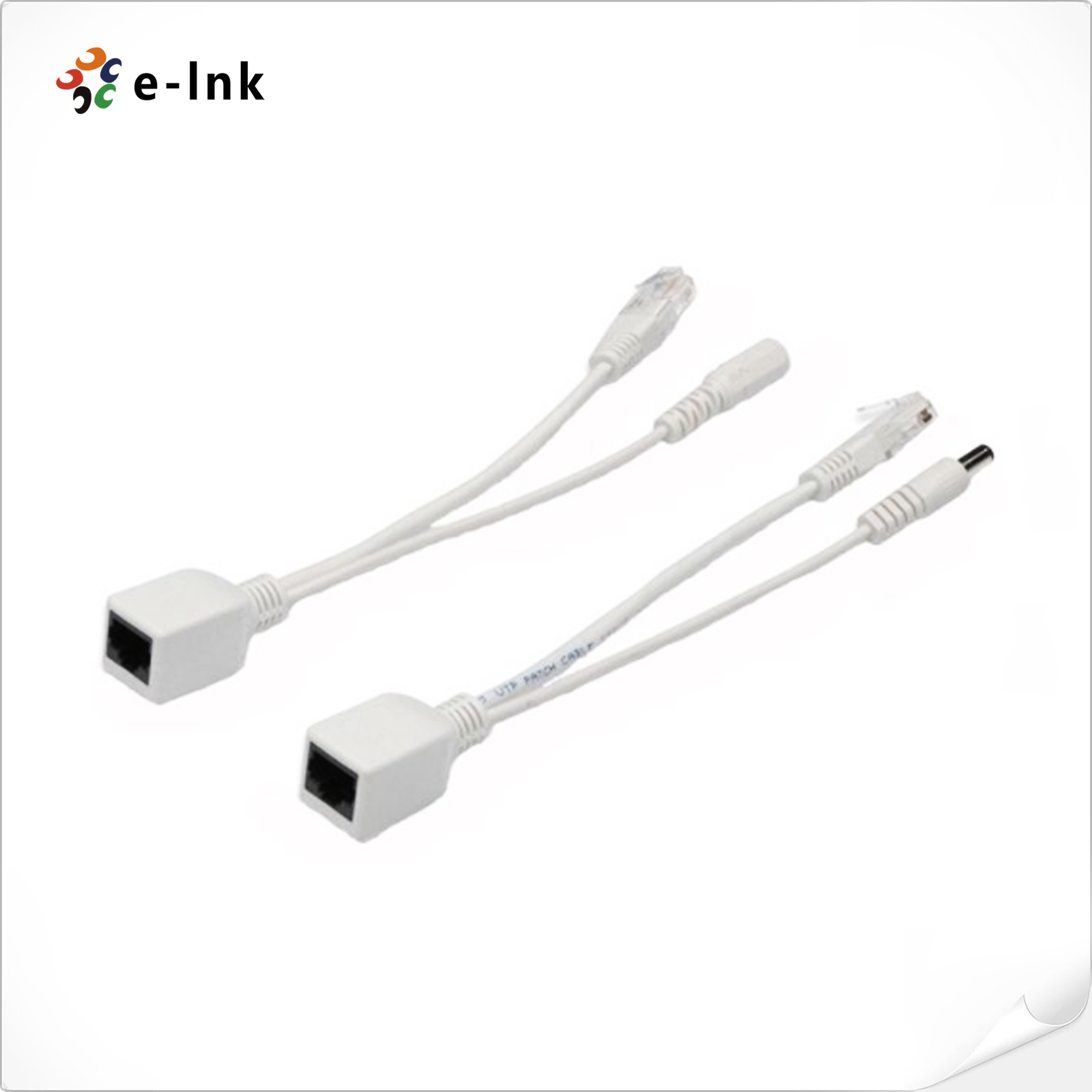

This LNK-POE2GP passive power-over-Ethernet (PoE) gigabit splitter and injector device are compliant with the IEEE 802.3af/at standard. It has 5.5 x 2.1 mm size DC connectors. It will also provide superior operation for 10 Mbps 10BASE-T and 100 Mbps 100BASE-TX in addition to the gigabit (1000 Mbps) 1000BASE-T operations. E-link engineers designed the internal wire construction with solid copper, 24 AWG wire. It utilizes shielded connectors with an internal drain wire. A green LED indicates presence of voltage.
Feature
► 9~48V input. Plug Play, no configuration.
► IEEE 802.3at/at compliant.

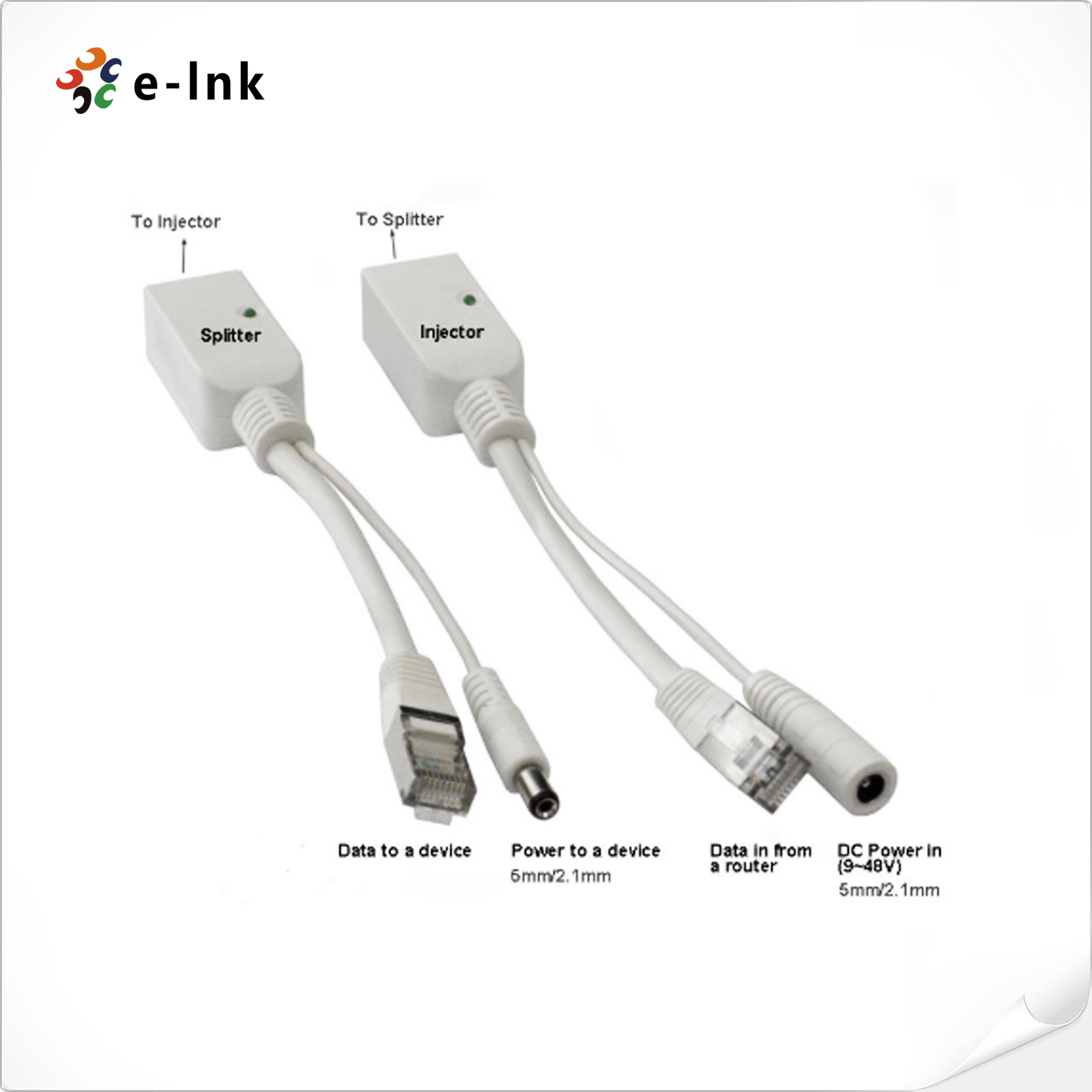

► Includes Passive Injector & Splitter Sides
► Works with all DC powered non-PoE devices
► Support10/100/1000M BASE-TX.
► Ethernet Cable Data rate: 10/100/1000Mbps.
► Input Voltage: 9V~ 48V.
► Power Jack: 2.1x5mm male.
► Power Plug: DC 2.1X5.5mm female.
► Easy to install PoE Application for AP, CPE, IP Camera, IP Phone
► Use the Power Supply from Powered Device
► Works up to 150 feet (depending on cable used and power draw of device)

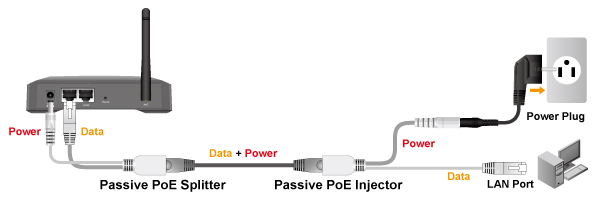

Application
Specifications
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX |
|
IEEE802.3ab 1000Base-T |
|
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
148,800pps (100Mbps) |
|
1,488,000pps (1000Mbps) |
|
Input Voltage |
9 to 48VDC +/- 5%, Maximum 56VDC |
Power Pin Assignment |
•Data provide over pairs 1/2(+) and 3/6(-) |
•Power over spare pairs 4/5(+) and 7/8(-) |
|
Ethernet Data Rate |
10/100/1000 Mbps *1000 Mbps - 1 Gigabit |
Maximum Output Current |
1A |
Over Current Protection |
Yes |
Ethernet Connectors |
Shielded with Internal Drain Wire |
Internal Wire Size |
24 AWG Solid Copper |
DC Connector Size |
5.5 x 2.1 mm |
LED |
Green Indicating Voltage Present |
Housing Material |
ABS |
Dimensions |
Length = 8 inches (20.3 cm) |
Weight: |
96 grams (3.3 ounces) |
Operating Temperature: |
0°C to 45°C (-32°F to 113°F) |
Storage Temperature: |
-30°C to 70°C (-22°F to 158°F) |
Relative Humidity: |
5% to 90% non-condensing |
Order Information
Model |
Description |
LNK-POE-2GP |
Gigabit 10/100/1000 802.3af/at Passive Power-over-Ethernet (PoE) Injector - Splitter Mid-Span Kit with 5.5 mm x 2.1 mm Size DC Connectors |
