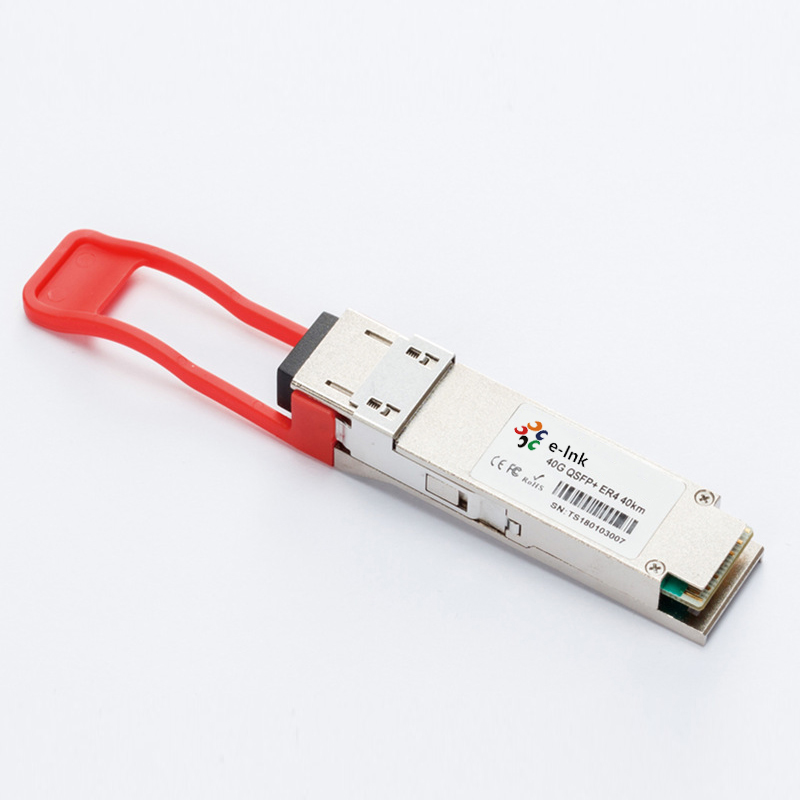

40G 40km QSFP+ Transceiver Duplex LC Singlemode

Model:

The LNK-QSFP-ER4 is a transceiver module designed for 40km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

Features:


  1. CWDM lanes MUX/DEMUX design
  2. Up to 11.2Gbps per channel bandwidth
  3. Aggregate bandwidth of > 40Gbps
  4. Duplex LC connector

  5. Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard

  6. QSFP MSA compliant
  7. Up to40km transmission
  8. Compliant with QDR/DDR Infiniband data rates
  9. Built-in digital diagnostic functions
  10. Temperature range 0°C to 70°C
  11. RoHS Compliant Part



  1. Rack to rack
  2. Data centers Switches and Routers
  3. Metro networks
  4. Switches and Routers
  5. 40G BASE-ER4 Ethernet Links


The LNK-QSFP-ER4 is a transceiver module designed for 40km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

  • Download FileName:E-link 40GBASE-ER4 QSFP+ 1310nm 40km LC DDM Transceiver Datasheet V1.0.pdf Size: 1.64MB
