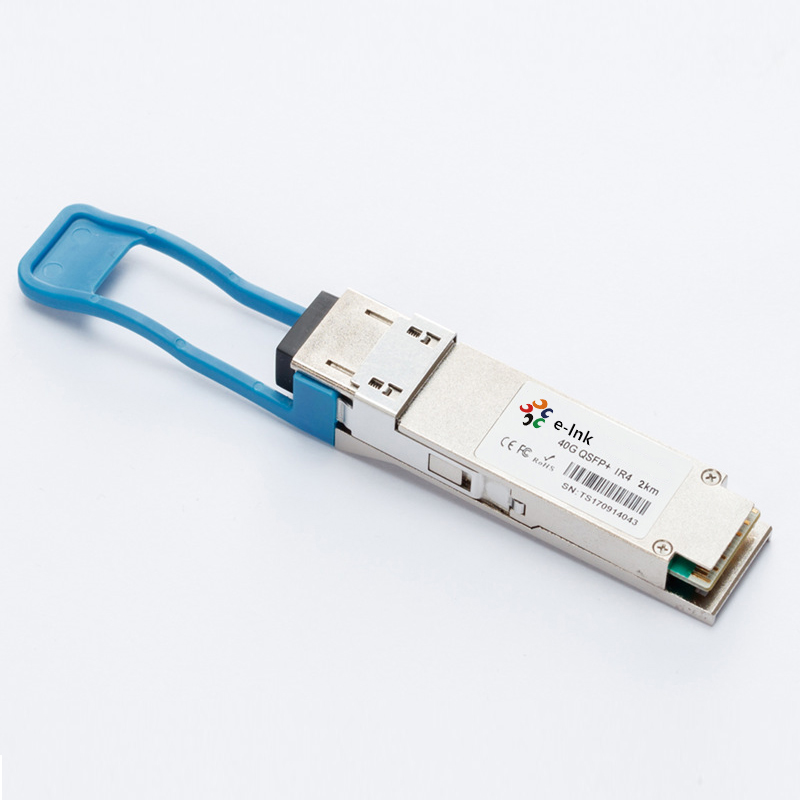

40Gb/s 2 KM QSFP+ Transceiver

Model:

Description


LNK-QSFP-IR4 is a transceiver module designed for 2km optical communication applications. The design is compliant to 40GBASE-IR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.

LNK-QSFP-IR4 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

Features

4 CWDM lanes MUX/DEMUX design

Up to 11.2Gbps per channel bandwidth

 Aggregate bandwidth of > 40Gbps

 Duplex LC connector

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-IR4 Standard

QSFP MSA compliant

Up to 2km transmission

Compliant with QDR/DDR Infiniband data rates

Single +3.3V power supply operating

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant Part


Applications

Rack to rack

Data centers Switches and Routers

Metro networks

Switches and Routers

40G BASE-LR4 Ethernet Links


  • Download FileName:E-link 40GBASE-IR4 QSFP+ 1310nm 2km Duplex LC Transceiver Datasheet V1.0.pdf Size: 2.19MB
Model
Description
LNK-QSFP-IR4
40G QSFP+ 1310nm 2km IR4 LC
