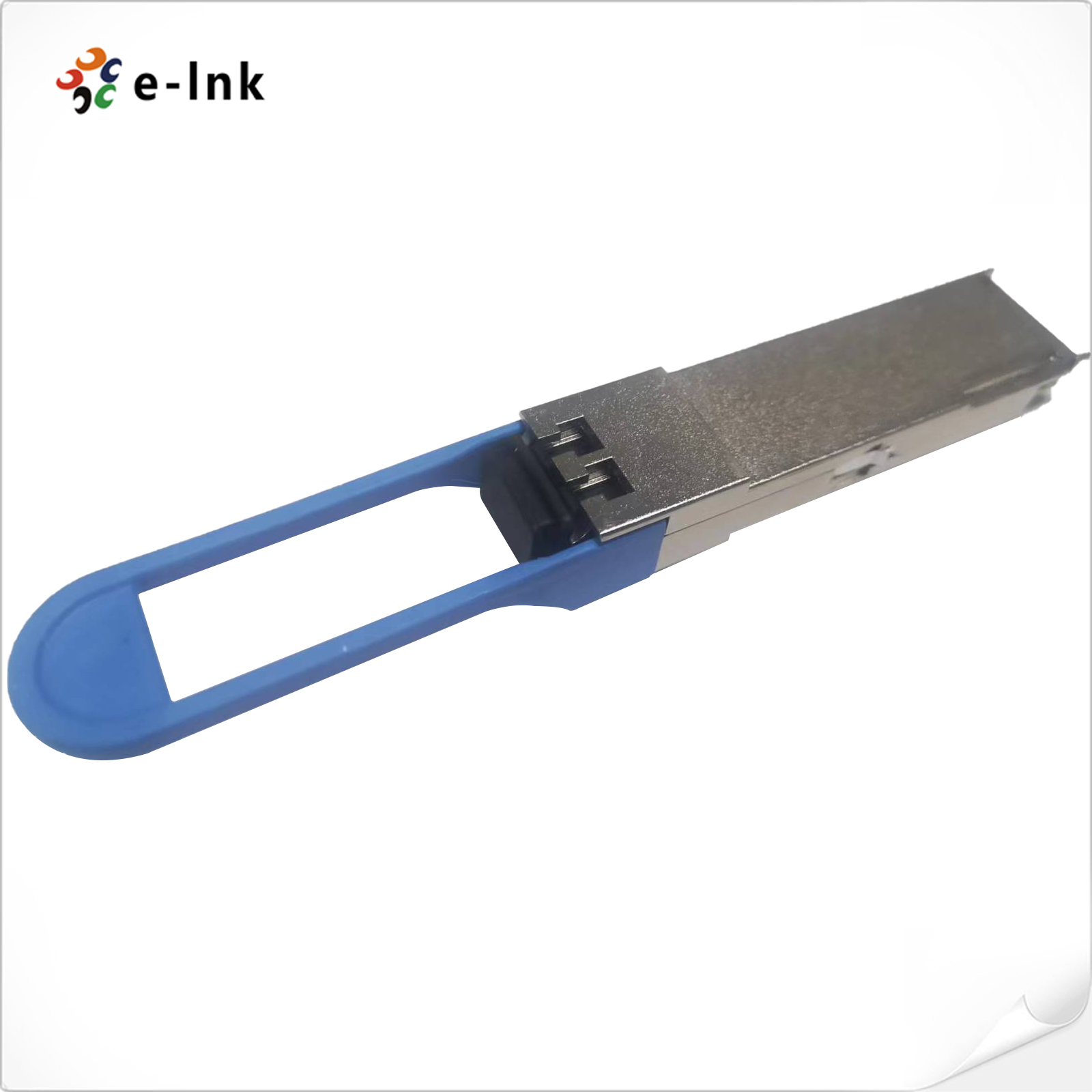

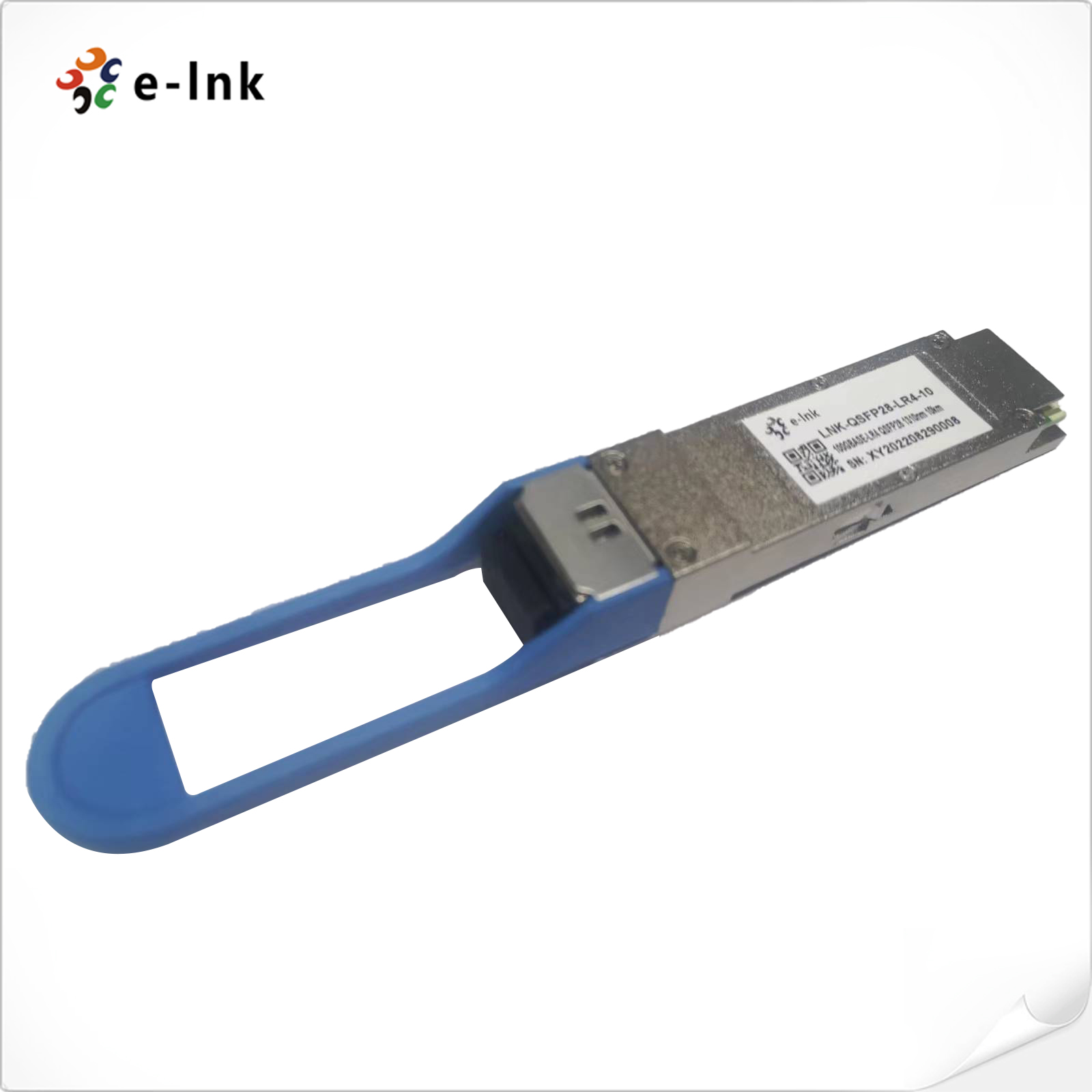

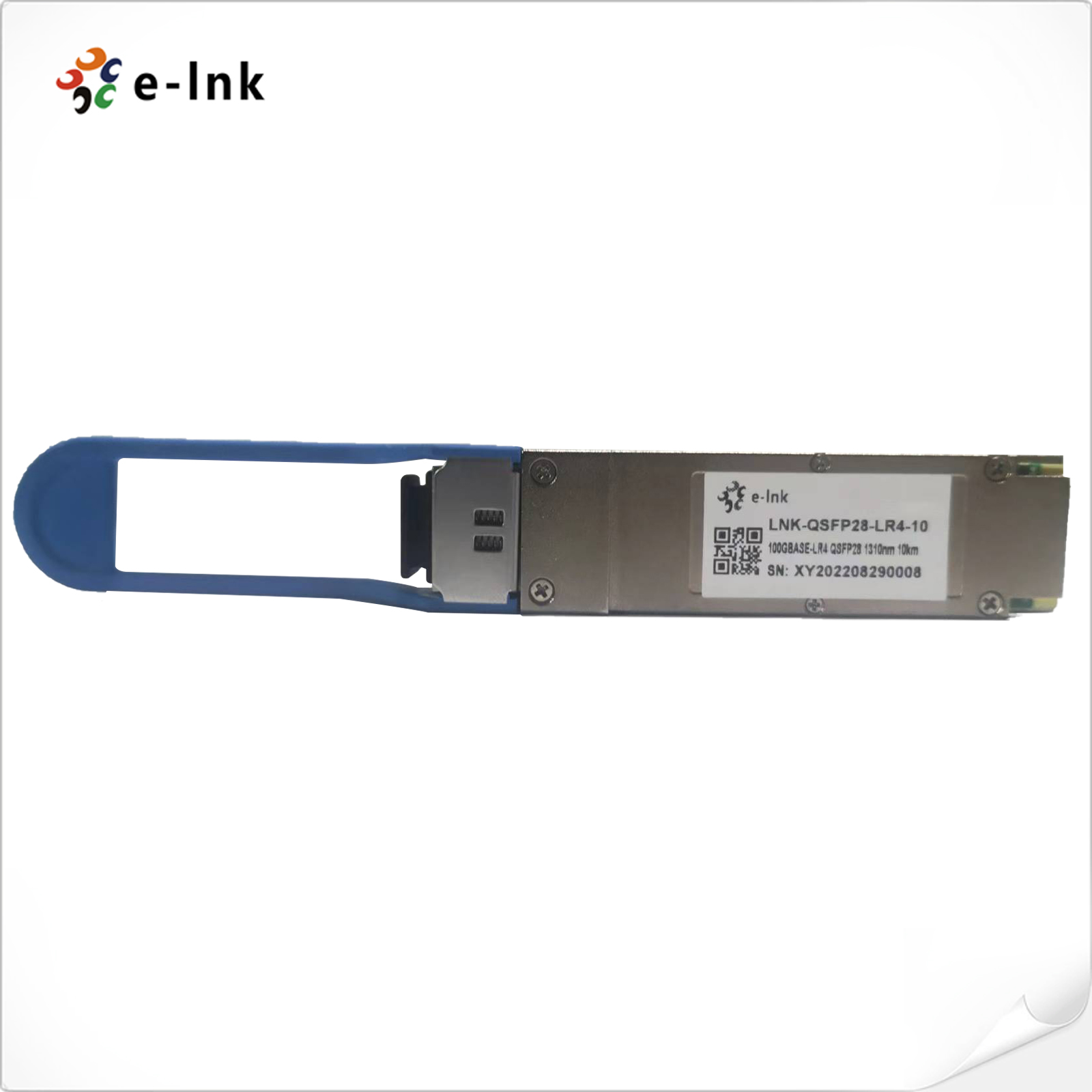

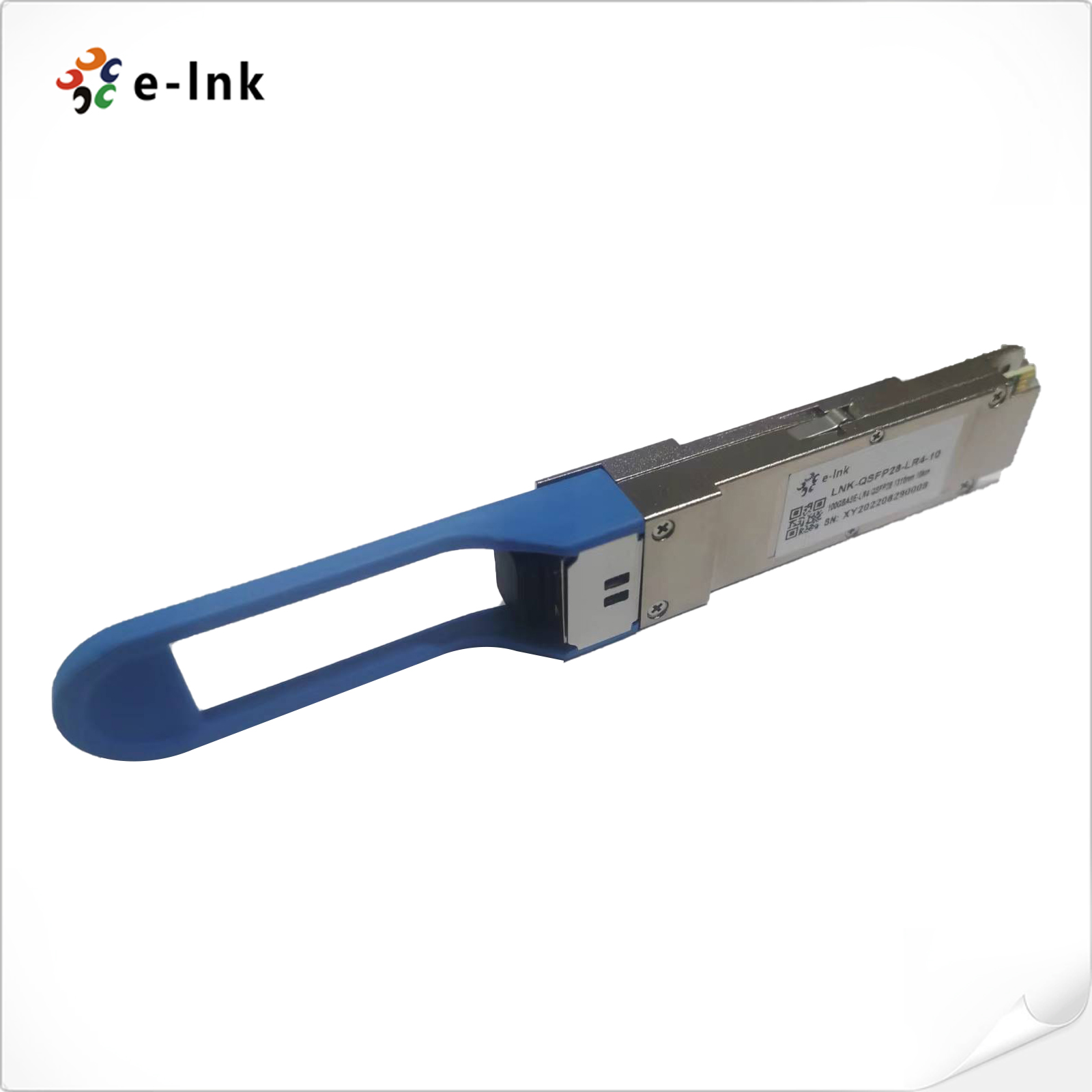

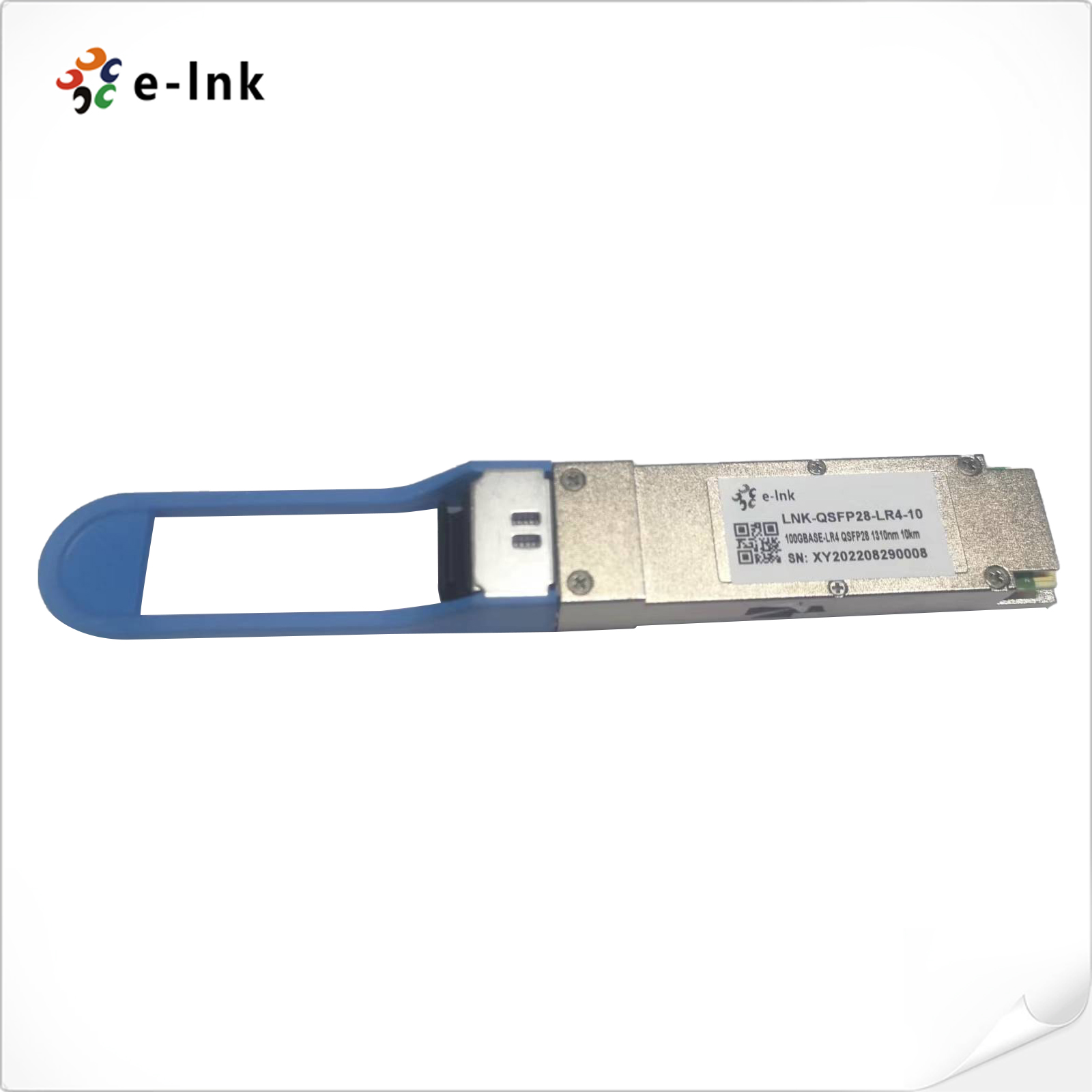

100G QSFP28 1310nm 10km LR4 LC CWDM4 SFP Module Optical Transceiver

Model:LNK-QSFP28-LR4-10C

►   4 lanes MUX/DEMUX design

►   Integrated CWDM TOSA / ROSA for up to 10 km reach over SMF

►   Support 100GBASE-CWDM4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

►   Aggregate bandwidth of >100Gbps

►   Duplex LC connectors

Overview


The LNK-QSFP28-100GB-LR4-10KM-C is a transceiver module designed for 10km optical communication applications. The design is compliant to 100GbASE-LR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard. The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.


The central wavelengths of the 4 lanes are 1270 nm, 1290 nm, 1310 nm and 1330nm. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.


The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.


The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.


The LNK-QSFP28-100GB-LR4-10KM-C is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.


Feature


►   4 lanes MUX/DEMUX design

►   Integrated CWDM TOSA / ROSA for up to 10 km reach over SMF

►   Support 100GBASE-CWDM4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

►   Aggregate bandwidth of >100Gbps

►   Duplex LC connectors

►   Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard

►   Single +3.3V power supply operating

►   Built-in digital diagnostic functions

►   Temperature range 0°C to 70°C

►   RoHS Compliant Part


Application


►   Local Area Network (LAN)

►   Wide Area Network (WAN)

►   Ethernet switches and router applications


Specification


The LNK-QSFP28-100GB-LR4-10KM-C is a transceiver module designed for 10km optical communication applications. The design is compliant to 100GbASE-LR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard. The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.


The central wavelengths of the 4 lanes are 1270 nm, 1290 nm, 1310 nm and 1330nm. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.


The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.


The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.


The LNK-QSFP28-100GB-LR4-10KM-C is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.


  • Download FileName:E-link 100G QSFP28 CWDM4 10km Transceiver Datasheet V1.0.pdf Size: 2.28MB

Order Information


Part Number

Product Description

LNK-QSFP28-LR4-10C

100G QSFP28 1310nm 10km LR4 LC CWDM4
