14 Slots 2U Telephone Fiber Mux Rack

Model:LNK-PR14-2A

►   Provide two power supplies (AC 220V, or DC -48V), enabling the system can work under many operating environments;

►   Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;

Overview


LNK-PR14 is a kind of cost-effective telephone fiber mux rack (2U) widely used in the equipment room. Different types of module type telephone fiber mux developed by our company can be inserted into this rack, which total slots up to 14. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.


Feature


►   The configuration of active/standby power supply ensures uninterruptible operation of the system.

►   Provide two power supplies (AC 220V, or DC -48V), enabling the system can work under many operating environments;

►   Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;

►   Supports hot swapping;

►   Application module types: LNK-PCM01 (1Ch Telephone Fiber Mux)series and LNK-PCM02 (2Ch Telephone Fiber Mux) series

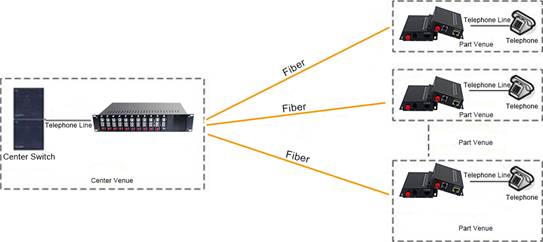

Application

Specification


Parameter

Specifications

Number of slots

14

Structure

2U rack

Dimension

90mm (H) x 485mm (W) x 230mm (D)

Power input

AC Voltage: AC 85~265V; frequency: 50/60 Hz



DC voltage: DC 36~72V

Power output

DC12V 10A

Ripple

≤20 mv

Power configuration

dual power supply for warm backup mode

LED indication

POWER (power supply)

Max power consumption

120W

Operating temperature

-10~55ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing


  • Download FileName:E-link LNK-PR14-2A Telephone Fiber Mux Rack Datasheet V1.0.pdf Size: 1.74MB

Order Information


Model

Description

LNK-PR14-2A

14-slot, dual power supply-AC220V-19''2U- black-for 1Ch or 2Ch telephone fiber mux standalone
