Overview

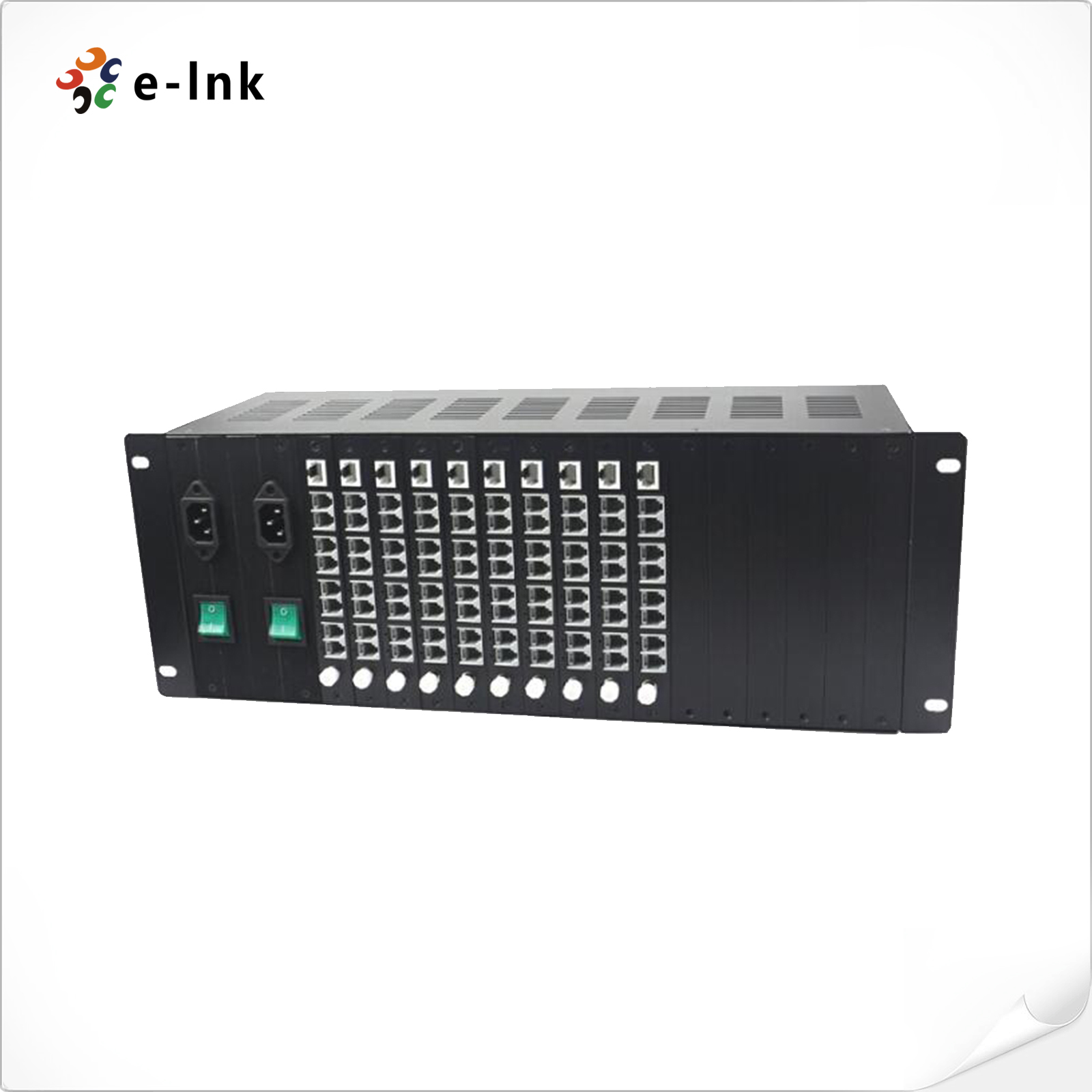

The LNK-PR-4U chassis can accommodate a combination of up to 16 pieces E-link card-type 4Ch or 8Ch telephone fiber mux modules. It makes your installation easier. The chassis employs a 110/220 VAC Switch Mode Power Supply(SMPS) design, which reduces the possibility of a single module failure causing a shutdown or a major failure of other modules within the chassis. The high reliability and stability ensures that if one module shuts down, the operation of the other modules remains unimpaired. 0ne or two air-cooling fans are installed inside to further strengthen the superior performance of the system and eliminate the necessity for periodic maintenance. Status information can be read through the LED indicators on the installed modules. All of the modules installed in the chassis are hot swappable, which makes it unnecessary to power-down the chassis when replacing modules.

Feature

►   The configuration of active/standby power supply ensures uninterruptible operation of the system.

►   Provide two power supplies, enabling the system can work under many operating environments;

►   Supporting simultaneous operation of 4Ch or 8Ch Card-type Telephone Fiber Mux, which greatly improves system adaptability;

►   Supports hot swapping

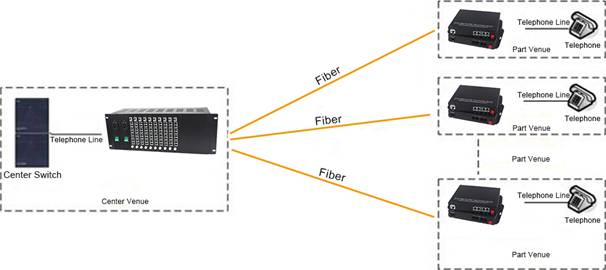

Application

Specification

• Download FileName：E-link LNK-PR16-2A Telephone Fiber Mux Rack Datasheet V1.0.pdf Size： 1.64MB

Order Information
