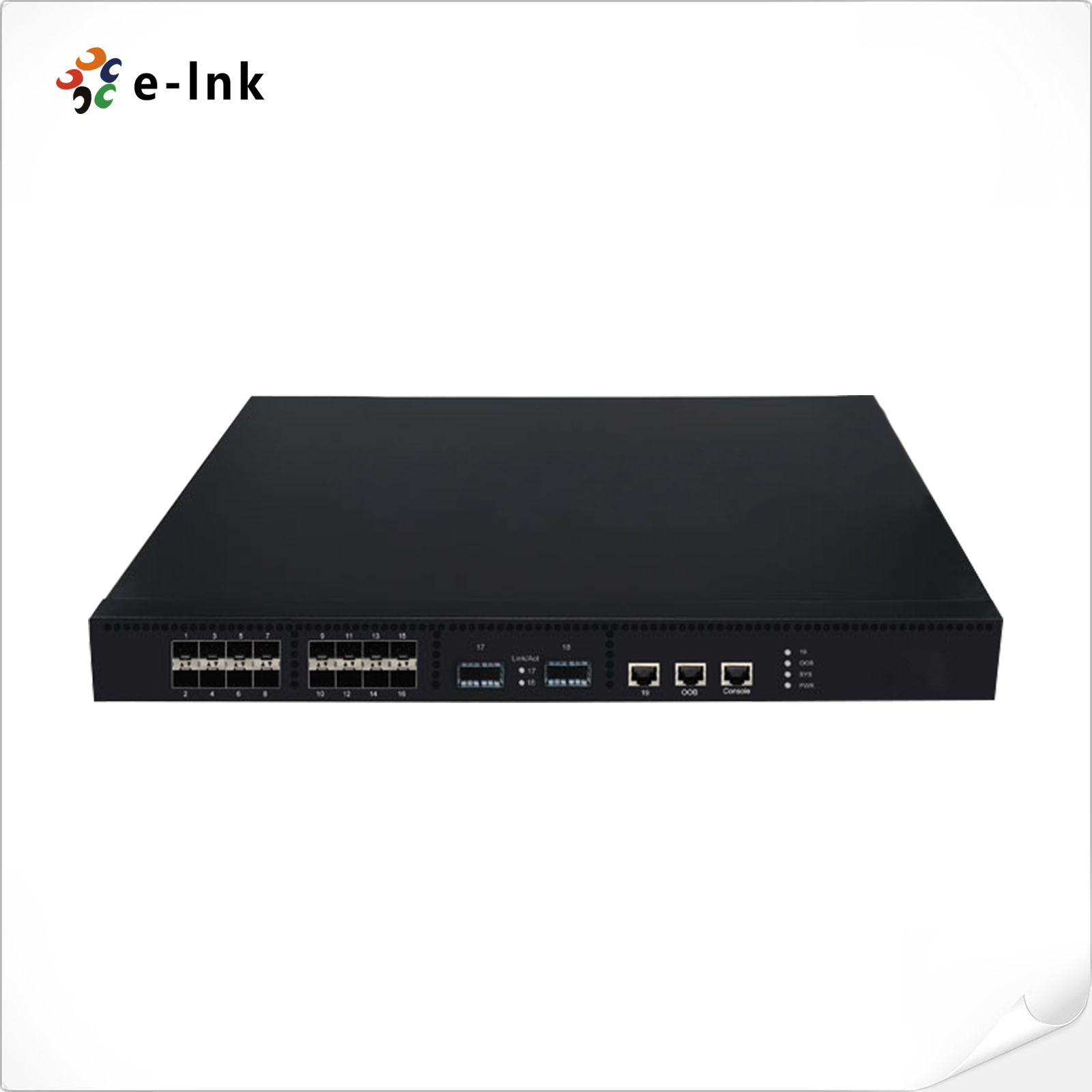

16x10G SFP Ports + 2x40G QSFP+ Ports L3 Managed Fiber Optic Switch

Model:LNK-FS1602HC

★ High density 10G access, performance is remarkable

★ Convenient Maintenance
★ Powerful Flow and Broadcast Management

★ Safe and Reliable

Overview

LNK-FS1602 Series is a 10 Gigabit data center switch. Providing 484Gbps switching capacity, the highest performance (1U TOR) in the industry. With 360.092Mpps forwarding performance, L2/ L3 full wire-speed forwarding. With the modular design, it provides 16*10G SFP+ optical ports, 2*40G QSFP+ port, 1 Console port, 1 10/100/1000M RJ45 port, 1*OOB port, which offers enough bandwidth for data aggregation and data exchange. And in order to flexibly respond to the network requirements, users can select appropriate, 10G ports according to their needs. 16+2 comes with high bandwidth and low latency, pipe network, this switch located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, or gathering.

Features

★ ★High density 10G access, performance is remarkable

(1) with484Gbpsbackplane capacity, the industry the highest performance (1U TOR);

(2) hardware routing, the packet forwarding rate of the wire speed layer 3 switching has reached360.092Mpps, L2 / L3 full speed forwarding;

(3) 16 10Gb optical ports, 2 40G QSFP+ port, the highest density (1U TOR), meet the demand of high-density 10G server access.


★ ★ Convenient Maintenance
(1) able to be managed via Web, SNMP,telnet, etc

(2) support XModem protocol, use TFTP/ZMODEM for software upgrading and BootRom upgrading

(3) support SFP+, simultaneously downward compatible XFP

(4) support flexible port configuration


★ ★  Powerful Flow and Broadcast Management
(1)automatically detect and control broadcast storm, support IGMP packets detection, effectively limit the flooding of broadcast packets.
(2)support Ethernet interface taking 1M as the step length for rate limiting


★ ★ Safe and Reliable
(1)provide DOS, DDOS, spoofing and virus defense
(2)support IEEE802.1x, provide port-based user authentication, network shield, safety control, and policy control technology
(3)restrict the maximum number of  hosts connected with the port, multi-binding Ethernet interface , increasing bandwidth and system redundancy

Technical Indexes

Product Model

LNK-FS1602HC

Fixed Port

16x10G SFP+ optical ports, 2x40G QSFP+ port, 1xConsole port, 1x10/100/1000M RJ45 electrical port, 1xOOB port

Console Port

1

Backplane bandwidth

484Gbps

Packet forwarding rate

360.092Mpps

Jumbo Frames

12k bytes

Transfer Mode

Support store-forward mode and cut-through mode

IPv4/IPv6 Route

512/256

Packet Buffer

4MB

VLAN ID

4K

Flash Memory Capacity

32M

Memory capacity

256MB

CPU

Single-Core 32-bit 600MHz MIPS

Software Specification

System configuration

Systerm setting

View software version, CPU utilization, memory utilization

Network settings

Configure device management address

User configuration

Configure user name and password

Log configuration

View and download logs

TELNET configuration

TELNET services enable, disable

HTTPS configuration

HTTP/HTTPS enabled, disabled

Diagnostic test

PING,TRACEROUTE

Port configuration

Physical port

Configure port rate, flow control mode, maximum frame length

Storm suppression

Configure broadcast, unknown multicast, unknown unicast rate

line rate

Configuration entry, exit rate, burst rate

Port Mirror

Supports up to 4 groups of images

Link aggregation

Supports up to 16 sets of static LACP, support dynamic LACP

Port isolation

Supports up to 8 groups of Uplink, Downlink isolation

Port Statistics



Two-layer configuration

VLAN configuration

Port mode, PVID, tag/untag list configuration, VLAN create

mac-vlan



protocol-vlan

Support based on ETHERII, SNAP, LLC frame type VLAN

voice-vlan



MAC configuration

Static MAC configuration, dynamic MAC query

MSTP configuration

Support STP, RSTP, MSTP (802.1s) three protocols

IGMP-snooping

Static multicast configuration

DHCP-snooping

Support static binding, ARP dynamic detection, IP source address check

ERPS-Ring configuration



GMRP configuration



Cyber security

Access control

Set the access rules for this device

Anti-attack settings

PING message discard, DOS attack, CPU receive packet rate setting

ACL settings

Based on MAC and IP ACL configuration, you can configure the ACL to take effect

Advanced configuration

QOS settings

Support SP, WRR, DRR scheduling configuration;

8 send queues per port mapping 802.1p 8 priority;

Support DSCP queue mapping;

LLDP settings



SNMP settings

Support SNMP v1, v2c, v3 version

System maintenance

Configuration file management

Configuration file view, upload, download

Save the configuration



Reboot the device



Reset



Online upgrade



Physical characteristics

Dimension (LxWxH)

440mm *285mm * 44mm

Power supply characteristics

AC:90V~290V

Power

≤110W

Indicator light

Power indication, system indication, connection / send and receive instructions

Ambient temperature / humidity

Operating temperature: 0 ° C ~ 50 ° C (0m ~ 1800m) Storage temperature: -40 ° C ~ +70 ° C, relative humidity: 5% RH ~ 95% RH, non-condensing

  • Download FileName:E-link L3 Managed 16-Port 10G+2x40G SFP Fiber Switch Datasheet V1.0.pdf Size: 766KB

Order Information

Model

Description



LNK-FS1602HC

L3 Managed Switch:16x10G SFP+ optical ports, 2x40G QSFP+ port, 1xConsole port, 1x10/100/1000M RJ45 electrical port, 1xOOB port
