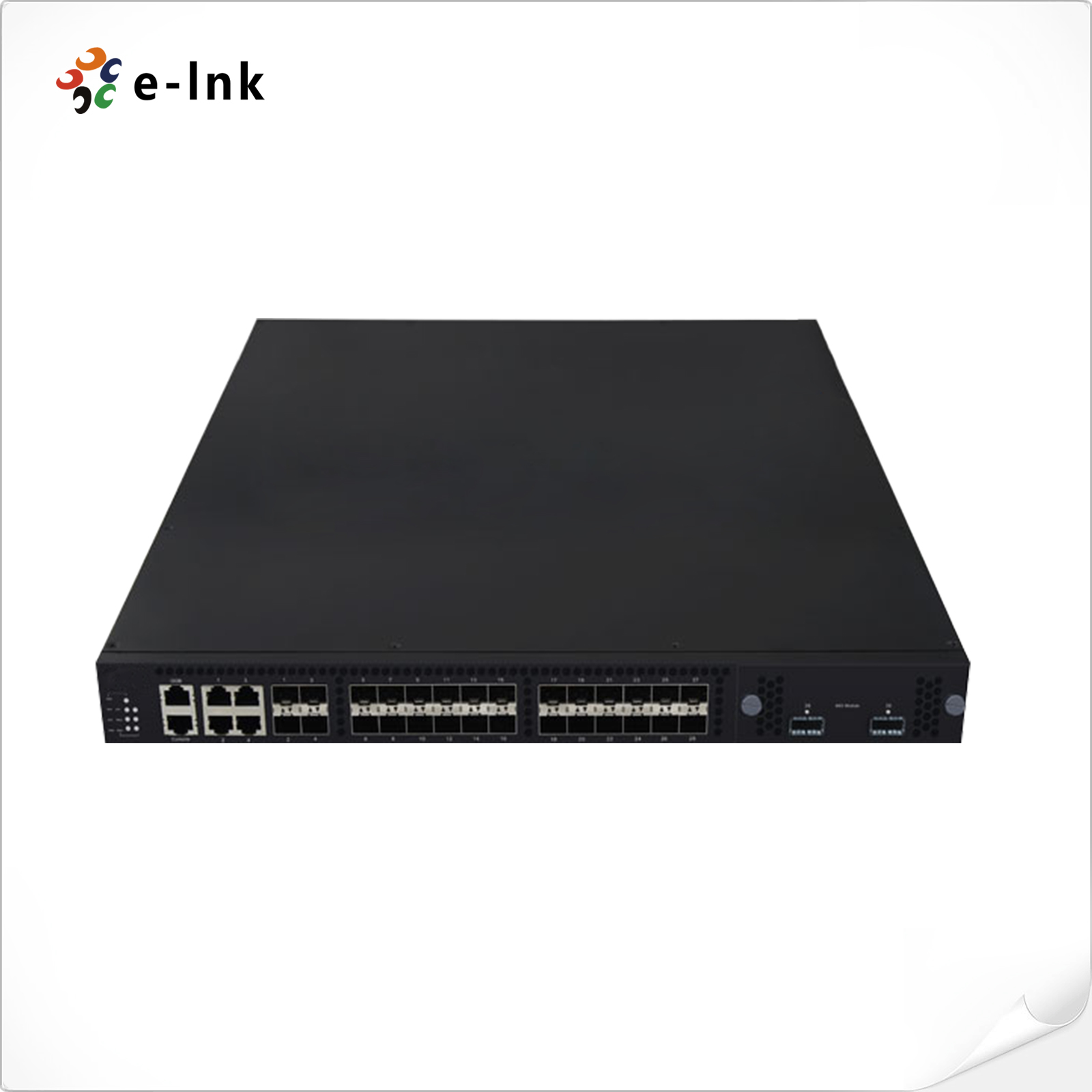

24x10G SFP Ports + 2x40G QSFP+ Ports L3 Managed Fiber Optic Switch

Model:LNK-FS2402HC

★ High density 10G access, performance is remarkable

★ Convenient Maintenance
★ Powerful Flow and Broadcast Management

★ Safe and Reliable

Overview


LNK-FS2402 Series is a 10 Gigabit data center switch. Providing 650Gbps switching capacity, the highest performance (1U TOR) in the industry. With 483.6Mpps forwarding performance, L2/ L3 full wire-speed forwarding. With the modular design, it provides 24*10G SFP+ optical ports, 2*40G QSFP+ port, 1*Console port, 4*10/100/1000M RJ45/SFP Combo port, 1*OOB port, which offers enough bandwidth for data aggregation and data exchange. And in order to flexibly respond to the network requirements, users can select appropriate, 10G ports according to their needs. LNKFS2402 comes with high bandwidth and low latency, pipe network, this switch located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, or gathering.


Features


★ ★High density 10G access, performance is remarkable

(1) with650Gbpsbackplane capacity, the industry the highest performance (1U TOR);

(2) hardware routing, the packet forwarding rate of the wire speed layer 3 switching has reached483.6Mpps, L2 / L3 full speed forwarding;

(3) 24 10Gb optical ports, 2 40G QSFP+ port, the highest density (1U TOR), meet the demand of high-density 10G server access.


★ ★ Convenient Maintenance
(1) able to be managed via Web, SNMP,telnet, etc

(2) support XModem protocol, use TFTP/ZMODEM for software upgrading and BootRom upgrading

(3) support SFP+, simultaneously downward compatible XFP

(4) support flexible port configuration


★ ★  Powerful Flow and Broadcast Management
(1)automatically detect and control broadcast storm, support IGMP packets detection, effectively limit the flooding of broadcast packets.
(2)support Ethernet interface taking 1M as the step length for rate limiting


★ ★ Safe and Reliable
(1)provide DOS, DDOS, spoofing and virus defense
(2)support IEEE802.1x, provide port-based user authentication, network shield, safety control, and policy control technology
(3)restrict the maximum number of  hosts connected with the port, multi-binding Ethernet interface , increasing bandwidth and system redundancy


Technical Indexes

Product Model

LNK-FS2402HC

Fixed Port

24x10G SFP+ optical ports, 2x40G QSFP+ port, 1xConsole port, 4x10/100/1000M RJ45/SFP Combo port, 1xOOB port

Console Port

1

Backplane bandwidth

650Gbps

Packet forwarding rate

483.6Mpps

Jumbo Frames

9216 bytes

Transfer Mode

Support store-forward mode and cut-through mode

IPv4/IPv6 Route

6k/8k

MAC address table

128K

Packet Buffer

9MB

VLAN ID

4K

Flash Memory Capacity

32M

Memory capacity

1GB DDR3 SDRAM

CPU

PPC Dual-core 800MHz

Software Specification

Security feature

IP+MAC+PORT+VLAN binding

ARP inspection

DoS defend

port protect

IP Source Guard binding

VLAN

Port based VLAN

802.1Q VLAN

IP based VLAN

MAC based VLAN

MAC address table

static MAC address table

dynamic MAC address table

Storm Control

Broadcast Limit

Multicast Limit

DLF Limit

Limit Speed

Traffic Control

Half-duplex control based on the back pressure type

Full-duplex control based on the PAUSE frame

Port Mirror

Support port mirror

Port management

system info

port Statistics

config port

port trunk

port-isolate

QoS

IEEE 802.1Q Congestion mechanism

Each port has 8 send queue mapping to 8 802.1p priority

IP services

Ping dectection

DHCP Snooping

Spanning Tree Protocol

MSTP(802.1s)、STP、RSTP

Multicast management

IGMP Snooping frame

System management

Support SNMP v1/v2/v3

Support Console

Support TELNET

Support WEB

Remote Upgrade

Web host

Physical characteristics

Dimension (LxWxH)

438.48mm *473mm * 43.4mm

Power supply characteristics

AC:90V~290V

Power

≤230W

Indicator light

Power indication, system indication, connection / send and receive instructions

Ambient temperature / humidity

Operating temperature: 0 ° C ~ 50 ° C (0m ~ 1800m) Storage temperature: -40 ° C ~ +70 ° C, relative humidity: 5% RH ~ 95% RH, non-condensing


  • Download FileName:E-link L3 Managed 24-Port 10G+2x40G SFP Fiber Switch Datasheet V1.0.pdf Size: 774KB

Order Information

Model

Description



LNK-FS2402HC

24x10G SFP+ optical ports, 2x40G QSFP+ port, 1xConsole port, 4x10/100/1000M RJ45/SFP Combo port, 1xOOB port
