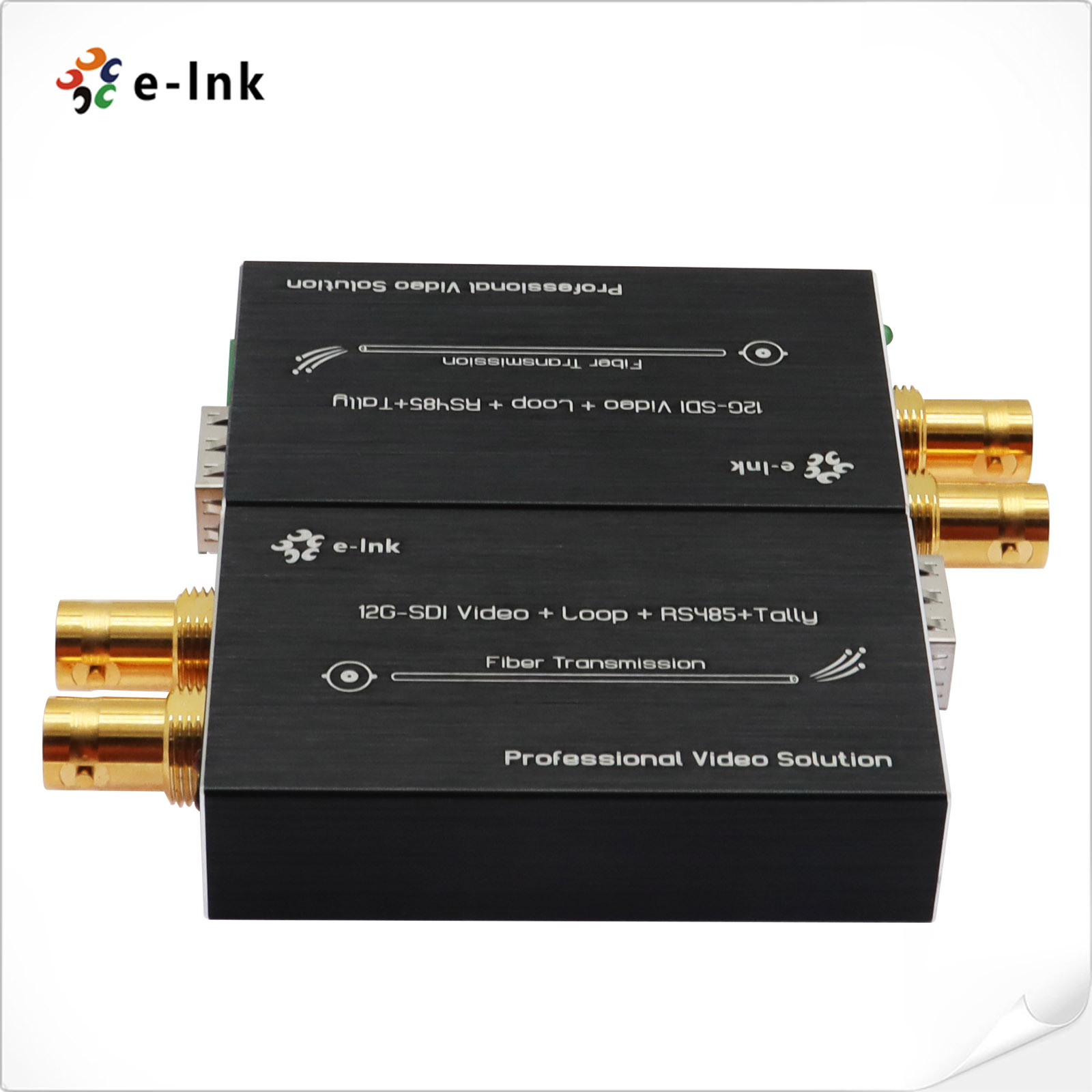

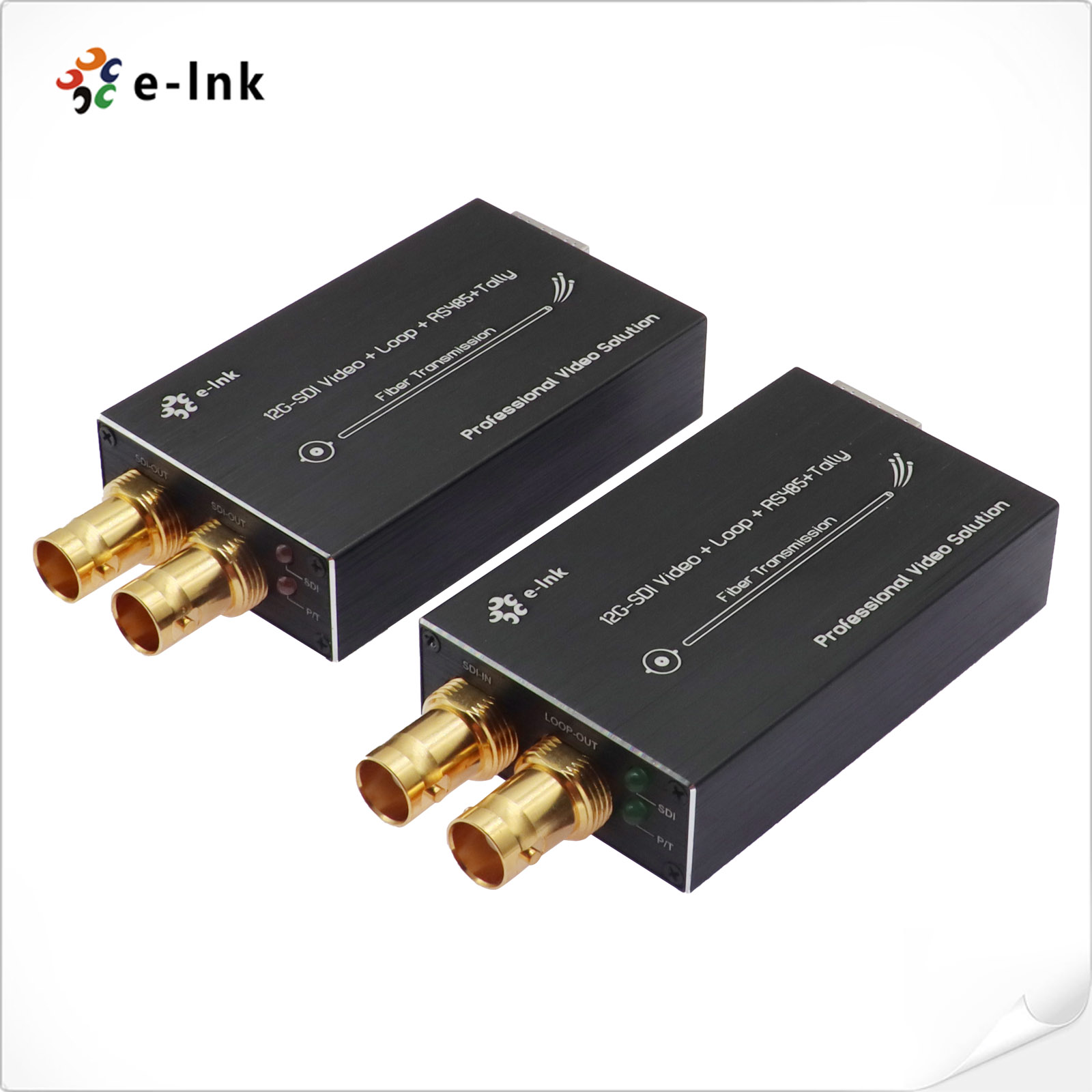

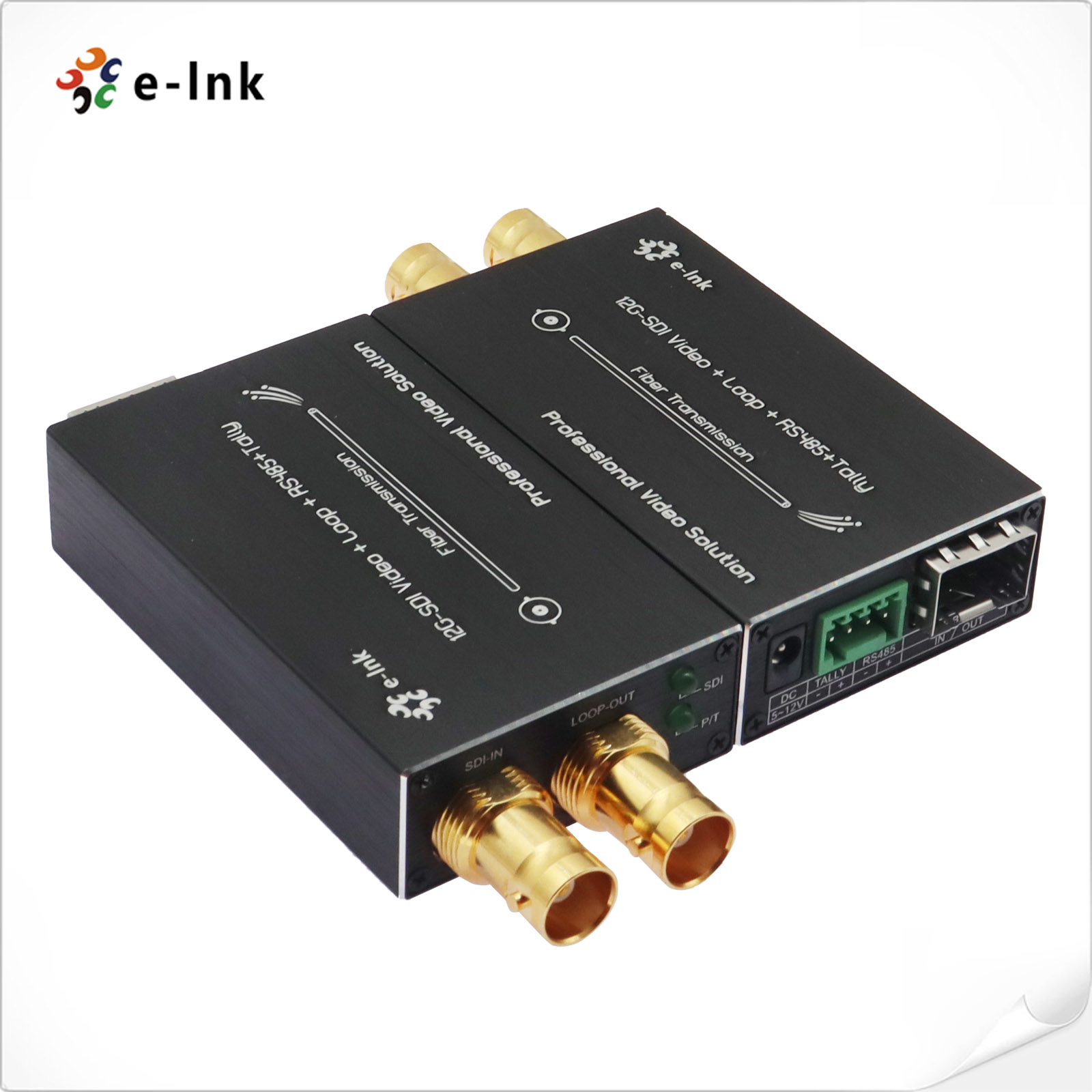

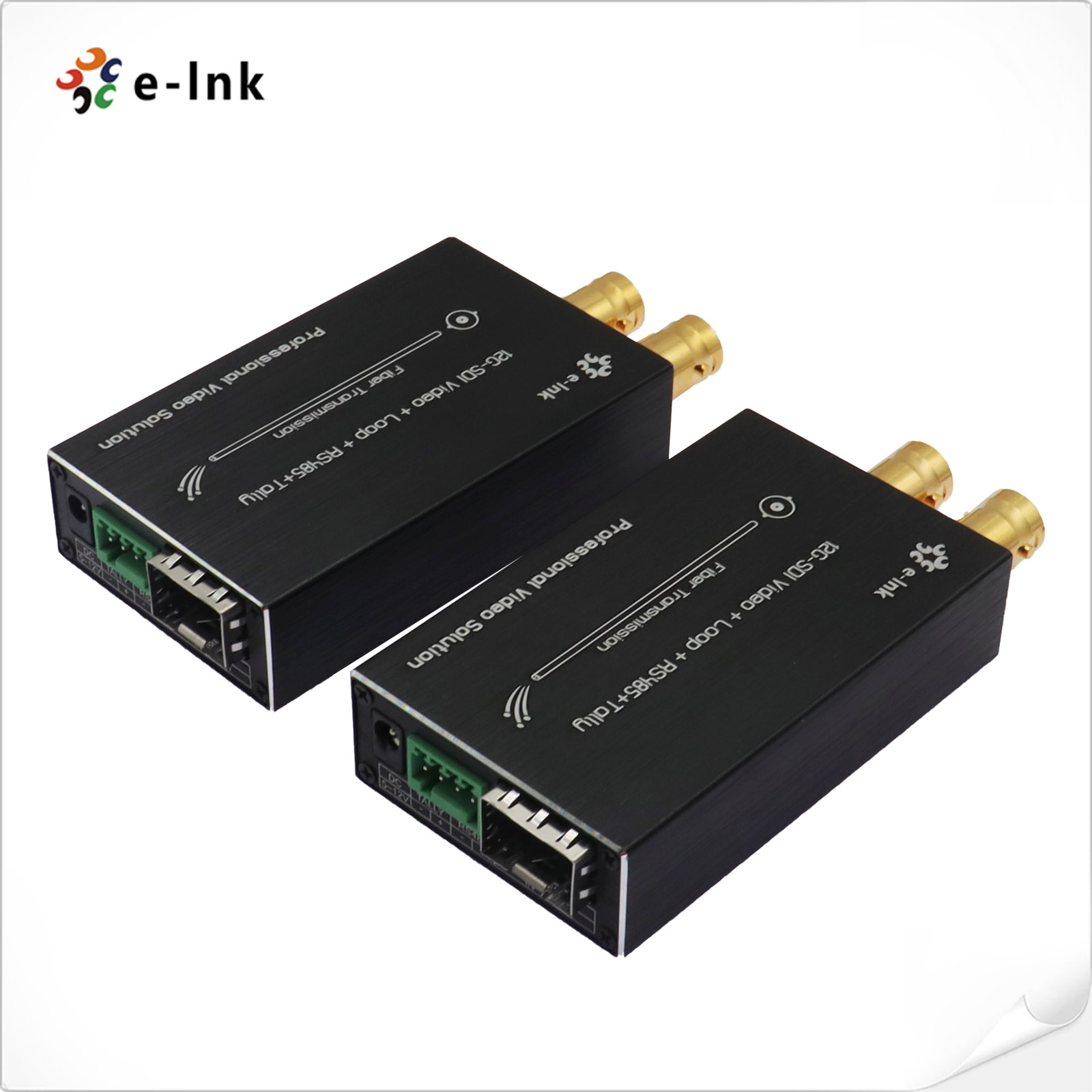

Mini 24G-SDI to Fiber Converter with 2 x 12G-SDI (1xLC fiber)
Model:LNK-M24G-2F1
► Supports SMPTE ST-2083(24G)ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Directly compatible with 24G/12G/6G/3G-SDI camera systems
► Supports 2160p/4k@120,8k@60,1080P,1080I,720P.
Overview
LNK-M24G-2F1 Series Mini-type 24G-SDI Fiber Converter supports 2-channel 12G Video(audio embedded)transmitted via fiber optical cable. E-link 24G Video over Fiber Converters includes one transmitter and one receiver for HDTV 2160p/4k@120,8k@60, 1080P，1080I, 720P. The 24G-SDI Fiber Converter supports transmission of up to 12 Gbps of digital video within television broadcasting facilities and between professional video equipment.
Feature
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports SMPTE ST-2083(24G)ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 24G/12G/6G/3G-SDI camera systems
► Terminal block power input for industrial application
► Supports hot swapping and hot plugging
► Full digital non-compression broadcast level transmission;
► super optic dynamic range and free of adjustment;
► fiber optic WDM/CWDM/DWDM technique;
► Supports 2160p/4k@120,8k@60,1080P,1080I,720P.
Application
► Video production
► Broadcasting
► Camcorder
► Studio-to-studio
► Post-production
► Live events
► Medical imaging displays
► Mobile video
► 24G/12G/6G/3G/HD/SD-SDI routing
► 24G/12G/6G/3G/HD/SD-SDI CCTV
Specification
|
Formats |
Supports UHD-2 or 24G UHD-SDI, SMPTE ST-2083(24G)ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Compatible |
Compatible With DVB-ASI and AES10 (MADI) |
|
Input |
2 x 12G-SDI on BNC |
|
Fiber |
2 x 12G-SDI 1*LC fiber |
|
Output |
2x 12G-SDI on BNC |
|
Supported Resolution |
HDTV 2160p/4k@120,8k@60, 1080P, 1080I, 720P |
|
Resolution range |
2160p/4k@120,8k@60Hz |
|
Input cable specification |
≤70m@12G SDI Belden 1694A |
|
Output cable specification |
≤70m@12G SDI Belden 1694A |
|
Data type |
Backward Tally (optional) |
|
Data type |
Backward RS485 (optional) |
|
Optical transmission bandwidth |
270MHz～12GHz |
|
Power |
5-15 VDC |
|
Power Consumption |
2 W (Max.) |
|
Dimensions (LxWxH) |
80 x 40 x 20 (mm) |
|
Storage Temperature |
-40℃～80℃ |
|
Operating Temperature |
-40℃～85℃ |
- Download FileName：E-link LNK-M24G-2F1-20 Mini 24G-SDI to Fiber Converter Datasheet V1.0.pdf Size： 1.92MB
Order Information
|
Model |
Description |
|
LNK-M24G-2F1-20 |
Mini 24G-SDI to Fiber Converter:2Ch 12G-SDI Video, 2*12G SFP(1*LC) Fiber Connector, Single Mode, 20KM, including Transmitter and Receiver, used by pairs |
