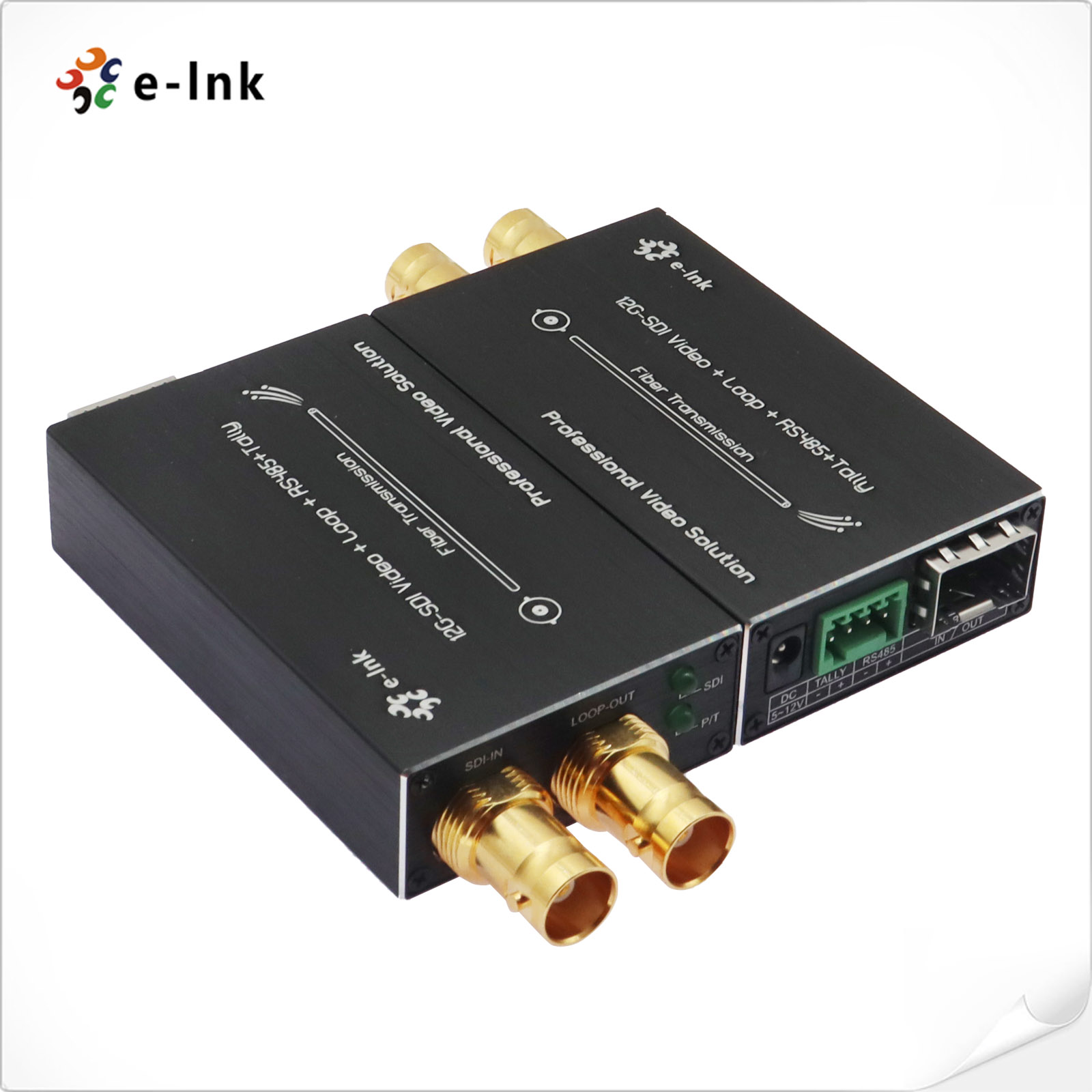

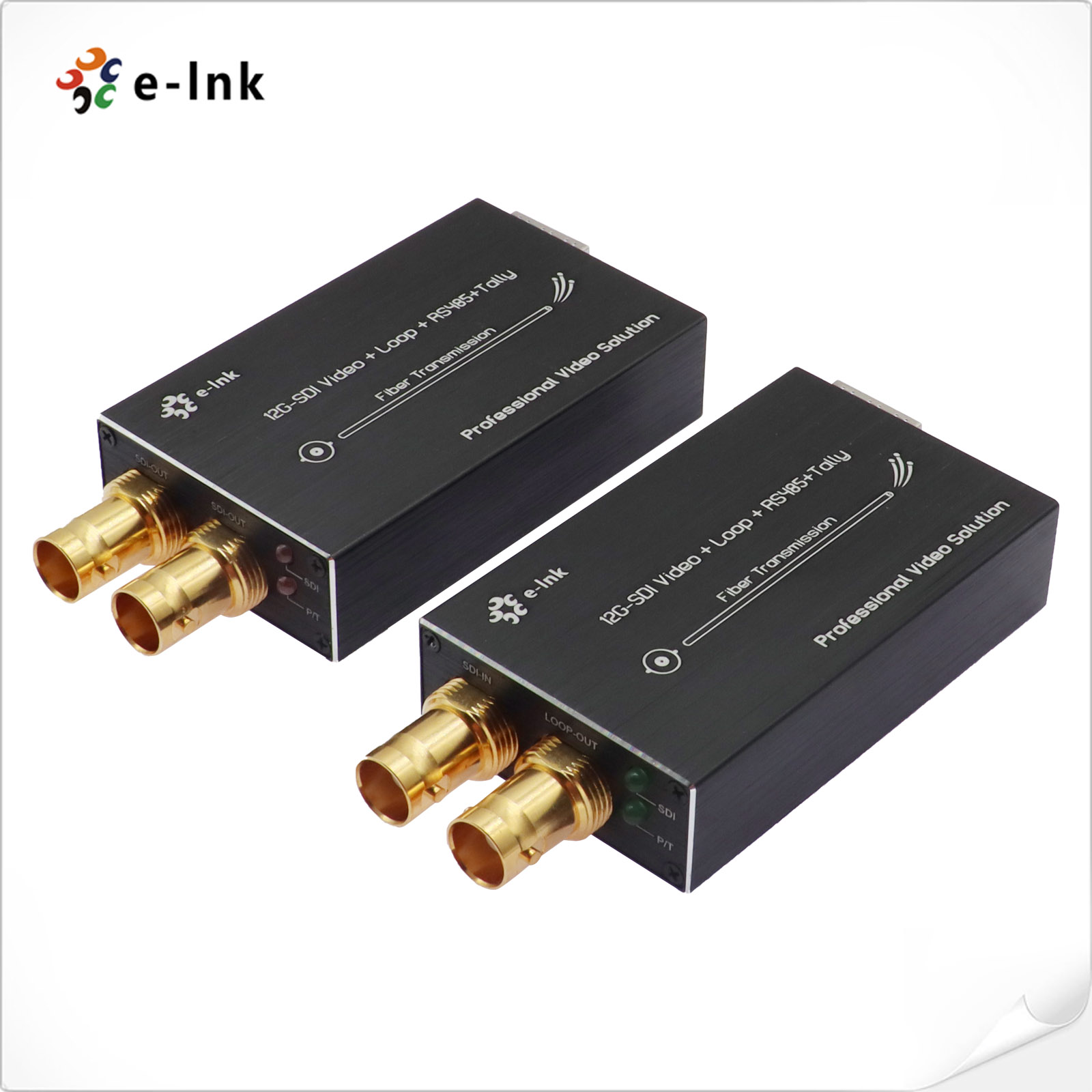

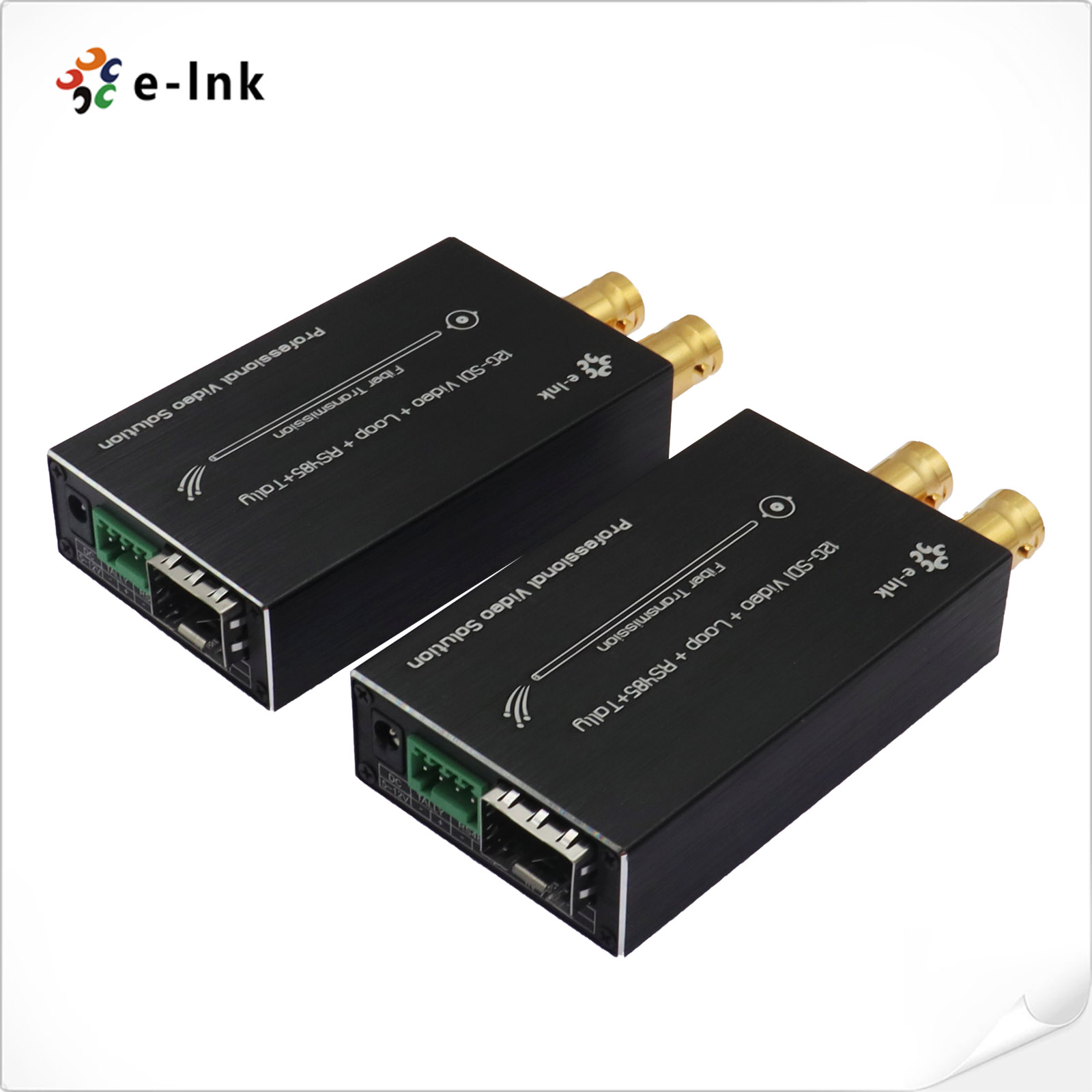

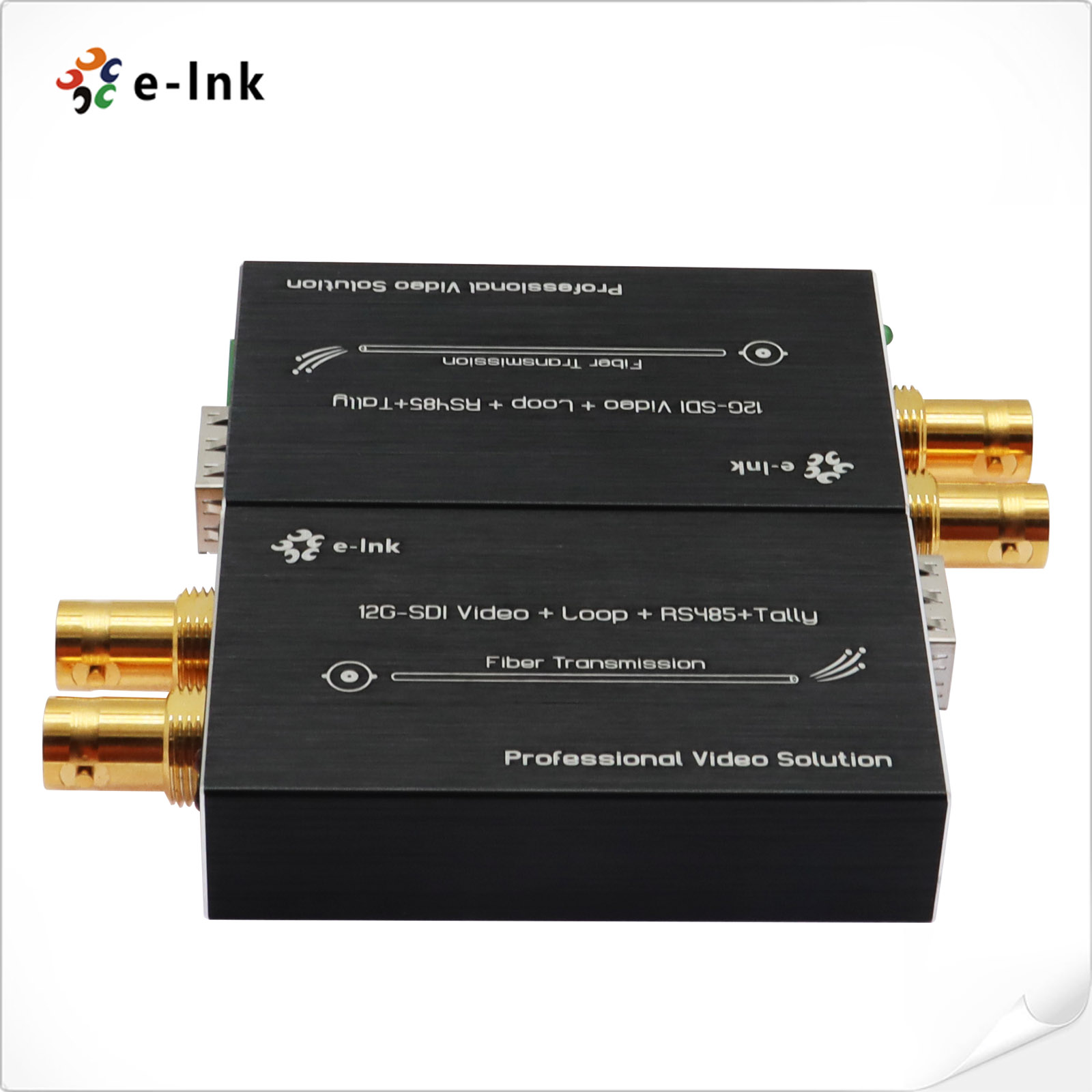

Mini 24G-SDI to Fiber Converter with 24G-SDI (2xLC fiber)

Model:LNK-M24G-1F2-20

►   Supports SMPTE ST-2083(24G)ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

►   Directly compatible with 24G/12G/6G/3G-SDI camera systems

►   Supports 2160p/4k@120, 8k@60,1080P,1080I,720P.

Overview

LNK-M24G-1F2 Series Mini-type 24G-SDI Fiber Converter supports 2-channel 12G Video(audio embedded)transmitted via fiber optical cable. E-link 24G Video over Fiber Converters includes one transmitter and one receiver for HDTV 2160p/4k@120, 8k@60, 1080P,1080I, 720P.


Feature

►   Each SDI channel includes 8-channel audio embedded

►   Automatic cable equalization to ensure signal integrity

►   Supports SMPTE ST-2083(24G)ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

►   Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps

►   Directly compatible with 24G/12G/6G/3G-SDI camera systems

►   Terminal block power input for industrial application

►   Supports hot swapping and hot plugging

►   Full digital non-compression broadcast level transmission;

►   super optic dynamic range and free of adjustment;

►   fiber optic WDM/CWDM/DWDM technique;

►   Supports 2160p/4k@120, 8k@60,1080P,1080I,720P.


Application

►   Video production

►   Broadcasting

►   Camcorder

►   Studio-to-studio

►   Post-production

►   Live events

►   Medical imaging displays

►   Mobile video

►   24G/12G/6G/3G/HD/SD-SDI routing

►   24G/12G/6G/3G/HD/SD-SDI CCTV


Specification

Formats

Supports UHD-2 or 24G UHD-SDI, SMPTE ST-2083(24G)ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)

Compatible

Compatible With DVB-ASI and AES10 (MADI)

Input

2 x 12G-SDI on BNC

Fiber Cable

1 x 24G-SDI 2*LC fiber

Output

2x 12G-SDI on BNC

Supported Resolution

HDTV 2160p/4k@120,8k@60, 1080P, 1080I, 720P

Resolution range

2160p/4k@120,8k@60Hz

Input cable specification

≤70m@12G SDI Belden 1694A

Output cable specification

≤70m@12G SDI Belden 1694A

Optical transmission bandwidth

270MHz~12GHz

Power

5-15 VDC

Power Consumption

2 W (Max.)

Dimensions (LxWxH)

80 x 40 x 20 (mm)

Storage Temperature

-40℃~80℃

Operating Temperature

-40℃~85℃

  • Download FileName:E-link LNK-M24G-1F2-20 Mini 24G-SDI to Fiber Converter Datasheet V1.0.pdf Size: 1.89MB

Order Information

Model

Description

LNK-M24G-1F2-20

Mini-type 24G-SDI to Fiber Converter,2Ch 12G-SDI Video,1*24G SFP(2*LC) Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
