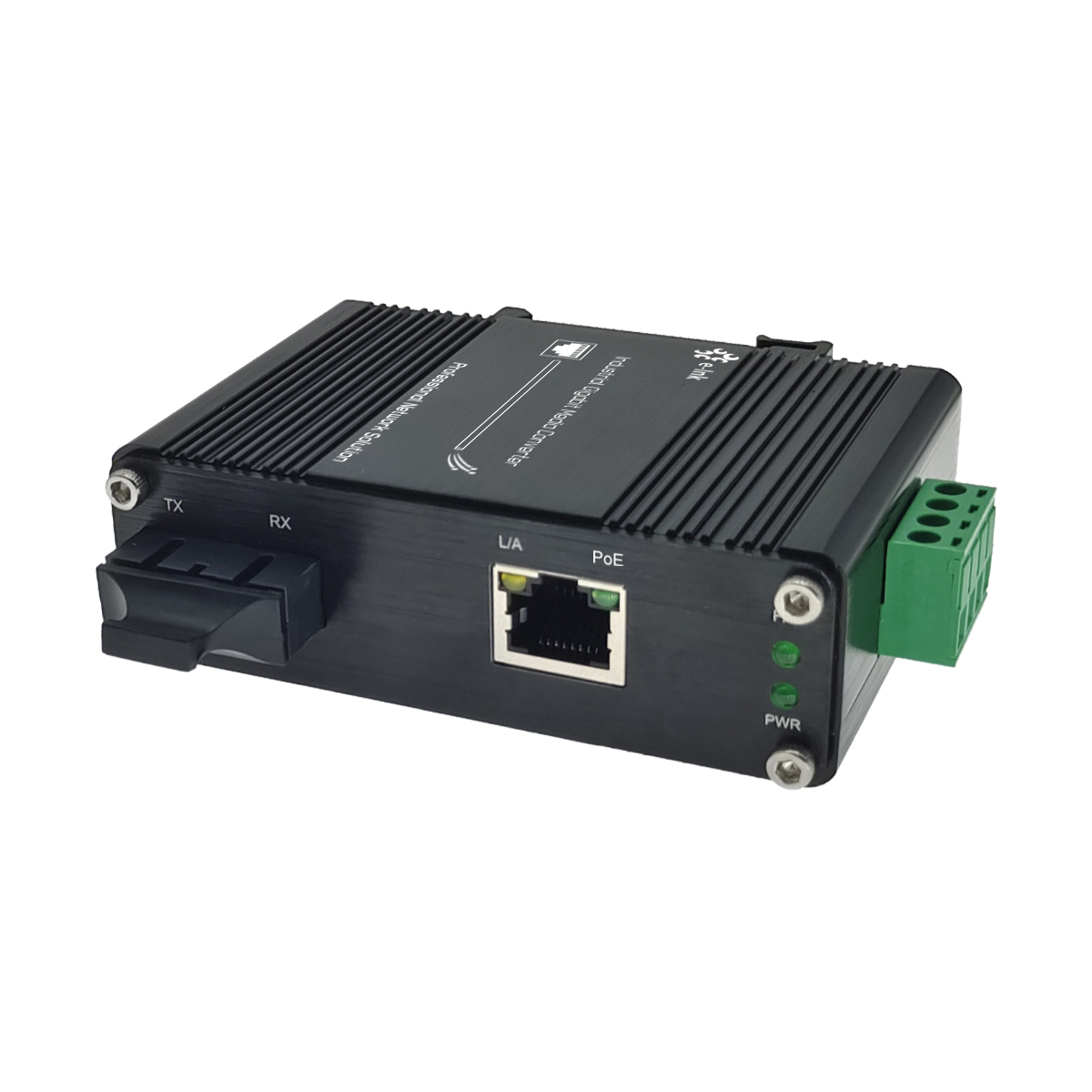

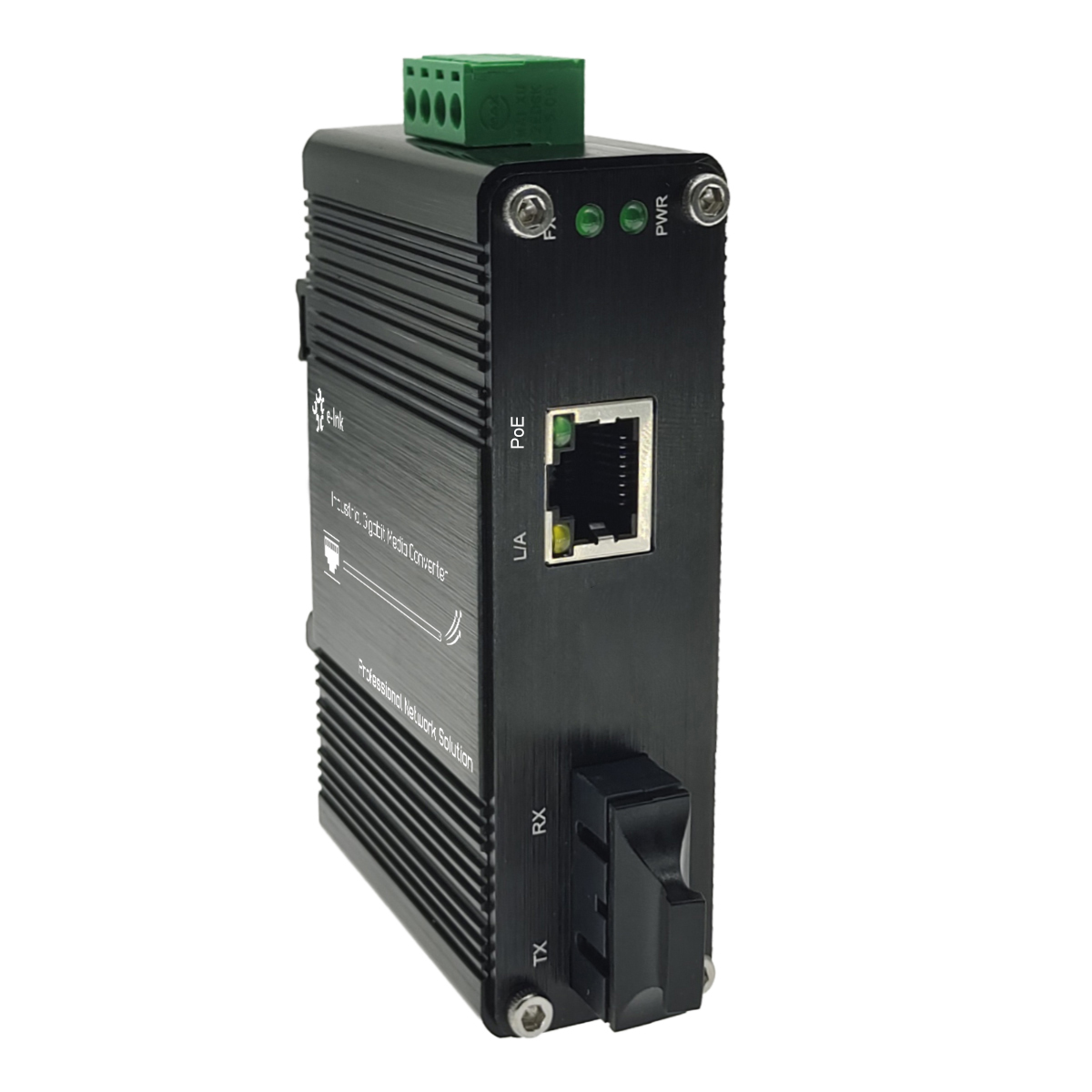

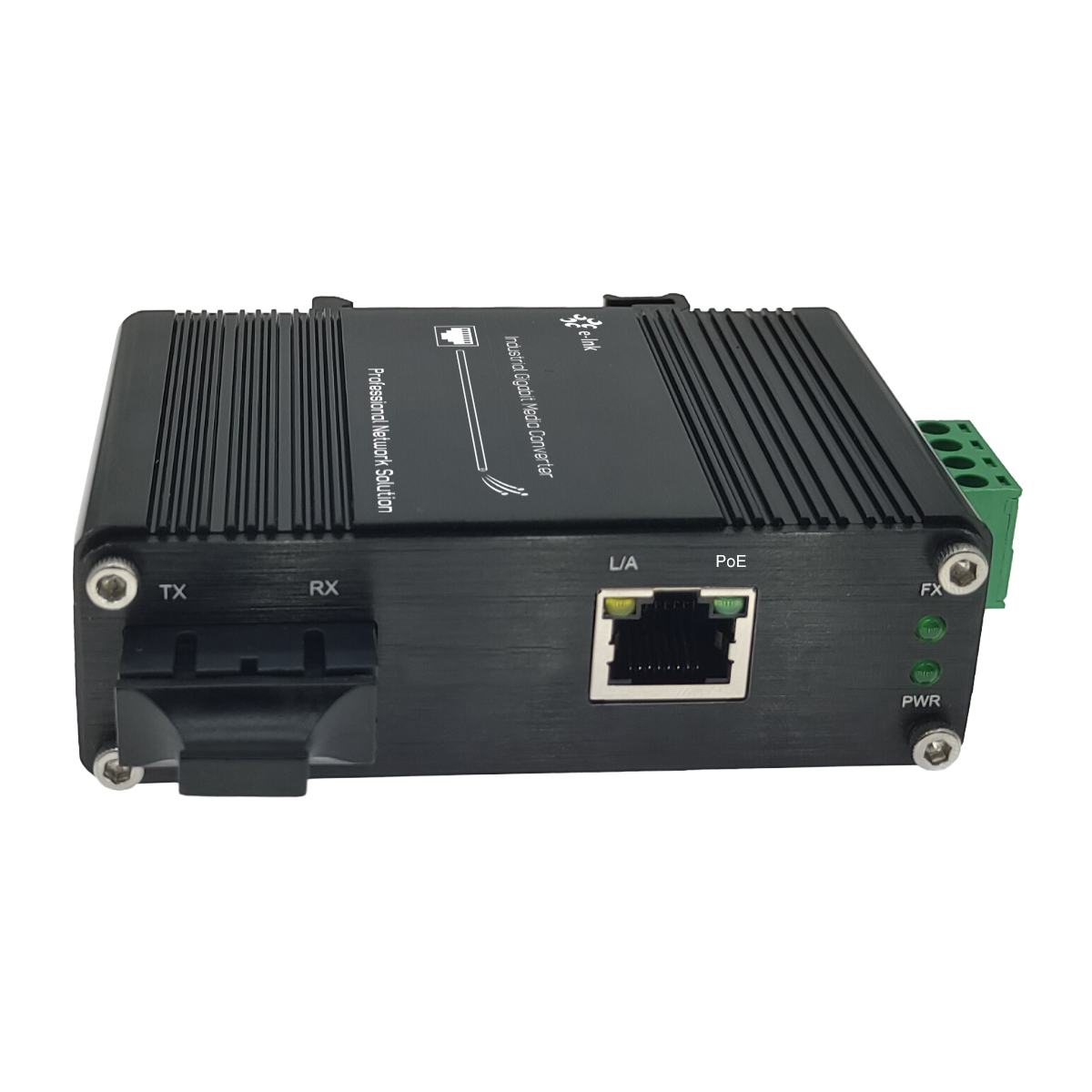

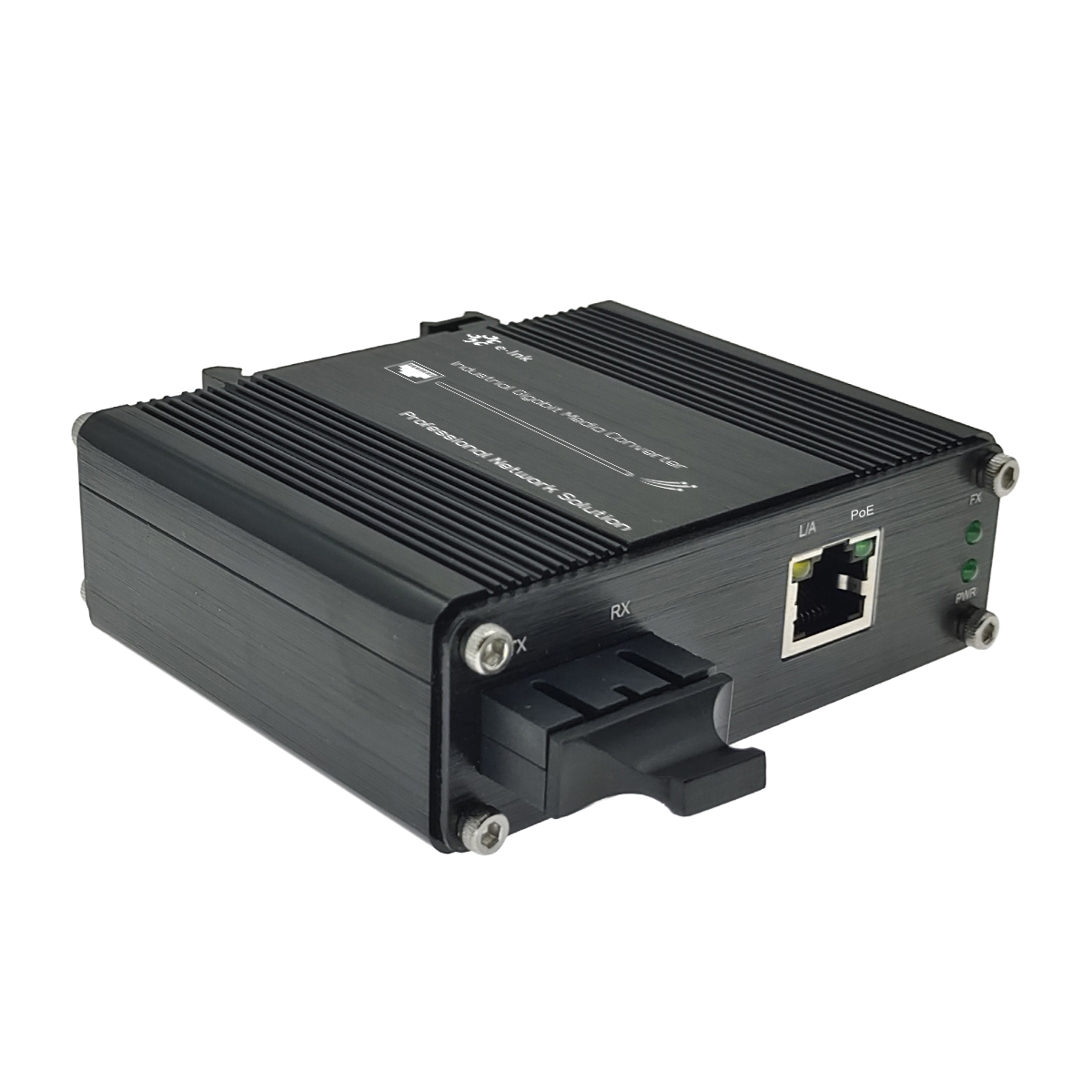

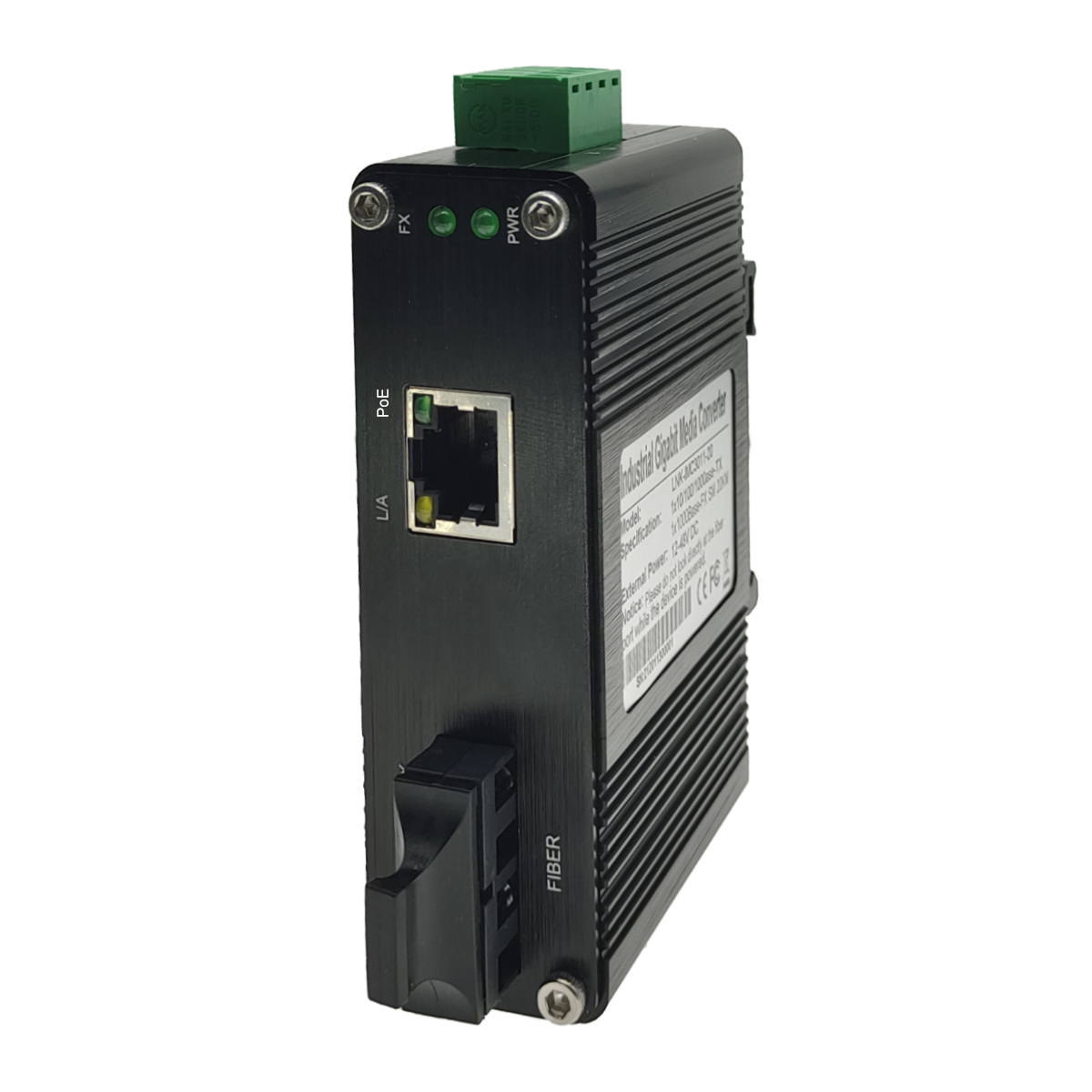

► 1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 100Base-FX SC
► IEEE802.3af/at compliant
► Up to 60W of power over 4-pairs
► 12~48VDC Terminal Block Power Input
Overview
The LNK-IMC1100P60 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber. The Ethernet port support 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1100P60 Series are easy to mount on a DIN rail or in distribution boxes.
Features
► 1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 100Base-FX SC
► IEEE802.3af/at compliant
► Up to 60W of power over 4-pairs
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

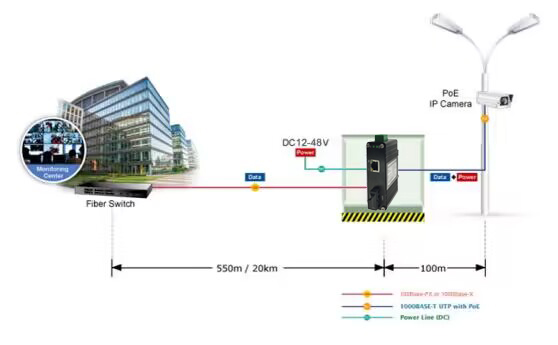

Application
Technical Indexes
Standards: |
IEEE802.3 10Base-T |
IEEE802.3u 100Base-TX/FX |
|
IEEE802.3x Full duplex and flow control |
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
Processing Type: |
Store-and-Forward |
Forward Filter Rate: |
14,880pps (10Mbps) |
148,800pps (100Mbps) |
|
Packet Buffer Memory: |
128K bits |
Max Packet Length: |
1522 Bytes |
Address Table Size |
1K MAC Addresses |
Interface |
|
Connector: |
1x RJ45 |
Optical Port: |
1 x SC 100Base-FX |
Electrical and Mechanical |
|

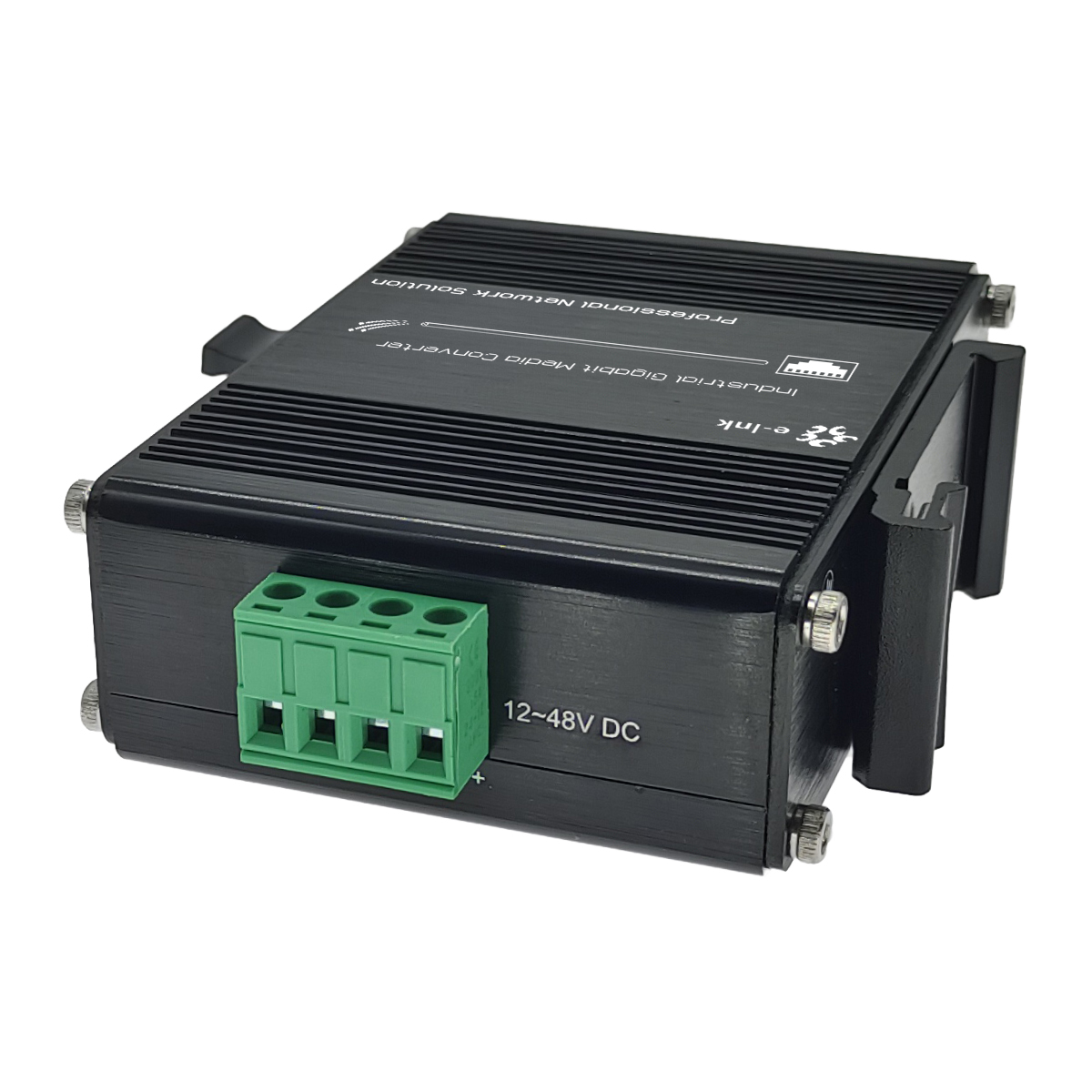

Input Power: |
12~48VDC, 2-pin terminal block |
Output Power |
48VDC |
Power Consumption: |
65W Max. |
LED Indicators: |
|
PWR: |
Power Status |
L/A: |
Data LINK Status |
POE: |
PoE Status |
100M/1000M: |
Fiber LINK Status |
Dimensions (WxDxH): |
95 x 70 x 30 mm |
Weight: |
0.25Kg |
Casing: |
|
Mounting Options: |
DIN-Rail / Wall-mount |
Environmental |
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF |
> 200,000 hrs |
Regulatory Approvals |
|
ISO9001, CE, FCC, RoHS |
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
Order Information
Model |
Description |
LNK-IMC1100P60 |
Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port,Multimode, 1310nm,2km |
LNK-IMC1100P60-20 |
Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port,Single Mode, 1310nm,20km |
LNK-IMC1100P60S-20 |
Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port,Single Mode Single Fiber, 1310/1550nm,20km |
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options |
► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
► Power Supply is to be purchased separately. |
