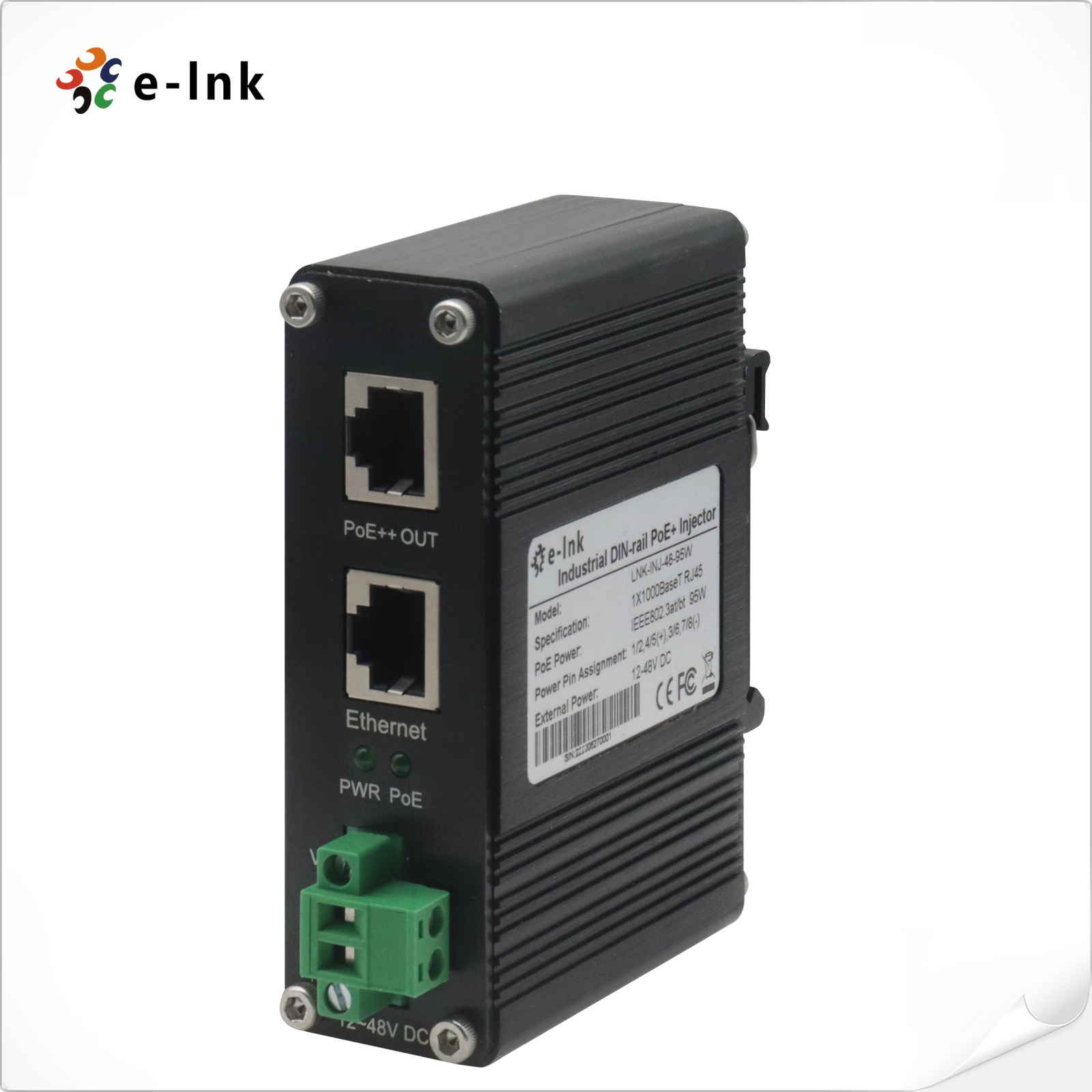

Industrial Gigabit 95W 802.3bt PoE++ Injector (12~48VDC)

Model:LNK-INJ301-90

►    Support 95W LTPoE++ Power Sourcing Equipment

►    Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

►    12~48V DC wide range power input with power booster function

►    Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

Overview

The LNK-INJ301-90 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.

Hardened industrial poe power injector 48V DC 30W 60W 90W 95W 120W,Power Over Ethernet Injectors,poe injector 48V 802.3 af,poe injector 48V 802.3 at,poe injector 24V,poe injector 12V,poe injector gigabit,1-Port Gigabit PoE Splitter,Passive PoE Injector Power Over Ethernet,Power Injector,1-Port Gigabit High-Power PoE+ Injector,POE Injector Adaptor,Gigabit Mid-Span POE+ Injector,PoE+ Injector DIN- Rail Wall Mount IP30  30W 60W 90W 95W 120W,Input 12-48V DC Output 12V 24V 48V,industrail poe injector usb,Gigabit PoE Splitter Adapter,


E-link poe injector,Red Lion Controls poe injector,Procet poe injector,StarTech.com Industrial 1 Port Gigabit PoE+ Power over Ethernet Injector,TRENDnet Gigabit Ultra PoE+ Injector,PoE Injector,TP-Link,L-com.com,redline industrial poe injector,moxa industrial poe injector,cisco industrial poe injector,
sixnet industrial poe power injector,industrial poe injector anixter,PLANET Gigabit PoE Injector

Features

►    1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

►    Support 95W LTPoE++ Power Sourcing Equipment

►    Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

►    Support 10/100/1000Base-TX

►    Extensive LED indicators for PoE diagnostics

►    12~48V DC wide range power input with power booster function

►    Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

►    Supports DIN-Rail and Wall-mount installation

►    Environmentally Hardened -40°C to 80°C

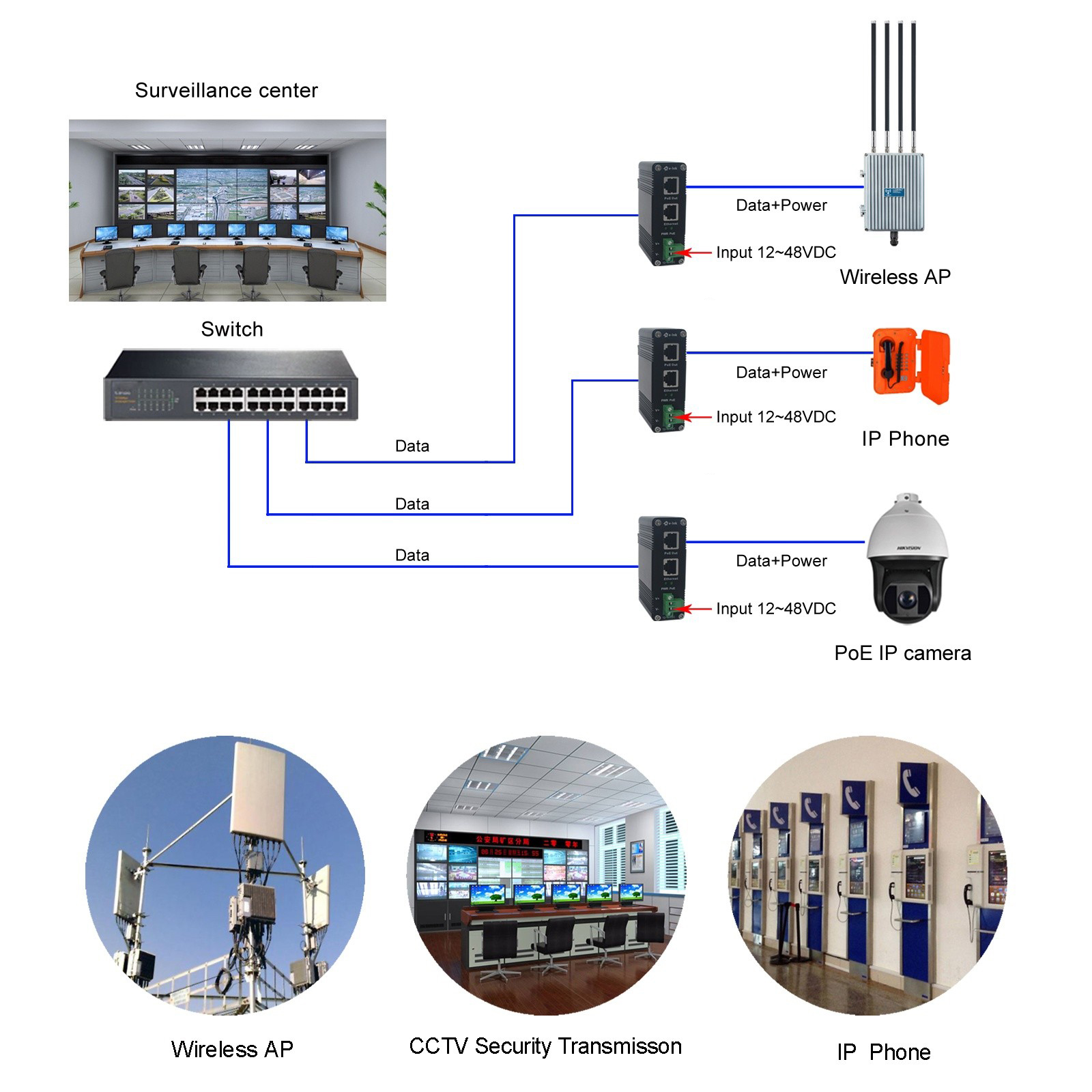

Typical Application


Technical Indexes

Ethernet

Standards:

IEEE802.3 10 BASE-T Ethernet

IEEE802.3u 100 BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE802.3 x Flow Control

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

Twisted-pair cable up to 100 meters (328ft)

10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A

100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A

1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A

Maximum Distance:

Cat5 UTP up to 100m

Connector:

2x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

100W Max.

Power over Ethernet:

Standard:

IEEE 802.3bt 4-pair Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

Data provide over pairs 1,2TX and 3,6RX

Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)

PoE Budget:

Up to 95-watt PoE budget (48VDC)

Up to 95-watt PoE budget (24VDC)

Up to 60-watt PoE budget (12VDC)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

IP40 Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Standard Accessories

Package Contents

LNK-INJ-48-95W

User's manual

Wall-mount kit

DIN-mount kit

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500V

ESD: 4KV/8KV

  • Download FileName:E-link LNK-INJ301-90 Industrial PoE Injector Datasheet V1.0.pdf Size: 1.88MB

Ordering Information

Model

Description

LNK-INJ301-90

Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
