3G/HD/SD-SDI Optical Micro-Extender with SMB Connector

Model:LNK-M3G-SMB1V-20 Series

►    3G-SDI/HD-SDI/SD-SDI signal auto recognition, no manual selection necessary

►    Compliant with SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M, SMPTE344N

►    Compliant with DVB-ASI(EN50083-9)

Overview

LNK-M3G-SMB1V-20 Series 3G-SDI/HD-SDI/SD-SDI micro extender fiber optic transmission system that transmits one 3G-SDI, HD-SDI, SD-SDI high definition digital video or one DVB-ASI stream through one single mode or multimode fiber supporting SMPTE424M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) standards. With its advanced digital fiber optic transmission technology, there are no adjustments necessary, simple to set up and easy to operate. The SDI micro extender series uses 5V power supply with low power consumption.

Feature

►    3G-SDI/HD-SDI/SD-SDI signal auto recognition, no manual selection necessary

►    Transmission distance up to 120km

►    CWDM technology to allow up to 16(18) channels to transmit over one fiber

►    Compliant with SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M, SMPTE344N

►    Compliant with DVB-ASI(EN50083-9)

►    Convenient instruction of LED status. Fiber link indicator, power.

►    PCB board is environmentally friendly (Pb-free)

►    PCB board with multilayer design to ensure stable and reliable signal transmission


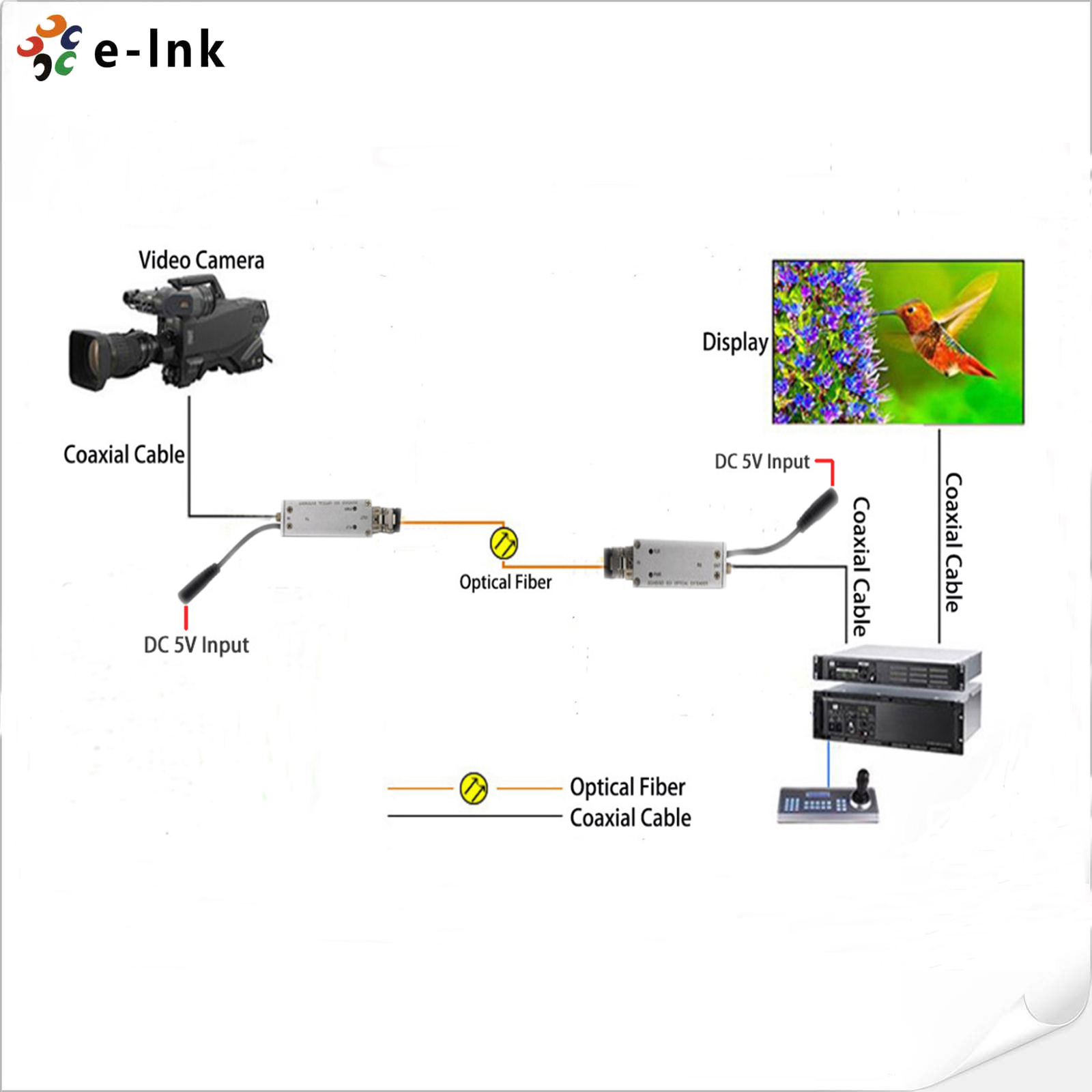

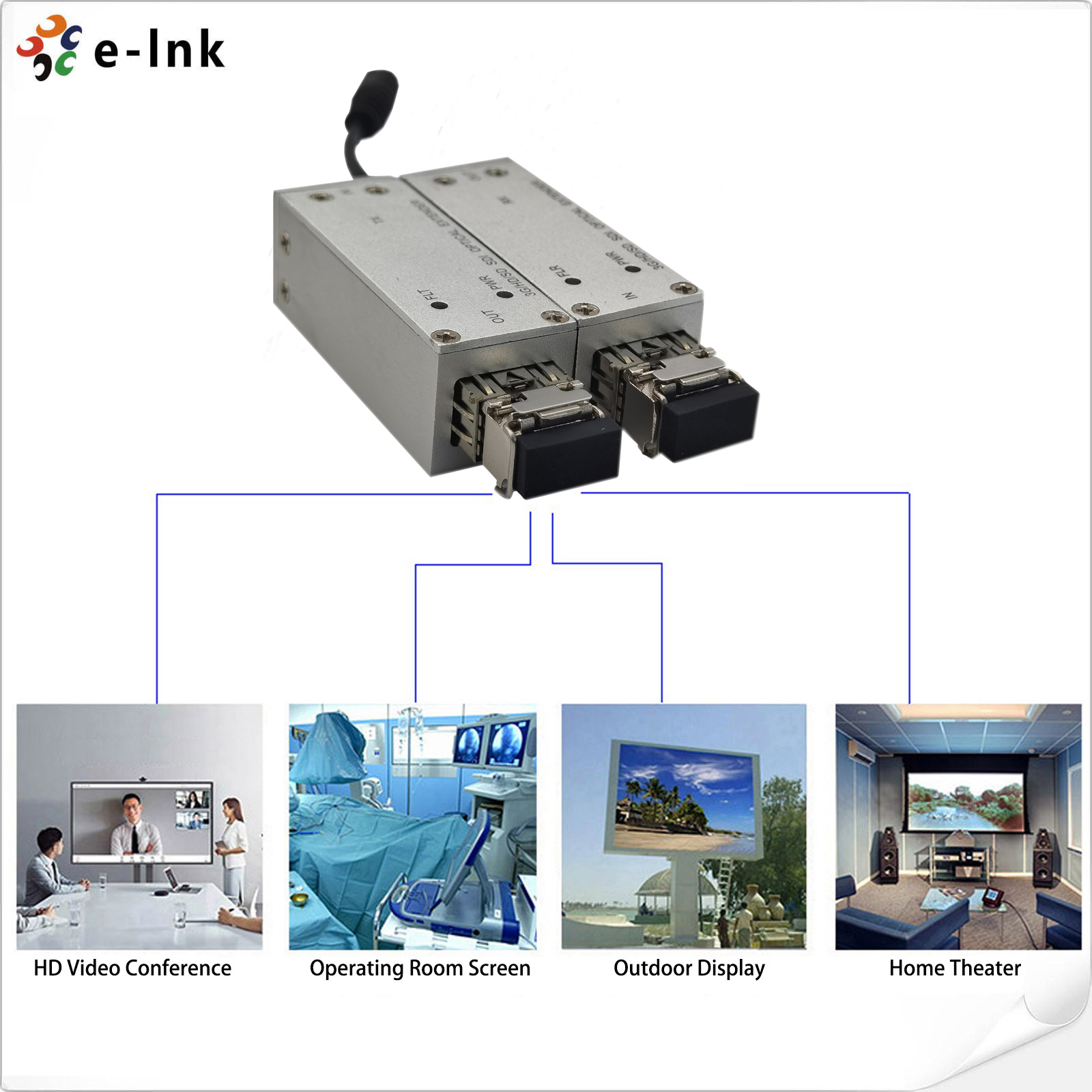

Application

Technical Indexes

SDI Input

Video standard

SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI)

Signal standard

SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)

Resolution

10 Bit

Signal level

<380mVp-p

Impedance

75Ω

Connector

SMB

SDI output

Signal level

800mVp-p±10%

Rise/Fall time

<0.8ns

HD-SDI Jitter

<0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz

SDI Jitter

<0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz

Impedance

75Ω

Connector

SMB

Optical Interface

SFP

Simplex LC, 3,125Gbps.≤120km transmission distance

Standard SM wavelength

1310nm, 1550nm

CWDM wavelength

1270~1610nm, 20nm grid according ITU-T

Temperature range

0~70˚C

Electrical

Power

5VDC, 1A

Consumption

<5W

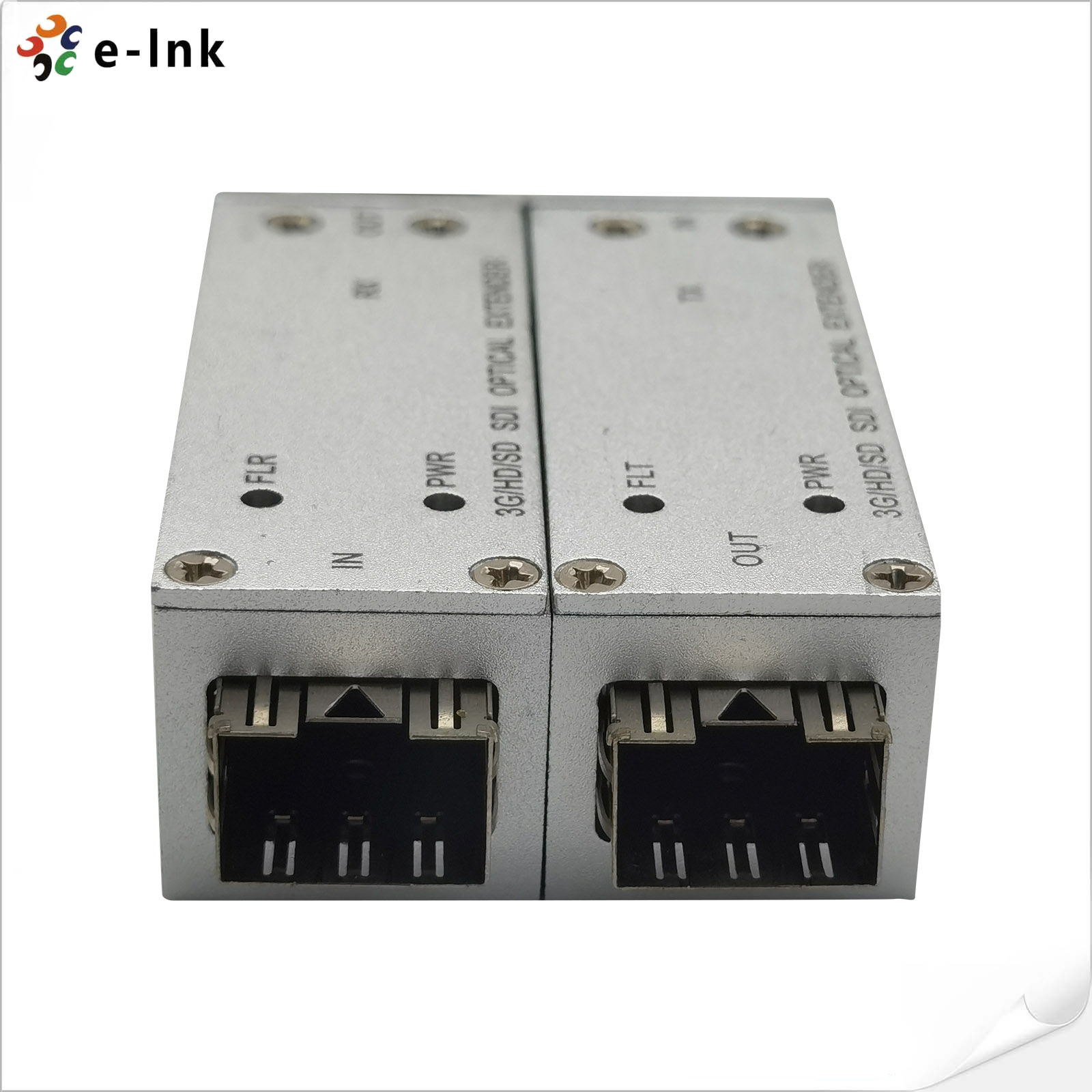

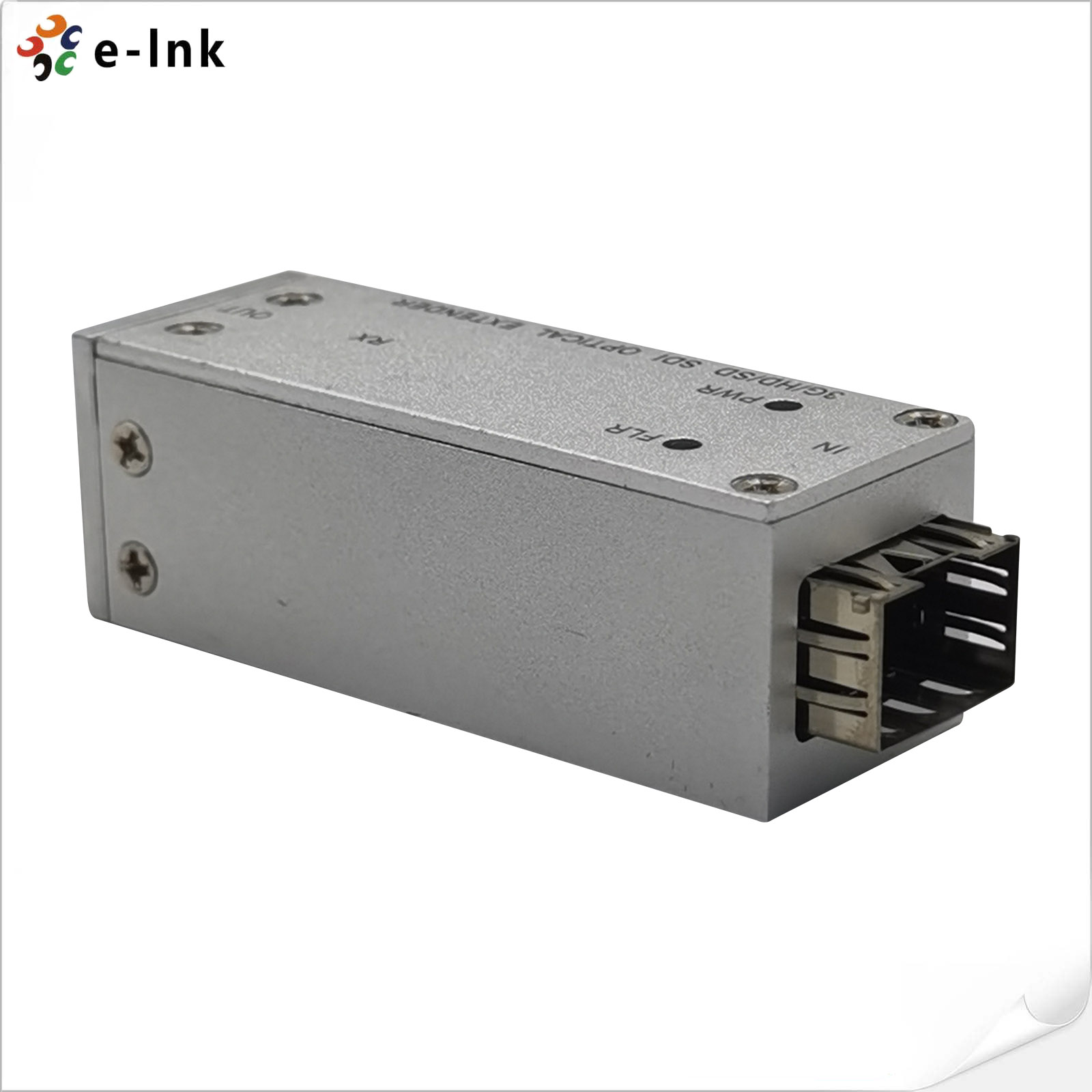

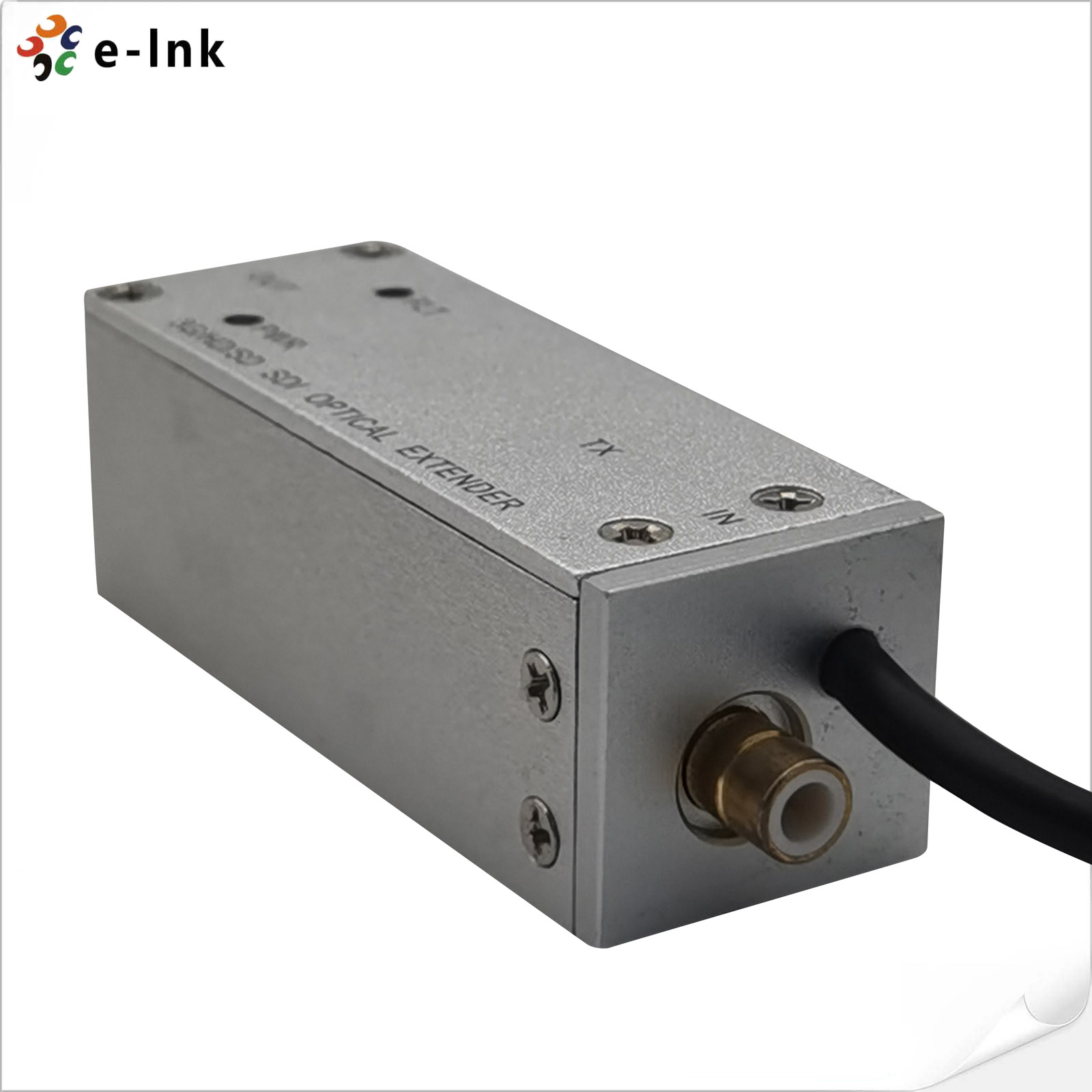

LED Indicator

FLT

Fiber link status (Transmitter)

FLR

Fiber link status (Receiver)

PWR

Power status

Mechanical

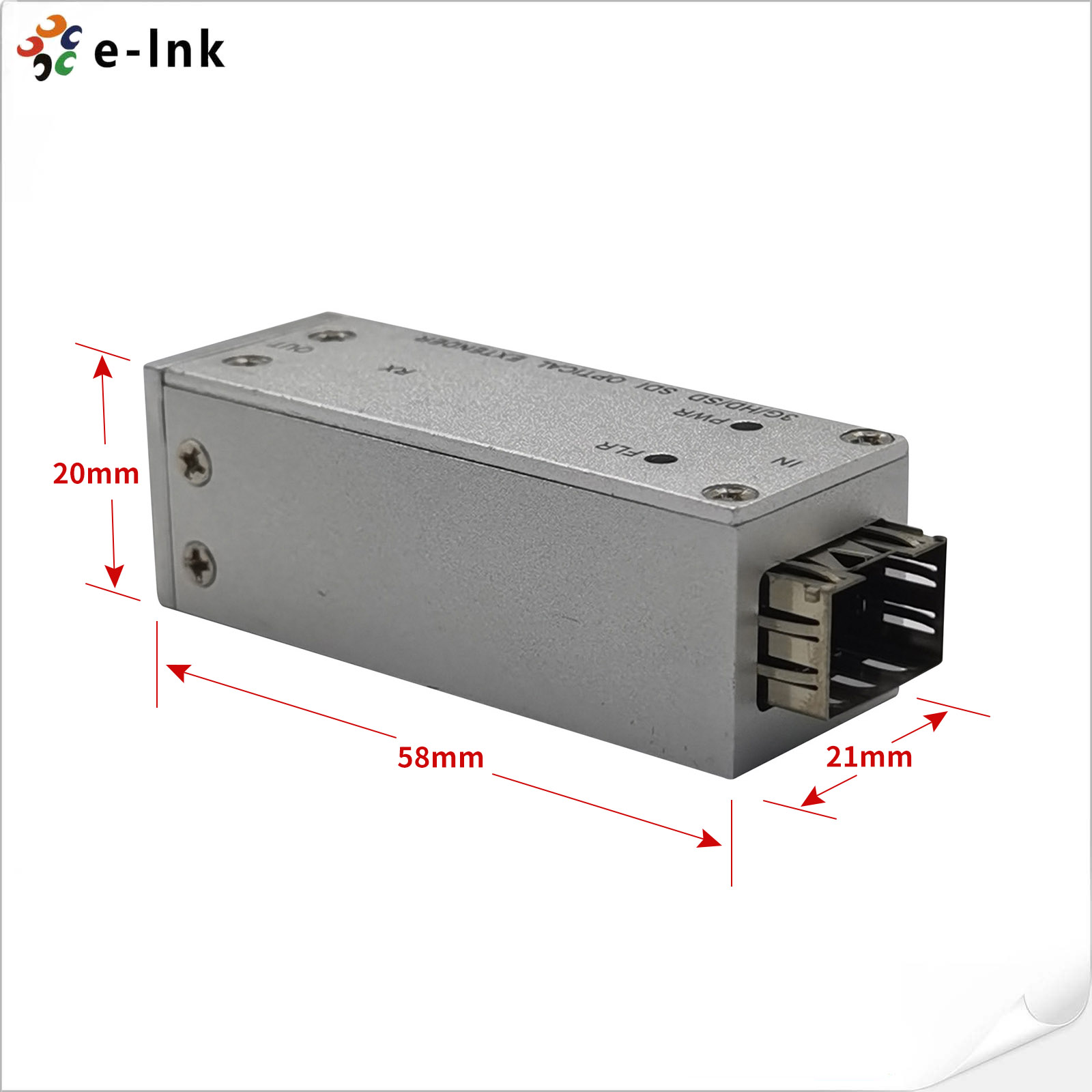

Dimensions (LxWxH)

58 x 21 x 20 mm

Weight

100g/pair

Casing

Aluminum Case

Mounting Options

Desktop

Environmental

Working Temperature

-20℃~+70℃

Storage Temperature

-40℃~+80℃

Working Humidity

0~95%

MTBF

≥100000 hours

  • Download FileName:E-link LNK-M3G-SMB1V SMB 3GHDSD-SDI Optical Micro-Extender Datasheet V1.1.pdf Size: 1.72MB
