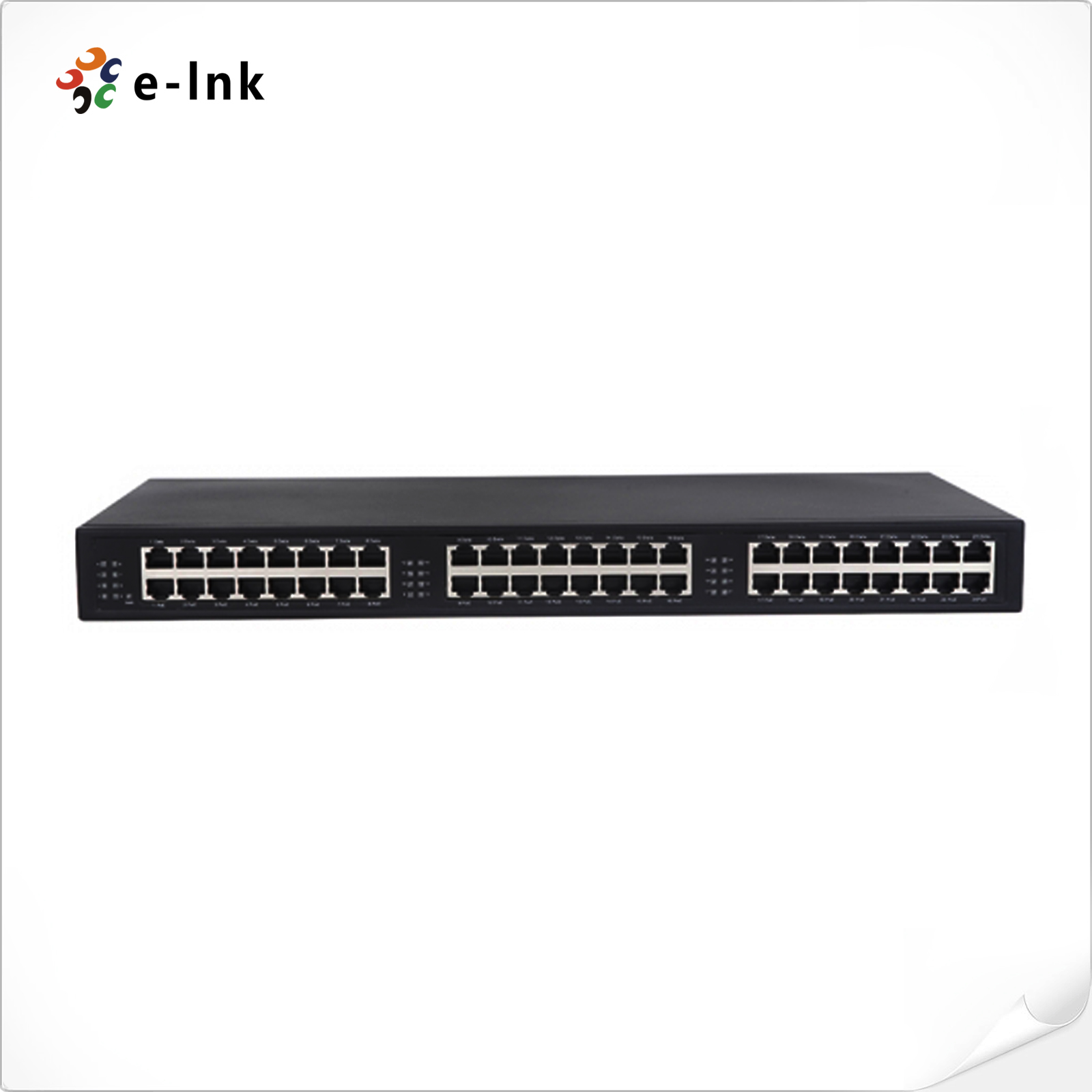

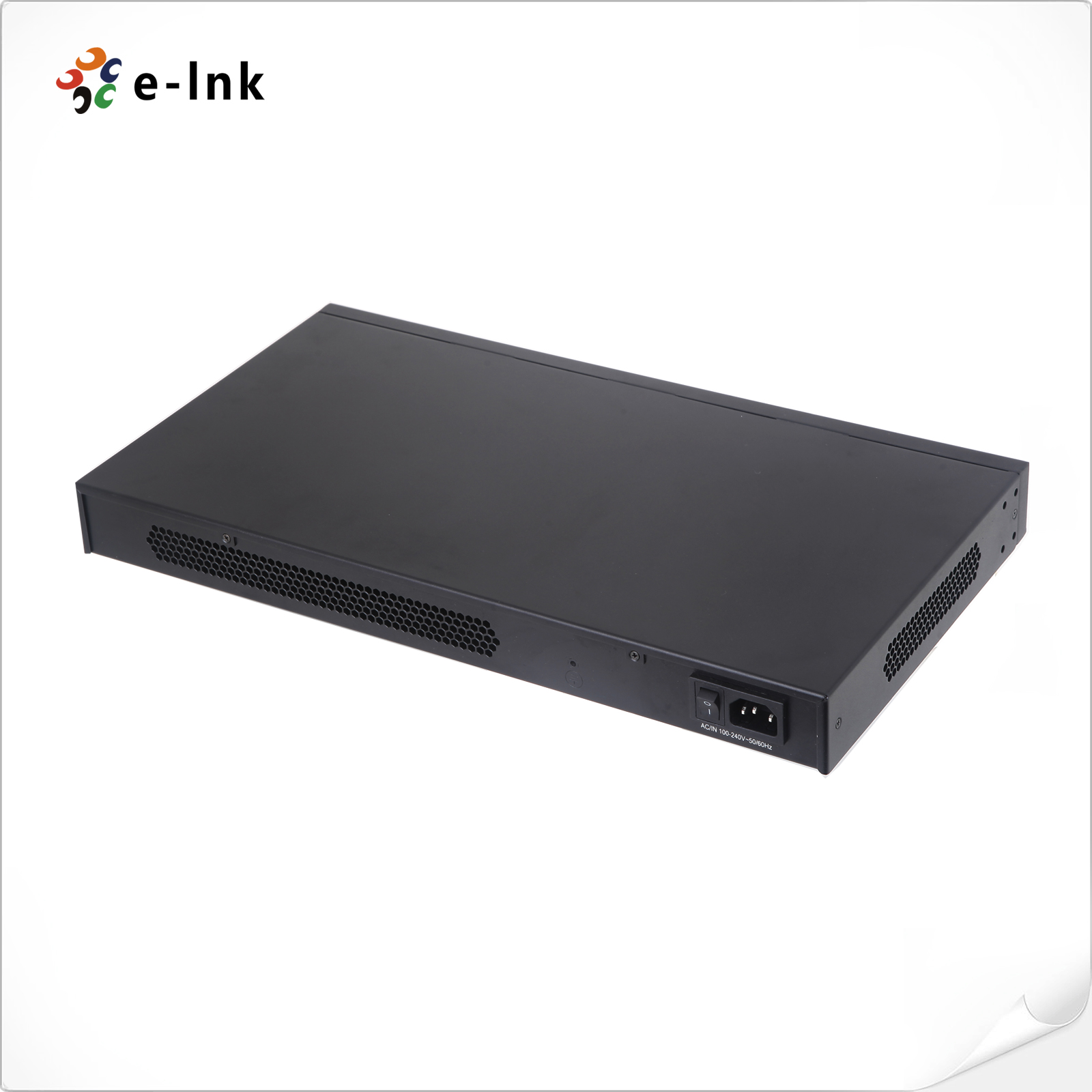

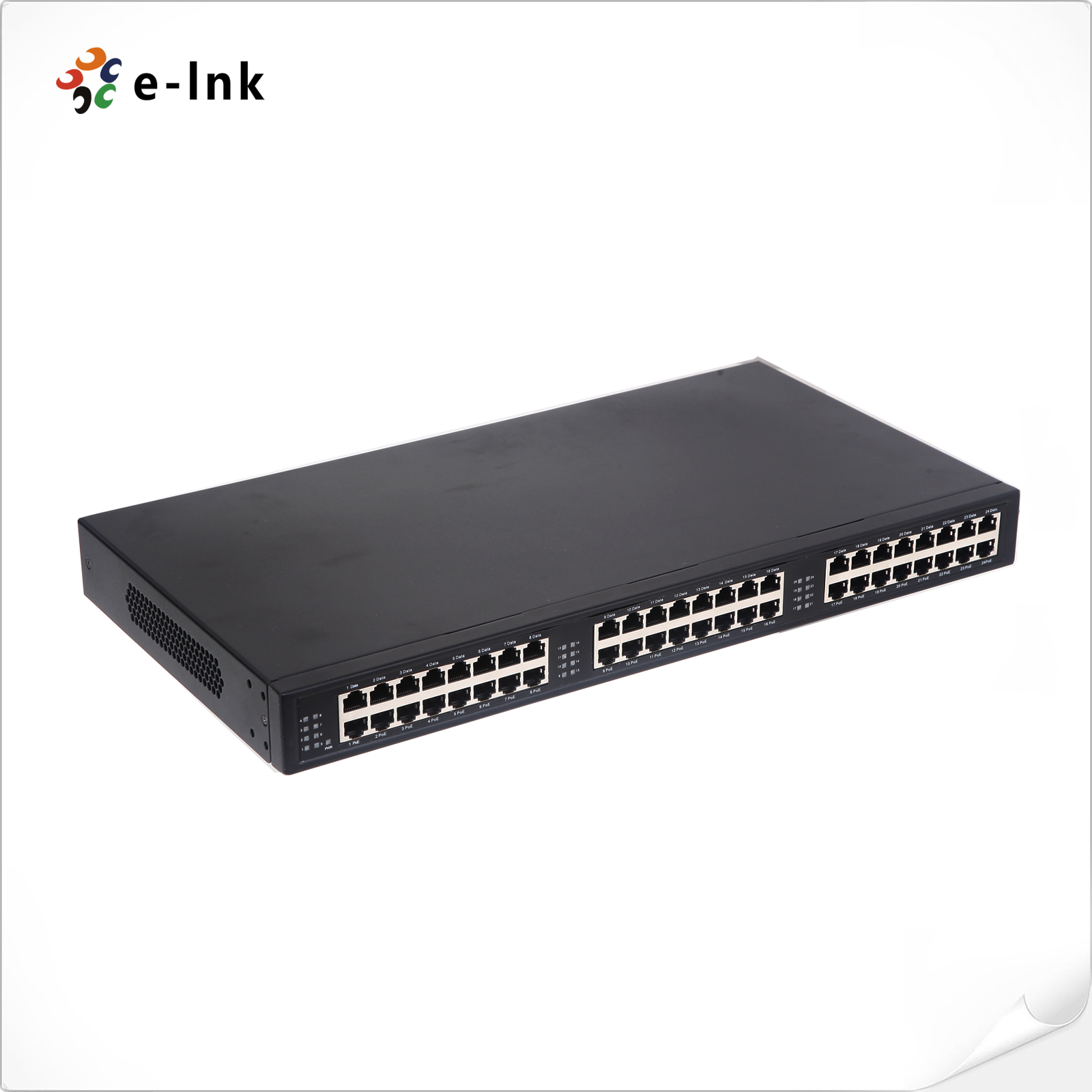

24-Port 10/100/1000Mbps 60W Ultra POE Injector
Model:LNK-PSE2401GH
► Complies with IEEE802.3af/at standard
► Up to maximum output voltage 60 watts (Power supply of 4 pairs wire)
► Auto-detection for IEEE802.3af/at receiving end
► Support 10/100/1000 Base-T application
Overview
E-link 24 port PoE injector, strictly conforms IEEE802.3af/at standard, its single port supports 60 watts maximum power. This PoE injector can coordinate the applications of traditional network system/security product/LED light. It transmits signal and electric power to terminal devices by using CAT5 or CAT6 cables，and then make the traditional wiring more simple, convenient, safe and reliable.
It’s indoor used and can work properly between input voltage 100VAC-240VAC. The PoE Injectors are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals with 60W of power. The solutions support IEEE 802.3 af/at powered devices and are also backward compatible and safe to use with any IEEE 802.3af/at terminal. With plug and-play installation, they are easy and cost effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Feature
► Complies with IEEE802.3af/at standard
► Up to maximum output voltage 60 watts (Power supply of 4 pairs wire)
► Auto-detection for IEEE802.3af/at receiving end
► Support 10/100/1000 Base-T application
► Power light, PoE output light
► Maximum transmission distance 100m
► Built-in AC/DC power-no need external power source
► Certificated by CE，FCC，RoHS

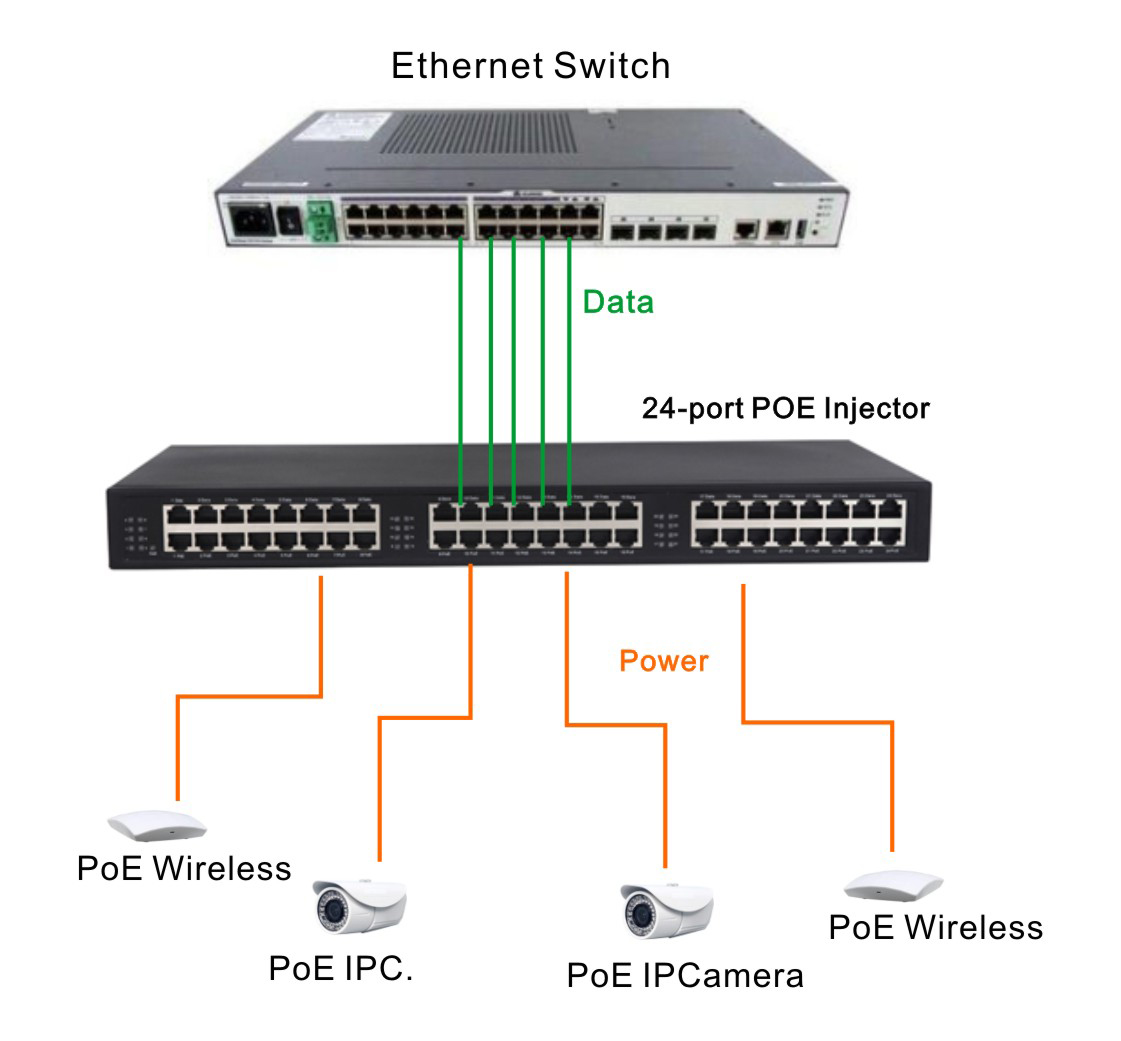

Application
Technical Indexes
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
|
Connector: |
LAN: 24 x RJ-45 STP, “Data” Input Port POE: 24 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
100-240V AC @50/60Hz |
|
Output Voltage: |
52VDC |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3af |
|
IEEE 802.3at |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
V+（Pin1,2）V-（Pin3,4）or V+（Pin4,5）V-（Pin7,8） |
|
PoE Working Mode |
Auto-detection of receiving end Auto-management of power |
|
PoE Power |
1200W |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Output Status |
|
Dimensions (W×D×H): |
440 x 235 x 43mm |
|
Weight: |
7.0Kg |
|
Casing: |
Metal Case |
|
Mounting Options: |
19inch Rackmount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
- Download FileName：E-link LNK-PSE2401GH 24-Port 60W PoE Injector Datasheet V1.0.pdf Size： 1.72MB
Order Information
|
Model |
Description |
|
LNK-PSE2401GH |
24-Port 60-watt Ultra Power over Ethernet Injector (10/100/1000Mbps, 4-Pair) |
