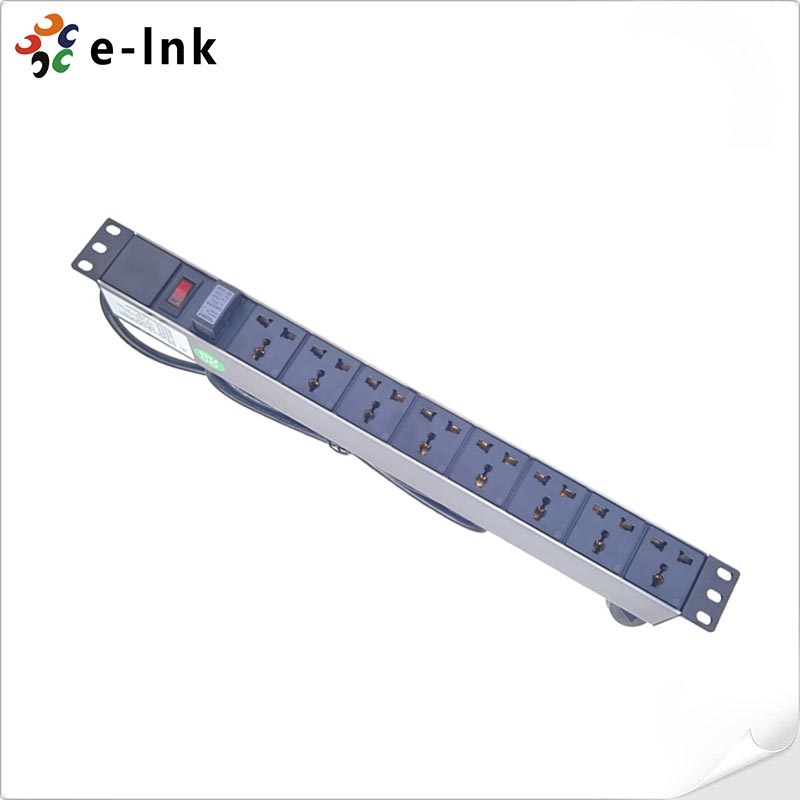

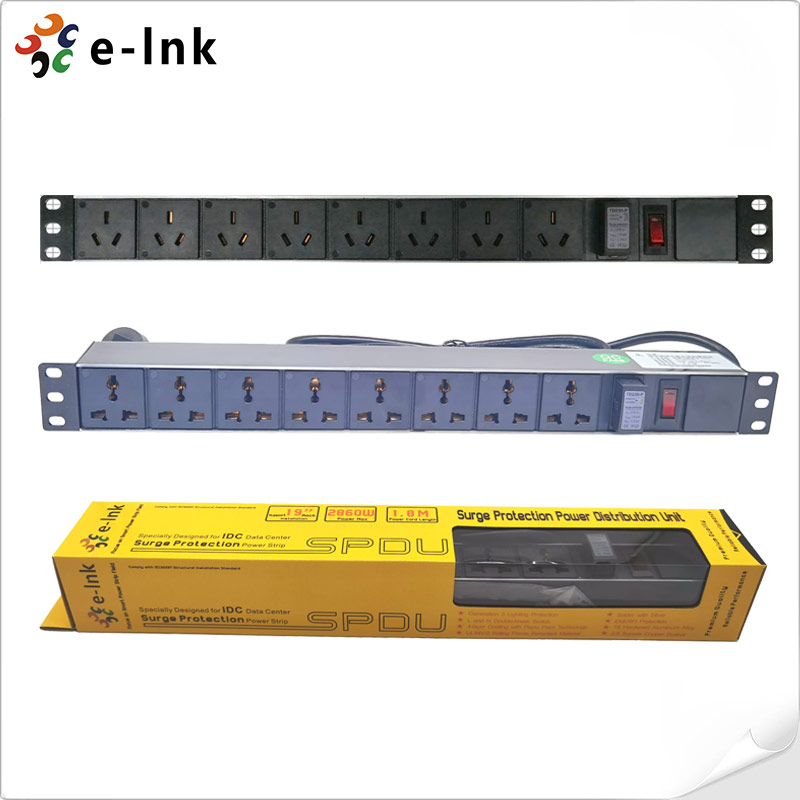

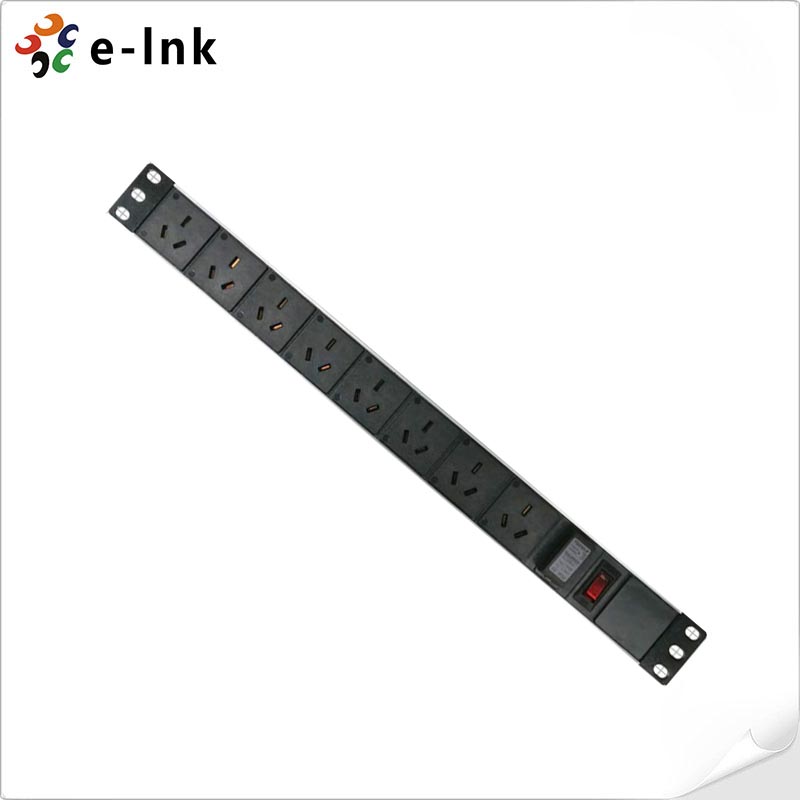

19 Inch 1U 8 Port Surge Protection Power Distribution Unit PDU

Model:LNK- SPDU Series

►    85–265V AC input, 8 total outlets

►    Max 16A / 2800W Output

►    Support 19 inch Rack-mount

►    Different plug types available

►    Gen 3 10KA Surge Protection module

►    L and N Double-break Switch

Overview


E-link's Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the 19’’ rack. The PDU with 8 outlets and build-in surge protector. Universal 10/16A 100–240V PDU is compatible with wide range of voltages to deliver single-phase AC power to multiple loads from a utility outlet, generator or UPS system. Ideal for data centers, server rooms and network wiring closets.

The reversible all-metal housing supports a variety of mounting options, including 1U horizontal

in EIA-standard 19-inch racks, under a counter or on a wall or workbench.


Feature


►    85–265V AC input, 8 total outlets

►    Max 16A / 2800W Output

►    Support 19 inch Rack-mount

►    Different plug types available

►    Gen 3 10KA Surge Protection module

►    L and N Double-break Switch

►    UL94V-0 Grade Flame Resistant Material

►    Four-layer Piano Paint T6 Hardened Aluminum Profile

►    Complies with the requirements of IEC60297 standards

►    EMI.RFI Protection


Technical Indexes

OUTPUT

PDU type

19 inch rack mount Surge Protection PDU

Voltage output

85V~265VAC

Working Frequency

50/60Hz

Output Capacity Details

3.68kW (230V), 1.76kW(110V)

Outlets type

US, EU, UK, IEC available

Overload Protection

Yes

INPUT

PDU Input Voltage

85-265V AC

Maximum Input Amps

10/16A

PDU Plug Type

US, EU, UK, IEC 3 Pin available

Phase line

Single Phase

Input Cord Details

1.8m / 5.9ft

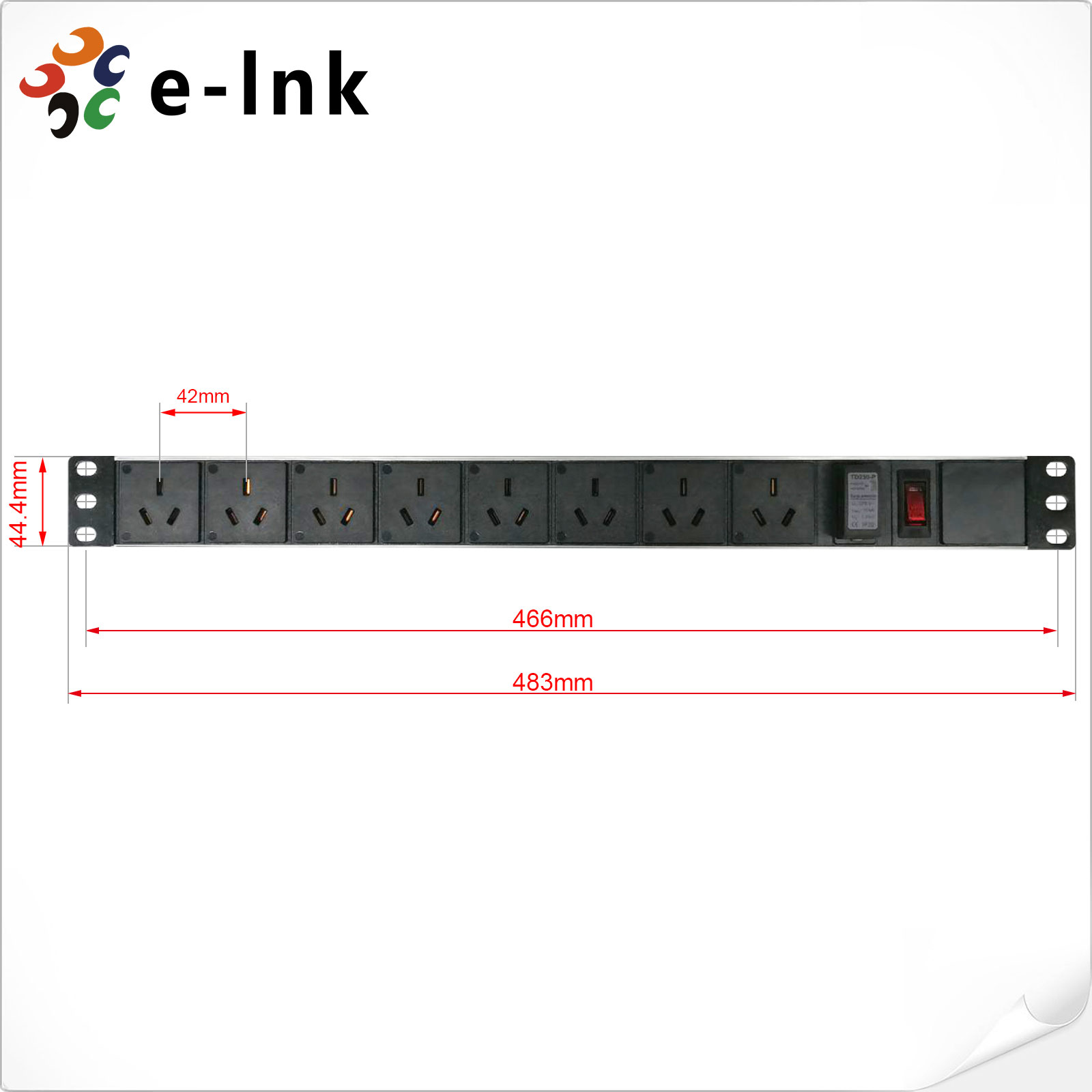

PHYSICAL

Form Factors Supported

1U rack mount, 0U vertical rack mount, wall-mount, and under-counter installation

Material of Construction

Aluminum T6 Hardened Profile with Four-layer Piano Paint

Minimum Required Rack Depth

59mm / 2.3in

Unit Weight

1.05kg / 2.31 lbs

ENVIRONMENTAL

Operating Temperature

-10 to 50°C

Storage Temperature

-30 to 60°C

Relative Humidity

5 to 95% non-condensing

Operating Elevation

0-4000m

Warranty Period

5-year limited warranty

  • Download FileName:E-link 19inch 1U 8 Port Normal Power Distribution Unit Datasheet V1.0.pdf Size: 471KB

Order Information

Model

Number

Input

Output

Output Interface

Remark

Control

LNK-SPDU_8GB10_ZK_GB

85-265VAC

GB2015, Max=13A, 8CH Control output

GB1002(10A/250V)

Input Plug Customizable

LNK- SPDU_8IEC13K_ZK_IEC14

85-265VAC

IEC320-C1 (Cable anti falling), Max=13A, 8CH Control output

IEC60320 C13

Input Plug Customizable

LNK- SPDU_8WY16_ ZK_GB

85-265VAC

Universal plug Max=16A, 7CH Control output

GB 2099.3(16A/250V)

Input Plug Customizable

LNK- SPDU_8UL_ ZK_UL

85-265VAC

Universal plug Max=16A, 8CH Control output

NEMA5-15R(16A/250V)

Input Plug Customizable
