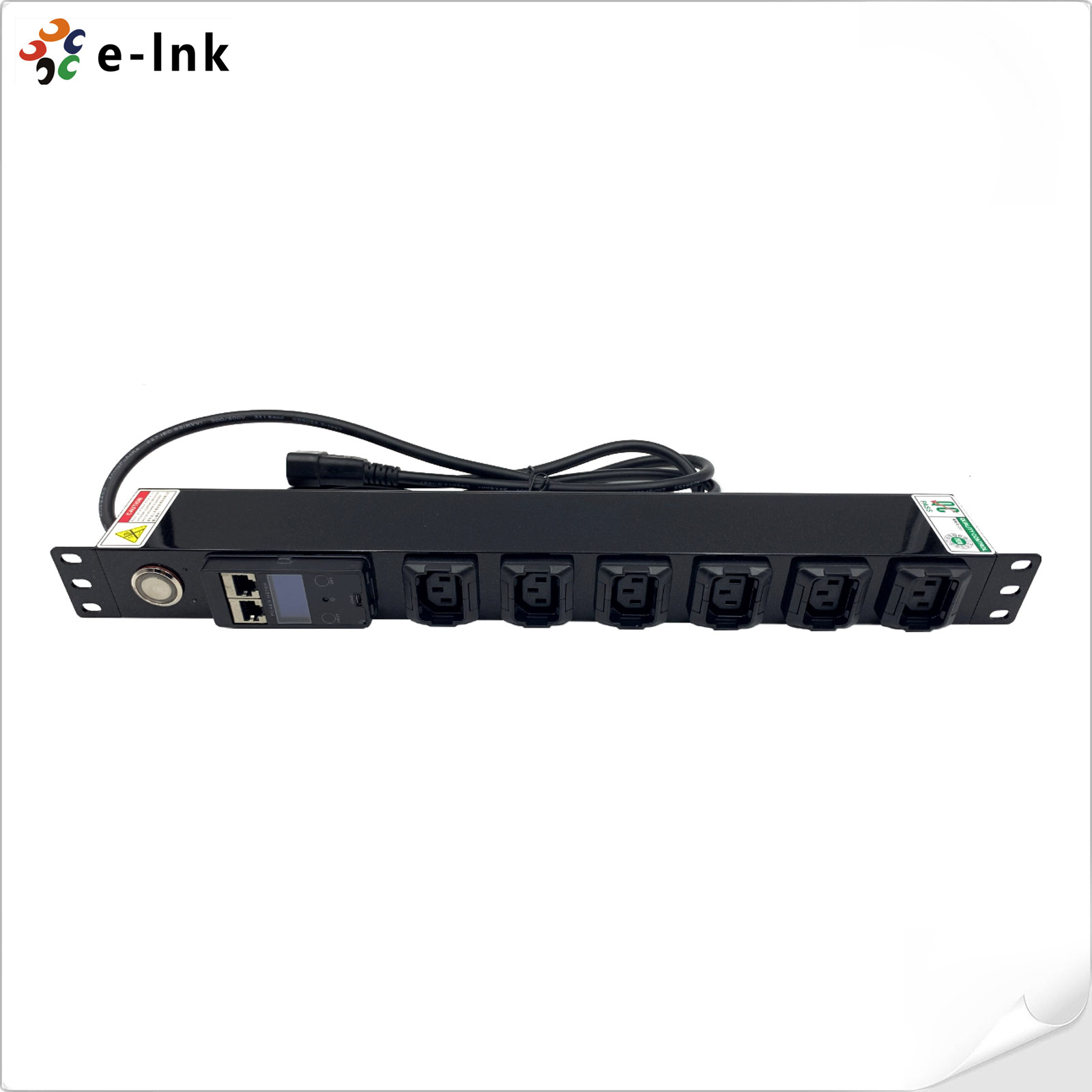

19 Inch 1U 6 Port Intelligent Metered Power Distribution Unit PDU
Model:LNK- IPDU_M6 Series
► 85–265V AC input, 6 total outlets
► Max 16A / 2800W Output
► Different plug types available
► Support Remote communication and control
► With Power meter, OLED display
► Gen 3 10KA Surge Protection module
► L and N Double-break Switch
Overview
E-link's IPDU_M Series Rack Power Distribution Unit (PDU) distributes power to devices in the 19’’ rack. The PDU with 6 outlets and build-in surge protector. Universal 10/16A 100–240V PDU is compatible with wide range of voltages to deliver single-phase AC power to multiple loads from a utility outlet, generator or UPS system. With smart power meter, support Remote communication and control and display the voltage, current and Power on OLED screen. Ideal for data centers, server rooms and network wiring closets.
The reversible all-metal housing supports a variety of mounting options, including 1U horizontal mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
Feature
► 85–265V AC input, 6 total outlets
► Max 16A / 2800W Output
► Support 19 inch Rack-mount
► Different plug types available
► Support Remote communication and control
► With Power meter, OLED display
► Gen 3 10KA Surge Protection module
► L and N Double-break Switch
► UL94V-0 Grade Flame Resistant Material
► Four-layer Piano Paint T6 Hardened Aluminum Profile
► Complies with the requirements of IEC60297 standards
► EMI.RFI Protection
Technical Indexes
|
OUTPUT |
|
|
PDU type |
19 inch rack mount Surge Protection PDU with Smart Power meter |
|
Voltage output |
85V~265VAC |
|
Working Frequency |
50/60Hz |
|
Output Capacity Details |
3.68kW (230V), 1.76kW(110V) |
|
Outlets type |
US, EU, UK, IEC available |
|
Overload Protection |
Yes |
|
Voltage Measurement |
Range: 0~300V |
|
Display Digits: 0.01V |
|
|
Current Measurement |
Input: Transformer |
|
Range: 0~30mA |
|
|
Display Digits: 0.01A |
|
|
Power Measurement |
Accuracy: Grade 1 |
|
Display Digits: 0.01kW |
|
|
Electricity Measurement |
Accuracy: Grade 1 |
|
Display Digits: 0.01kW |
|
|
Display |
OLED Screen, Blue text on black / White text on black |
|
INPUT |
|
|
PDU Input Voltage |
85-265V AC |
|
Maximum Input Amps |
10/16A |
|
PDU Plug Type |
US, EU, UK, IEC 3 Pin available |
|
Phase line |
Single Phase |
|
Input Cord Details |
1.8m / 5.9ft |
|
PHYSICAL |
|
|
Form Factors Supported |
1U rackmount, wall-mount, and under-counter installation |
|
Material of Construction |
Aluminum T6 Hardened Profile with Four-layer Piano Paint |
|
Minimum Required Rack Depth |
59mm / 2.3in |
|
Unit Weight |
1.05kg / 2.31 lbs |
|
Photosensitive Detection |
Normally used for automatic lighting with extended functions |
|
ENVIRONMENTAL |
|
|
Operating Temperature |
-10 to 50°C |
|
Storage Temperature |
-30 to 60°C |
|
Relative Humidity |
5 to 95% non-condensing |
|
Operating Elevation |
0-4000m |
|
Warranty Period |
5-year limited warranty |
- Download FileName：E-link 19inch 1U Intelligent Meter PDU Datasheet V1.0.pdf Size： 532KB
Order Information
|
Model Number |
Input |
Output |
Output Interface |
accessories |
Remark |
|
|
Control |
||||||
|
LNK- IPDU_M6GB10_ZK_GB |
85-265V AC |
GB2015, Max=13A, 6CH Control output |
GB1002(10A/250V) |
Smart Meter |
Input Plug Customizable |
|
|
LNK- IPDU_M6IEC13K_ZK_IEC14 |
85-265V AC |
IEC320-C1 (Cable anti falling), Max=13A, 6CH Control output |
IEC60320 C13 |
Smart Meter |
Input Plug Customizable |
|
|
LNK- IPDU_M6WY10_ZK_GB |
85-265V AC |
Universal plug Max=16A, 6CH Control output |
GB 2099.3(16A/250V) |
Smart Meter |
Input Plug Customizable |
|
|
LNK- IPDU_M6UL_ ZK_UL |
85-265V AC |
Universal plug Max=16A, 6CH Control output |
NEMA5-15R(16A/250V) |
Smart Meter |
Input Plug Customizable |
|
