Overview

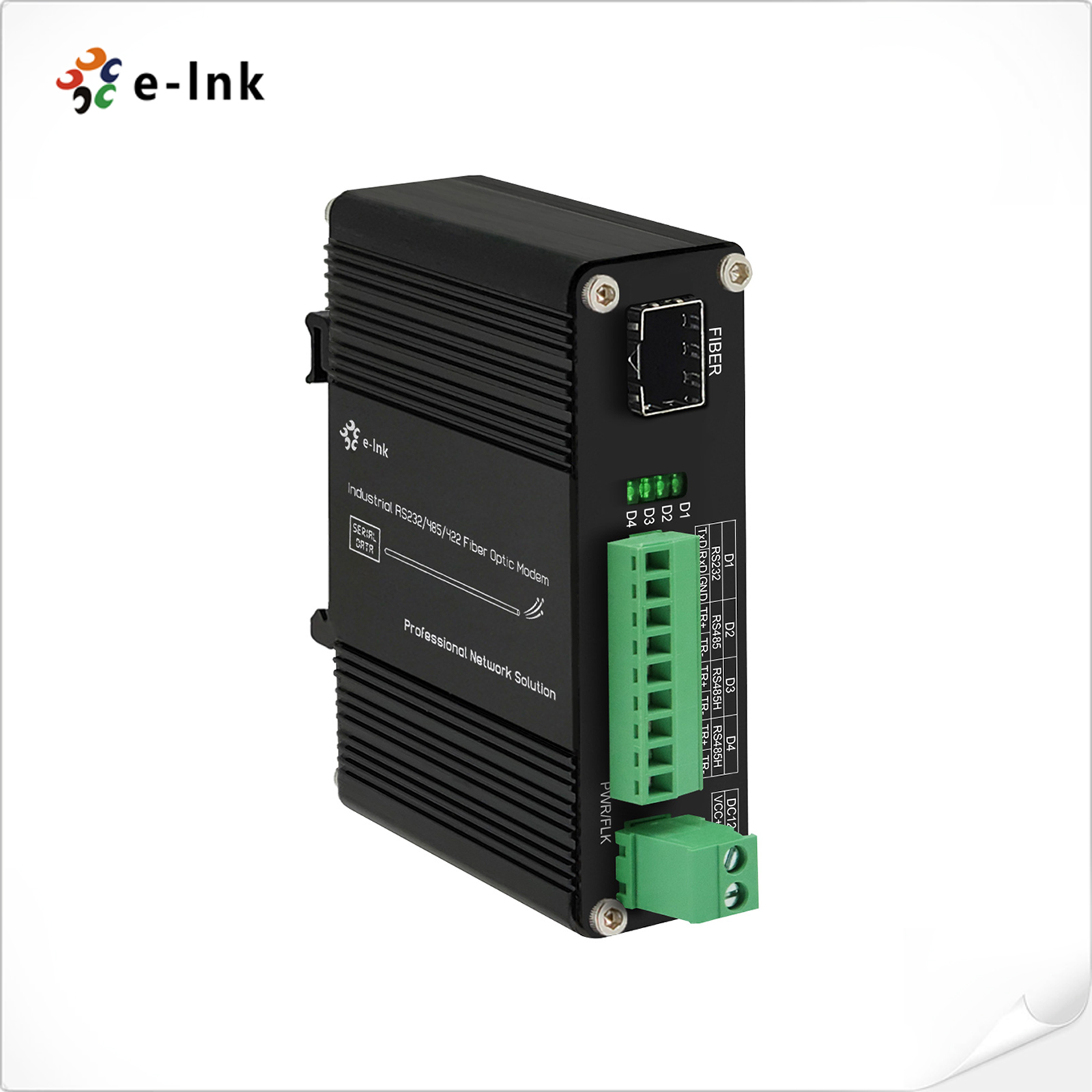

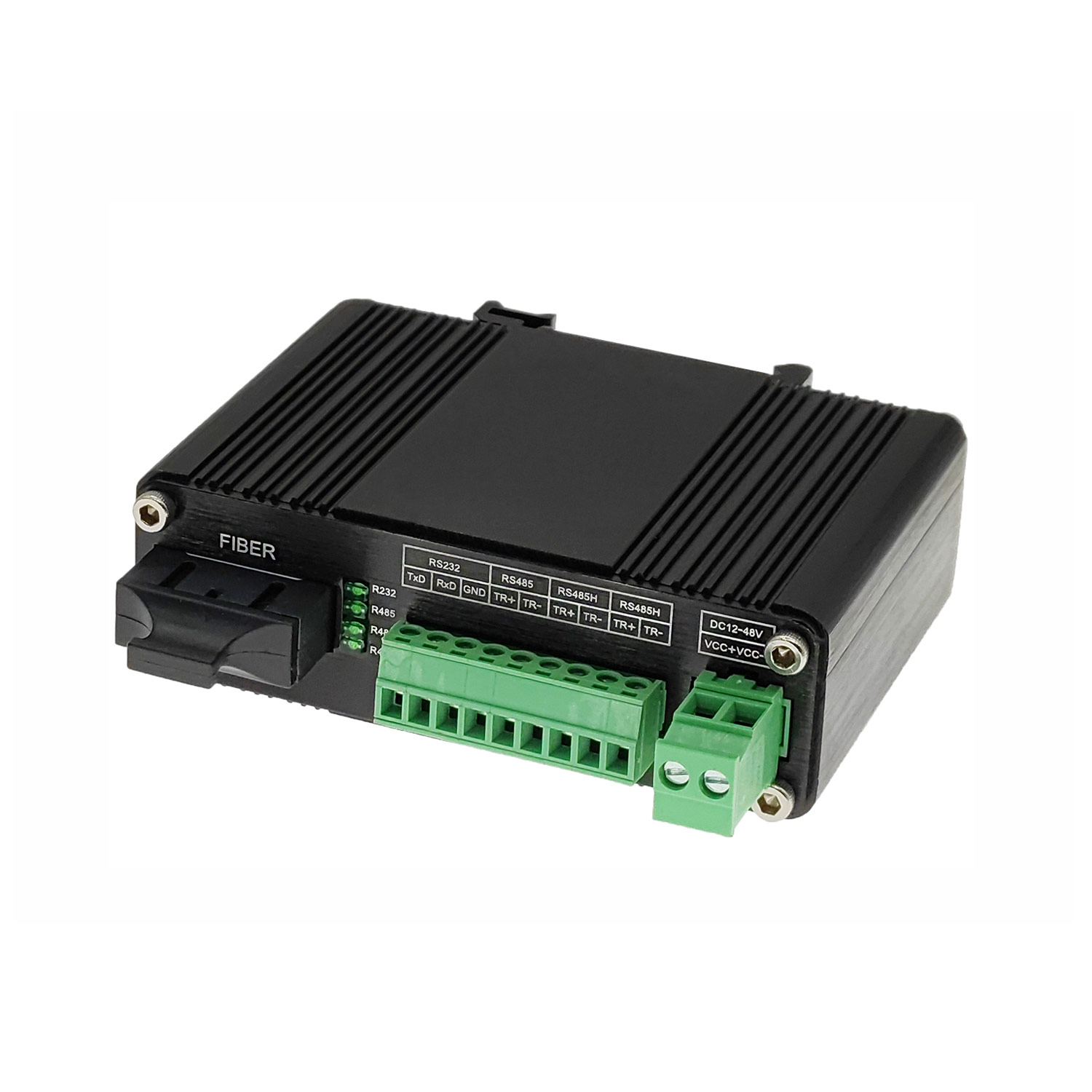

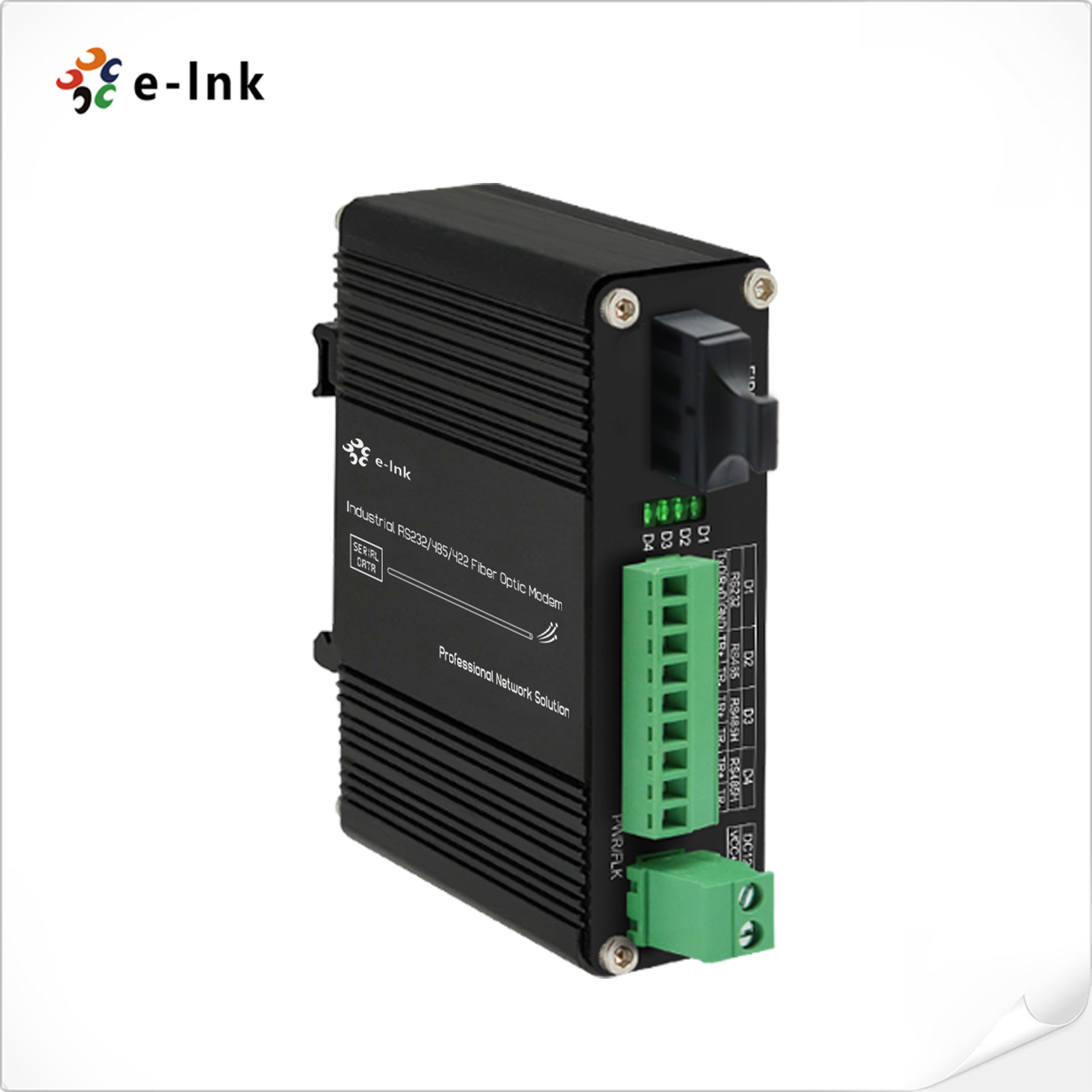

LNK-IRS93 series is an industrial grade RS232/RS485/RS422 to fiber optic converter which converts a standard RS232/RS485/RS422 signal to a fiber optic link as to extend the signal up to 2Km on multimode fiber and 80Km on single mode fiber. The use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage. It greatly improves the reliability, security, and confidentiality of data communication, and can be widely used in various industrial control, process control, Stage Lighting Control, and traffic control occasions.

Features

►    Plug-and-play, hot pluggable

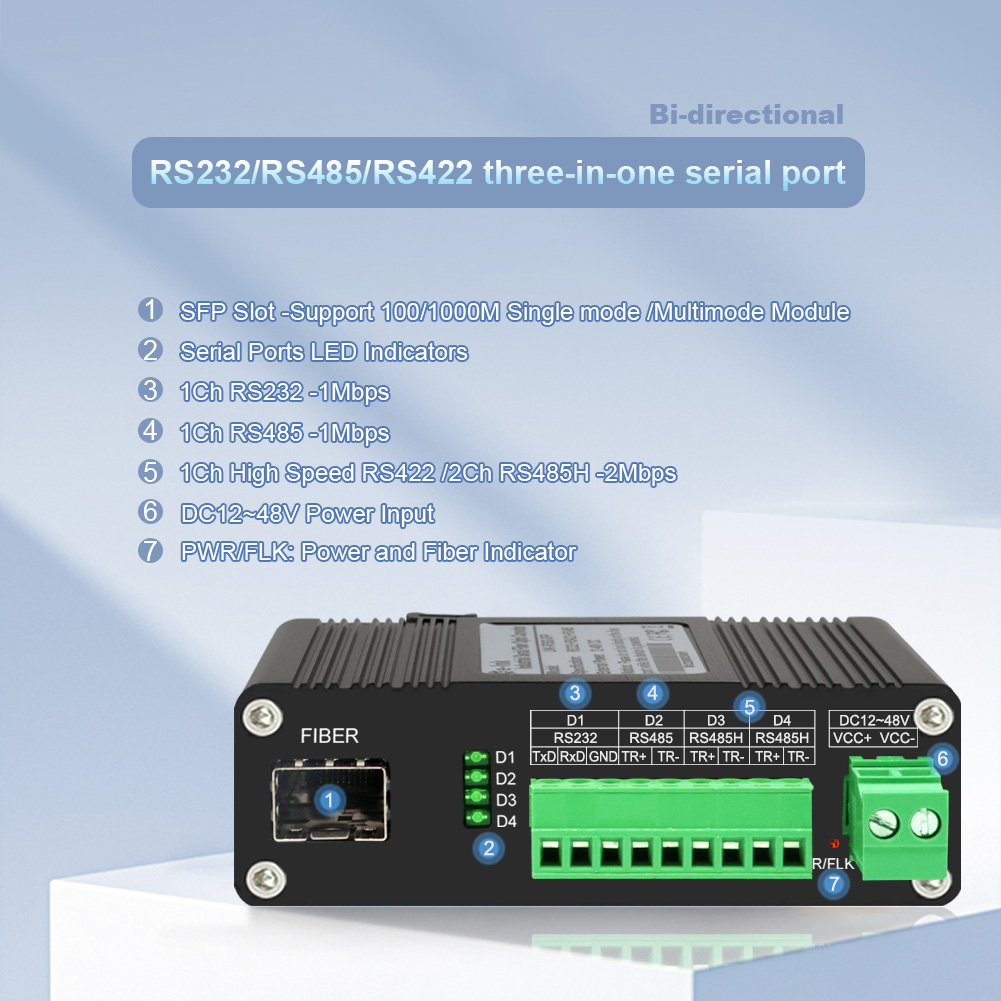

►    Extends Bi-directional RS-232/RS-485/RS-422 up to 2Km on MMF, 80Km on SMF

►    EIA /TIA standard RS232/485/422, 0-115,200 Baud rate

►    Serial data is fully transparent, baud rate is self-adaptive, no setting is required

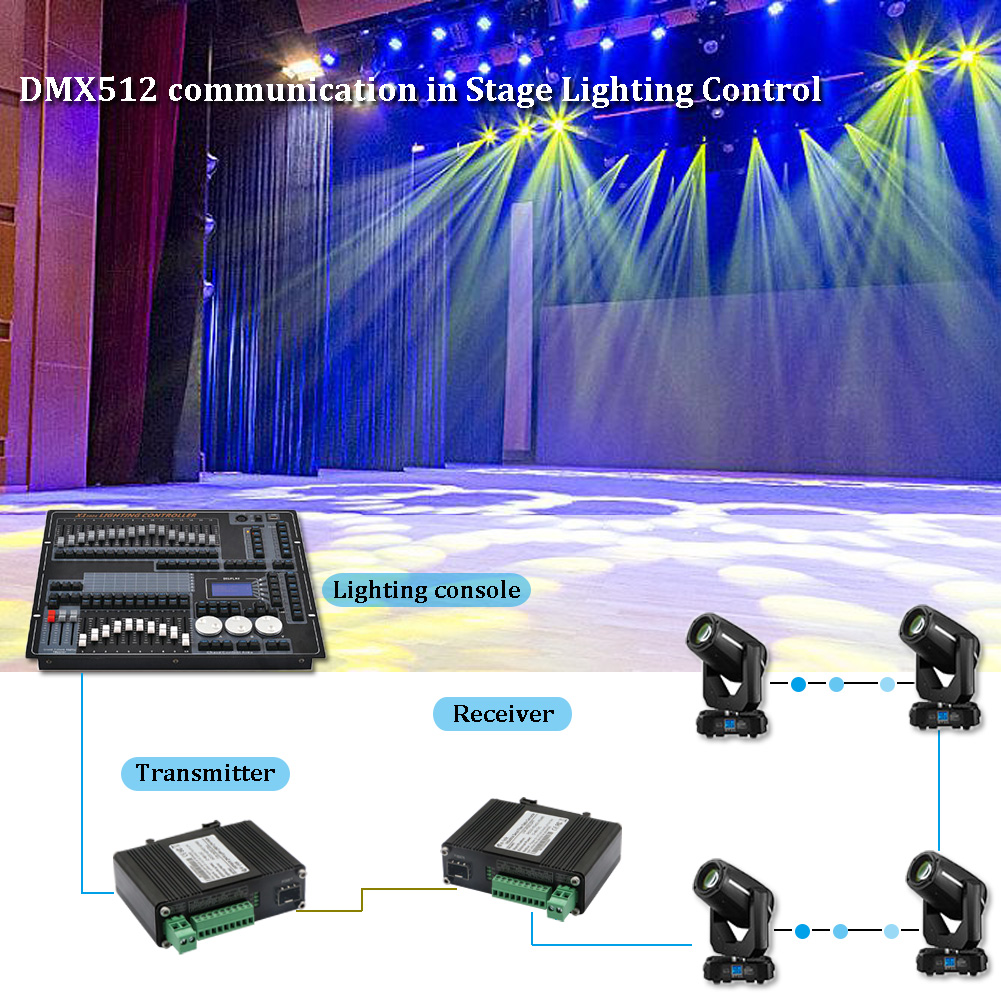

►    The high-speed serial data can be used for DMX512 communication in Stage Lighting Control

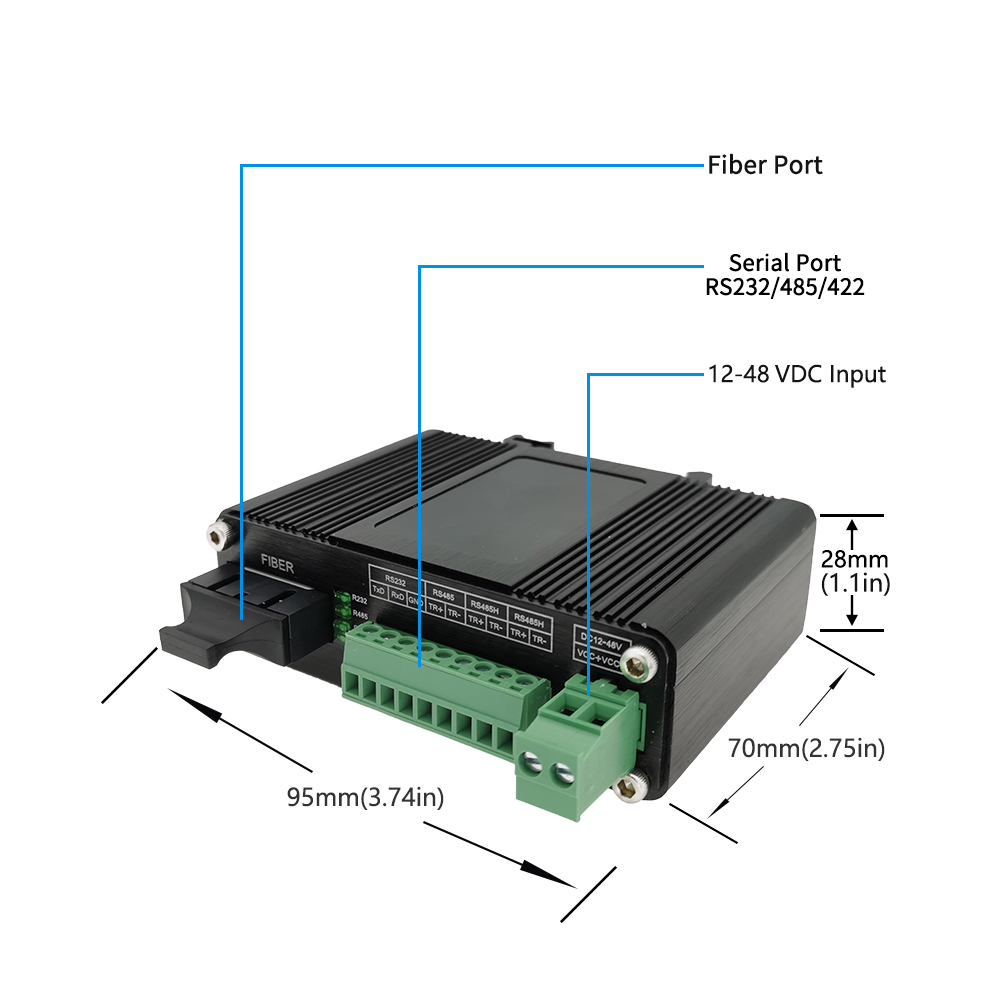

►    Support DIN-Rail & Wall-mount installation.

►    Built-in surge and static protection

►    Diagnostic and unit indicator LEDs

►    Environmentally Hardened -40°C to 75°C (-40°F to 176°F) operating temperature

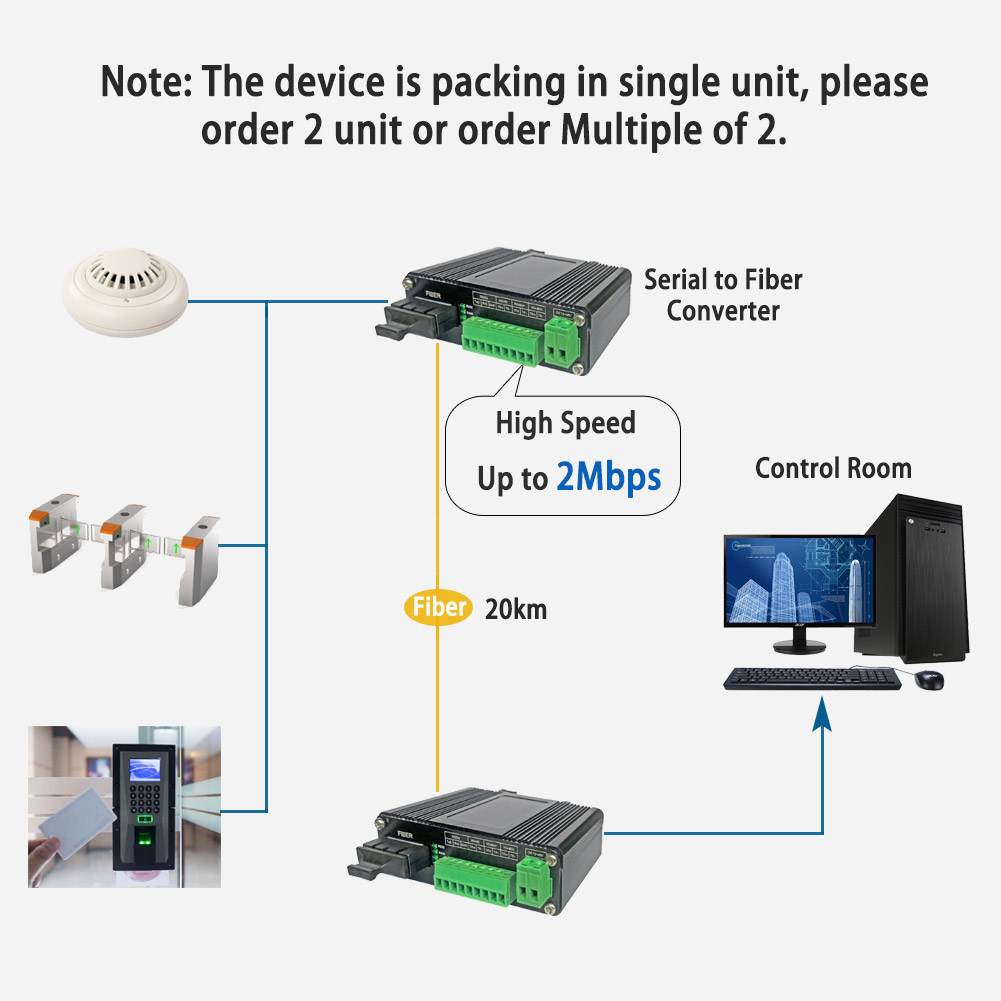

Application

Technical Indexes

• Download FileName：E-link LNK-IRS93 Series RS232 422 485 Serial Fiber Modem Datasheet V1.0.pdf Size： 1.53MB

Order Information
