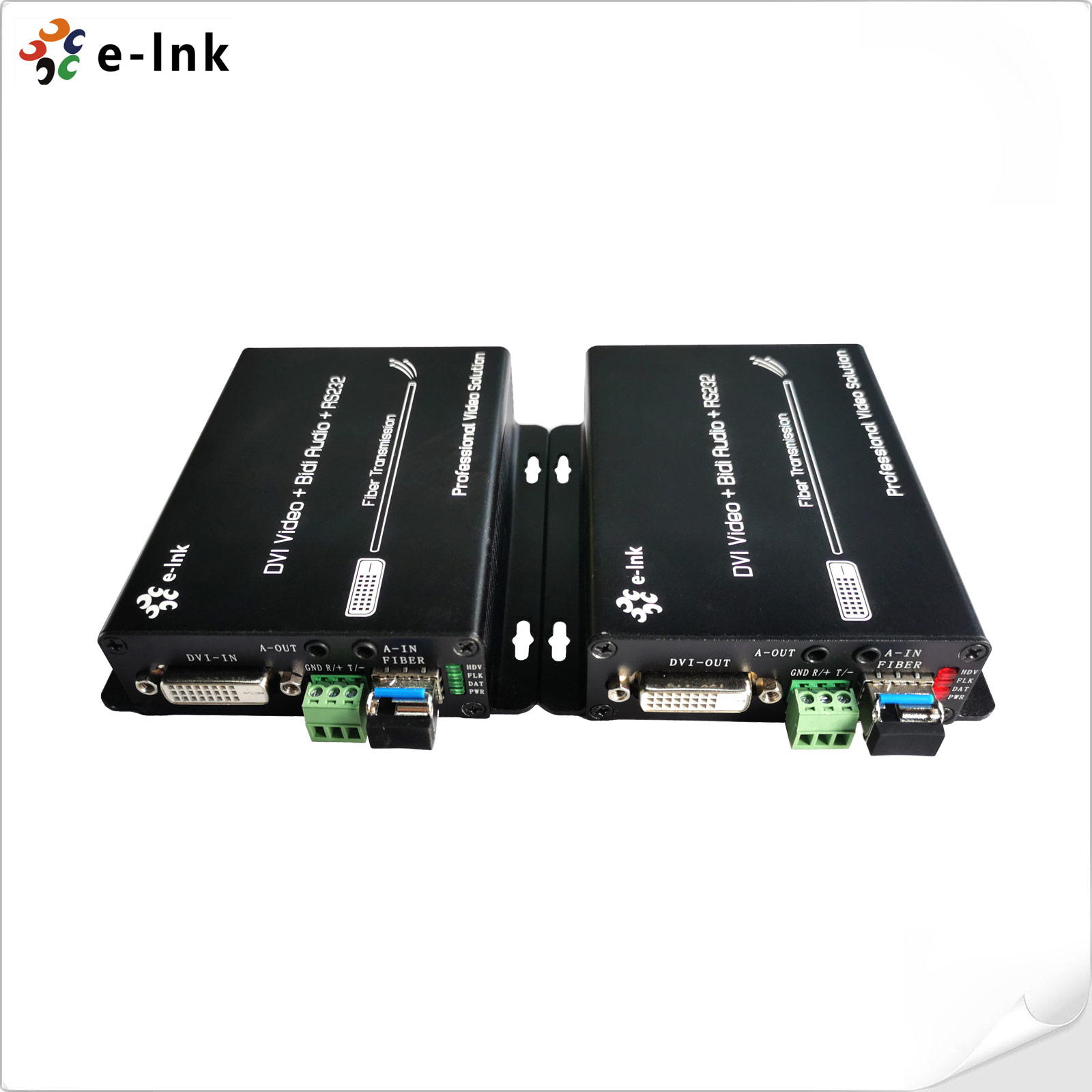

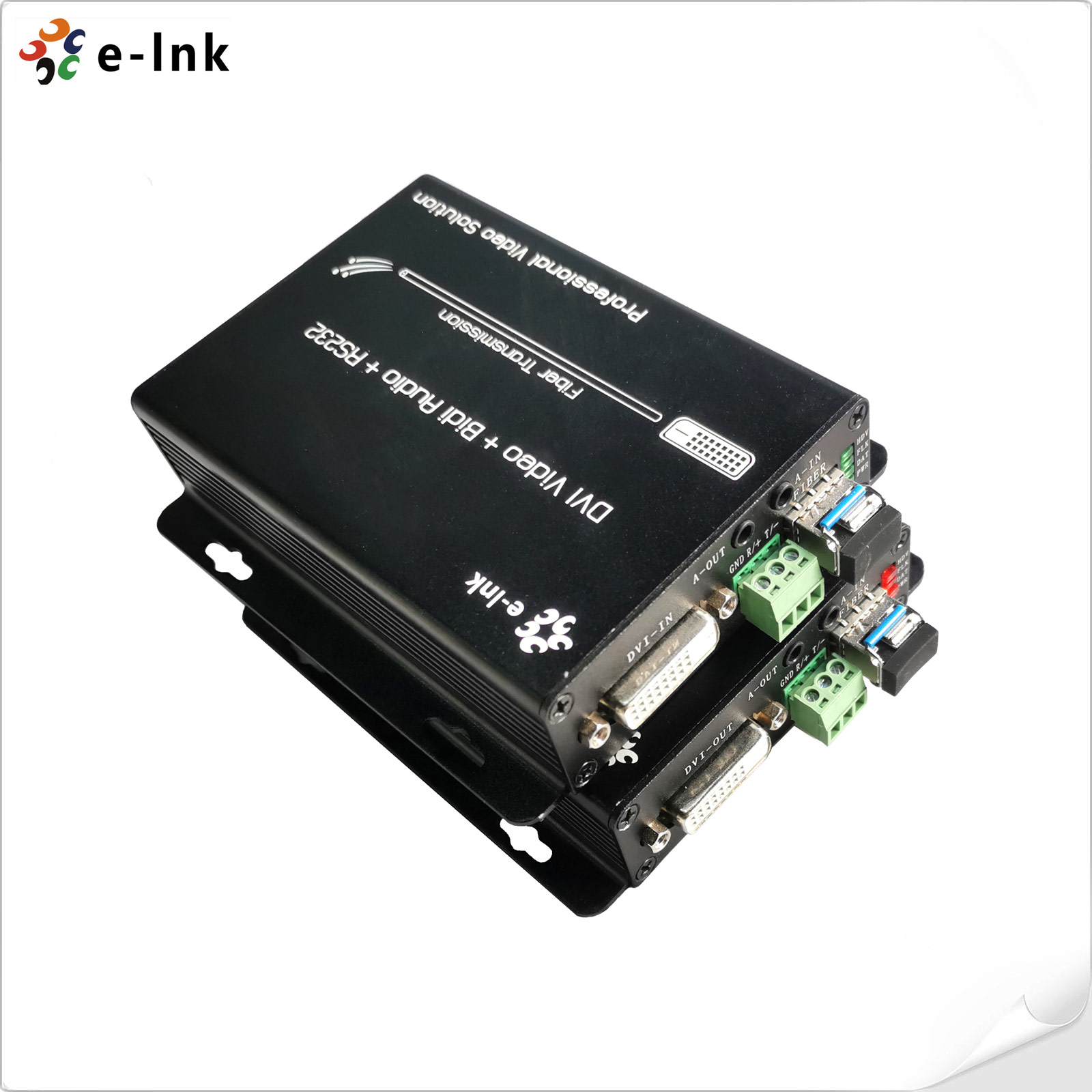

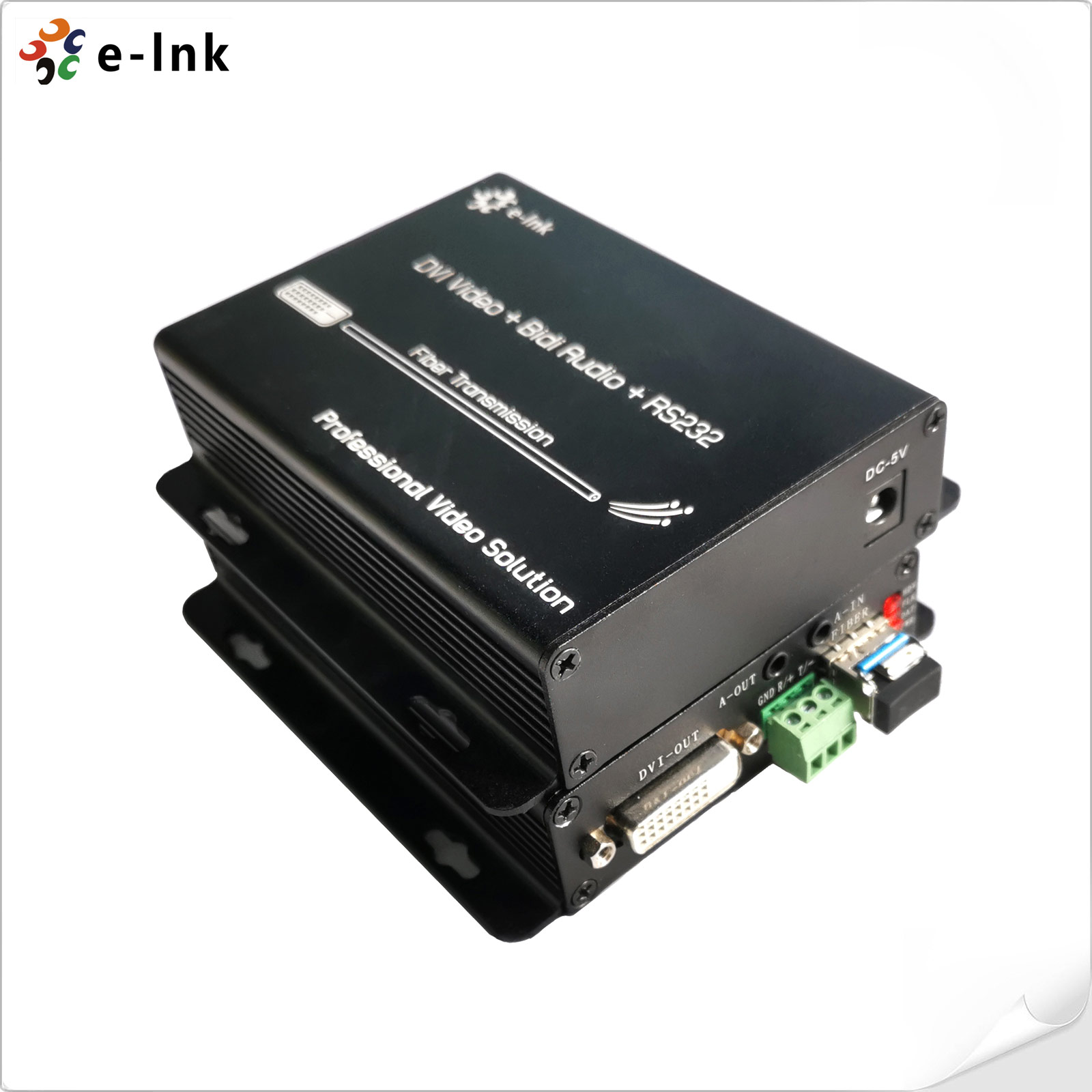

DVI Fiber Optic Extender with 1Ch Bidirectional Stereo Audio + 1Ch RS232

Model:LNK-DVI-1D1BA

►    Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable

►    Support resolution up to 1920*1200@60Hz

►    Special support 1600*1200 @60HZ

►    Support external bidirectional stereo audio transmission

►    Compliance with DVI 1.0 and HDCP 1.2 standard

Overview


The LNK-DVI-1D1BA Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.


Features


►    Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;

►    Support resolution up to 1920*1200@60Hz ;

►    Special support 1600*1200 @60HZ;

►    Support external bidirectional stereo audio transmission;

►    Compliance with DVI 1.0 and HDCP 1.2 standard;

►    High compatibility, can auto-match source and display device;

►    Built-in automatic adjustment system, make the image smooth, clear and stable;

►    Built-in ESD protection system;

►    Simple to install, plug and play;


Application

Technical Indexes

Parameter

Description








Video






Standards

DVI 1.0 and HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

2.97Gbps

Compliant

1080P@50/59.95/60Hz( Max 1920*1200@60Hz)1080P@23.98/24/29.97/30Hz,
1080i@50/59.94/60/Hz,

720P@23.98/24/29.97/30Hz,

720P@50/59.94/60Hz

Special support 1600*1200 @60HZ

Connector

FemaleDVI-D

Impedance

100Ω

DVI Cable Range

<5Meter (Resolution up to 1920*1200@60Hz)

Audio

Interface

3.5MM external stereo audio

Transmitter

1Ch Input + 1Ch Output

Receiver

1Ch Input + 1Ch Output

RS232

Interface

3-Pin Terminal Block

Baud Rate

≤115200

Data Bits

8 bits

Optical fiber

Interface

SFP model – LC connector

Fiber type

Single-mode

Wavelength

850nm/1310nm/1550nm

Interface bandwidth

3Gbps

Transmission distance

Multi-mode fiber: <500M

Single-mode fiber: 0~80km

Other

Power supply

The power adapter: DC 5V

Power dissipation

MAX 4W

Temperature

Operating: -20℃~ +70℃

Humidity

Operating: 5% ~ 90%

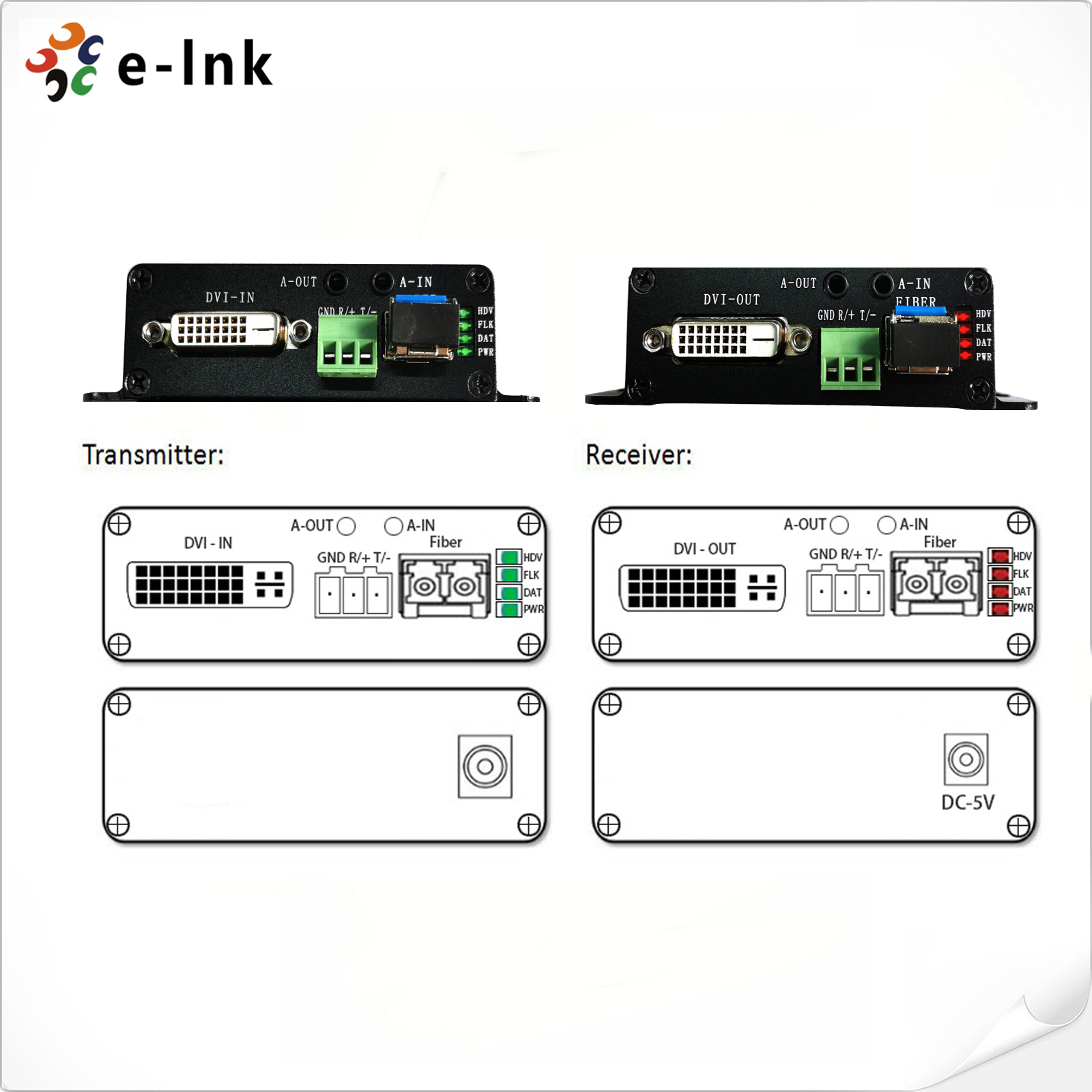

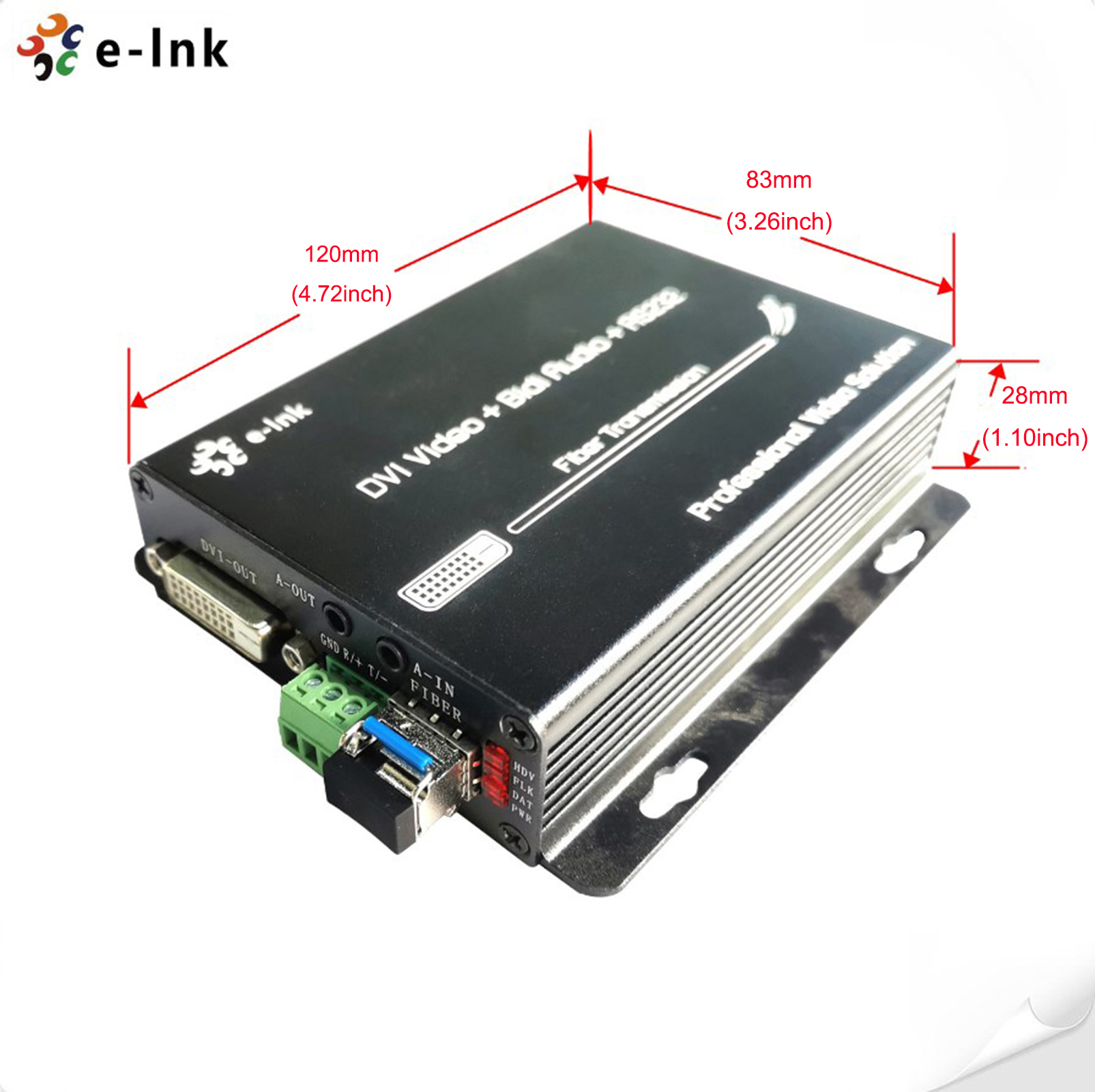

Dimension (LxWxH)

120 x 83 x 28 (mm)

  • Download FileName:E-link LNK-DVI-1D1BA DVI+Bidi Audio+RS232 over Fiber Extender Datasheet V1.0.pdf Size: 783KB

Order Information

Item

Description

LNK-DVI-1D1BA

1Ch DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multimode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs

LNK-DVI-1D1BA-20

1Ch DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), single mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
