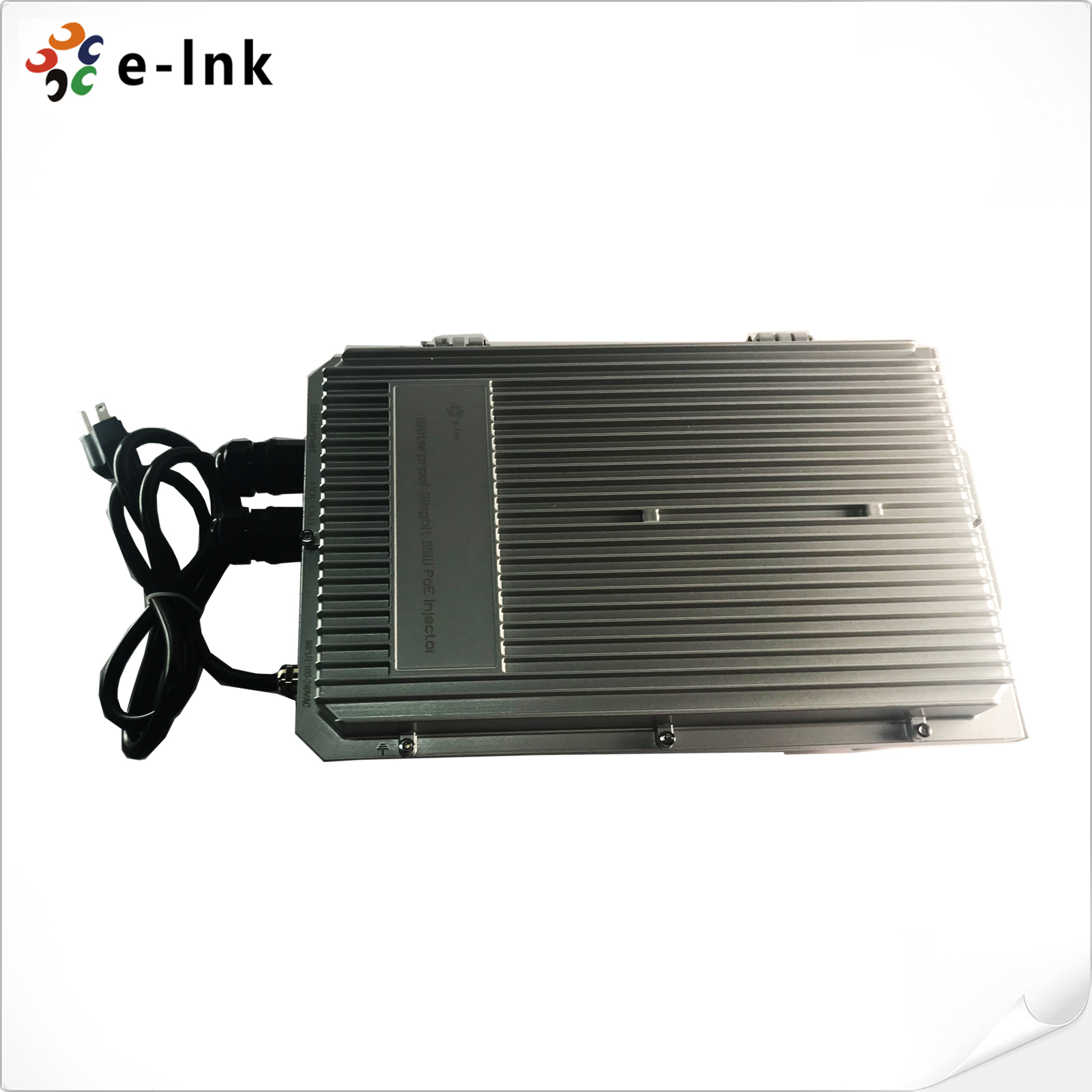

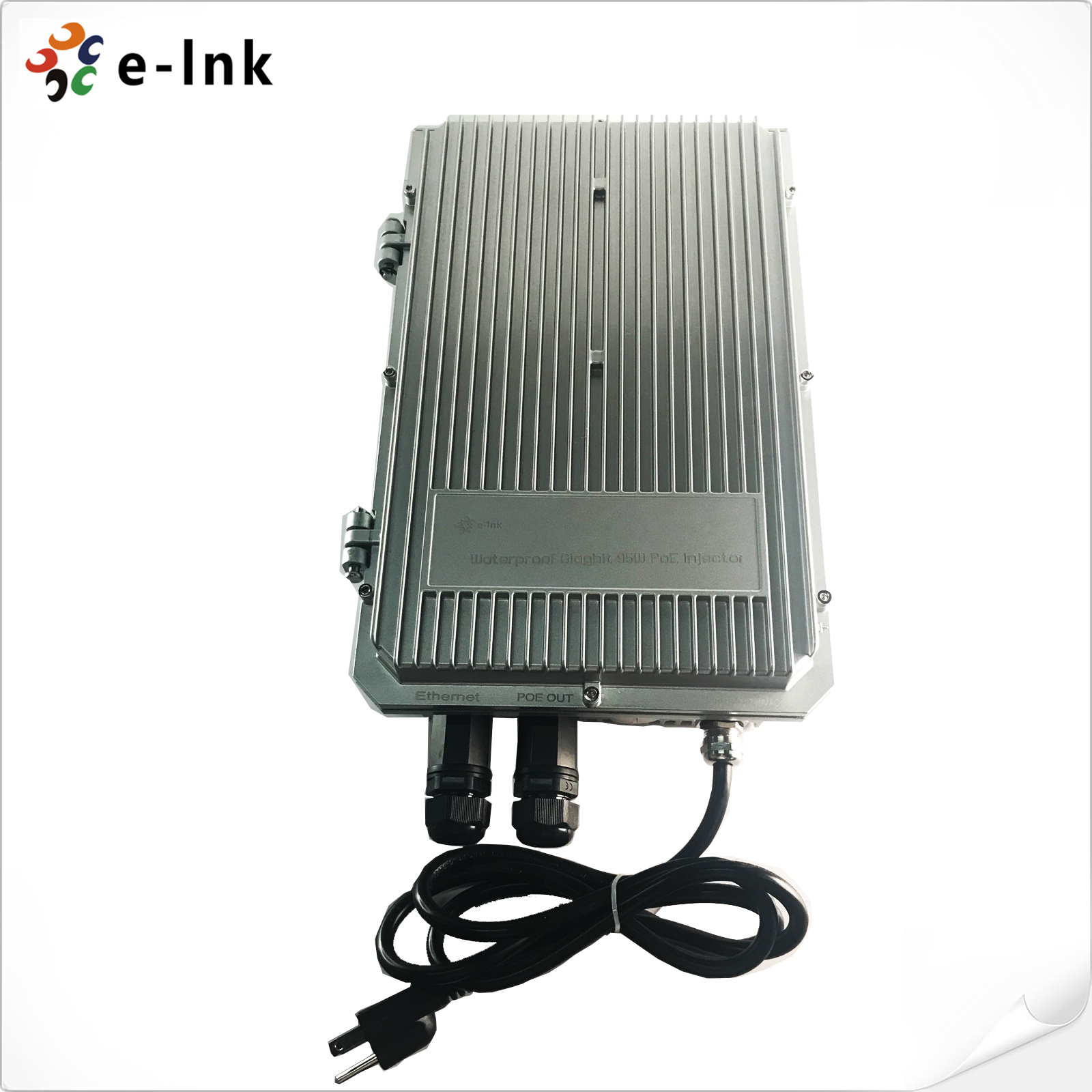

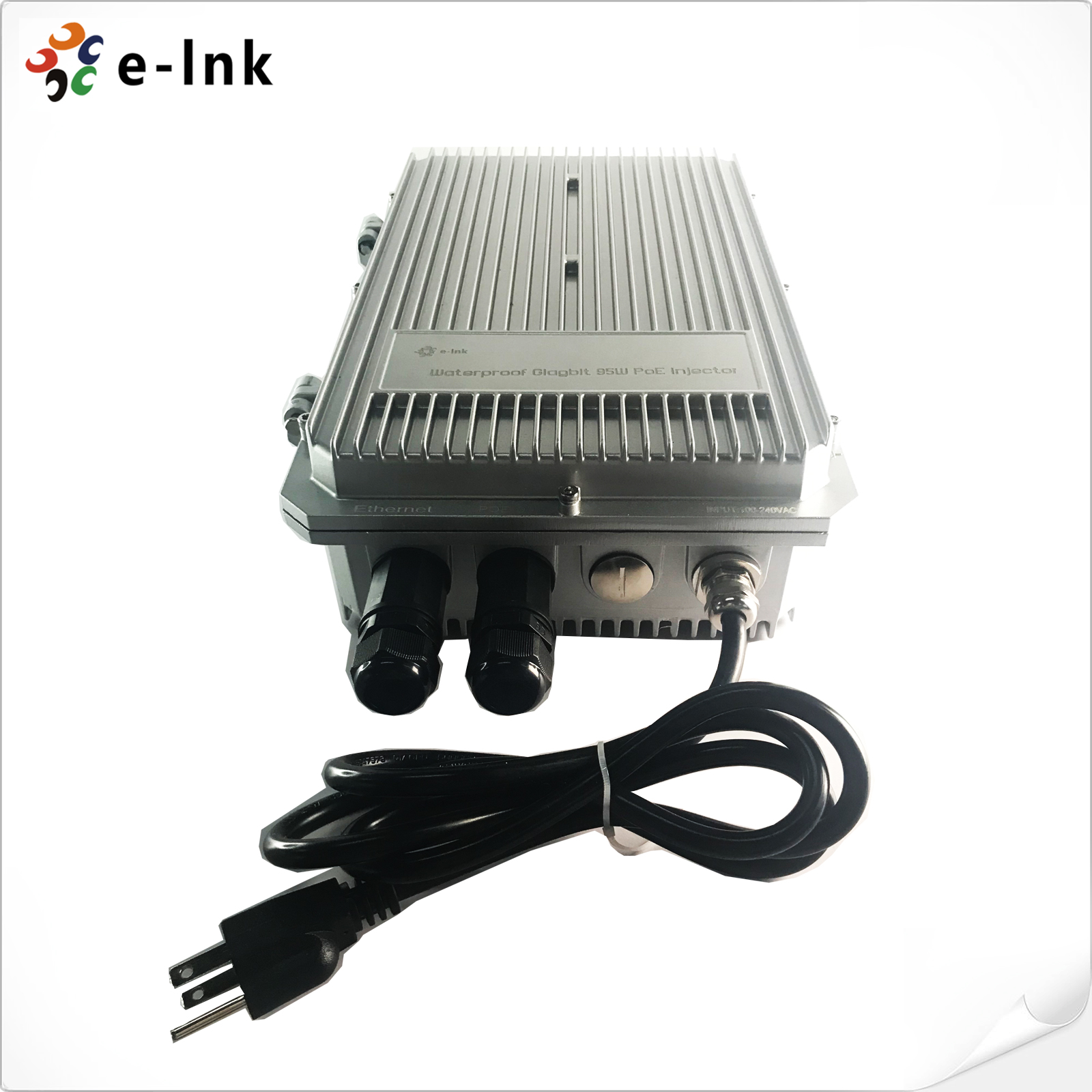

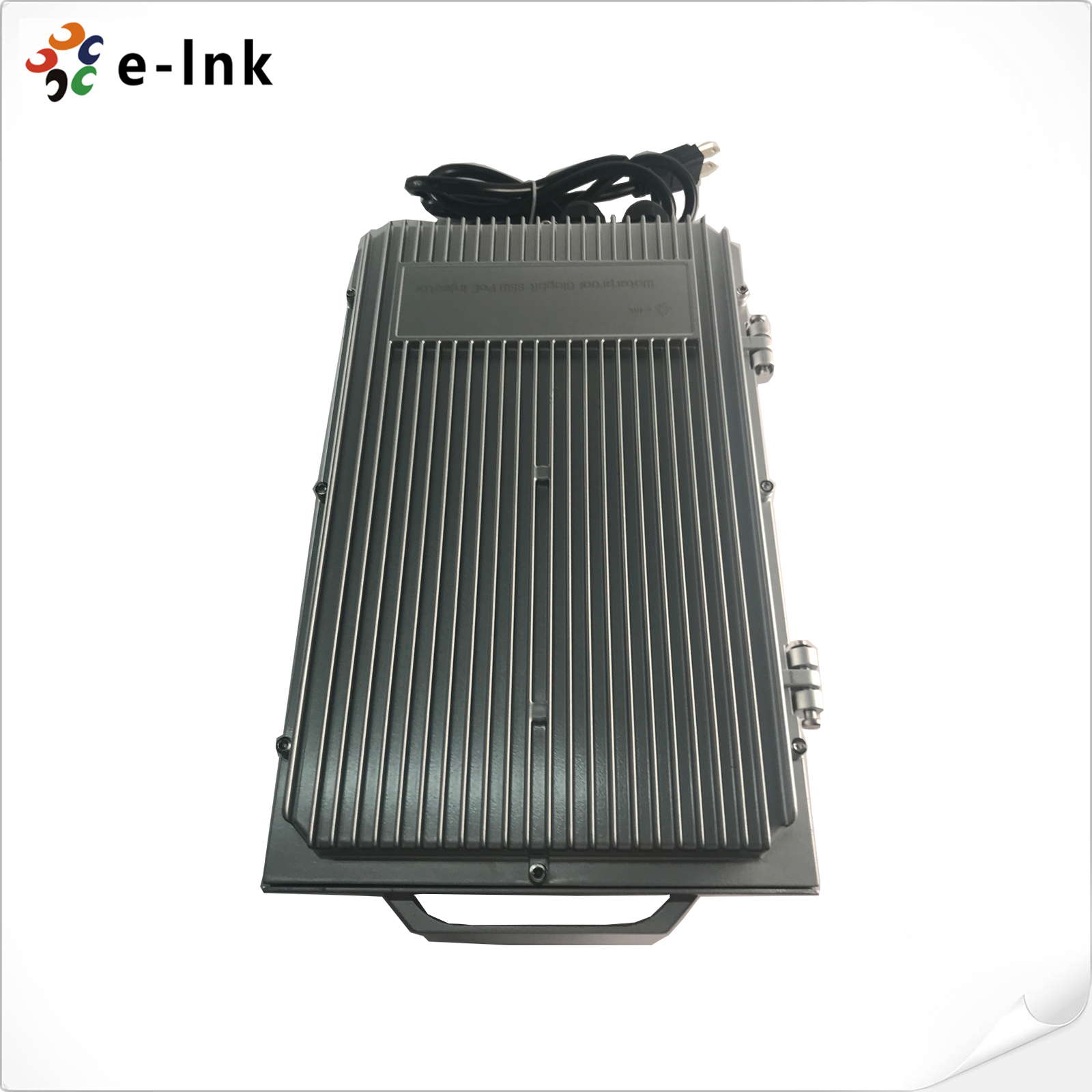

30W Outdoor Industrial IP67 Waterproof 802.3at PoE+ Injector

Model:LNK-IPOE-30W

►    Support 10/100/1000Base-TX

►    IEEE 802.3af/at compliant

►    Outdoor using, power directly

►    PoE output up to 30W

►    Power pins: 4/5(+),7/8(-)

Overview

E-link LNK-IPOE-30W Industrial IP67-rated Single-port 802.3at PoE Injector provides a maximum of up to 30 watts for each PoE output port, transmitting both the Gigabit Ethernet data and 802.3at PoE power over the UTP cable. It is specifically designed for such outdoor powered devices (PDs) as PTZ network cameras, PTZ speed dome cameras, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need a higher power to work stably.

  With industrial-level IP67-rated aluminum case, the LNK-IPOE-30W provides a high level of immunity against electromagnetic interference, and is able to protect itself from dust and water ingress and to operate under the temperature range from -40 to 80 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

  LNK-IPOE-30W is designed for outdoor using, which works with 90-264VAC input. It has detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables. It is especially suitable for working in complex power situations. It is easy to install with installation kit LNK-POT-MBK, no need to open equipment.

Features

►    Support 10/100/1000Base-TX

►    IEEE 802.3af/at compliant

►    Outdoor using, power directly

►    PoE output up to 30W

►    Power pins: 4/5(+),7/8(-)

►    Provide signal and PoE output, lightning protection 6KV

►    Wide temperature design: -40℃ to +80℃

►    Metal casing, waterproof, dustproof, IP67

►    Sealing gasket past extension, bearing, corrosion, aging test

►    Plug-and-play installation

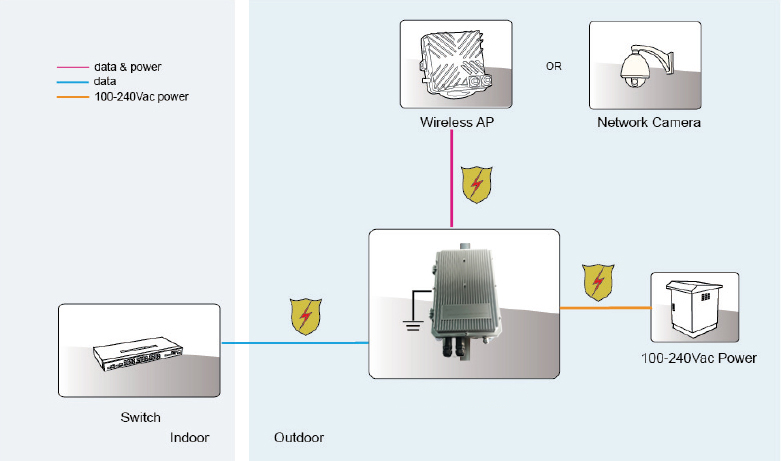

Application

Technical Indexes

Ethernet

Standards:

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

10/100/1000Base-T

Connector:

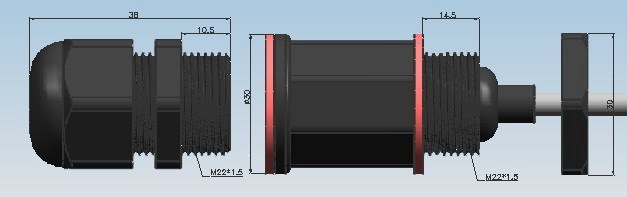

2x M22 Shielded RJ-45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Input & Output

Input Power:

90~264VAC

Output PoE Power:

30W

Power Pins:

4/5(+),7/8(-)

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

M22 Shielded RJ-45

Max. Power per Port:

30W Max

AC Surge Protection

Line-Earth 1.2/50us (8/20us):

6KV

Line-Line1.2/50us (8/20us):

4KV

PoE Surge Protection

Protected line:

1,2,3,4,5,6,7,8

Common mode surge protection(10/700us):

6KV

Differential mode surge protection (10/700us):

1.5KV

Mechanical

Dimensions (LxWxH):

304 x 184 x 75 mm (inner size)

Weight:

3.6Kg

Casing:

Aluminum Case

Color:

Silver

Mounting Options:

Pole-Mount

Regulatory Approvals

Safety Approvals: UL, CE

EMI: FCC CFR47 Part 15, EN55024, EN55032

EMS:

IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)

IEC61000-4-3(RS) 10V/m(80MHz~2GHz)

IEC61000-4-4(EFT) Power Port: ±2kV; Data Port: ±1kV

IEC61000-4-5(Surge) Power Port: ±1kV/DM, ±2kV/CM

IEC61000-4-6(CS) 10V(150kHz~80MHz)

Immunity:

IEC60068-2-6(Vibration)

IEC60068-2-27(Impact)

IEC60068-2-32(Free Fall)


  • Download FileName:E-link LNK-IPOE-30W Outdoor Industrial Waterproof PoE Injector Datasheet V1.0.pdf Size: 885KB

Order Information

Model

Description

LNK-IPOE-30W

30W Outdoor Industrial IP67 Waterproof 802.3at PoE+ Injector

Mounting Options

Pole-mounted (installation kit needs to be purchased separately)

LNK-POT-MBK

Pole-Mount installation kit
