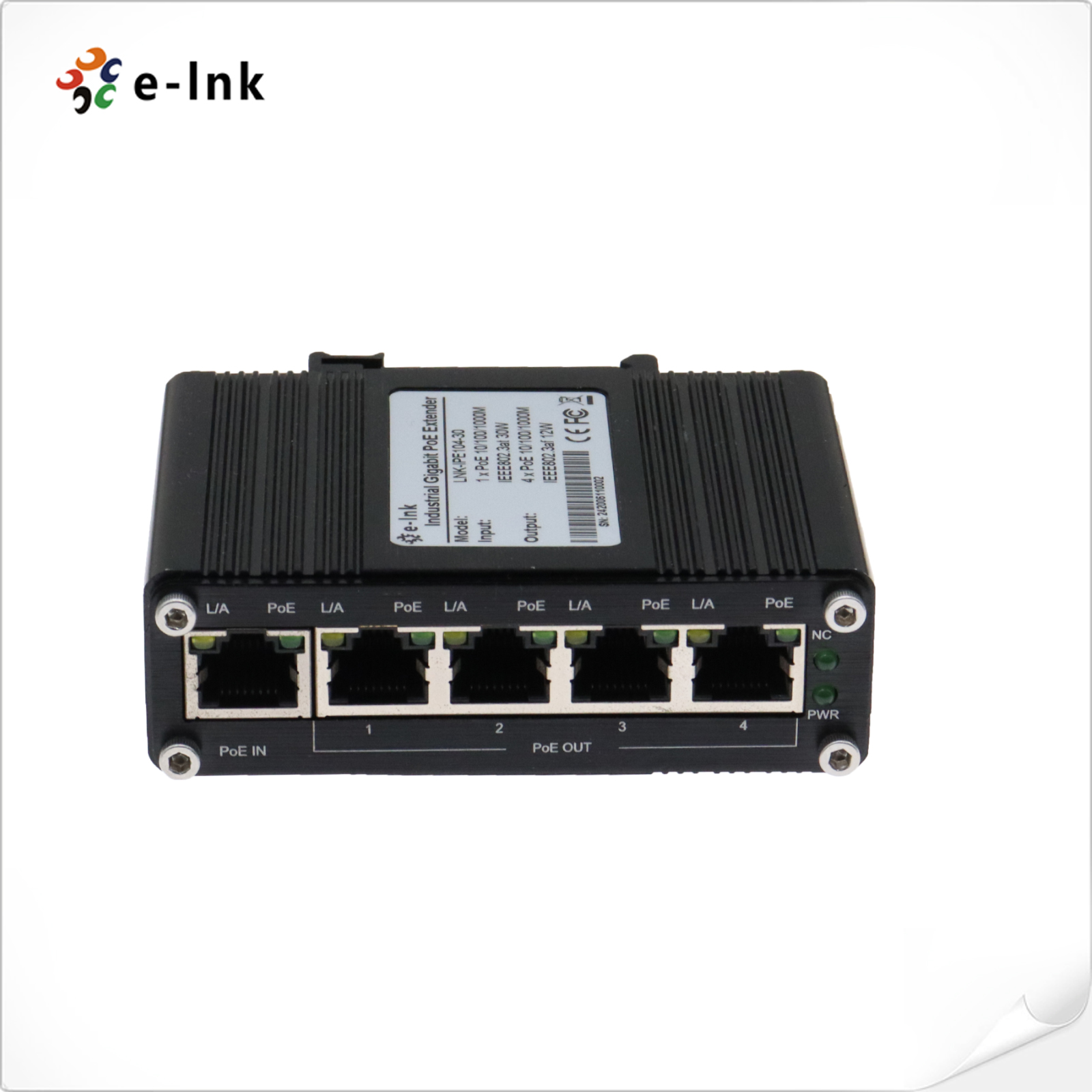

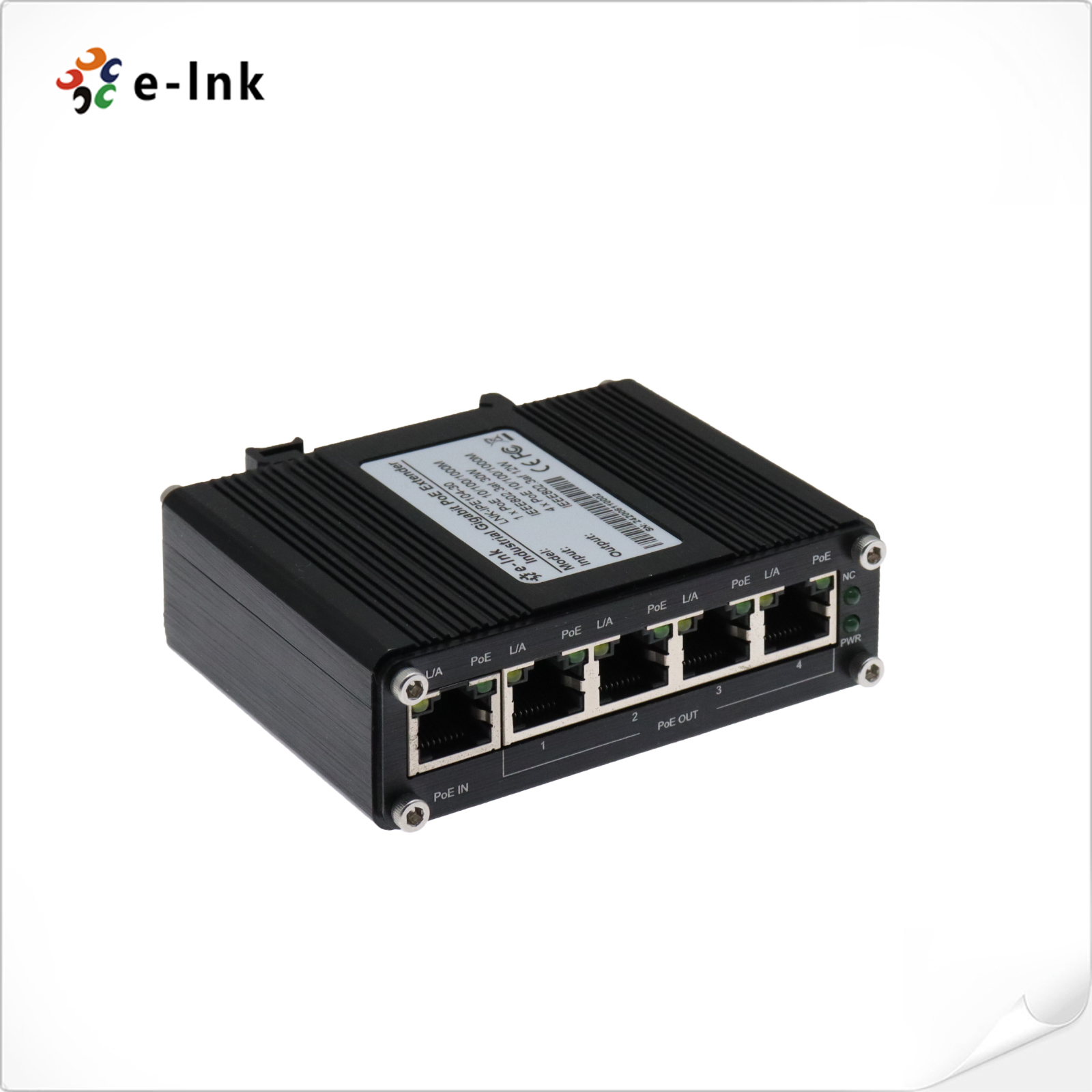

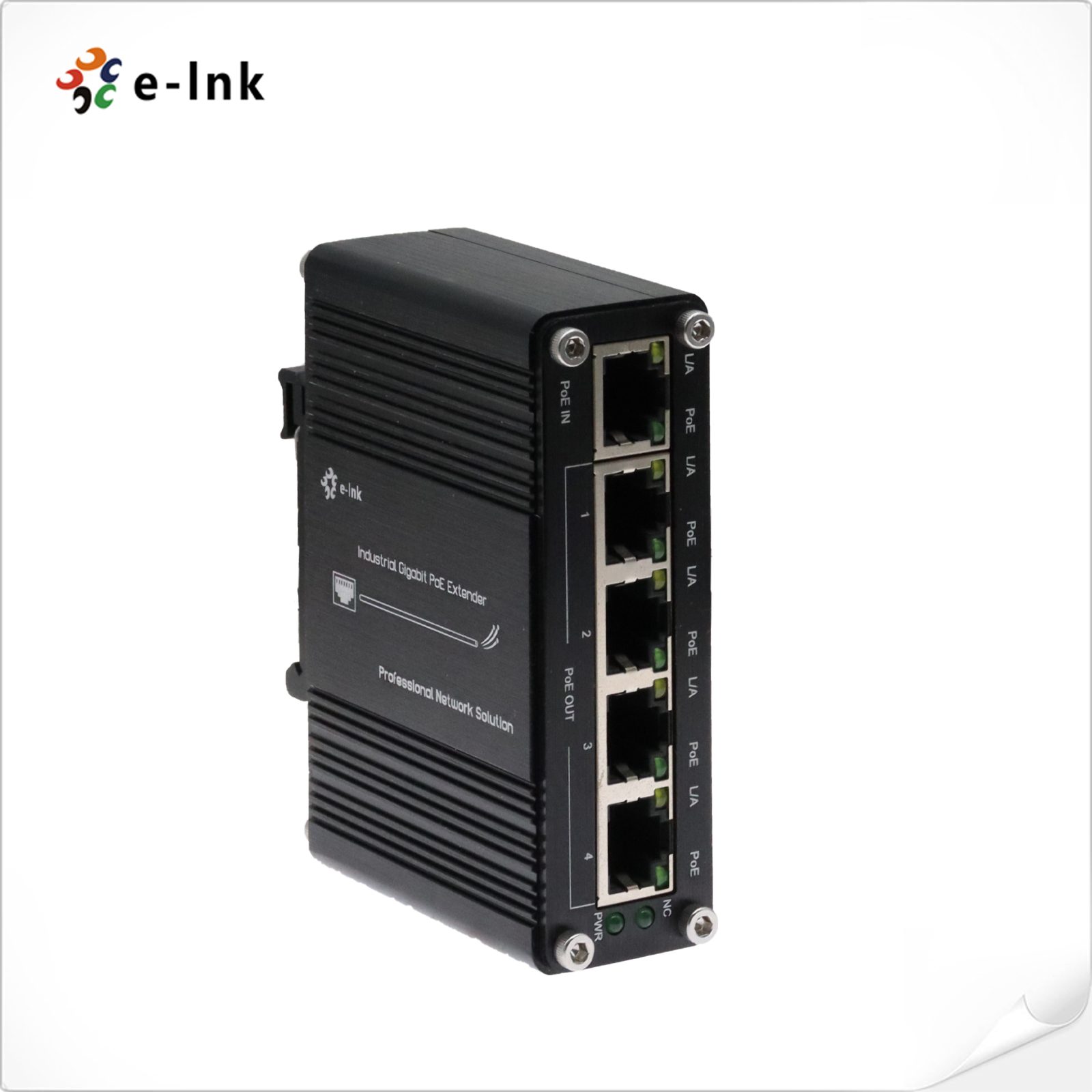

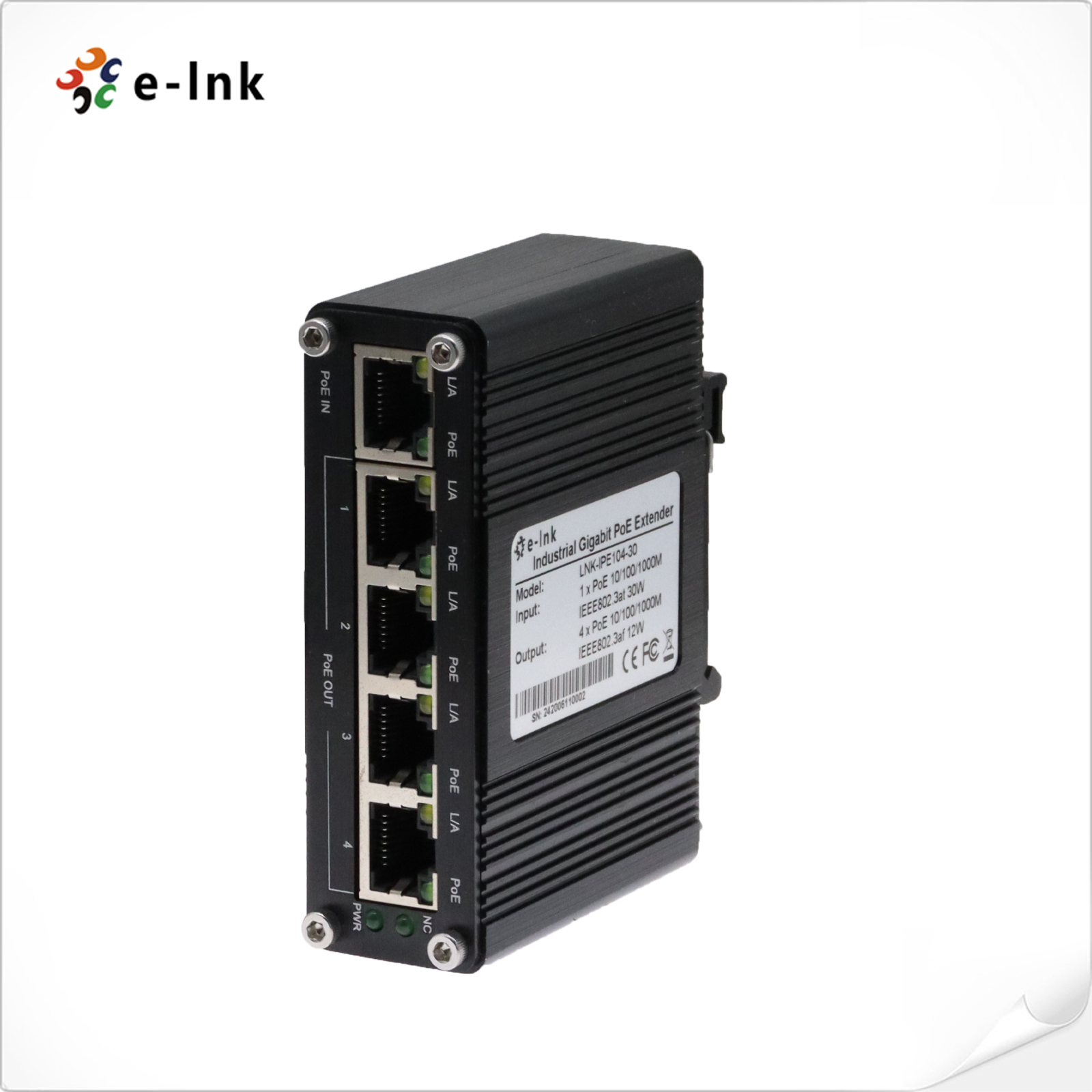

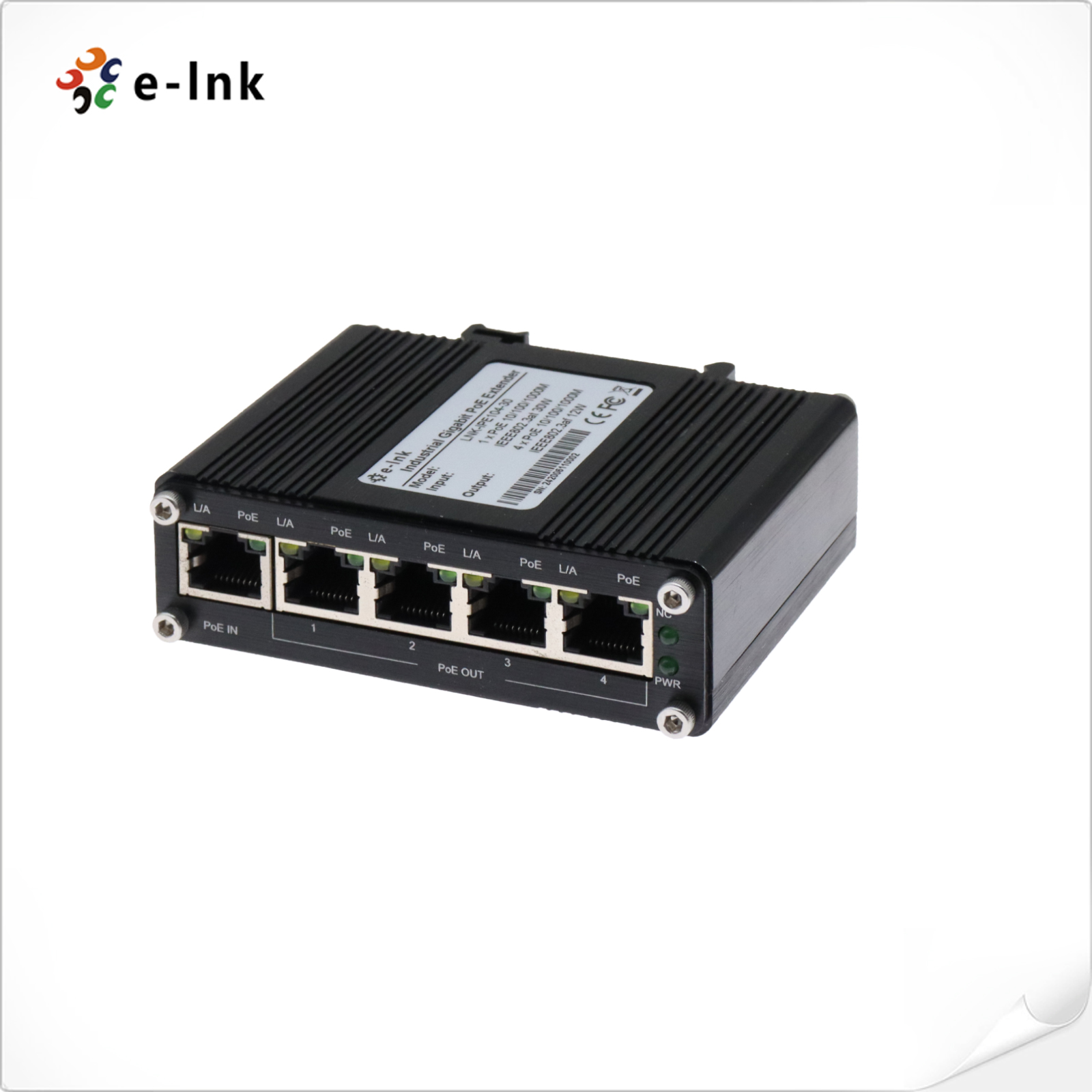

Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender

Model:LNK-IPE104-30

►    10/100/1000Mbps Ethernet Ports

►    1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE

►    IP40-rated aluminum case

►    Can be Powered by IEEE 802.3at 30W Power Sourcing Equipment

►    Can Power IEEE 802.3af PoE, IEEE 802.3at Powered Devices

Overview


LNK-IPE104-30 is an industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application. The LNK-IPE104-30 can obtain a maximum of 30-watt PoE power from 802.3at PoE+ input port and supplies a maximum of 25-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m where up to 4 powered devices (PDs) can be powered at the same time. The LNK-IPE104-30 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.


Feature

►    10/100/1000Mbps Ethernet Ports

►    1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE

►    IP40-rated aluminum case

►    Can be Powered by IEEE 802.3at 30W Power Sourcing Equipment

►    Can Power IEEE 802.3af PoE, IEEE 802.3at Powered Devices

►    Extends an additional 100m for PoE network. Daisy chain support connection up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)

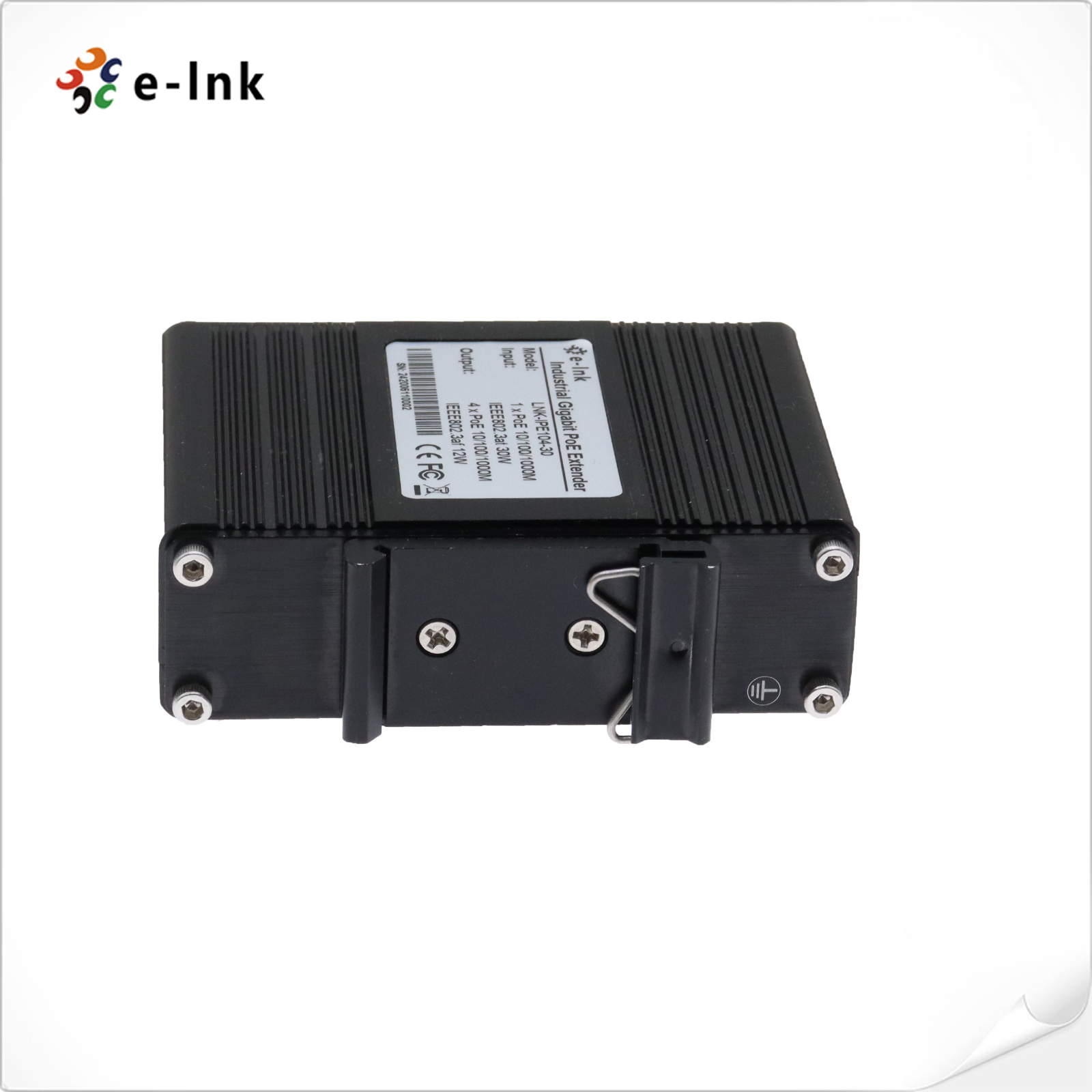

►    Support DIN-Rail & Wall-mount installation

►    Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Application

Technical Indexes

Ethernet Port

PoE Input Port

10/100/1000Base-TX RJ45,

IEEE 802.3at PoE Input

Input Power 50~57V DC, Max 30W

PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output

Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m

Cascade connection

Support 3 grade

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-),4/5(+), 7/8(-)

Switch Property

Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Flow Control

Forwarding Modes

Store and Forward

Transmission Distance

100m

MAC Table

8K

Switching Capacity

10Gbps

Packet Forwarding Rate

14.88Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Jumbo Frame

10K bytes

Environment

Surge Immunity

6KV, Standard: IEC6000-4-5

ESD Protection

6KV1aContactDischargeLevel3,

 8KV1bAirDischargeLevel3,

Standard: IEC61000-4-2

Protection Level

IP 40

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

0~95% (non-condensing)

Physical Parameter

Dimensions (WxDxH)

95 x 70 x 30 mm

Weight

0.25Kg

Casing

Aluminum Case

Mounting Options

DIN-Rail / Wall-mount

Certifications

Certifications

CE, FCC, RoHS

  • Download FileName:E-link LNK-IPE104-30 Industrial 30W PoE Extender Datasheet V1.0.pdf Size: 2.22MB

Order Information

Model

Description

LNK-IPE104-30

Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
