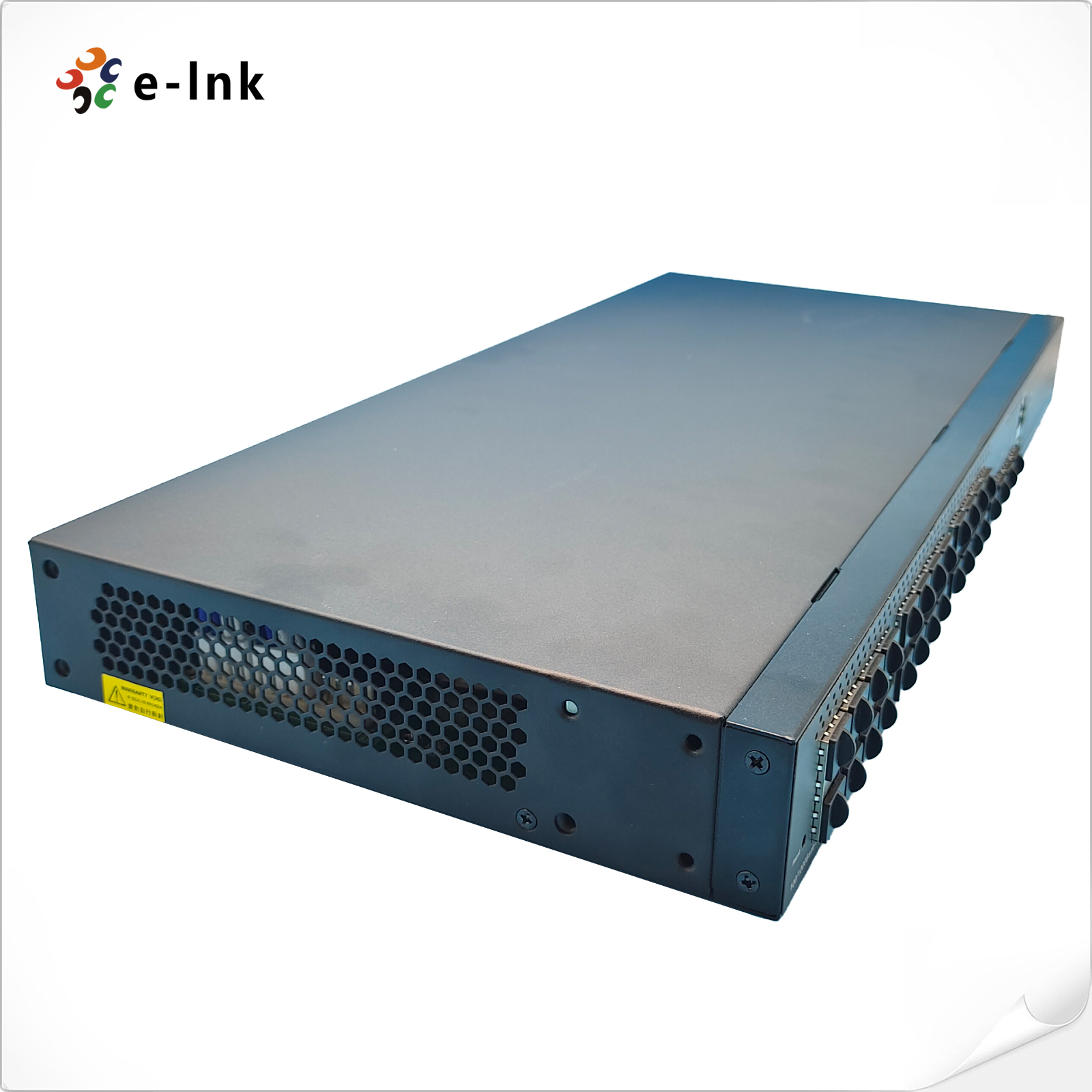

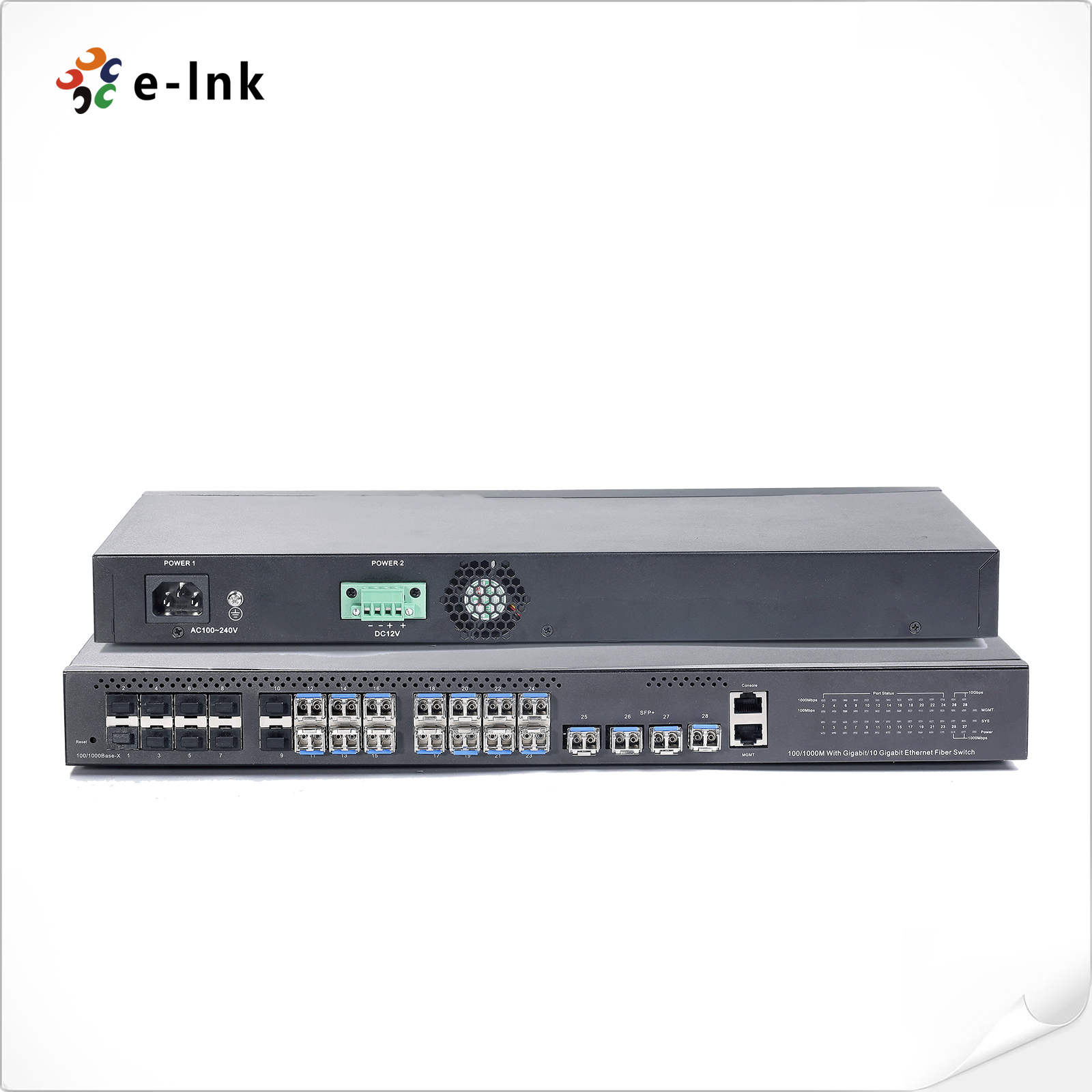

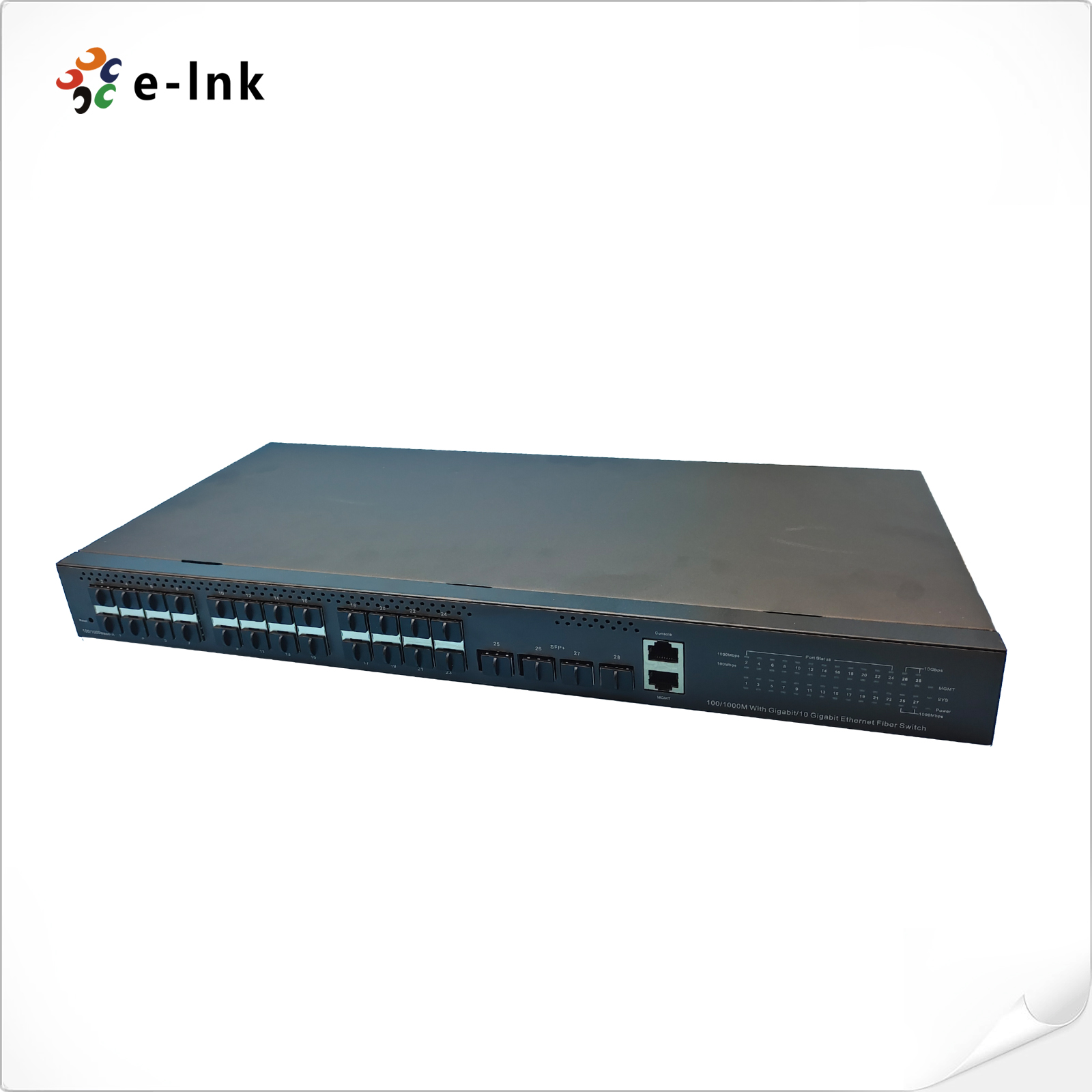

L3 Managed 24-Port 1000Base-X SFP + 4-Port 10G SFP+ Fiber Switch
Model:LNK-FS2404X
► Support 24 1000M SFP access and 4 10G SFP+ uplink port (1000M/10G)
► Support the AC dual redundant power supply hot backup and DC12V/5A spare battery power
► Standard 1U rack, internal double cooling fan, better for heat dissipation, work stable.
Overview
E-link LNK-FS2404X is a 28 port 1000M/10G fiber switch, with 24 1000M SFP fiber ports and 4 10G SFP+ ports (1000M SFP or 10G SFP+) uplink.
LNK-FS2404X supports SFP/SFP+ modules hot plug, and supports to work with other fiber switches, fiber converters and other devices with fiber ports.It supports management，Support super network high definition video frequency transmission ability ,Streamlined network structure, support dual power supply hot backup, applies to security system, electric system, traffic system requirements.
Features
► Support 24 1000M SFP access and 4 10G SFP+ uplink port (1000M/10G)
► Support full rate, full-duplex non-blocking forwarding at each port
► Support CLI, VLAN, STP/RSTP, Trunk port aggregation, IGMP, port Mirroring, port isolation, broadcast control, loop detection, QinQ, etc
► Support DHCP, PPPoE, ACL, LLDP
► Support 16K MAC learning, 12Mbit storage and forward cache space,128G back plane bandwidth,9KByte Large frame forwarding
► All optic ports, strengthen the an-interference ability

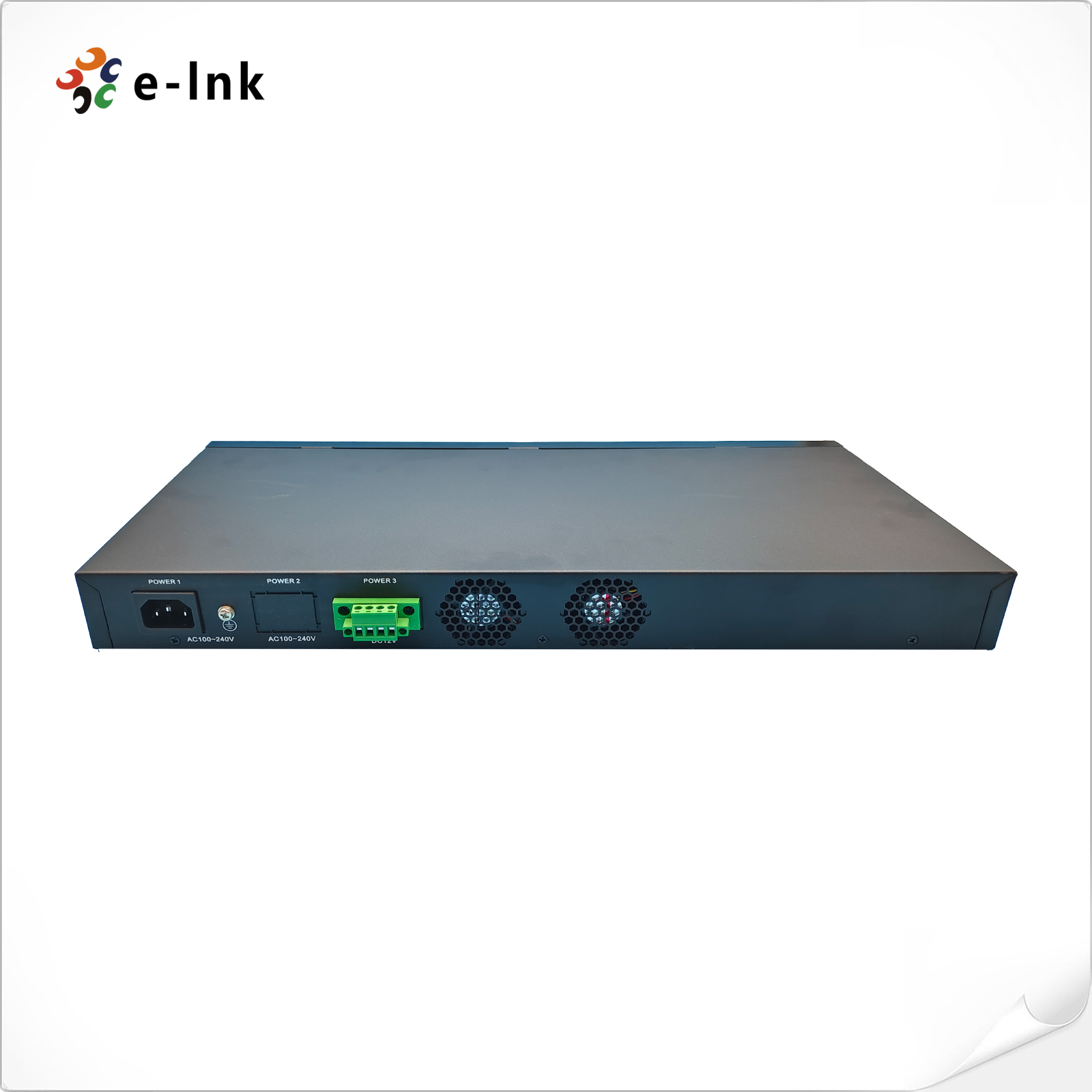

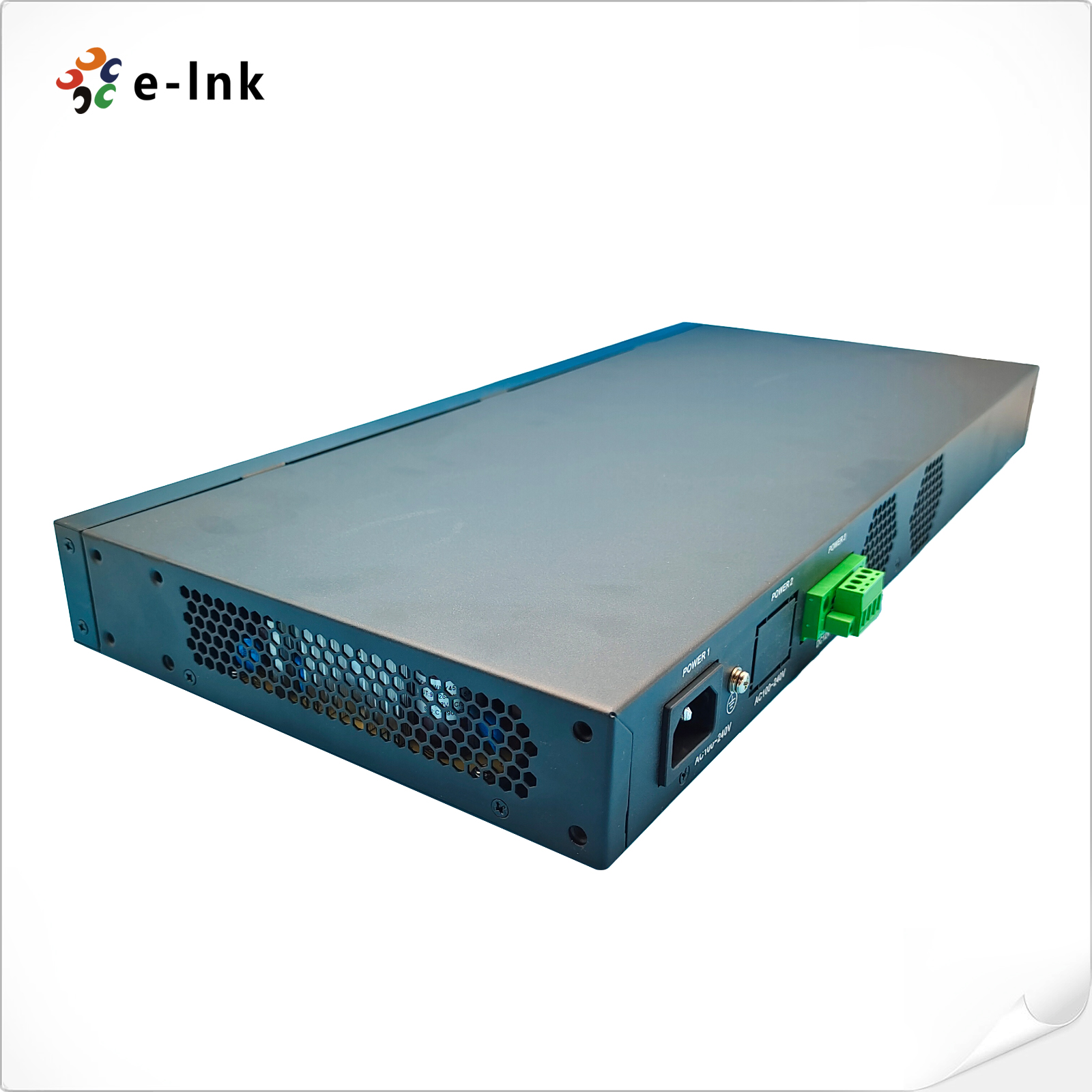

► Support the AC dual redundant power supply hot backup and DC12V/5A spare battery power
► Standard 1U rack, internal double cooling fan, better for heat dissipation, work stable.
Specifications
|
Parameter |
Specification |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree Protocol, IEE802.1w Rapid STP, IEE802.1s Multiples STP, IEE802.1q Vlan, IEE802.1q Qos, IEE802.3ad Trunk, IEE802.3X Flow Control |
|
Wavelength |
SFP:850nm/1310nm/1490nm/1550nm |
|
Distance |
100M SFP Multi-mode: 2km (fiber size 62.5/125μm or 50/125μm) Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP Multi-mode: 220m (fiber size 62.5/125μm)/550m(fiber size 50/125 μm) Single-mode: 10/20/40/60/80/100/120Km
Single-fiber single-mode:10/20/40/60/80/100/120Km |
|
Port |
24 Gigabit SFP fiber ports: 1000Mbps,1000M SFP / SFP-1000BaseT 4 10G SFP+ port:10 Gbps, 1G SFP/10G SFP+ 1 console management port 1 100M RJ45 management port |
|
MAC |
16K |
|
Buffer memory space |
12Mbit |
|
Bit error rate |
<1/1000000000 |
|
MTBF |
100000 hours |
|
Power |
AC 110-230V |
|
Power consumption |
33W |
|
Storage temperature |
-40~80℃ |
|
Humidity |
5%~90% non-condensing |
|
Dimension |
44mm (H)×440mm(W)×210mm (D) |
- Download FileName：E-link 24-Port 1000Base-X SFP + 4-Port 10G SFP+ Fiber Switch Datasheet V1.0.pdf Size： 416KB
Order Information
|
Model |
Description |
|
LNK-FS2404X |
L3 Managed 24-Port 1000Base-X SFP + 4-Port 10G SFP+ Fiber Switch, CLI Management, Single Power Supply |
