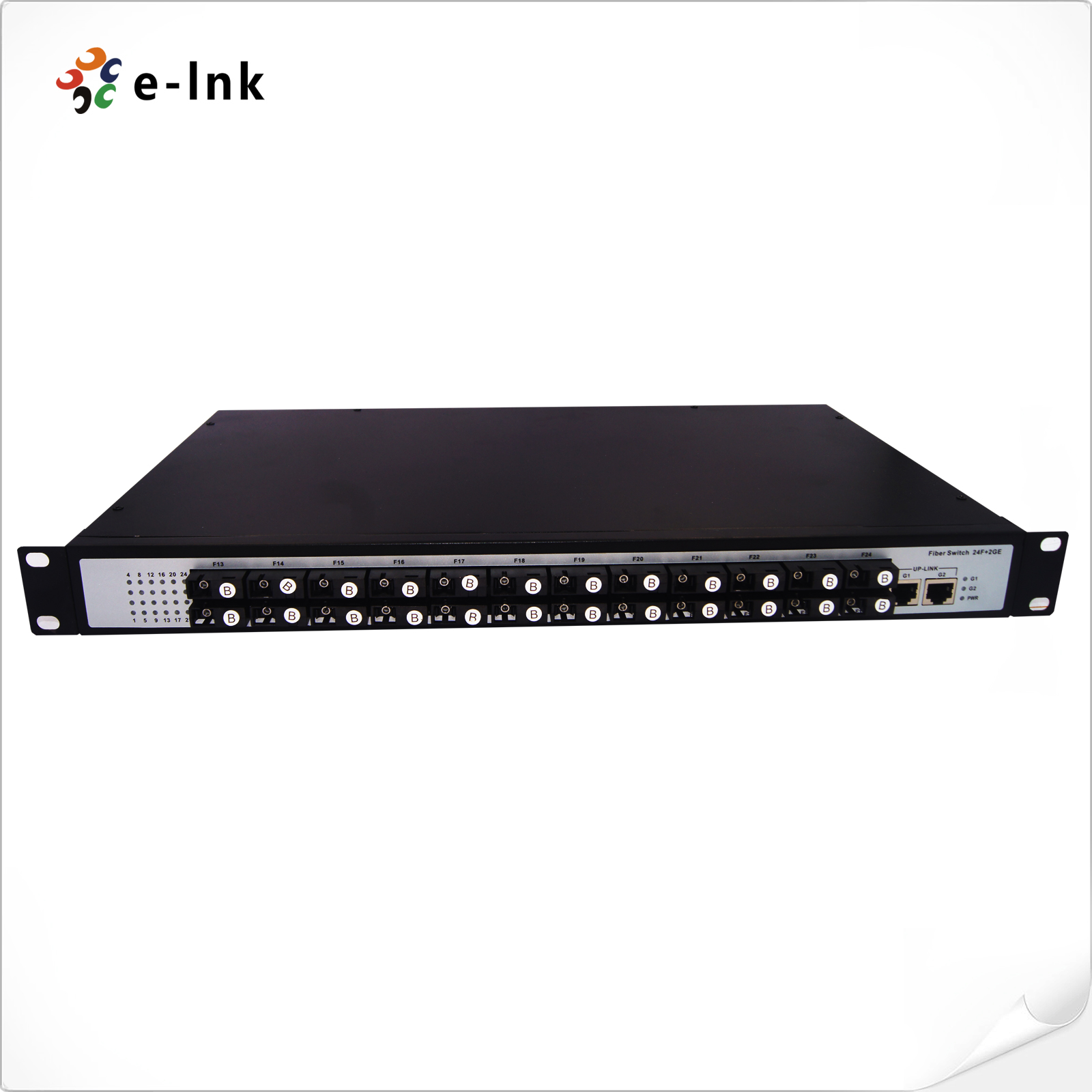

Unmanaged 24-port 100Base-FX SC + 2-10/100/1000-TX Optical Fiber Switch
Model:LNK-FS24SC02
► 24x100Base-FX SC Ports + 2x10/100/1000Base-TX Ports
► Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDI-X at TX
► Supports external 100BASE SC hot swap
► Supports 2K MAC address
► 1Mbits frame buffer memory
► 19-inch 1U Rack
► Operating Temperature:-10°C to 60°C
► 110~240VAC Power Inputs
Overview
LNK-FS24SC02 series is an Optical fiber switch that offers 24 100Base-FX SC fiber ports and 2 Gigabit Ethernet ports. It supports both Single optical fiber and dual optical fiber, its transmission distance ranges from 2km to 120km. This optical fiber switch works under both Half-duplex and full-duplex modes. It is an ideal option for fiber to home (FTTH) optical fiber solution, city optical fiber networks, etc.
Features
► 24x100Base-FX SC Ports + 2x10/100/1000Base-TX Ports
► Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDI-X at TX
► Supports external 100BASE SC hot swap
► Supports 2K MAC address
► 1Mbits frame buffer memory
► 19-inch 1U Rack
► Operating Temperature:-10°C to 60°C
► 110~240VAC Power Inputs
► Aluminum Case
► Lightning Protection Design
Specifications
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX |
|
|
IEEE802.3u 100BASE-FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
1522 Bytes |
|
Address Table Size: |
2K MAC Addresses |
|
Backplane capacity |
25.6G |
|
RJ45 Port |
2*10/100/1000Base-T(X) |
|
Optical Port: |
24*100Base-FX SC |
|
Environmental |
|
|
Operating Temperature: |
-10°Cto60°C |
|
Storage Temperature: |
-40°Cto85°C |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Electrical and Mechanical |
|
|
Input Power: |
110~220VAC |
|
Power Consumption: |
25W Max. (Off-load) |
|
40W Max. (Full load) |
|
|
Dimensions (WxDxH): |
485 x 235 x 45 mm |
|
Weight: |
2560g |
|
Casing: |
Metal Case, IP40 protection |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV |
|
- Download FileName：E-link LNK-FS24SC02 Series 24-Port 100M SC Fiber Switch Datasheet V1.0.pdf Size： 586KB
Order Information
|
Model |
Description |
|
LNK-FS24SC02-MM |
Unmanaged 24-port 100Base-FX SC (Multimode Dual Fiber 2KM, 1310nm) + 2-10/100/1000-TX Optical Fiber Switch |
|
LNK-FS24SC02-SM |
Unmanaged 24-port 100Base-FX SC (Single Mode Dual Fiber 20KM, 1310nm) + 2-10/100/1000-TX Optical Fiber Switch |
|
LNK-FS24SC02-SS |
Unmanaged 24-port 100Base-FX SC (Single Mode Single Fiber 20KM, 1310nm TX/1550nm RX) + 2-10/100/1000-TX Optical Fiber Switch |
