► 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
Overview

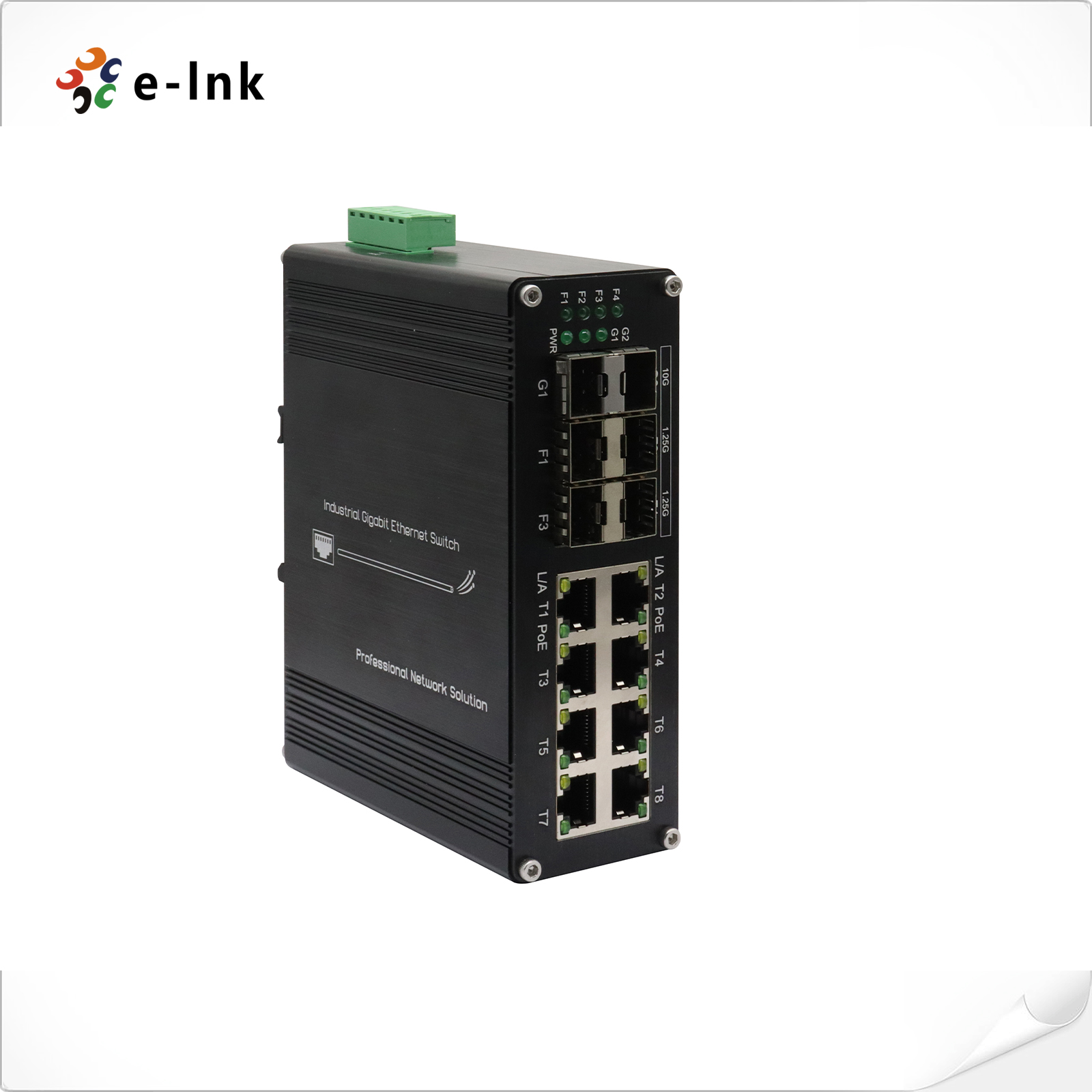

LNK-IMC2X4S8G Series is 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. 2 10G Base-SR/LR ports supports SFP+ module. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features
► 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case

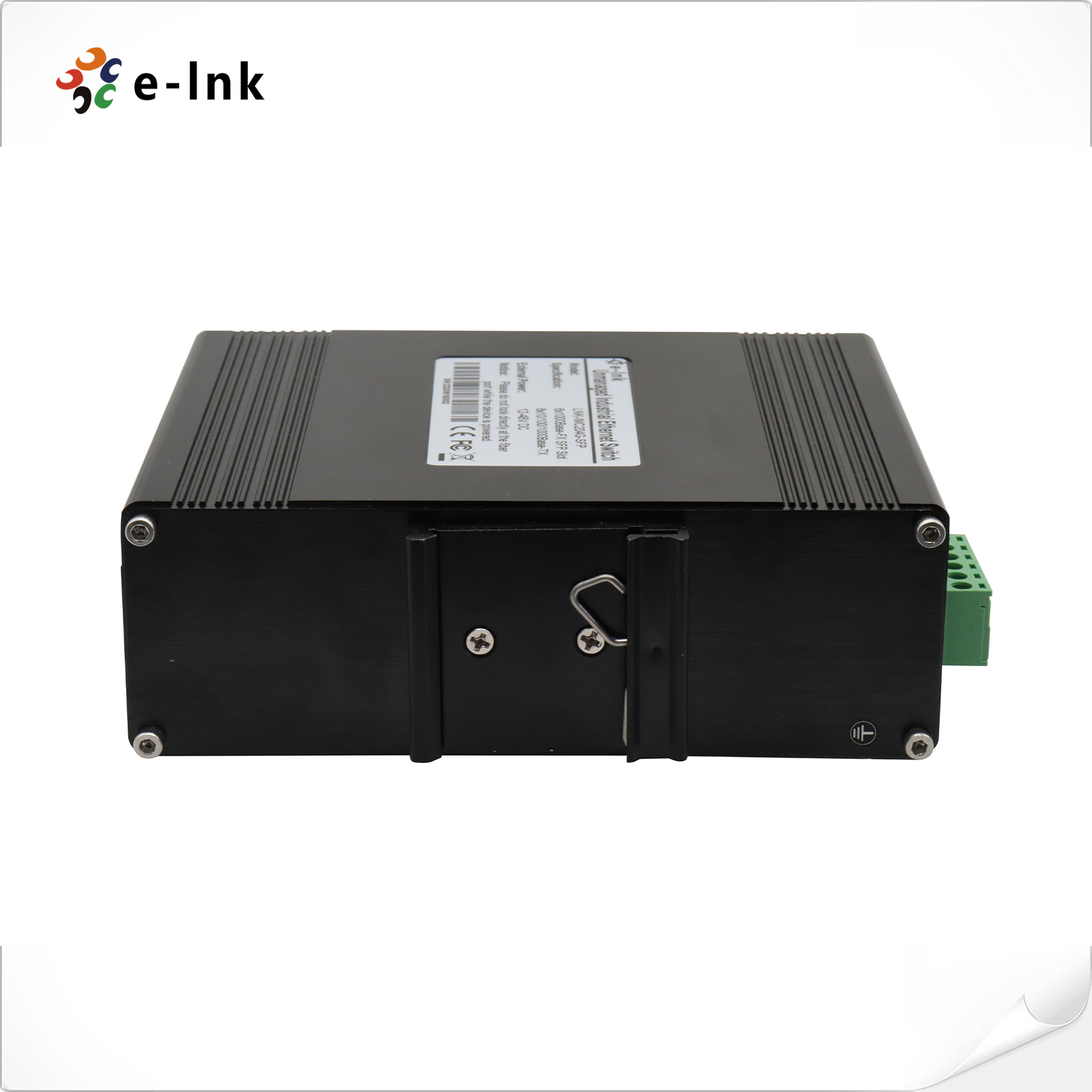

► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Application
Technical Indexes
Standards: |
IEEE802.3 10BASE-T |
IEEE802.3u 100BASE-TX/FX |
|
IEEE802.3ab 1000BASE-T |
|
IEEE802.3z 1000BASE-X |
|
IEEE802.3ae10GBase-R |
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
148,800pps (100Mbps) |
|
1,488,000pps (1000Mbps) |
|
1,488,000,000pps (10000Mbps) |
|
Packet Buffer Memory: |
2.75M bits |
Processing Type: |
Store-and-Forward |
Max Packet Length: |
9K Bytes Jumbo Frame |
Address Table Size: |
8K MAC Addresses |
Interface |
|
Connector: |
8 x RJ45 |
Optical Port: |
4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ |
Environmental |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF |
> 200,000 hrs |
Electrical and Mechanical |
|
Input Power: |
12~48VDC,Redundant Power (6-pin Terminal Block) |
Power Consumption: |
8W Max. |
Protection: |
|
Power Input Overload: |
Automatic Resettable |
Reverse Polarity: |
Present |
LED Indicators: |
|
Power: |
Power Status |
Ethernet (Per Port): |
Link/Activity |
Fiber: |
Gigabit SFP Port: F1~F4 |
10G SFP+ Port: G1, G2 |
|
Dimensions (WxDxH): |
149 x 114 x 50 mm |
Weight: |
0.55Kg |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail mount |
Regulatory Approvals |
|
ISO9001 |
|
EN55022:2010+AC: 2011, Class A |
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
EN 61000-3-3: 2013 |
|
EN55024:2010 |
|
IEC 61000-4-2: 2008 (ESD) |
|
IEC 61000-4-3: 2010 (RS) |
|
IEC 61000-4-4: 2012 (EFT) |
|
IEC 61000-4-5: 2014 (Surge) |
|
IEC 61000-4-6: 2013 (CS) |
|
IEC 61000-4-8: 2009 (PFMF) |
Order Information
Model |
Description |
LNK-IMC2X4S8G |
Industrial 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch |
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
► SFP module is to be purchased separately. |
|
Mounting Options |
► Default DIN-Rail Bracket installed |
Power Options |
|
► Power Supply is to be purchased separately. |
