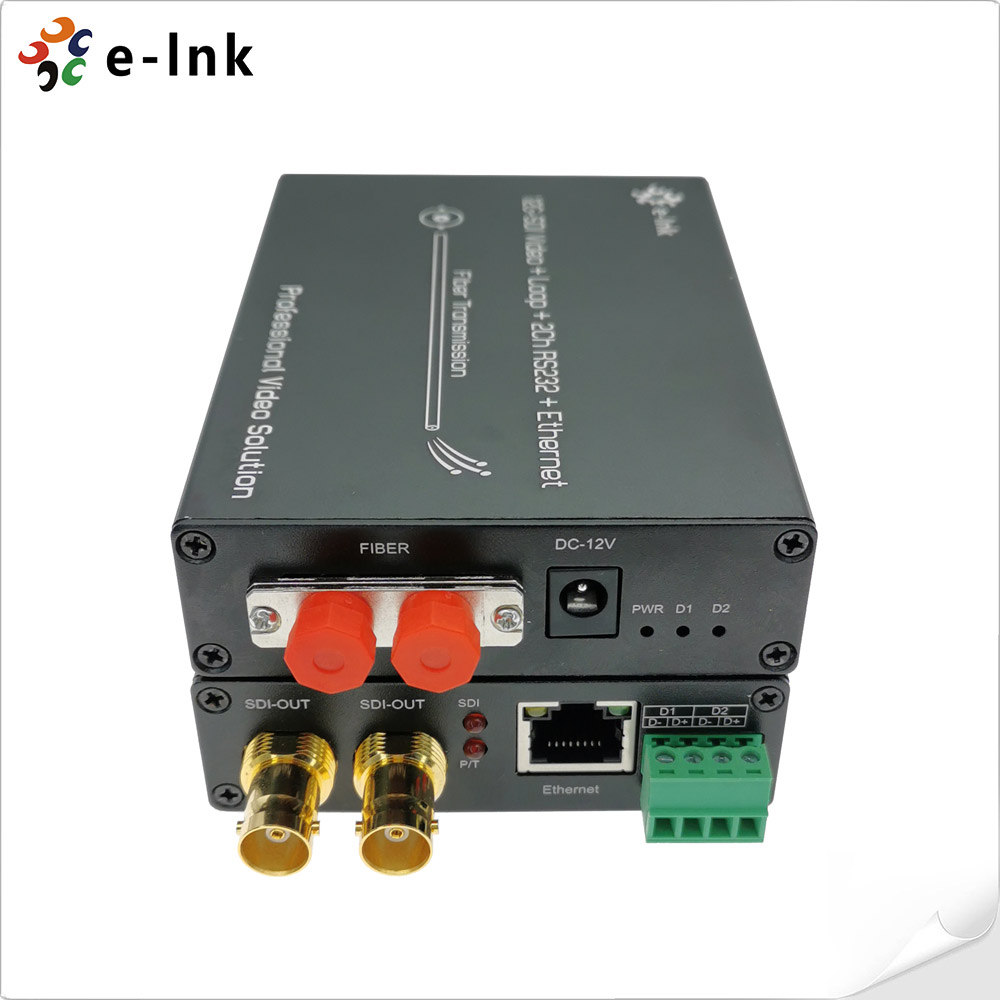

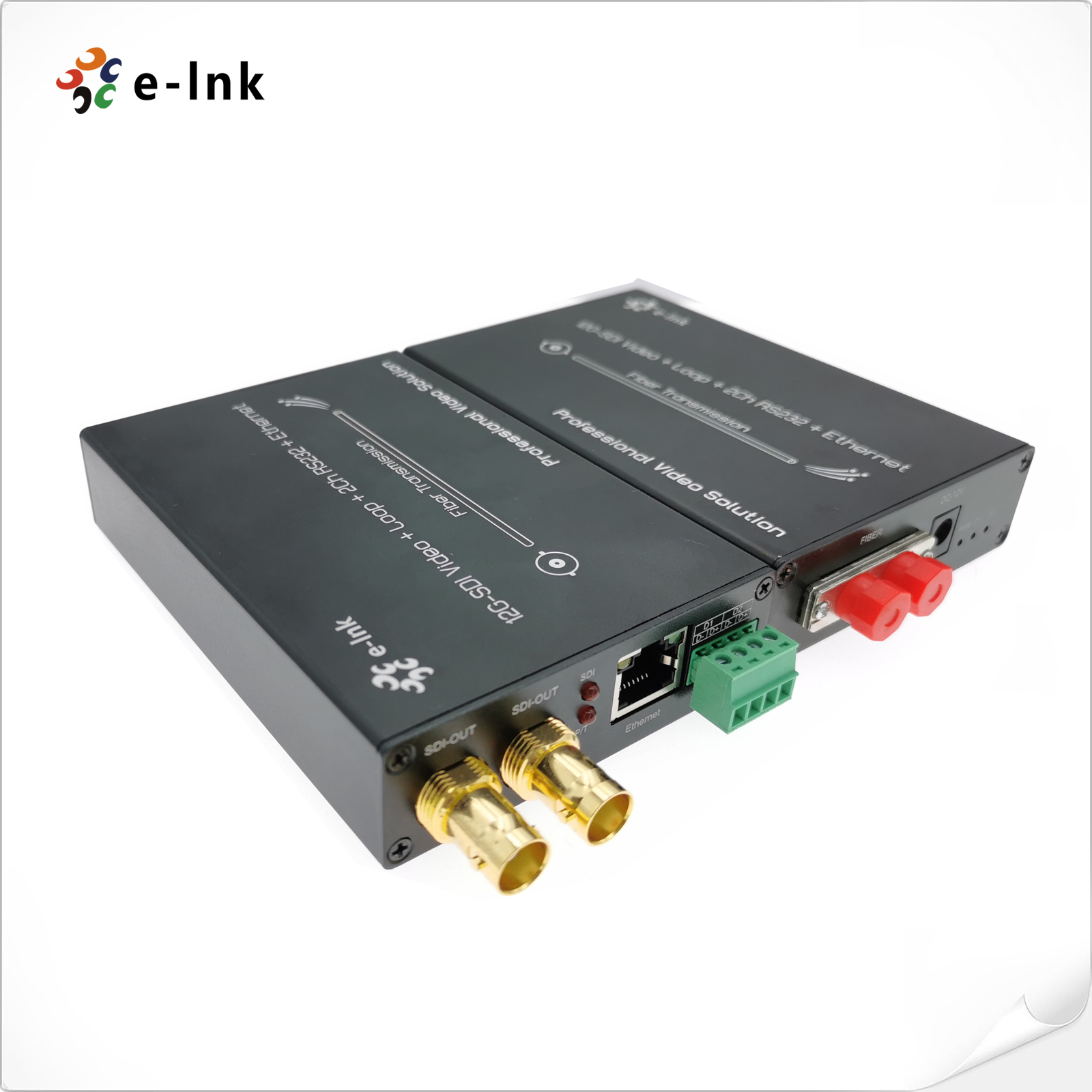

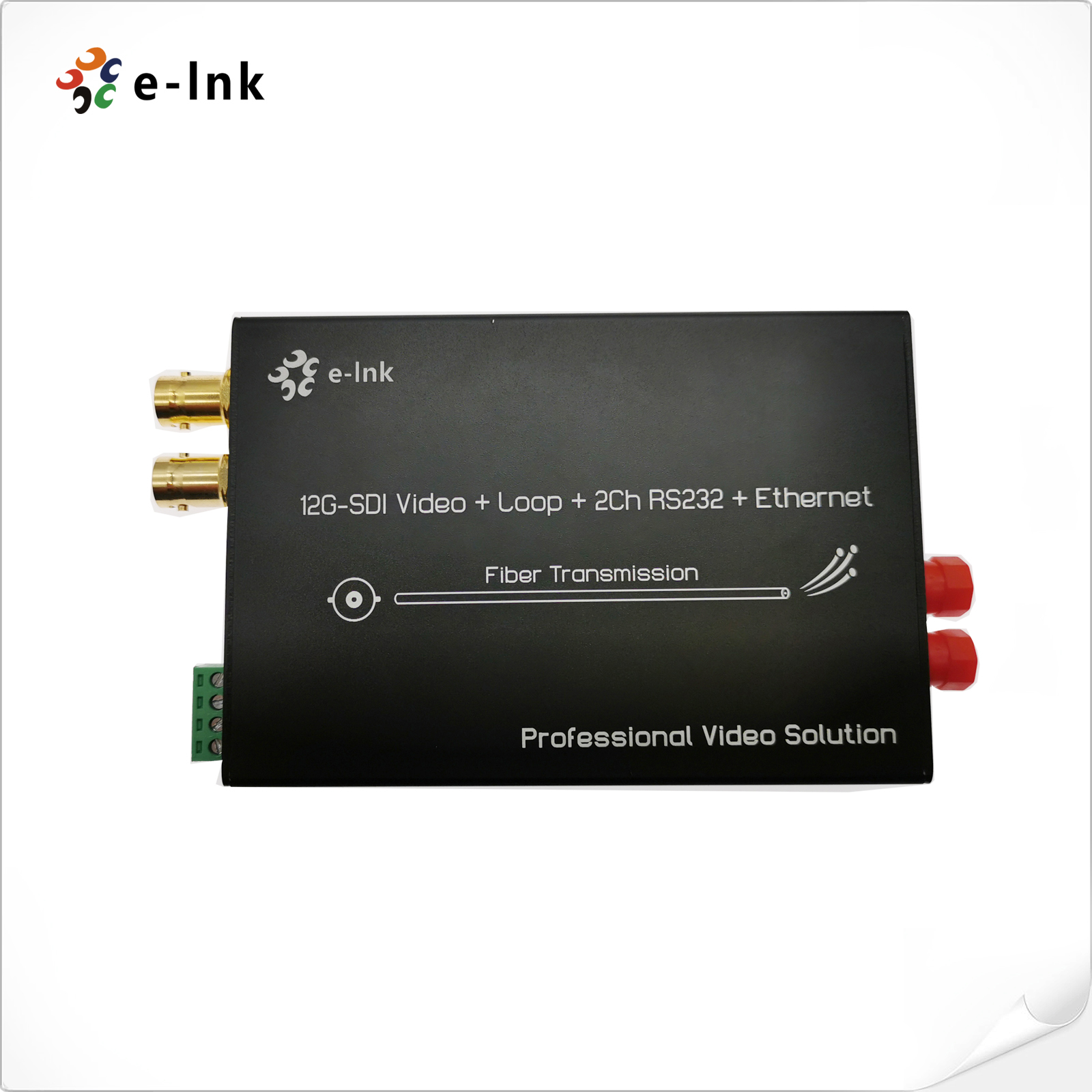

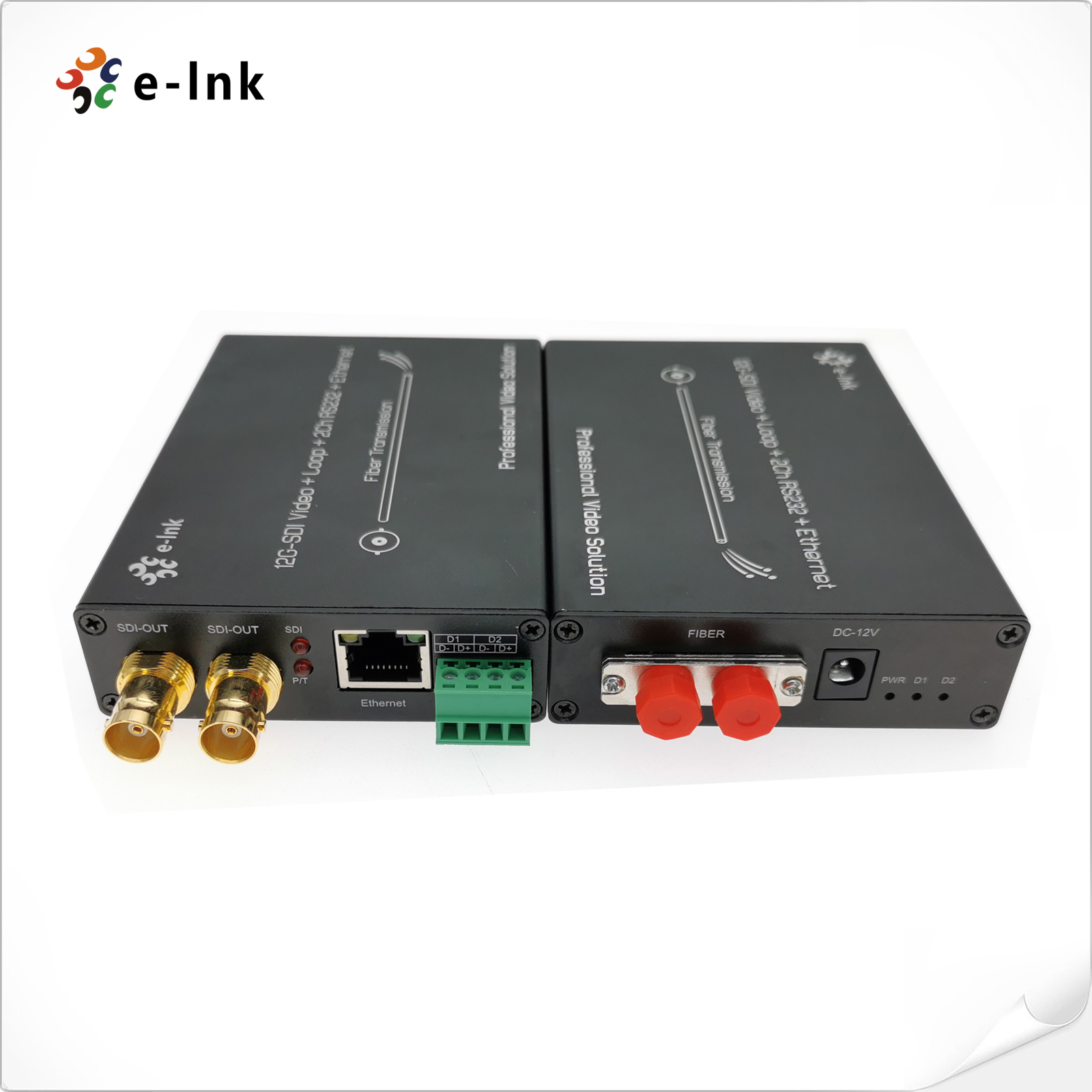

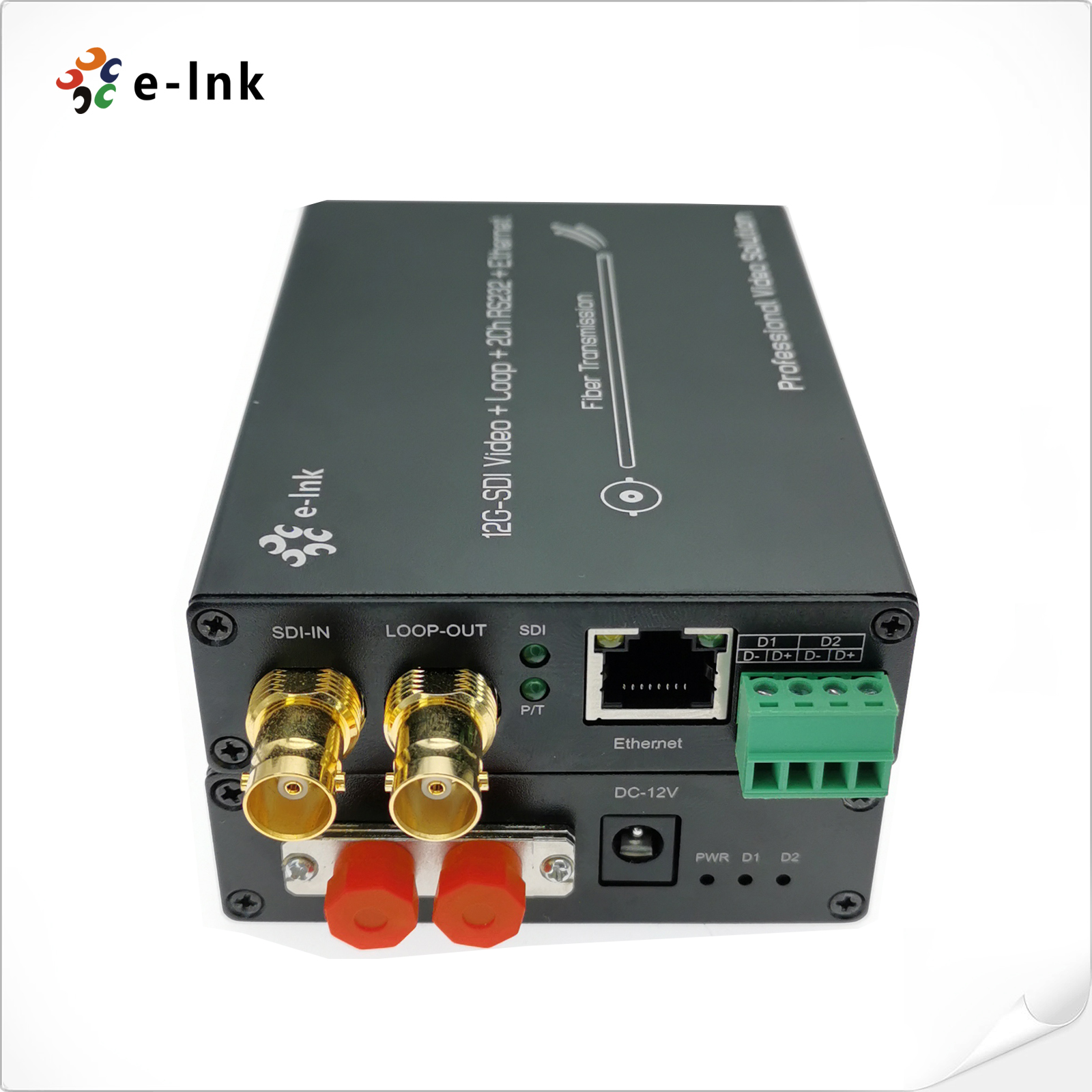

12G-SDI Video Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485
Model:LNK-12GSDI-1V2R1GE
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Directly compatible with 12G/6G/3G-SDI camera systems
► Long transmission capability up to 80 km
► Support 2Ch Backwards RS485
► Supports 1Ch 10/100/1000M Ethernet
Overview
LNK-12GSDI-1V2R1GE Series 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded) &1Ch Gigabit Ethernet&2Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P，1080I, 720P.
Features
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 12G/6G/3G-SDI camera systems
► Long transmission capability up to 80 km
► Support 2Ch Backwards RS485
► Supports 1Ch 10/100/1000M Ethernet
► Full digital non-compression broadcast level transmission;
► Super optic dynamic range and free of adjustment;
► Fiber optic WDM/CWDM/DWDM technique;
► Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P.

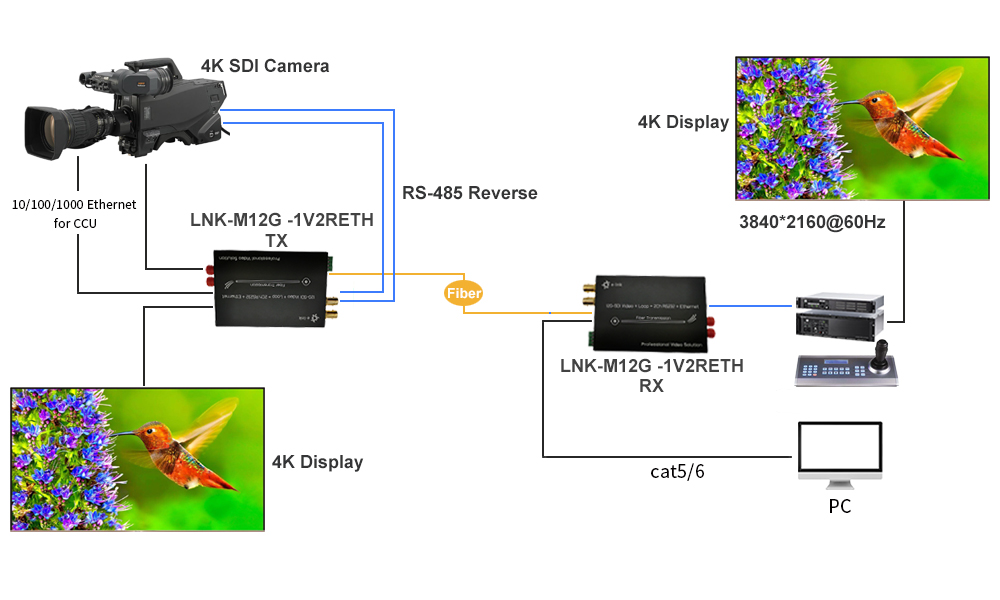

Application
Technical Indexes
|
Formats |
Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Compatible |
Compatible With DVB-ASI and AES10 (MADI) |
|
Input |
1 x 12G-SDI on BNC |
|
Output |
2 x FC optical fiber |
|
1 x 12G-SDI loop-out on BNC |
|
|
Supported Resolution |
HDTV 4K*2K, 1080P, 1080I, 720P |
|
Resolution range |
3840*2160@60Hz |
|
Input cable specification |
≤70m@12G SDI Belden 1694A |
|
Output cable specification |
≤60m@12G SDI Belden 1694A |
|
Ethernet |
10/100/1000Mbps |
|
Data type |
2Ch Backward RS485 |
|
Optical transmission bandwidth |
270MHz～12GHz |
|
Power |
12 VDC |
|
Power Consumption |
6 W (Max.) |
|
Dimensions (LxWxH) |
117 x 80 x 24 (mm) |
|
Operating Temperature |
-10℃～70℃ |
|
Storage Temperature |
-40℃～85℃ |
- Download FileName：E-link LNK-12GSDI-1V2R1GE 12G-SDI to Fiber Converter Datasheet V1.0.pdf Size： 725KB
Order Information
| Model | Description |
| LNK-12GSDI-1V2R1GE | 12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485, SMF, LC Fiber Connector10KM, including Transmitter and Receiver, used by pairs |
