► DVI 1.0 and HDCP1.2 Support
► Uncompressed transmission, No delay, No losses
► Data rate up to 10.2Gbps
► Transmission distance up to 80km over fiber cable
► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
► Support Serial RS232 Signal

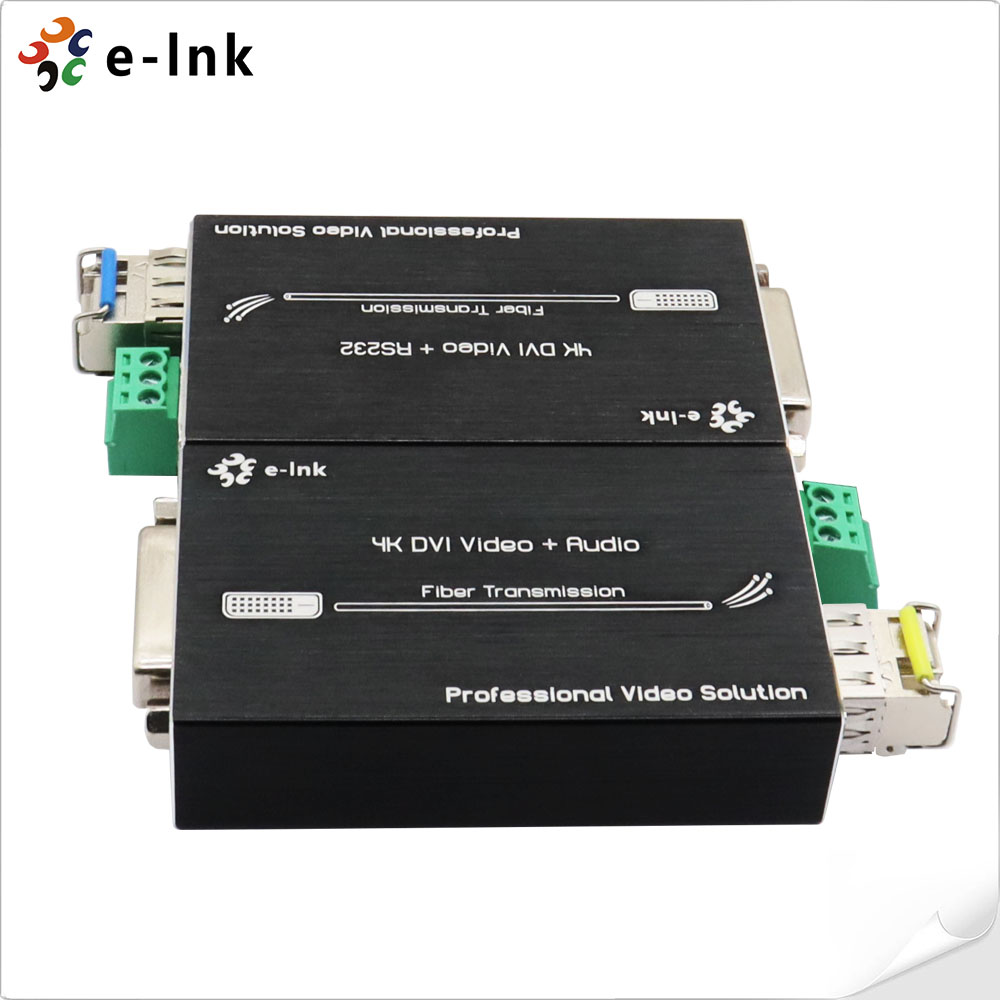

The LNK-MDR4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and RS232 signal over optical fiber up to distances of 80km at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

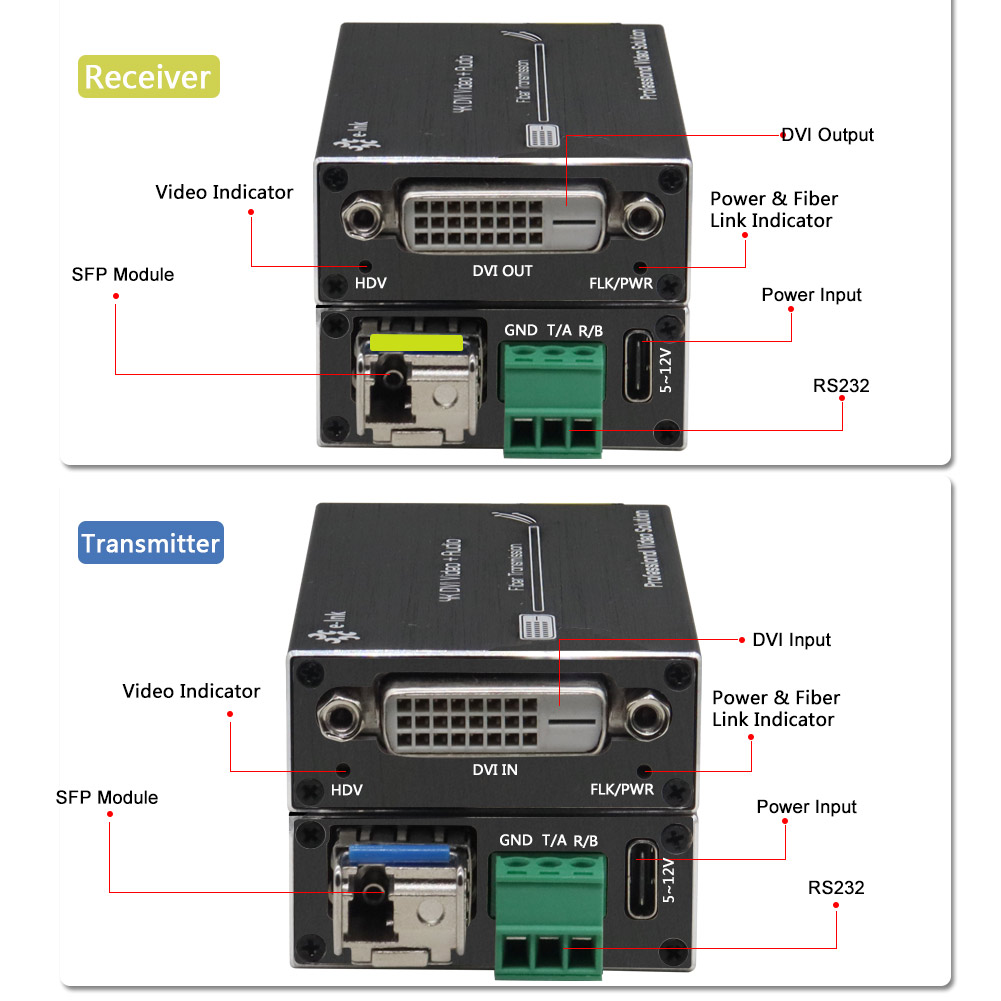

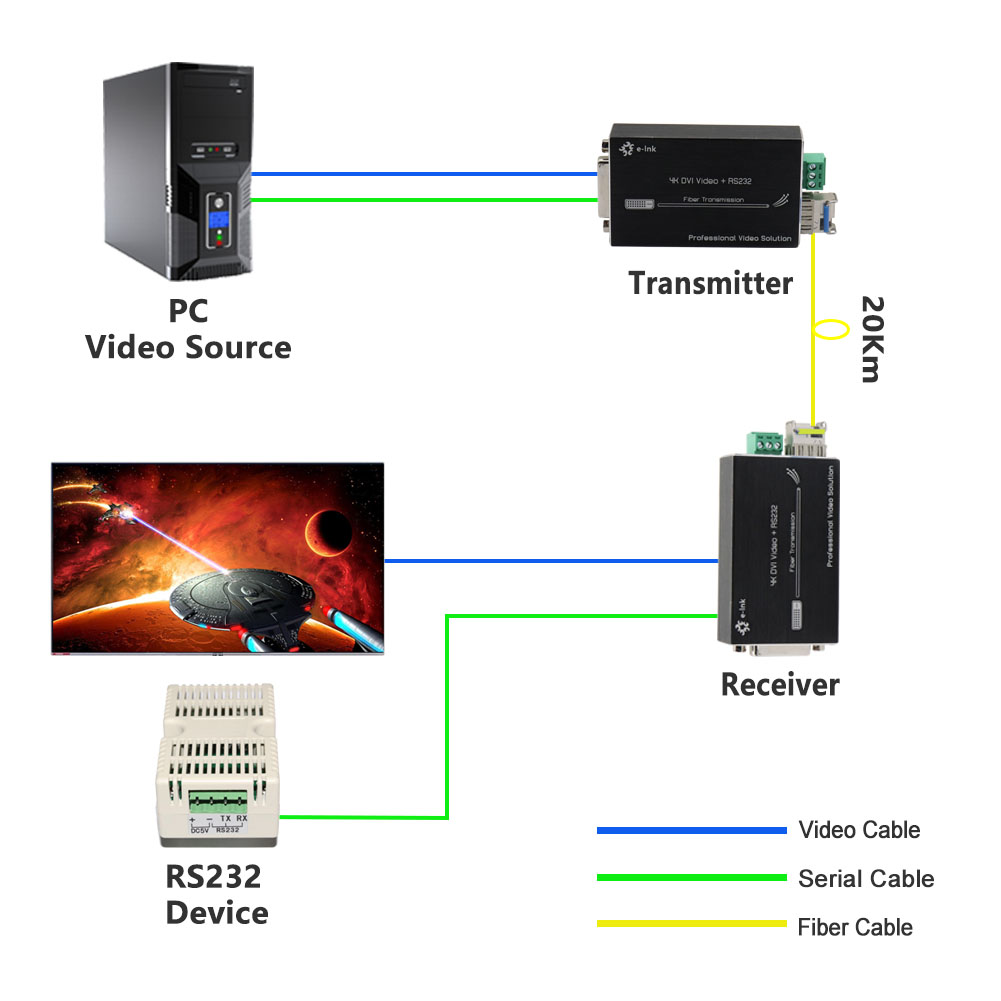

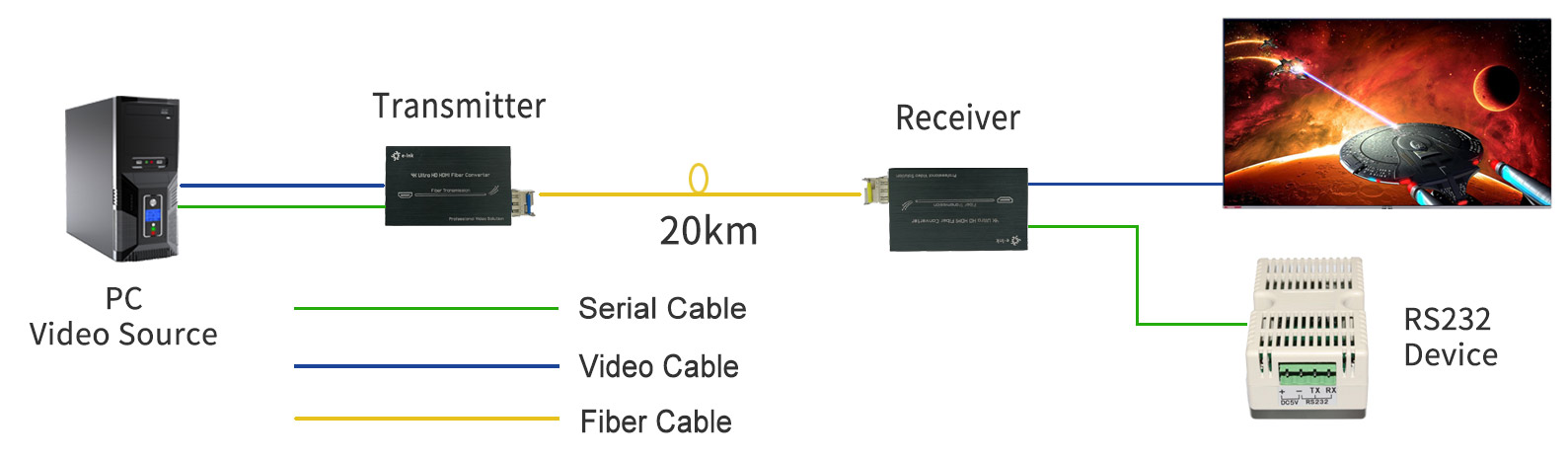

The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
► DVI 1.0 and HDCP1.2 Support
► Uncompressed transmission, No delay, No losses
► Data rate up to 10.2Gbps
► Transmission distance up to 80km over fiber cable
► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
► Support Serial RS232 Signal
► Auto EDID, match different kind display device
► Hot-Pluggable, EMI/RFI Resistant
► Miniature form factor for ease of use and installation
► Operating Case Temperature: -10~50°C
Type of Extender |
DVI signal over Optical Fiber Cable |
Input Signals |
DVI |
Connector |
DVI-D |
Signal Support |
DVI 1.0 format standard and HDCP compliant |
Video Support |
Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz |
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
Chroma Subsampling |
Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) |
EDID |
Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually |
RS232 |
3 Pin terminal, Baud rate ≤ 38400 |
Fiber Connector |
SFP/LC |
Bandwidth |
10.2Gbps |
Transmission Distance |
300m (Over OM3 Fiber) |
Up to 80km (Over Single-mode Fiber) |
|
Operating Temperature |
-10 ~ + 50°C |
Storage Temperature |
-20 ~ + 80°C |
Humidity |
5% to 90% RH (non-condensing) |
MTBF |
100,000 hours |
Dimension (WxDxH) |

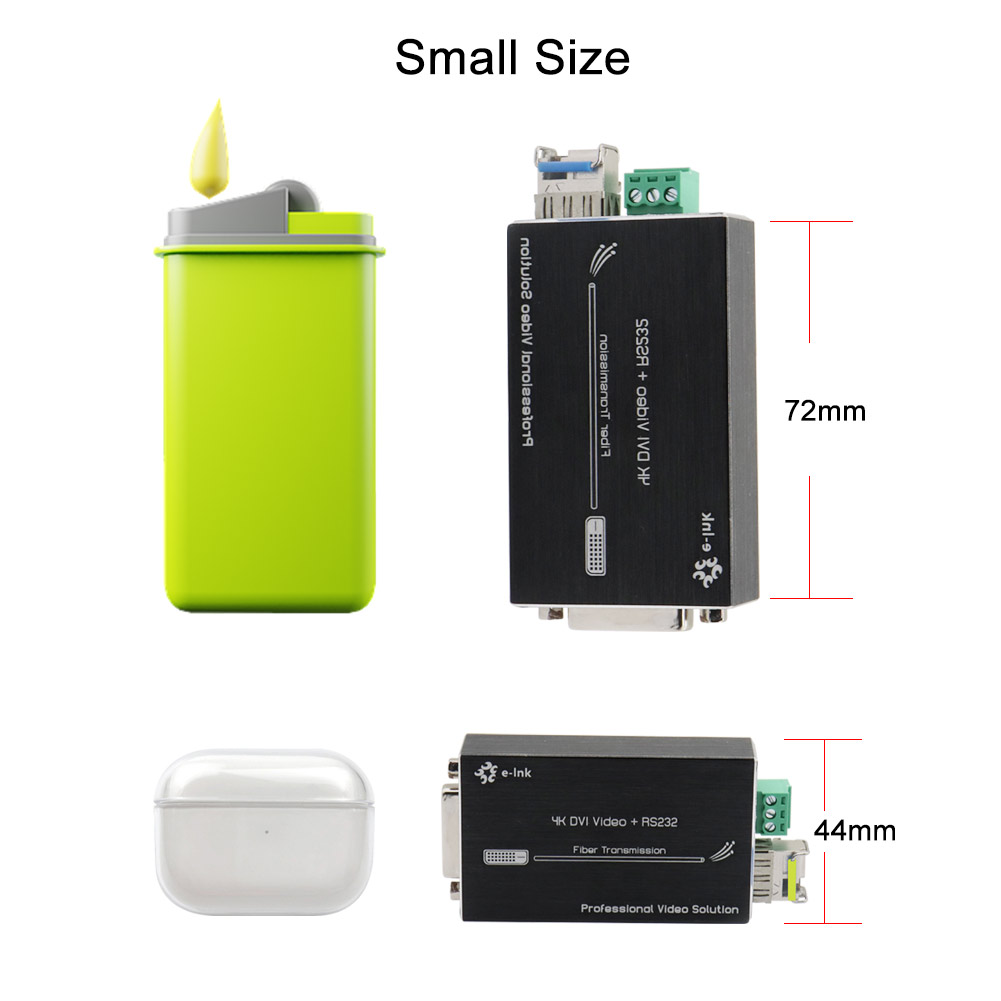

2.87 x 1.73 x 0.69in (73x44x17mm) |
Weight |
60g / 0.13 lb |
Power Supply |
5V DC (USB-C) |
Power dissipation |
<5W |
Safety Approvals |
CE, FCC, Rohs |

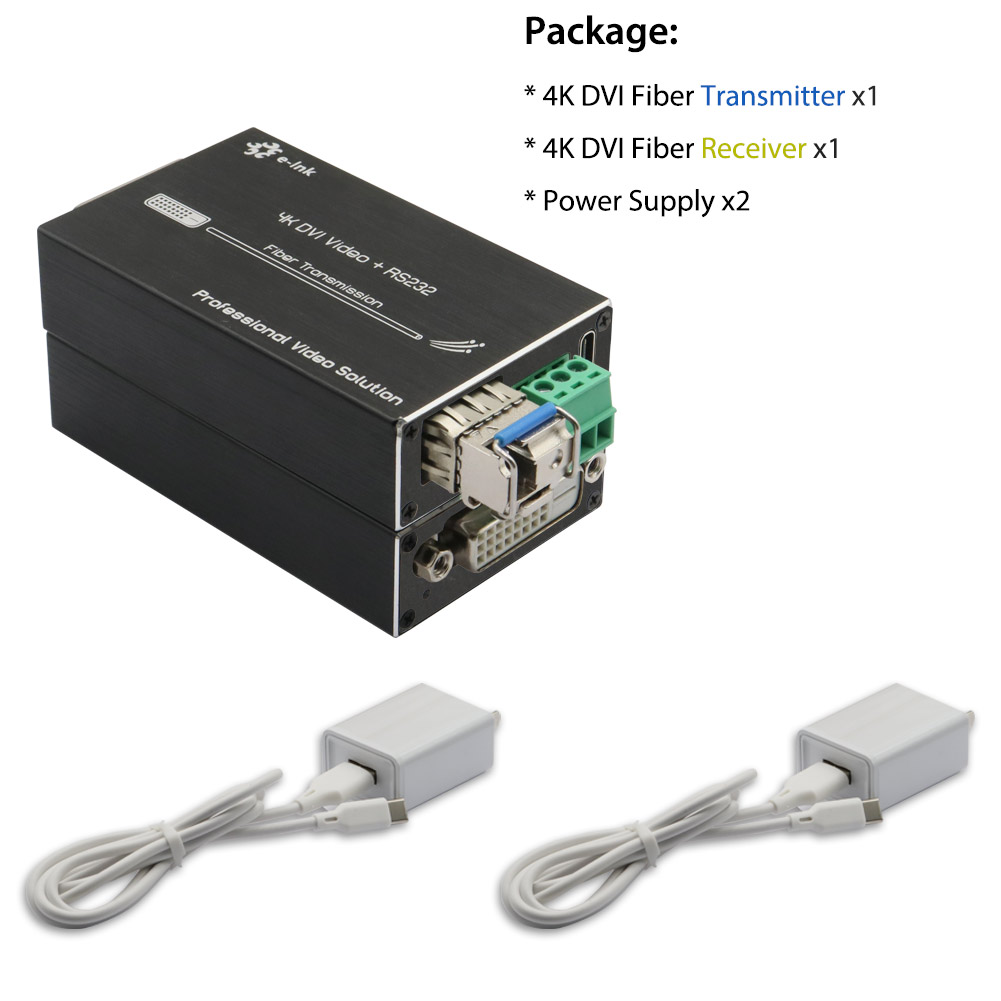

Model |
Description |
|
LNK-MDR4K-MM |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S20 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S40 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDR4K-S80 |
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
