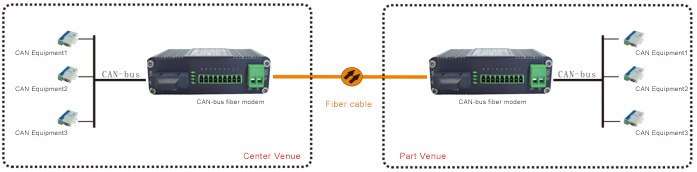

► Extends CAN Bus, Bi-directional RS-232 / RS-485 transmission up to 2Km on MMF, 80Km on SMF
► EIA /TIA standard RS232, RS-485, 0-115200Kbps Baud rate
► CAN data is fully transparent, baud rate is self-adaptive, no setting is required
► The CAN interface speed complies with the international CAN1.0 and CAN2.0 standards
► Plug-and-play, hot pluggable
► Extends CAN Bus, Bi-directional RS-232 / RS-485 transmission up to 2Km on MMF, 80Km on SMF
► EIA /TIA standard RS232, RS-485, 0-115200Kbps Baud rate
► CAN data is fully transparent, baud rate is self-adaptive, no setting is required
► The CAN interface speed complies with the international CAN1.0 and CAN2.0 standards
► Industrial Din-rail mount / Wall Mount Compact size rugged case
► Built-in surge and static protection
► Diagnostic and unit indicator LEDs
► Wide temperature range
Model |
LNK-ICF01 Series |
Fiber Connector |
SC standard, ST/FC/LC optional |
Fiber Distance |
50/125um MMF: 2Km 9/125 SMF:20/40/60/80Km |
CAN Bus Interface |
|
Protocol |
Comply with international CAN1.0, CAN2.0 standards |
No. of Ports |
1 |
Rate |
0~1000Kbps |

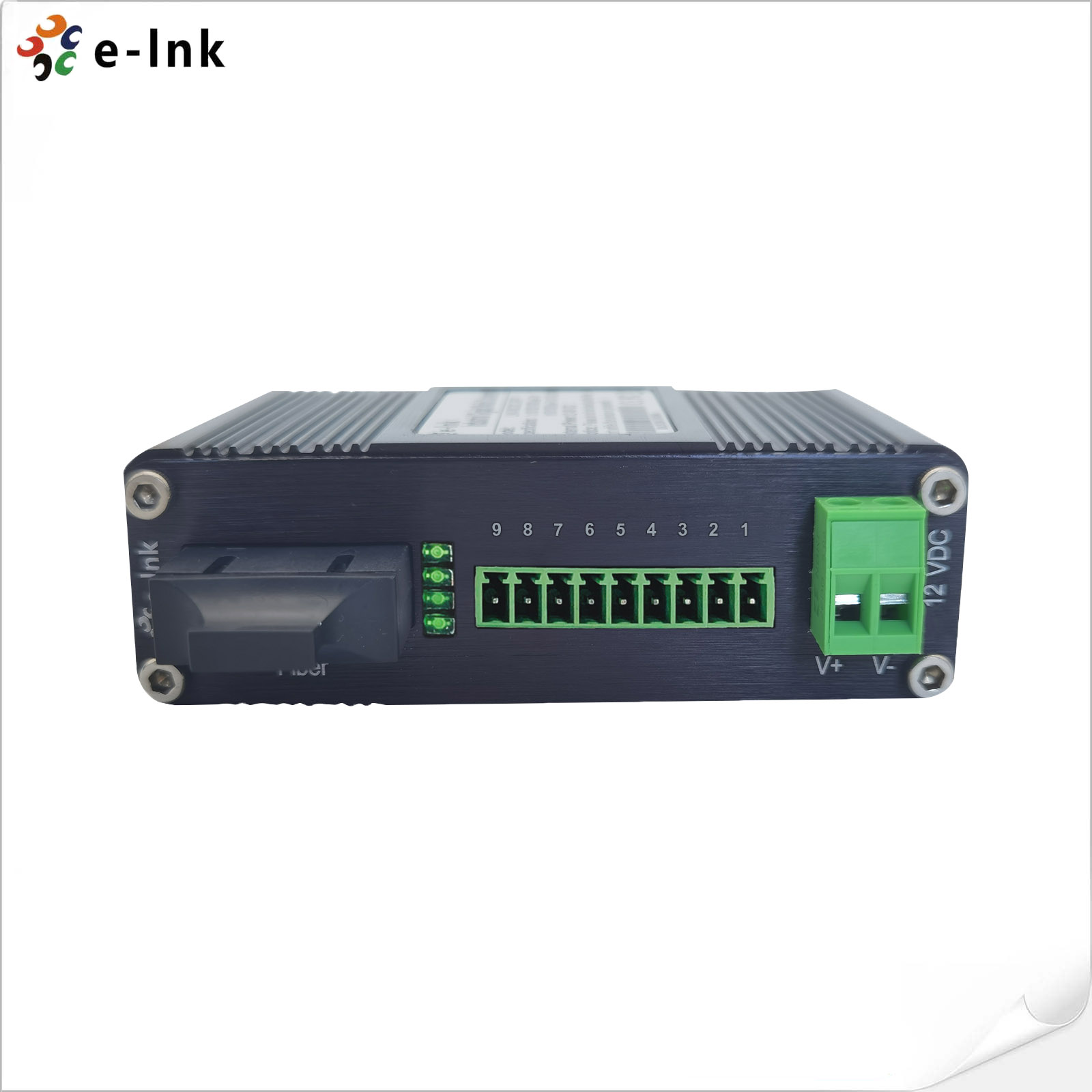

Physical Interface |
Industrial Terminal |
CAN Signals |
CAN_H, CAN_L, GND |
Serial Interface |
Industrial Terminal |
Standard |
EIA /TIA RS232, RS-485 |
Serial Distance |
RS232: 15 meters, RS-485: 1200 meters |
Rate |
0-120Kbps |
Baud Rate |
0 ~ 115,200k Baud |
RS-232 |
TXD, RXD, GND -Bi-directional |
RS-485 |
D+, D-, GND -Bi-directional |
Power Supply |
DC12V |
Power rate |
<3W |
Static protection |
15KV electric static discharge (ESD) protection |
Surge protection |
1500W/sec surge protection |
Operation Temperature |
-25°C to +70°C |
Storage Temperature |
-40°C to +85°C |
Storage Humidity |
5%~90% non-condescending |
Dimensions |
95(L)*70(W)*28(H) mm |
Weight |
0.25kg/pcs |
Model |
Description |
LNK-ICF01-SFP |
CAN Bus Serial RS232/RS485 to Fiber Optic Converter with SFP port |
LNK-ICF01-SCMM |
CAN Bus Serial RS232/RS485 to Fiber Optic Converter, SC MM 850nm,2km |
LNK-ICF01-SC20 |
CAN Bus Serial RS232/RS485 to Fiber Optic Converter, SC SM 1310nm, 20km |
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options |
► Power Supply needs to be purchased separately |
