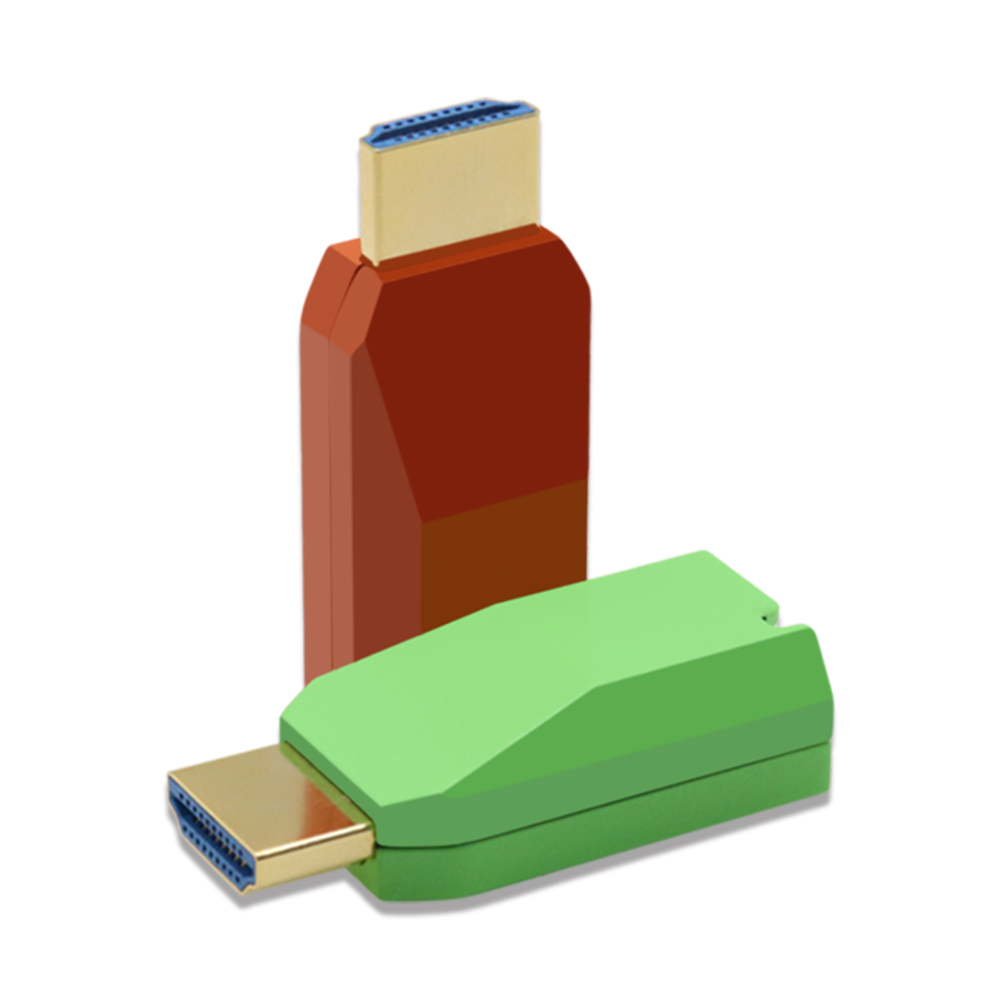

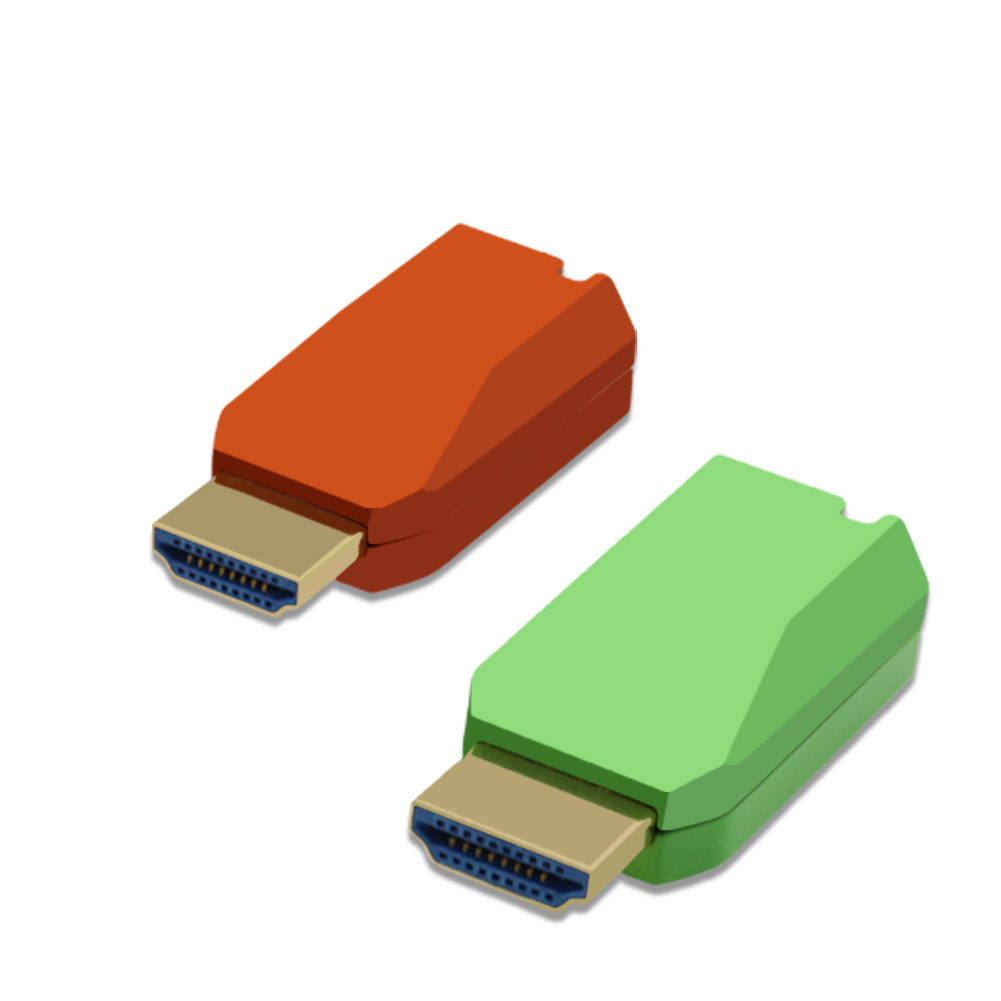

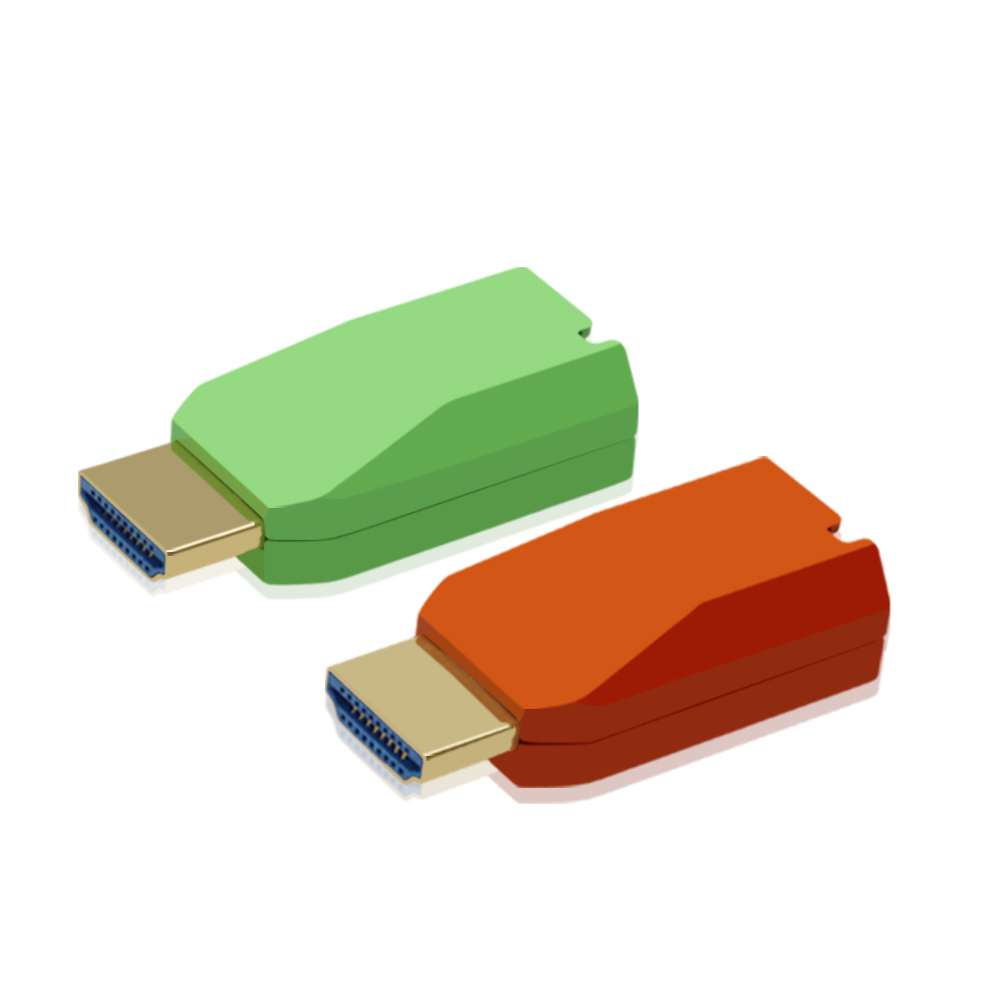

Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender
Model:LNK-109M
► Supports HDMI2.0 Video up to 4K/60Hz (Y:U:V 4:4:4)
► No Settings or Adjustments Necessary
► Adopt WDM technology to realize high-definition audio and video transmission through a single OM4 multi-mode optical fiber
► Supports up to 300m Transmission Distance with OM4 multimode fiber
► Standard HDMI2.0 Connector
► Integrated USB Connector for Power
The LNK-109M is a mini 4K/60Hz HDMI2.0 over Single-Core MM compact fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 984ft/300m to your desired display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.
The 4K HDMI optical fiber extenders are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 2.0 signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K@60Hz. LNK-109M-T converts an HDMI signal to a single 18Gb/s serial data stream for transmission over single optical fibers. LNK-109M-R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.► Supports HDMI2.0 Video up to 4K/60Hz (Y:U:V 4:4:4)
► No Settings or Adjustments Necessary
► Adopt WDM technology to realize high-definition audio and video transmission through a single OM4 multi-mode optical fiber
► Supports up to 300m Transmission Distance with OM4 multimode fiber
► Standard HDMI2.0 Connector
► Integrated USB Connector for Power
► Hot-Pluggable
► The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance

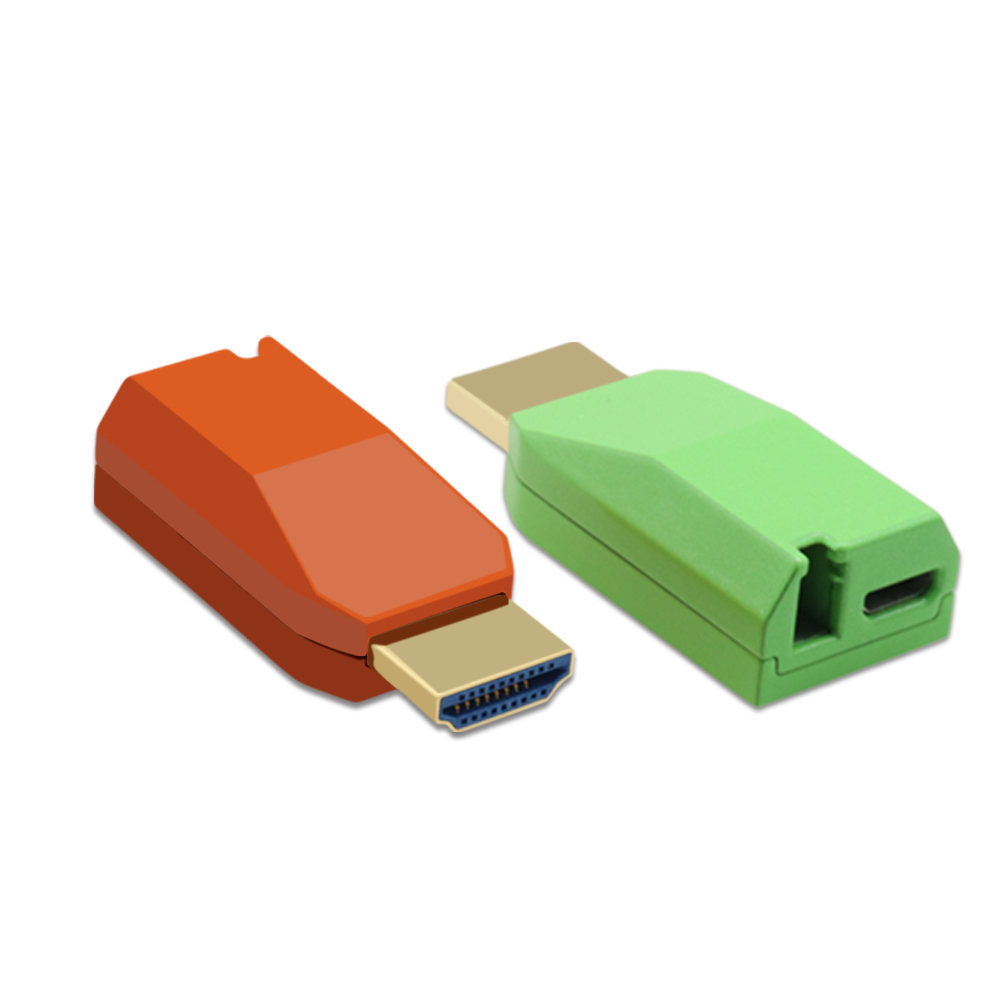

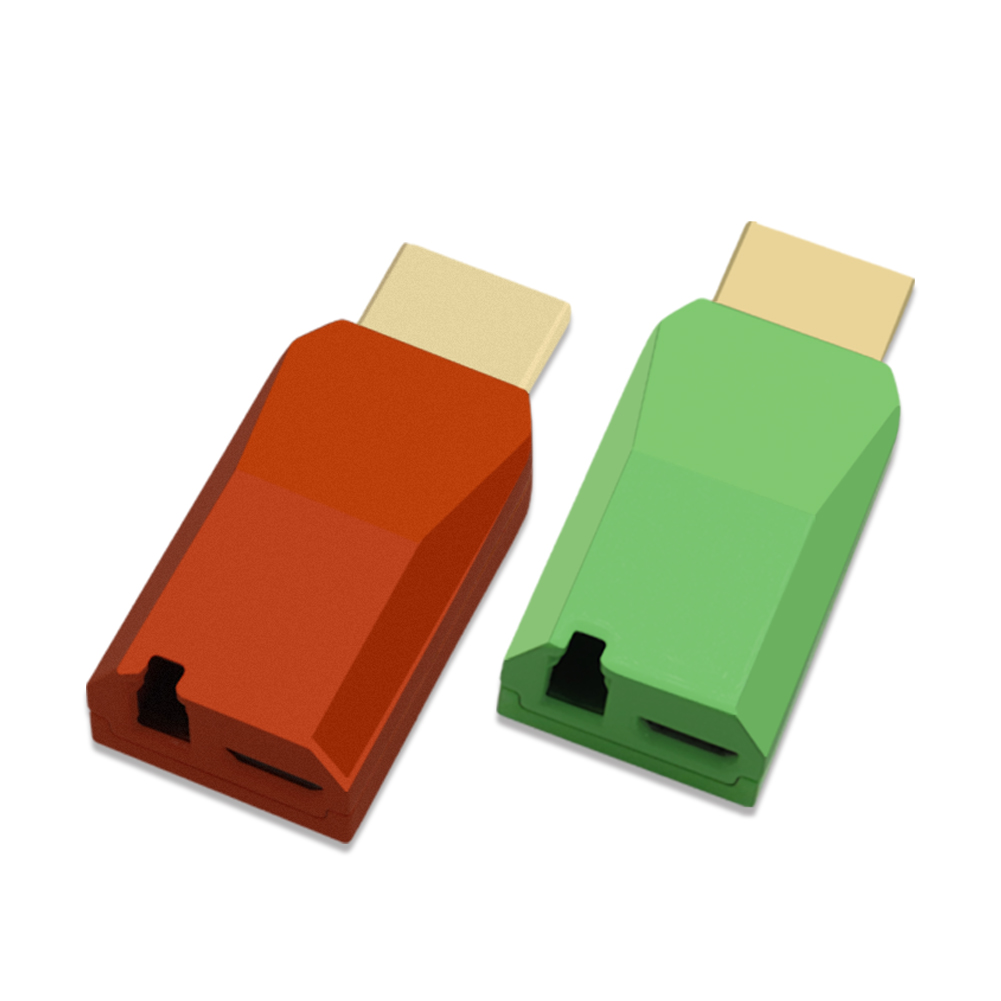

► Uses Small, Reliable LC Optical Connector
► Support EDID, HDCP, CEC transparent transmission
|
Type of Extender |
Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender |
|
Input Signals |
HDMI2.0 |
|
Signal Support |
HDMI 2.0 HDMI format standard |
|
Video Support |
4K@60Hz/4K@30Hz/1080p/1080i/720p |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Website Specifications |
Color space 444, 420, 400 |
|
EDID |
Support |
|
HDCP |
Support |
|
CEC |
Support |
|
Fiber Connector |
1 x LC Connector |
|
Transmission Rate |
18Gbps(6Gbps/CH) |
|
Transmission Distance |

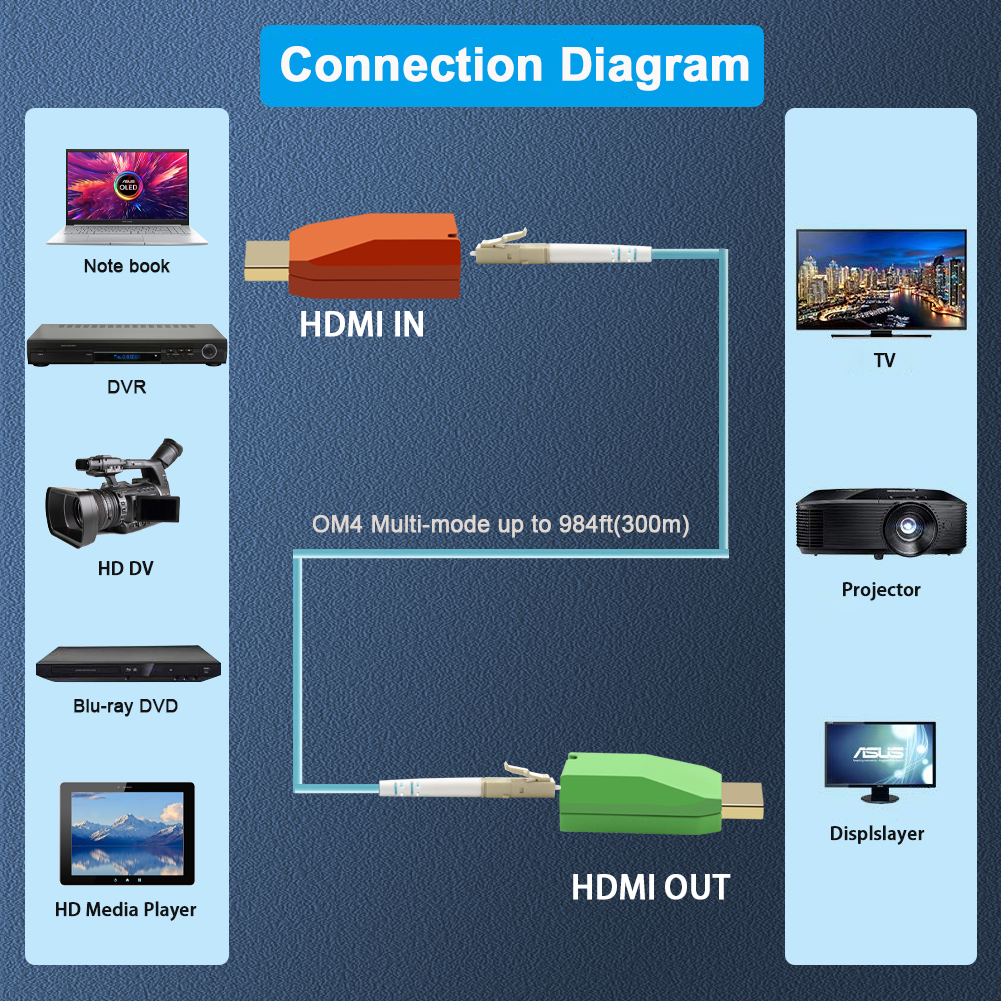

OM4 Multi Mode, up to 984ft (300M) |
|
Operating Temperature |
-40°C to + 70°C |
|
Storage Temperature |
-20°C to + 85°C |
|
Humidity |
to 90% RH (non-condensing) |
|
Safety Approvals |
CE, RoHS, FCC |
|
Dimension (WxDxH) |

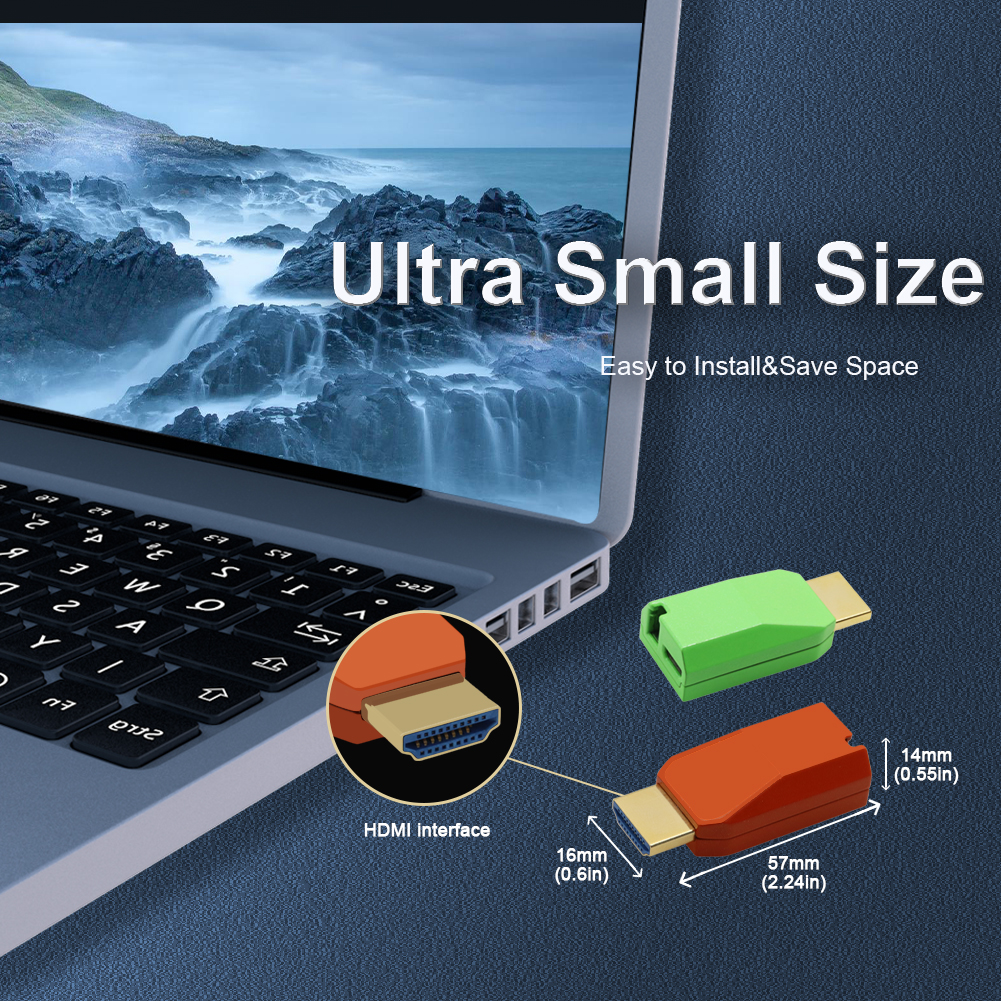

2.24 x 0.6 x 0.55 in (57x16x14mm) |
|
Weight |
0.1 kg / 0.22 lb |
|
Operation Voltage |
5VDC |
|
Operation Current |
TX:150mA |
|
Power Supply |
TX: 5V (take power from the HDMI interface on the Source side, some devices cannot provide sufficient power supply, need to connect external power supply) RX: need external power supply 5V, use Micro USB charging cable |
|
Power Consumption |
TX: <800mW; RX: <400mW |
- Download FileName：E-link LNK-109M Mini 4K HDMI2.0 Optical Transceiver Datasheet V1.1.pdf Size： 2.1MB
|
Model |
Description |
|
|
LNK-109M |
Mini 4K/60Hz HDMI2.0 over Single-Core Multimode Fiber Extender, OM4 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
