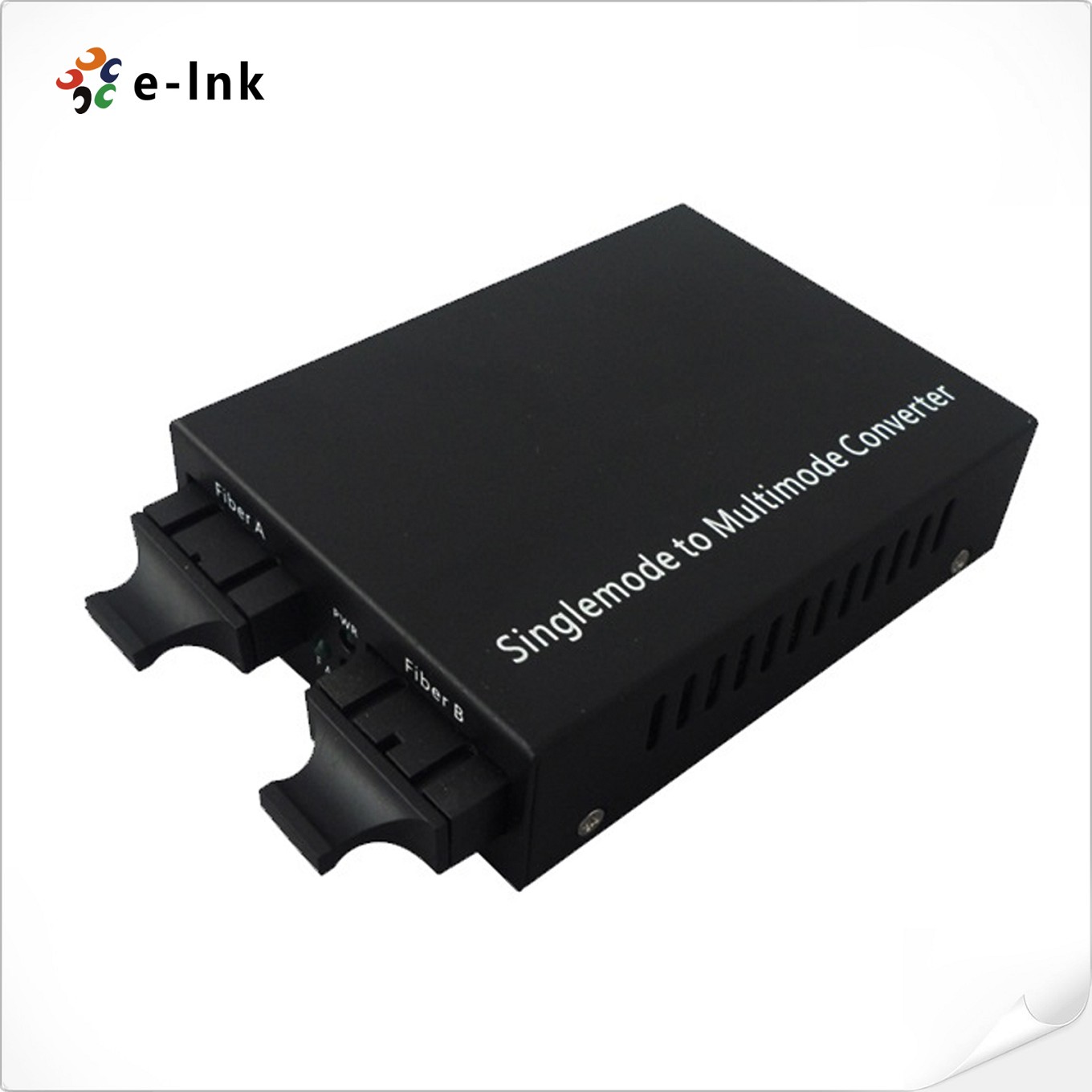

1000M Multi Single Mode Converter
Model:LNK-2020 Series
►Supporting IEEE802.3u 100Base-FX standards
►Supporting conversion between 850nm/1310nm multi-mode fibers and 1310nm/1550nm single mode fibers
►Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber
Overview
The LNK-2020 series single-/multi-mode converters are applied in1000Mbps Gigabit Ethernet Network, which is wired with both single mode fibers and multi-mode fibers. It can not only fulfill the conversion of single mode and multi mode at 1310nm wavelength, but also that of 850nm/1310nm and 1550nm wavelengths, which functions as a relay and then makes multi-mode fibers transmit farther. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.
Features
►Supporting IEEE802.3z 1000Base-SX/LX standards
►Supporting
full-duplex/half-duplex
►Supporting conversion
between850nm multi-mode fibers and 1310nm/1550nmsingle mode fibers
►Supporting direct and
transparent transmission of packets at different lengths
►Supporting the
transmission of extra-long VLAN packets
►Supporting Quality of
Service (QoS) and ensuring the transmission of VoIP packets;
►Low power consumption,
low heat, reliable and stable performance, and long lifetime;
►Options in single mode
in dual fiber, multi-mode in dual fiber, and single mode in single fiber

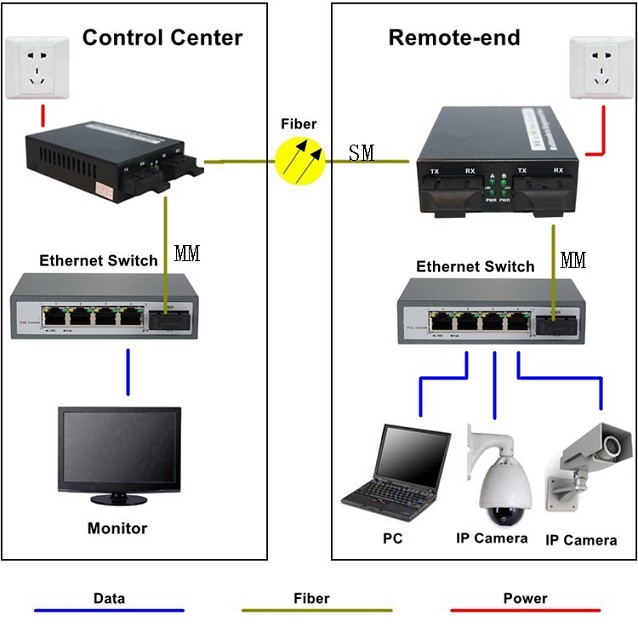

Application
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
1000Mbps (1250Mbpc) |
|
Standard |
IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/500m (50/125μm) single mode Dual-fiber: 20/40Km; single mode single fiber: 20/40Km |
|
Port |
One multi-mode optical port: Multi-mode: SC (50, 62.5/125μm) One single mode optical port: single mode: SC (9/125μm) Single mode Single fiber: SC (9/125μm) |
|
Conversion means |
Media conversion |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
PWR (power supply) SM LINK (single mode optical link) MM LINK (multi-mode optical link) |
|
Power supply |
DC 5V1A |
|
Power consumption |
3.5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
- Download FileName：E-link LNK-2020 Series Multi Single Mode Converter Datasheet V1.0.pdf Size： 421KB
Ordering Information:
|
Model |
Description |
|
LNK-2020-25 |
1000M, Single mode-Dual Fiber-25km-1310nm to Multimode-Dual Fiber-2km-1310nm, SC, standalone, external power adaptor |
|
LNK-S2020-25 |
1000M, Single mode-Single Fiber-25km-1310nm to Multimode-Single Fiber-2km-1310nm, SC, standalone, external power adaptor |
