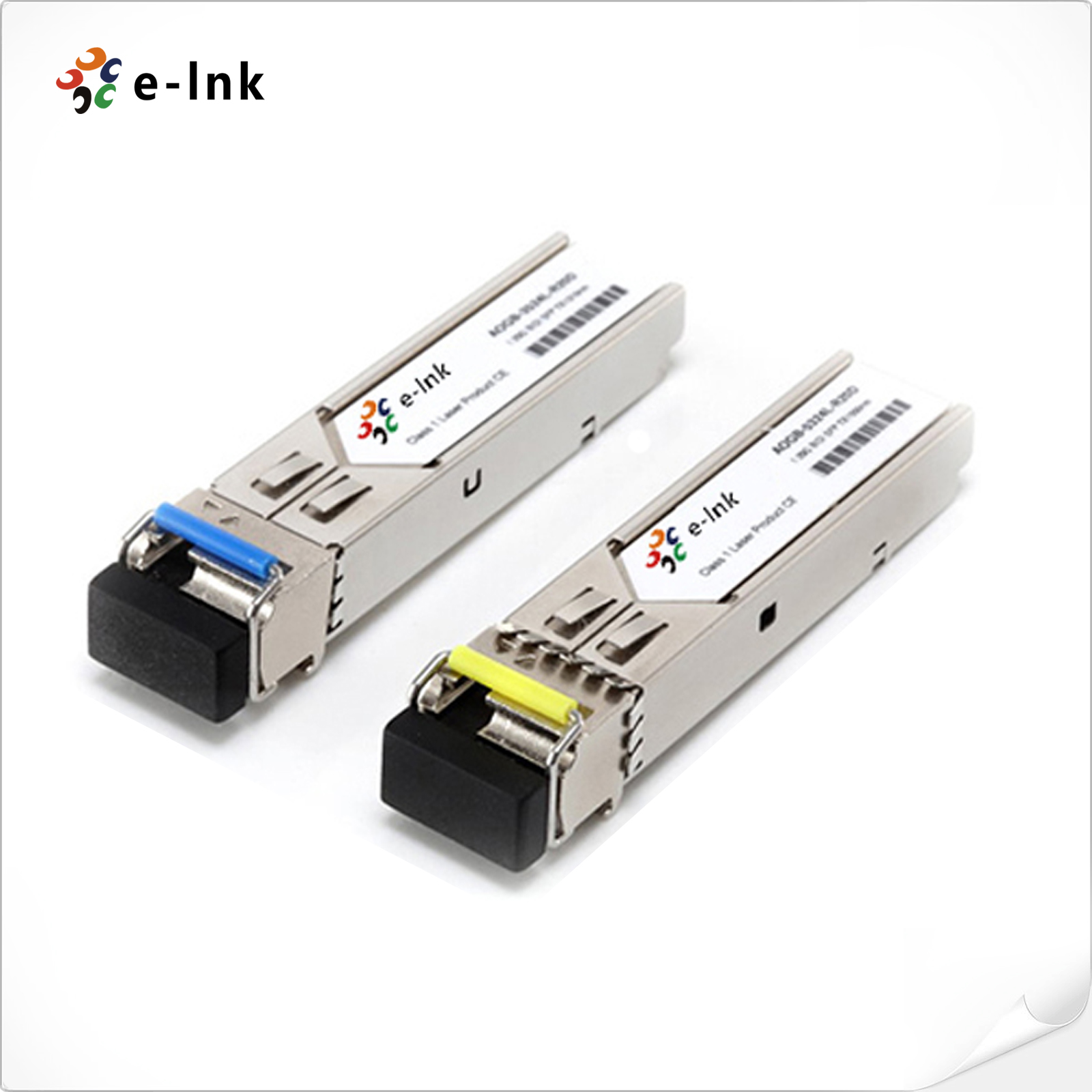

1.25G BiDi (WDM) Single Fiber SFP transceiver up to 120km

Model:LNK-BSFP-1.25G

►Up to 1.25Gb/s data links

►Wavelengths - 1310/1550 nm & 1490/1550 nm
►Cisco Compatible

上一张

下一张

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps.

The transceiver consists of three sections: SFP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement(MSA) and SFF-8472. For further information, please refer to SFP MSA.

Technical Indexes

Part No.	Rate	Distance	Wavelength	Fiber	Voltage	DDM	Temp.	Connector
LNK-BSFP-1.25G-20U	1.25G	20km	1310T/1550R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BSFP-1.25G-20D	1.25G	20km	1550T/1310R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BSFP-1.25G-40U	1.25G	40km	1310T/1550R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BSFP-1.25G-40D	1.25G	40km	1550T/1310R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BSFP-1.25G-80U	1.25G	80km	1490T/1550R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BSFP-1.25G-80D	1.25G	80km	1550T/1490R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BSFP-1.25G-12U	1.25G	120km	1490T/1550R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BSFP-1.25G-12D	1.25G	120km	1550T/1490R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BSFP-1.25G-LU	1.25G	20km	1310T/1550R	SMF	3.3V	YES	-40 to +85°C	Simplex LC
LNK-BSFP-1.25G-LD	1.25G	20km	1550T/1310R	SMF	3.3V	YES	-40 to +85°C	Simplex LC
LNK-BSFP-1.25G-L4U	1.25G	40km	1310T/1550R	SMF	3.3V	YES	-40 to +85°C	Simplex LC
LNK-BSFP-1.25G-L4D	1.25G	40km	1550T/1310R	SMF	3.3V	YES	-40 to +85°C	Simplex LC
LNK-BSFP-1.25G-L49U	1.25G	40km	1310T/1490R	SMF	3.3V	YES	-40 to +85°C	Simplex LC
LNK-BSFP-1.25G-L49D	1.25G	40km	1490T/1310R	SMF	3.3V	YES	-40 to +85°C	Simplex LC
LNK-BSFP-1.25G-L8U	1.25G	80km	1490T/1550R	SMF	3.3V	YES	-40 to +85°C	Simplex LC
LNK-BSFP-1.25G-L8D	1.25G	80km	1550T/1490R	SMF	3.3V	YES	-40 to +85°C	Simplex LC
LNK-BSFP-1.25G-L12U	1.25G	120km	1490T/1550R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BSFP-1.25G-L12D	1.25G	120km	1550T/1490R	SMF	3.3V	YES	0~70℃	Simplex LC

Download FileName：E-link 1.25G BIDI SFP 1310T1550R 2KM SFP Datasheet V1.0.pdf Size： 1.29MB
Download FileName：E-link 1.25G BIDI SFP 1550T1310R 2KM SFP Datasheet V1.0.pdf Size： 1.28MB
Download FileName：E-link 1.25G BIDI SFP 1310T1550R 20KM SFP Datasheet V1.0.pdf Size： 326KB
Download FileName：E-link 1.25G BIDI SFP 1550T1310R 20KM SFP Datasheet V1.0.pdf Size： 327KB
Download FileName：E-link 1.25G BIDI SFP 1310T1550R 40KM SFP Datasheet V1.0.pdf Size： 1.25MB
Download FileName：E-link 1.25G BIDI SFP 1550T1310R 40KM SFP Datasheet V1.0.pdf Size： 1.32MB
Download FileName：E-link 1.25G BIDI SFP 1490T1550R 80KM SFP Datasheet V1.0.pdf Size： 339KB
Download FileName：E-link 1.25G BIDI SFP 1550T1490R 80KM SFP Datasheet V1.0.pdf Size： 327KB
Download FileName：E-link 1.25G BIDI SFP 1490T1550R 120KM SFP Datasheet V1.0.pdf Size： 339KB
Download FileName：E-link 1.25G BIDI SFP 1550T1490R 120KM SFP Datasheet V1.0.pdf Size： 327KB

Order Information

I. Commercial type SFP

Model	Description
Model	Description
LNK-BSFP-1.25G-3U	1.25G SFP Bi-Directional Transceiver, 1310nm TX/1550nm RX,LC 3km, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-BSFP-1.25G-3D	1.25G SFP Bi-Directional Transceiver, 1550nm TX/1310nm RX,LC 3km, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-BSFP-1.25G-3CU	1.25G SFP Bi-Directional Transceiver, 1310nm TX/1550nm RX,SC 3km, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-BSFP-1.25G-3CD	1.25G SFP Bi-Directional Transceiver, 1550nm TX/1310nm RX,SC 3km, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-BSFP-1.25G-20U	1.25G SFP Bi-Directional Transceiver, 1310nm TX/1550nm RX, LC 20km, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-BSFP-1.25G-20D	1.25G SFP Bi-Directional Transceiver, 1550nm TX/1310nm RX, LC 20km, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-BSFP-1.25G-40U	1.25G SFP Bi-Directional Transceiver, 1310nm TX/1550nm RX, LC 40km, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-BSFP-1.25G-40D	1.25G SFP Bi-Directional Transceiver, 1550nm TX/1310nm RX, LC 40km, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-BSFP-1.25G-80U	1.25G SFP Bi-Directional Transceiver, 1490nm TX/1550nm RX, LC 80km, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-BSFP-1.25G-80D	1.25G SFP Bi-Directional Transceiver, 1550nm TX/1490nm RX, LC 80km, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-BSFP-1.25G-12U	1.25G SFP Bi-Directional Transceiver, 1490nm TX/1550nm RX, LC 120km, With Digital Diagnostic Monitoring, 0°C~+70°C
LNK-BSFP-1.25G-12D	1.25G SFP Bi-Directional Transceiver, 1550nm TX/1490nm RX, LC 120km, With Digital Diagnostic Monitoring, 0°C~+70°C

II. Industrial type SFP

Item	Description
Item	Description
LNK-SFP-1.25G-L80	1.25G SFP, 1550nm DFB, LC 80km, With Digital Diagnostic Monitoring, -40°C~+85°C
LNK-BSFP-1.25G-LU	1.25G SFP Bi-Directional Transceiver, 1310nm TX/1550nm RX, LC 20km, With Digital Diagnostic Monitoring, -40°C~+85°C
LNK-BSFP-1.25G-LD	1.25G SFP Bi-Directional Transceiver, 1550nm TX/1310nm RX, LC 20km, With Digital Diagnostic Monitoring, -40°C~+85°C
LNK-BSFP-1.25G-L4U	1.25G SFP Bi-Directional Transceiver, 1310nm TX/1550nm RX, LC 40km, With Digital Diagnostic Monitoring, -40°C~+85°C
LNK-BSFP-1.25G-L4D	1.25G SFP Bi-Directional Transceiver, 1550nm TX/1310nm RX, LC 40km, With Digital Diagnostic Monitoring, -40°C~+85°C
LNK-BSFP-1.25G-L8U	1.25G SFP Bi-Directional Transceiver, 1490nm TX/1550nm RX, LC 80km, With Digital Diagnostic Monitoring, -40°C~+85°C
LNK-BSFP-1.25G-L8D	1.25G SFP Bi-Directional Transceiver, 1550nm TX/1490nm RX, LC 80km, With Digital Diagnostic Monitoring, -40°C~+85°C
LNK-BSFP-1.25G-L12U	1.25G SFP Bi-Directional Transceiver, 1490nm TX/1550nm RX, LC 120km, With Digital Diagnostic Monitoring, -40°C~+85°C
LNK-BSFP-1.25G-L12D	1.25G SFP Bi-Directional Transceiver, 1550nm TX/1490nm RX, LC 120km, With Digital Diagnostic Monitoring, -40°C~+85°C
