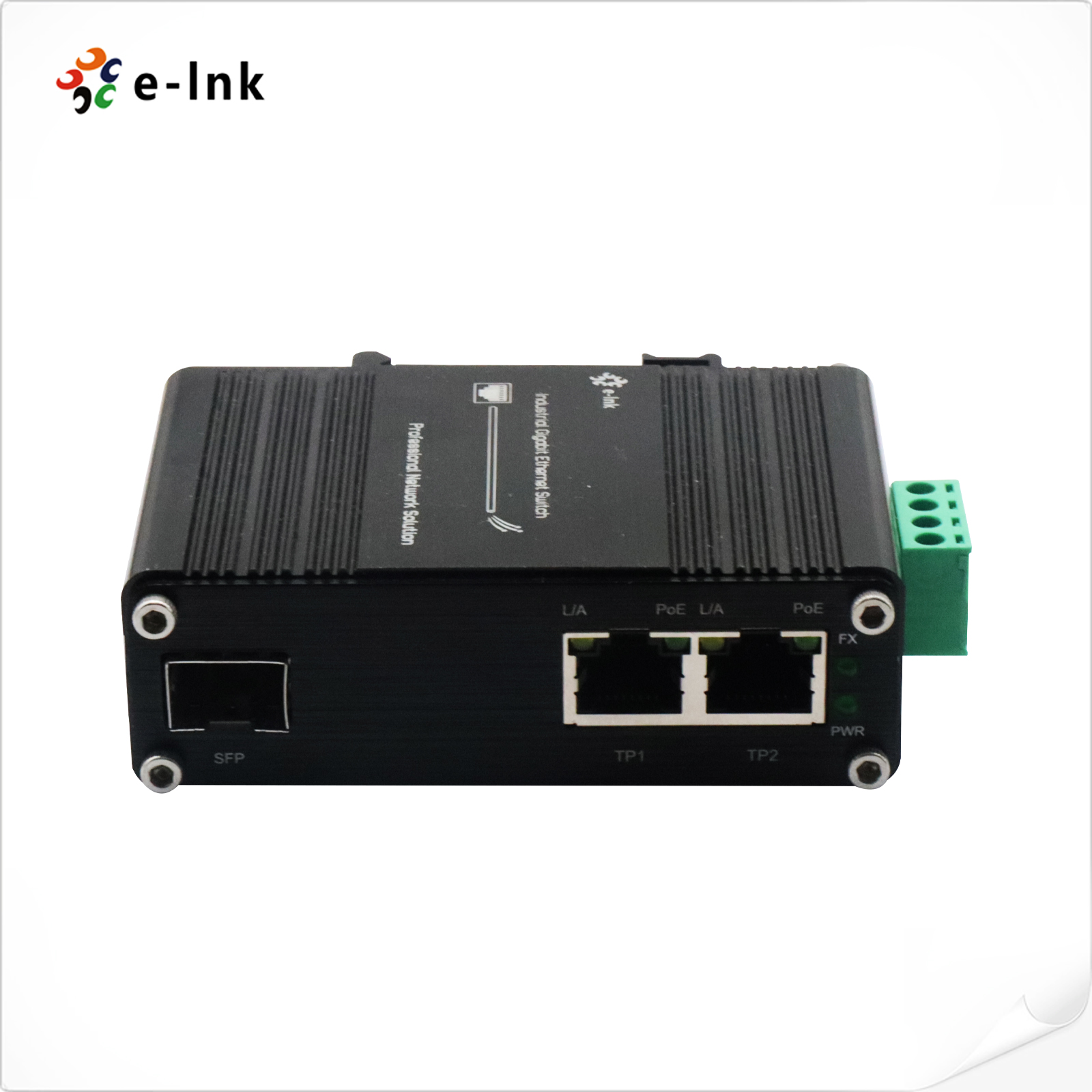

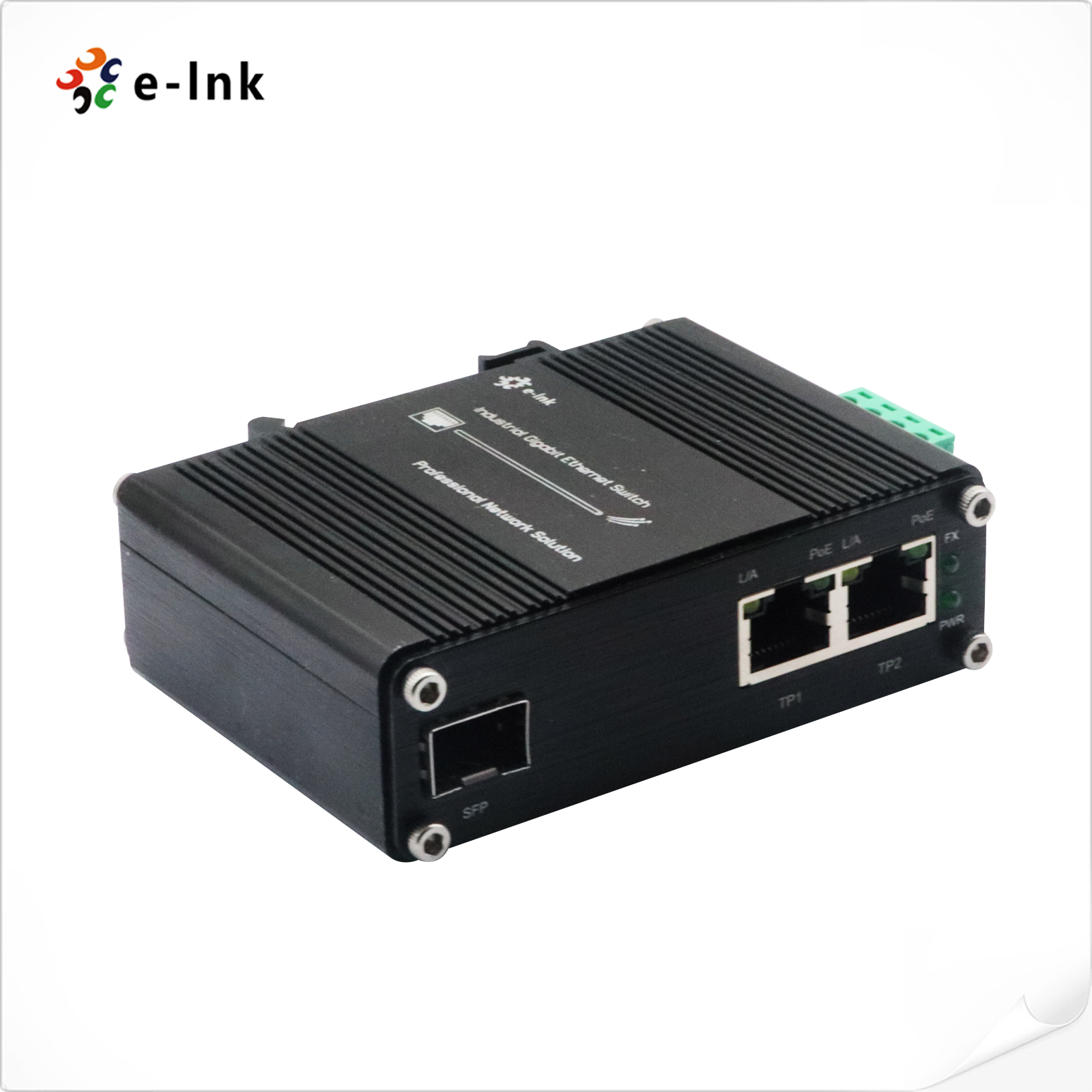

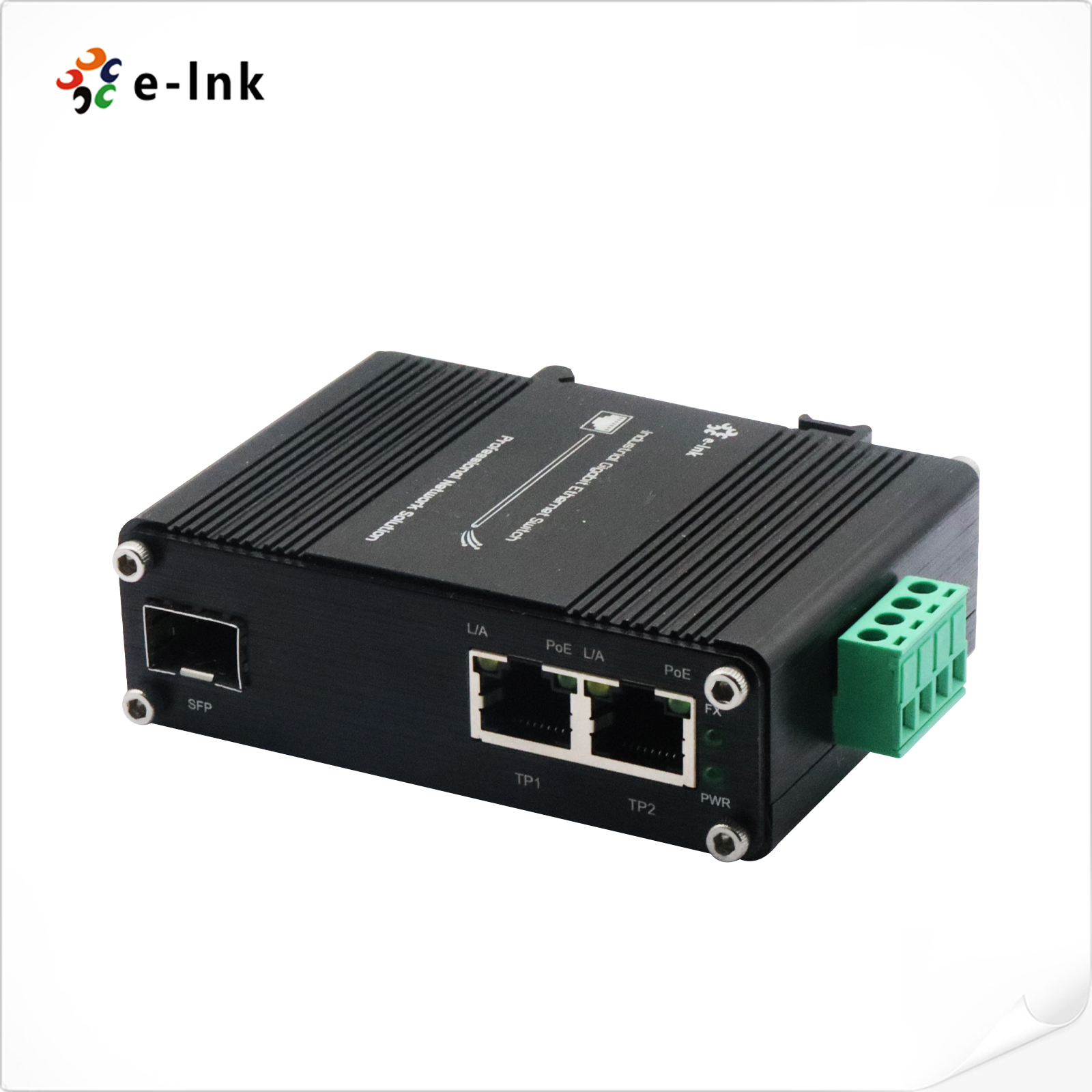

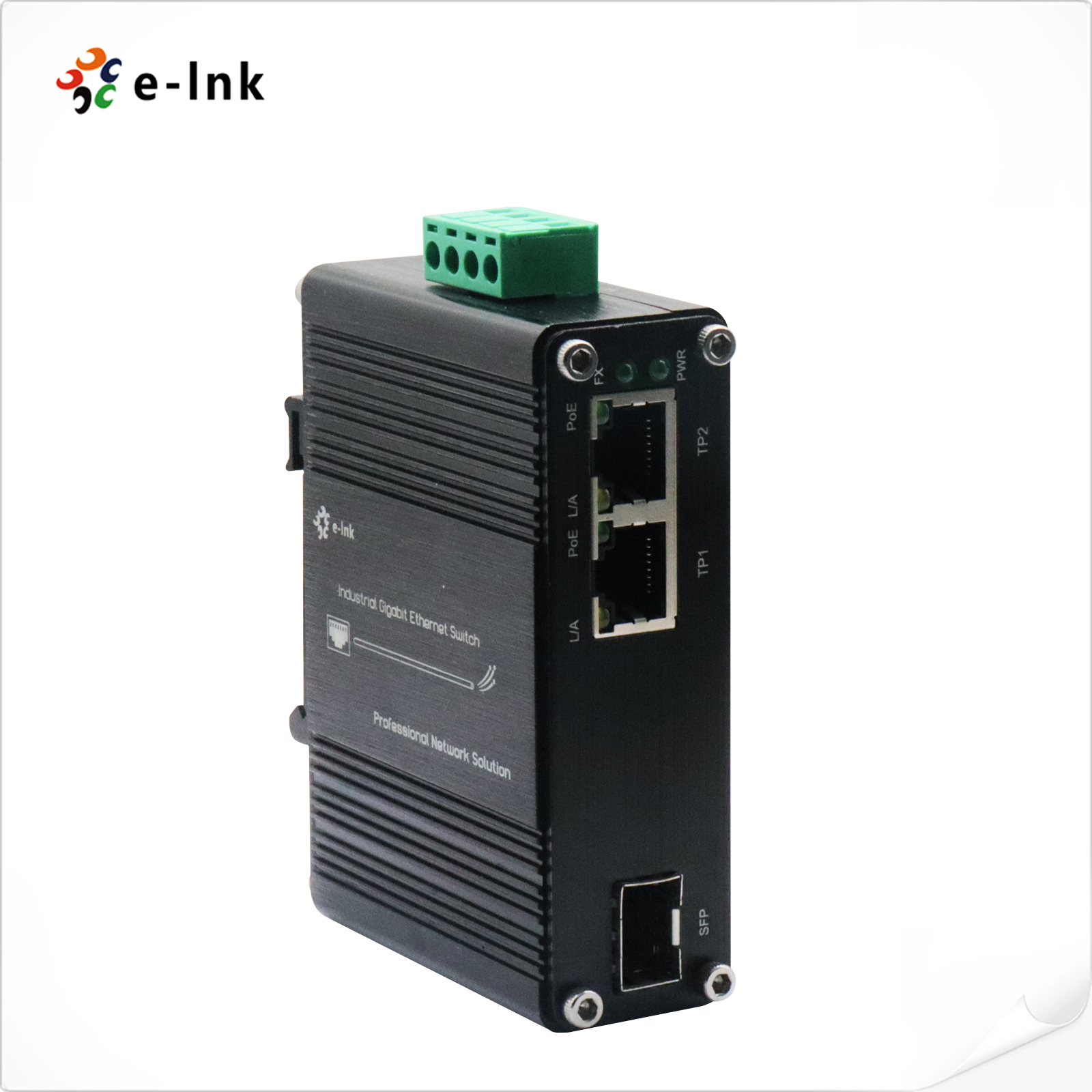

12-48V 2 Port 10/100/1000M PoE+1 Port 100/1000M SFP Industrial Gigabit 30W PoE Media Converter
Model:LNK-IMC1200GP-SFP
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port,100Base-FX or 1000Base-X dual mode(auto detection)
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
Overview
LNK-IMC1200GP-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC1200GP-SFP supports 10/100/1000Base-T with 30W PoE+ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
