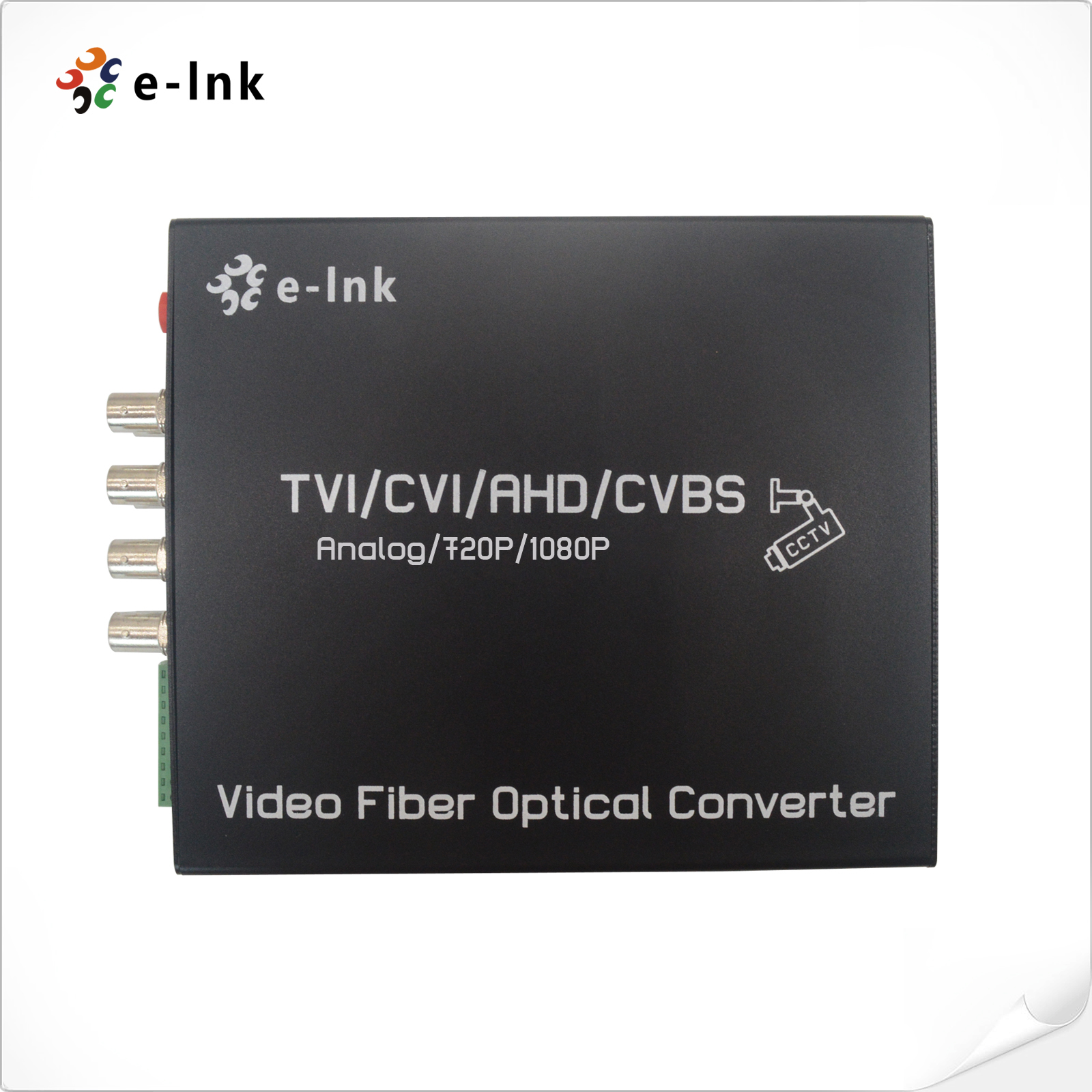

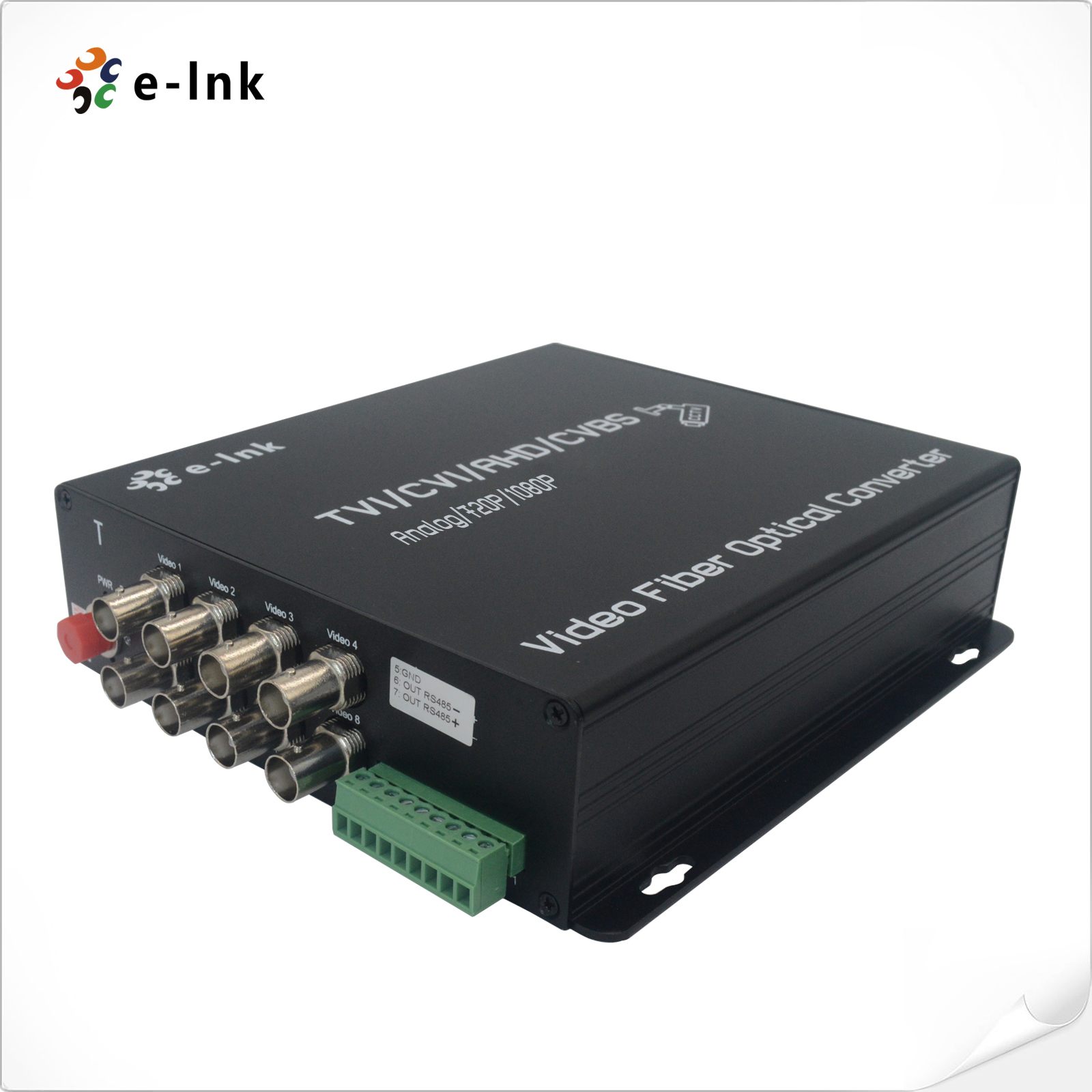

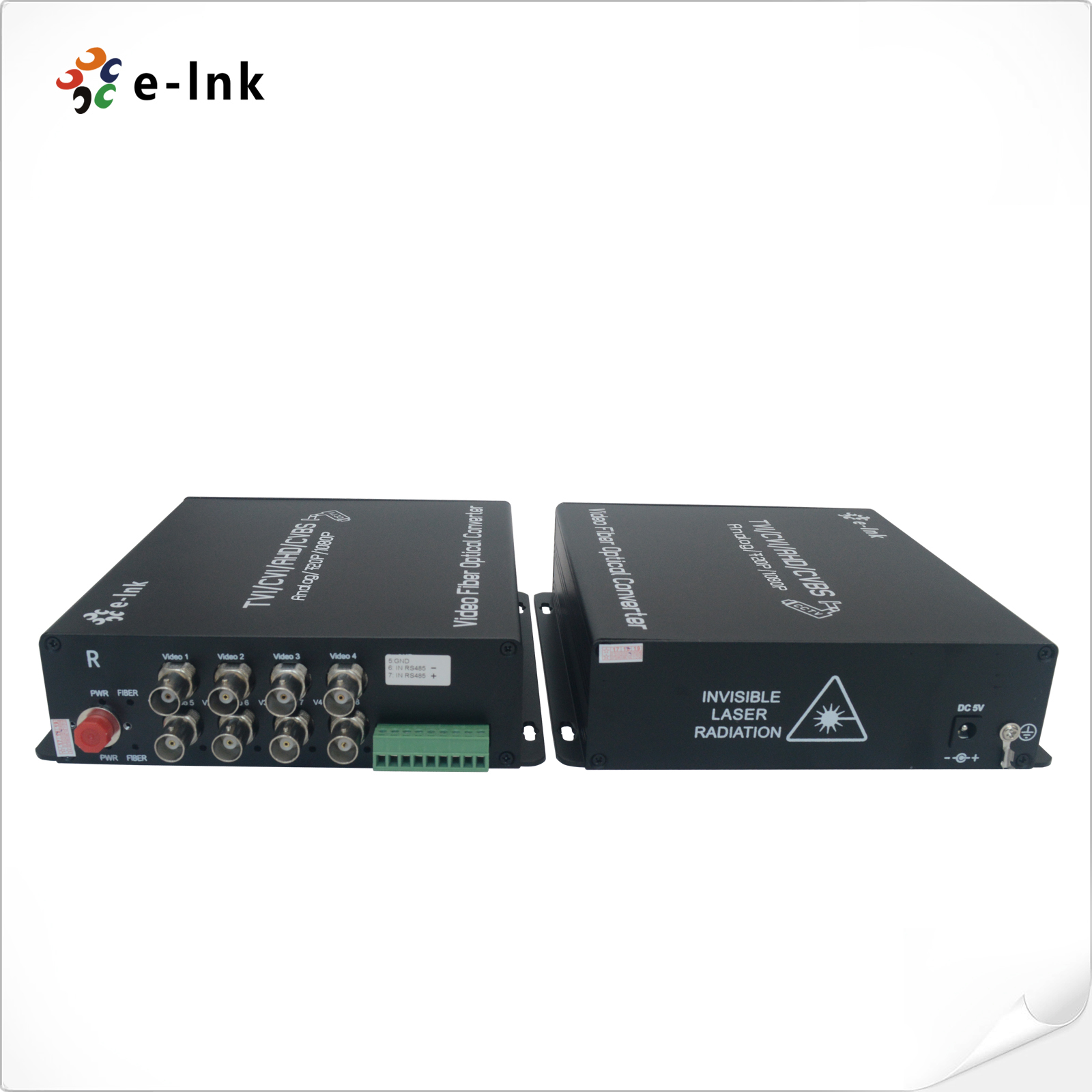

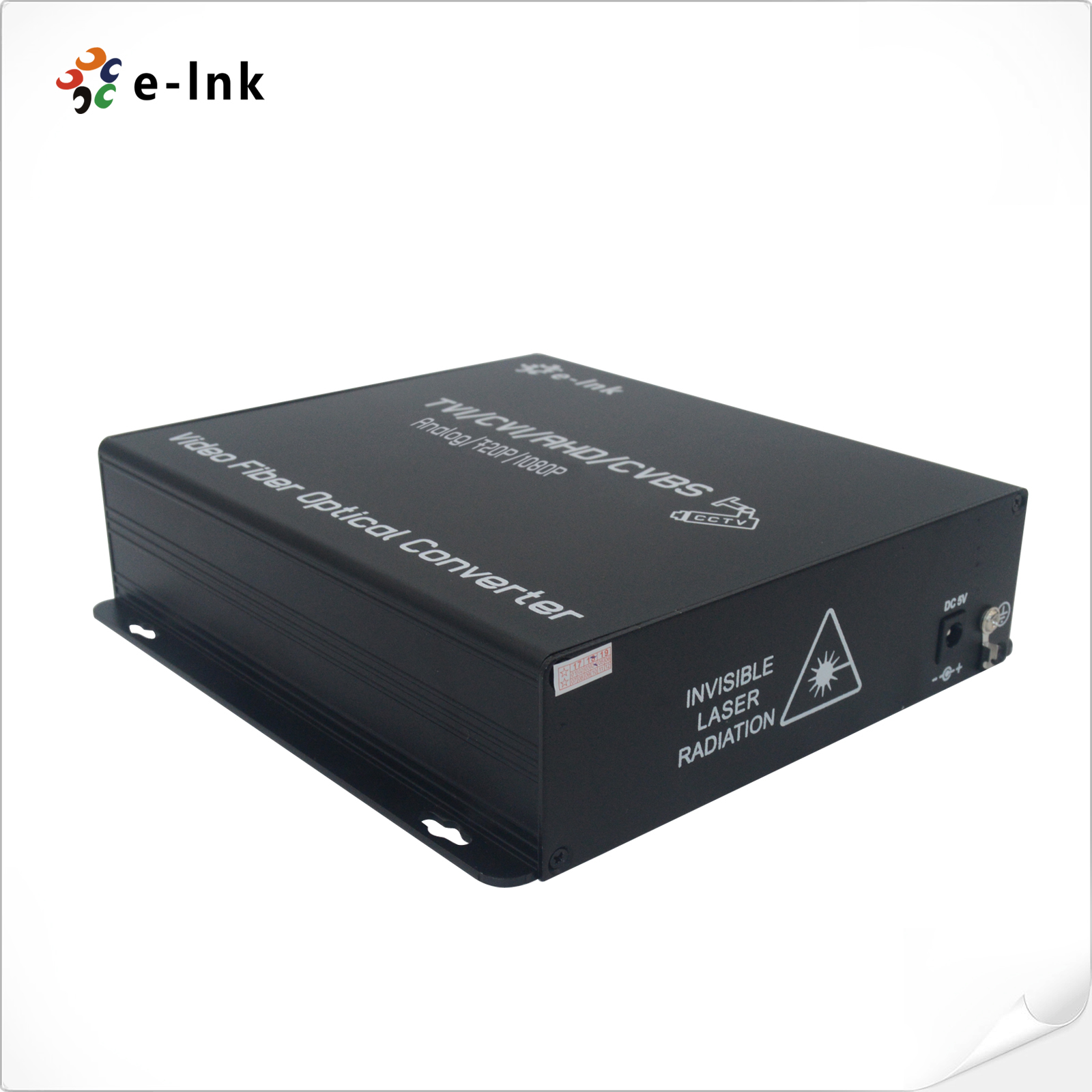

8Ch 1080P HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter

Model:LNK-8ACT & LNK-8HACT Series

► Support transmission of combined AHD, HD-CVI, HD-TVI or CVBS signal and controlling PTZ data RS485 simultaneously though fiber optical cable

► Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos

上一张

下一张

Overview

E-link HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HD-CVI, HD-TVI or CVBS composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers.

E-link 8Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 8 channels AHD, HD-CVI, HD-TVI or CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.

Technical Indexes

Optical Fiber
Wavelength		WDM:1310nm/1550nm
Output Power		-8~3dBm
Optic fiber		50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity		-26dBm
Optical connector		FC(default),STorSC(optional)
Transmission Distance		0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)
Video
Number of Channels		8 CH
Input/output impedance		75 Ohm (unbalance)
Standard video input/output voltage		1.0Vp-p
Video Bandwidth		50MHz
Sampling Bandwidth		8bit
Sampling Frequency		108MHz
Signal to noise ratio		>67dB
Rise and Fall time		<0.8ns
Optical Signal Intrinsic Jitter		<0.2 UI
Differential Gain		<±1.5%
Differential Phase		<±1°
Connector		BNC
Supporting video pixel/Resolution		1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX
PTZ Data
Protocol		Default :RS485 (RS232/RS422 Optional)
Number of channels		1
Connector		3pins Terminal Blocks
Data Rate		0-200Kbps
Directions		Default :Simplex from Rx to Tx (BIDI duplex optional)
Environmental
Operating Temperature:		-15°C to 65°C (5°F to 149°F)
Storage Temperature:		-40°C to 85°C (-40°F to 185°F)
Relative Humidity:		5% to 95% non-condensing
MTBF		> 100,000 hrs
Electrical and Mechanical
Input Power:	DC5V 3A
Power Consumption:	≤6W
LED Indicators:
Fiber	Fiber Status
Video	LED1, LED2, LED3, LED4
Data	Data status
PWR	Power Status
Dimensions (WxDxH):	167 x 172 x 45 mm (720P) 167 x 172 x 45 mm (1080P)
Weight:	2.5Kg (720P) 2.5KG(1080P)
Casing:	Metal Case
Mounting Options:	Wall-mount/Rack-mount
Regulatory Approvals
ISO9001
CE, RoHS and FCC

LNK-8ACT-20	8-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-8ACT-20R	8-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-8HACT-20	8-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-8HACT-20R	8-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
