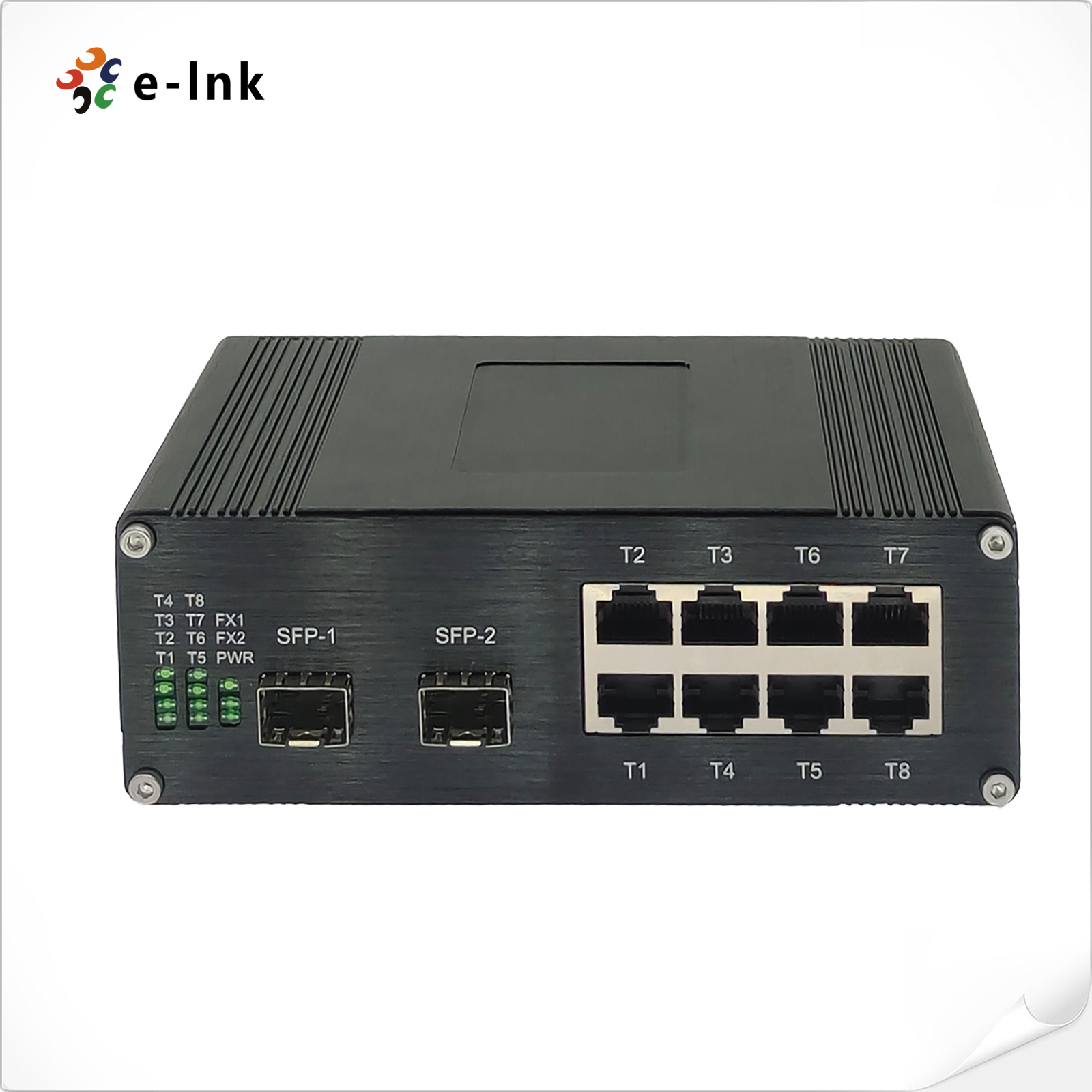

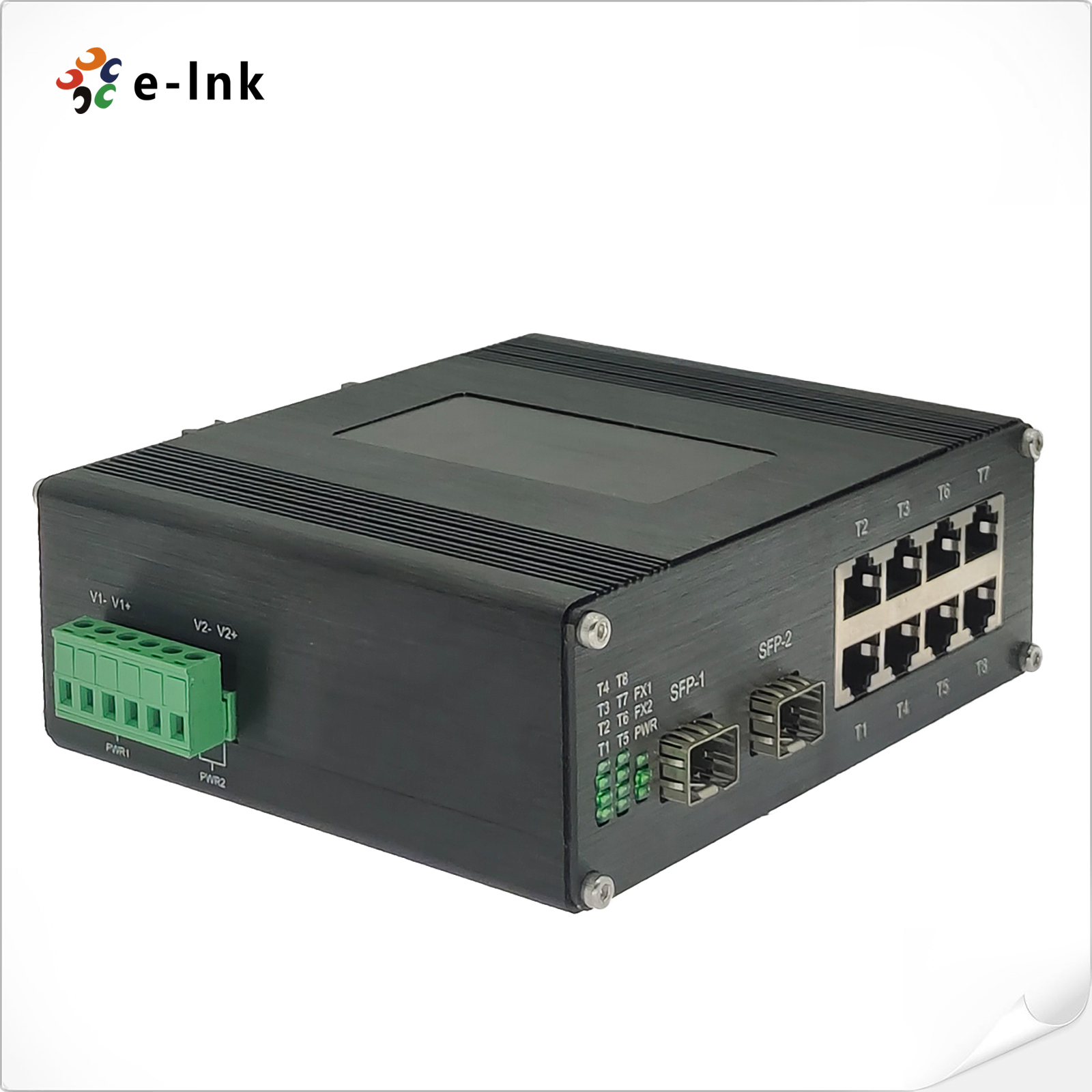

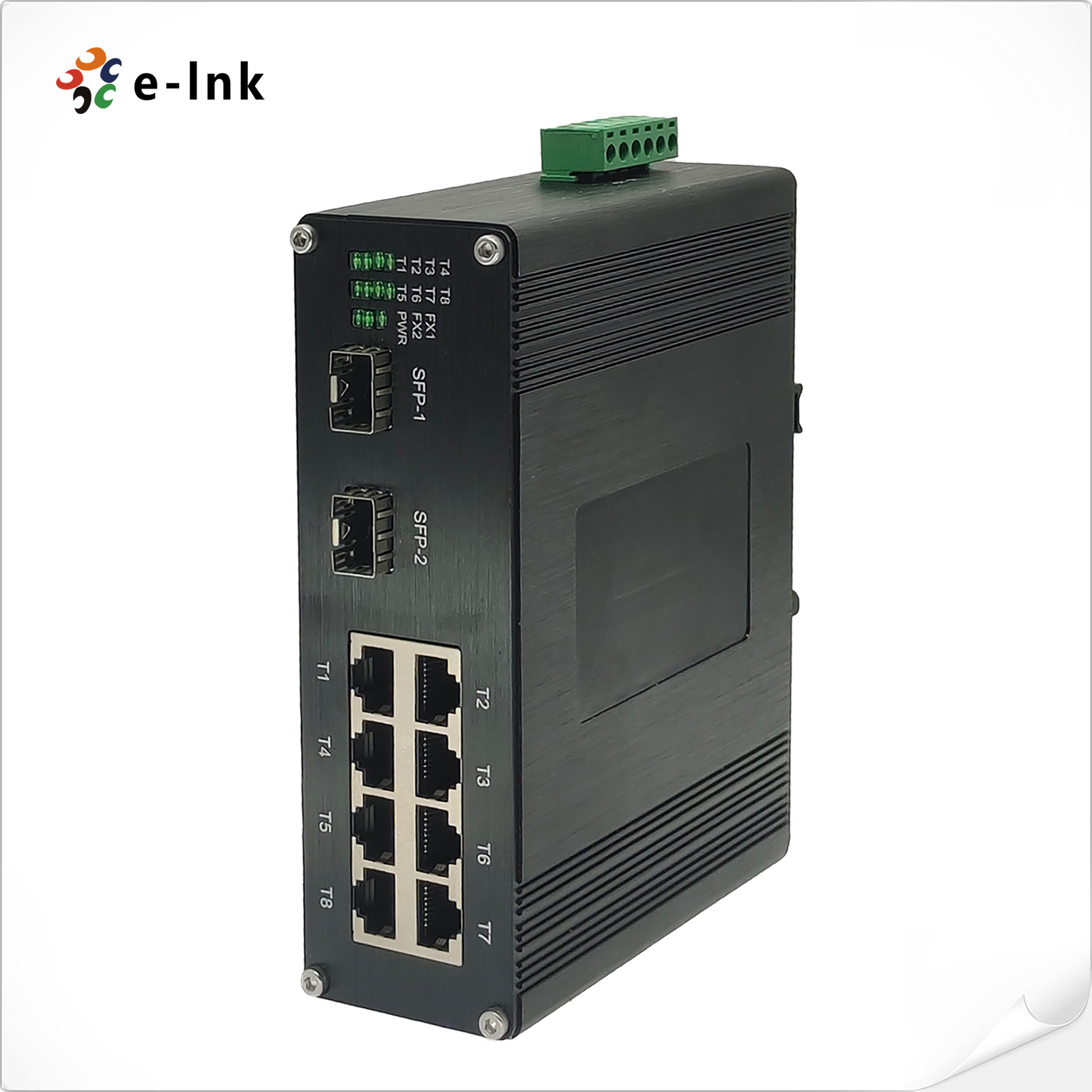

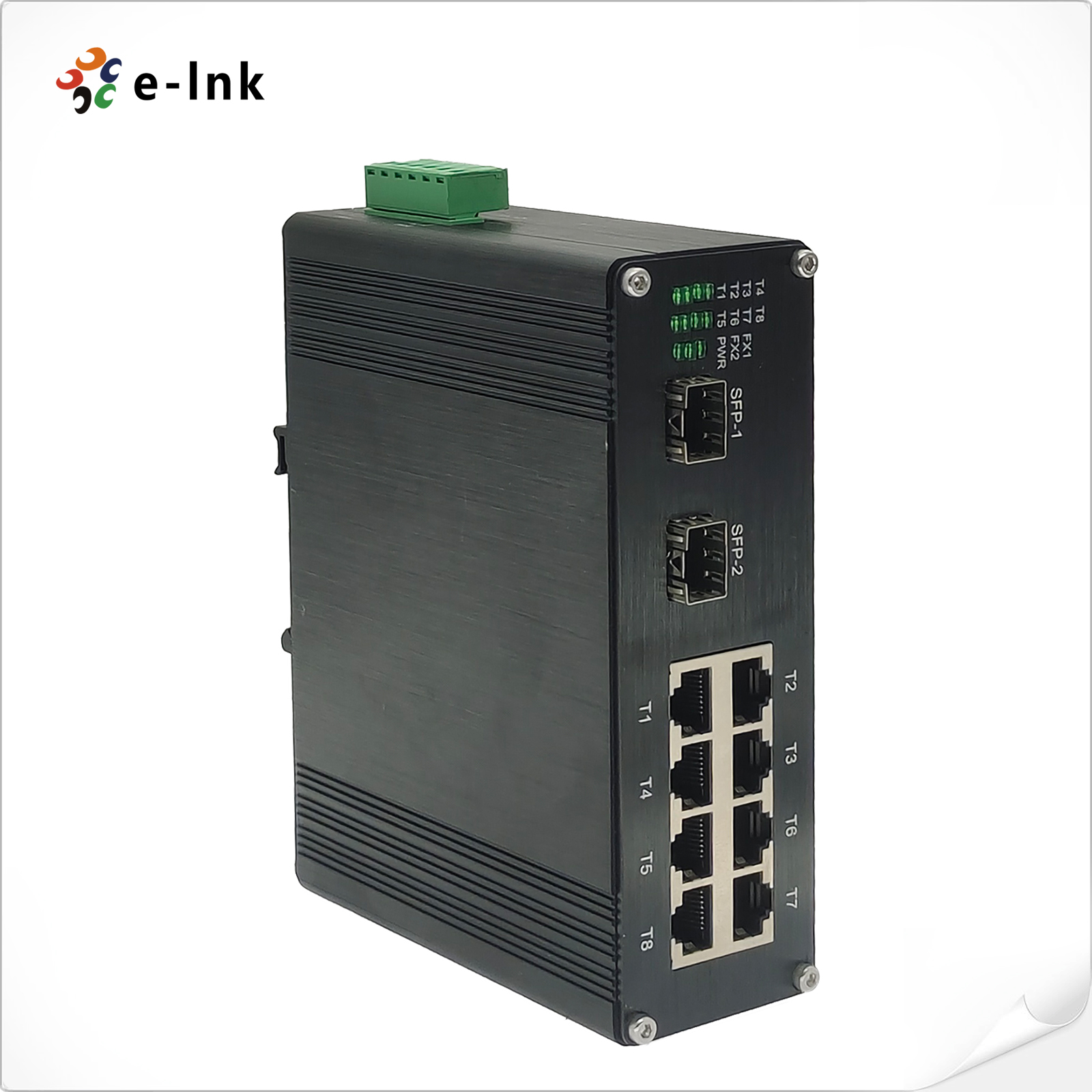

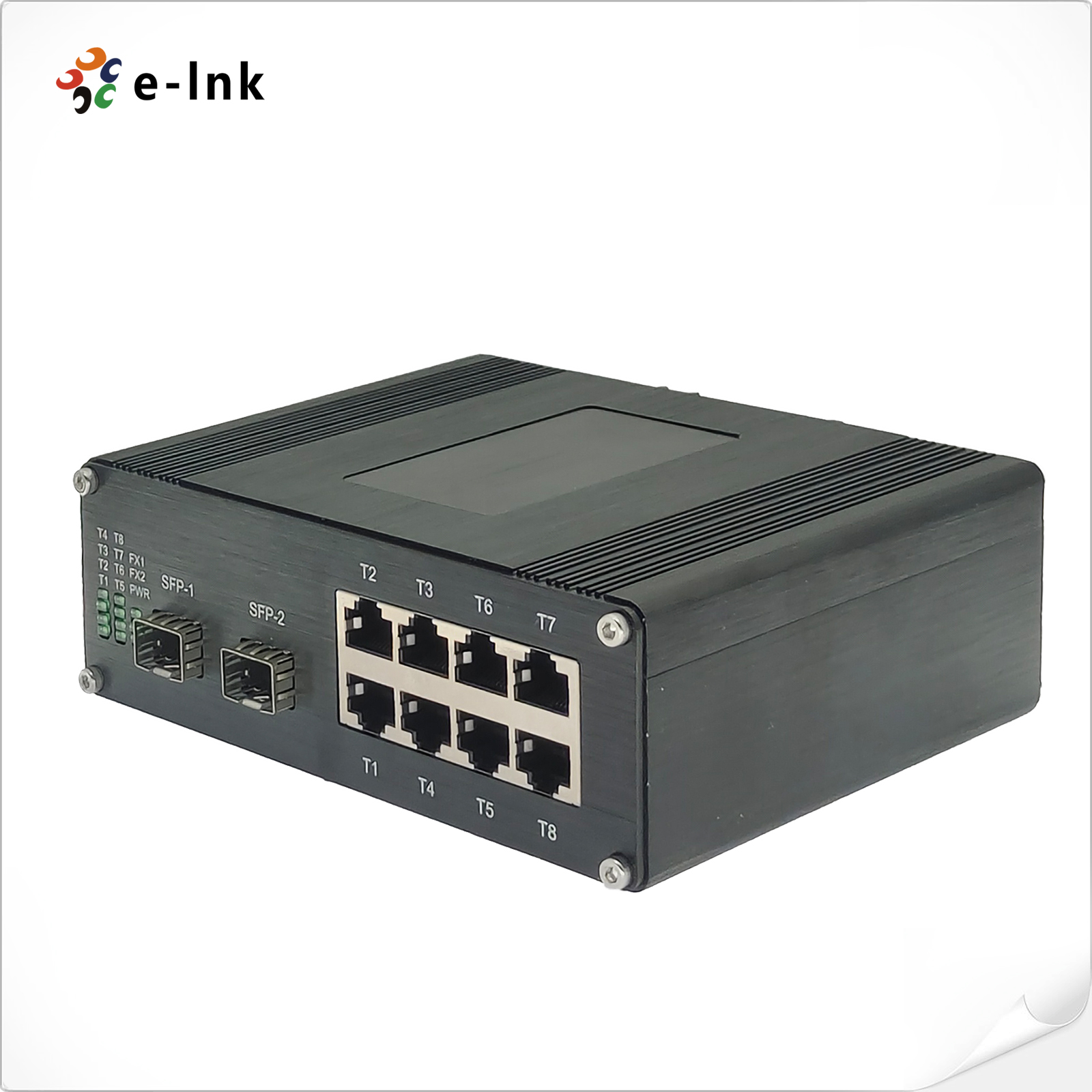

Industrial 8-port 10/100T 802.3at PoE + 2-port 100BASE-SFP Ethernet Switch

Model:LNK-IMC208P Series

► 8 10/100Base-TX + 2 100Base-FX

► Supports IEEE 802.3at PoE+ (30W per port)

► SFP, SC, FC, ST Optional

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

上一张

下一张

Overview

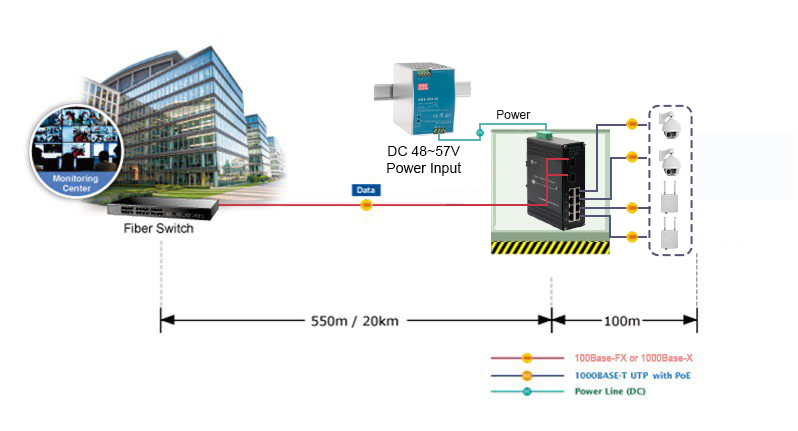

LNK-IMC208P Series is an 8 ports 10/100Base-TX + 2 port 100Base-FX Hardened PoE switch. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3x Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
Forward & Filtering Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	512K bits
Processing Type:	Store-and-Forward
Address Table Size:	1024 MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	2 x 100Base-FX (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical

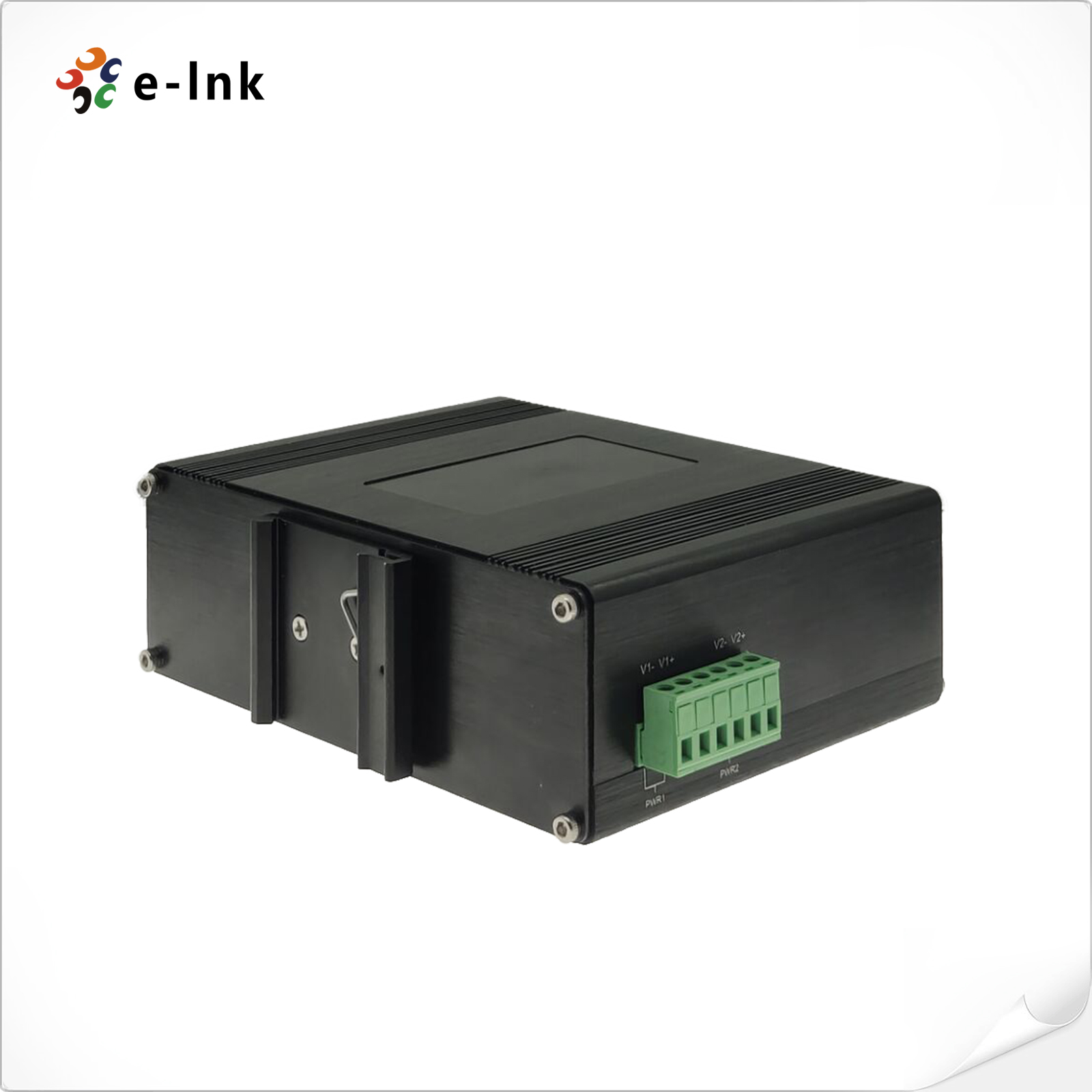

Input Power:	48~57VDC,Redundant Power (6-pin Terminal Block)
Power Consumption:	253W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at
PoE:
Port:	RJ45 Port 1 ~ Port 8
Max. Power per Port:	30W Max per port (Alternative B Mode)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet (Per Port):	Link/Activity
Fiber:	FX1, FX2
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Model	Description
LNK-IMC208P	Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC208P-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC208PS-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC208PF-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC208P-SFP	Industrial 8-port 10/100BASE-T (8-port PoE+) + 2-port 100BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
