Overview
The
LNK-FVGA Fiber optic extender provides extension of VGA signals long distances
over one fiber optic cable, it supports high resolution up to 1080P,
transmitter local output, RS232 signal and external audio transmission
function. The extender can use for a wide range of applications requiring long
distance transmission of high resolution with high quality by its good
stability and powerful security.
Features
► Transmits VGA video signals up to 10km over one fiber optic cable;
► Support video resolution up to 1920*1080P@60Hz;
► Support external stereo audio unidirectional transmission;
► Support transmitter one channel signal output;
► Support RS232 signal unidirectional transmission, baud rate self-adaptive;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and
stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Application
► Digital Signage
► LED signboards in streets and in stadiums
► Medical Imaging Equipment
► Airplane On-board Video System
► Conference Room Video Equipment
► Remote monitor for traffic, industrial, military control
► LCD, Projector, Plasma display connection
► Large video wall system
► TV Broadcast Station
► Home Theater
Technical Indexes
Parameter
|
Description
|
Video
|
Standards
|
VGA
|
Maximum pixel clock
|
380MHz
|
Resolution
|
1920x1200@60Hz /
1920x1080@60Hz
1600x1200@60Hz / 1680x1050@60Hz
1280x1024@60Hz /
1280x1024@75Hz
1280x800@60Hz / 1280x768@60Hz
1280x720@60Hz / 1024x768@60Hz
1024x768@75Hz / 800x600@60Hz/75Hz
|
Impedance
|
75Ω
|
Audio
|
Interface
|
3.5mm earphone seat
|
Format
|
44.1K,48K,96K,176K,192K
|
Signal type
|
Stereo
|
RS232
|
Interface
|
Industrial terminal
|
Signal direction
|
Bidirectional
|
Baud rate
|
Self-adaptive, Max: 115200bps
|
Data bits
|
8
|
Optical fiber
|
Interface
|
LC connector
|
Fiber type
|
Single-mode single fiber
|
Wavelength
|
Single-mode 1310nm
|
Interface bandwidth
|
2.97Gbps
|
Transmission distance
|
standard 10km
|
Other
|
Power supply
|
The power adapter:DC
5V/2A
|
Power dissipation
|
MAX 6W
|
Temperature
|
Operating: -5℃~ +70℃
|
Humidity
|
Operating: 5% ~ 90%
|
Dimension
|
155*115*30mm
|
The warranty
|
1 year free warranty,
life-long maintenance
|

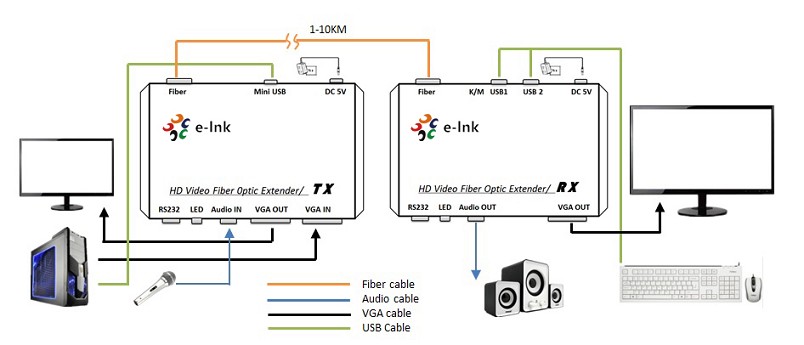

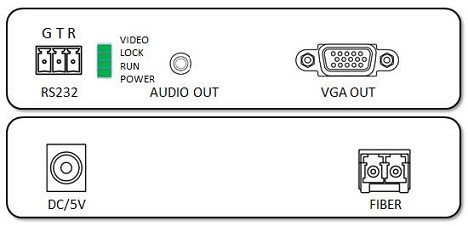

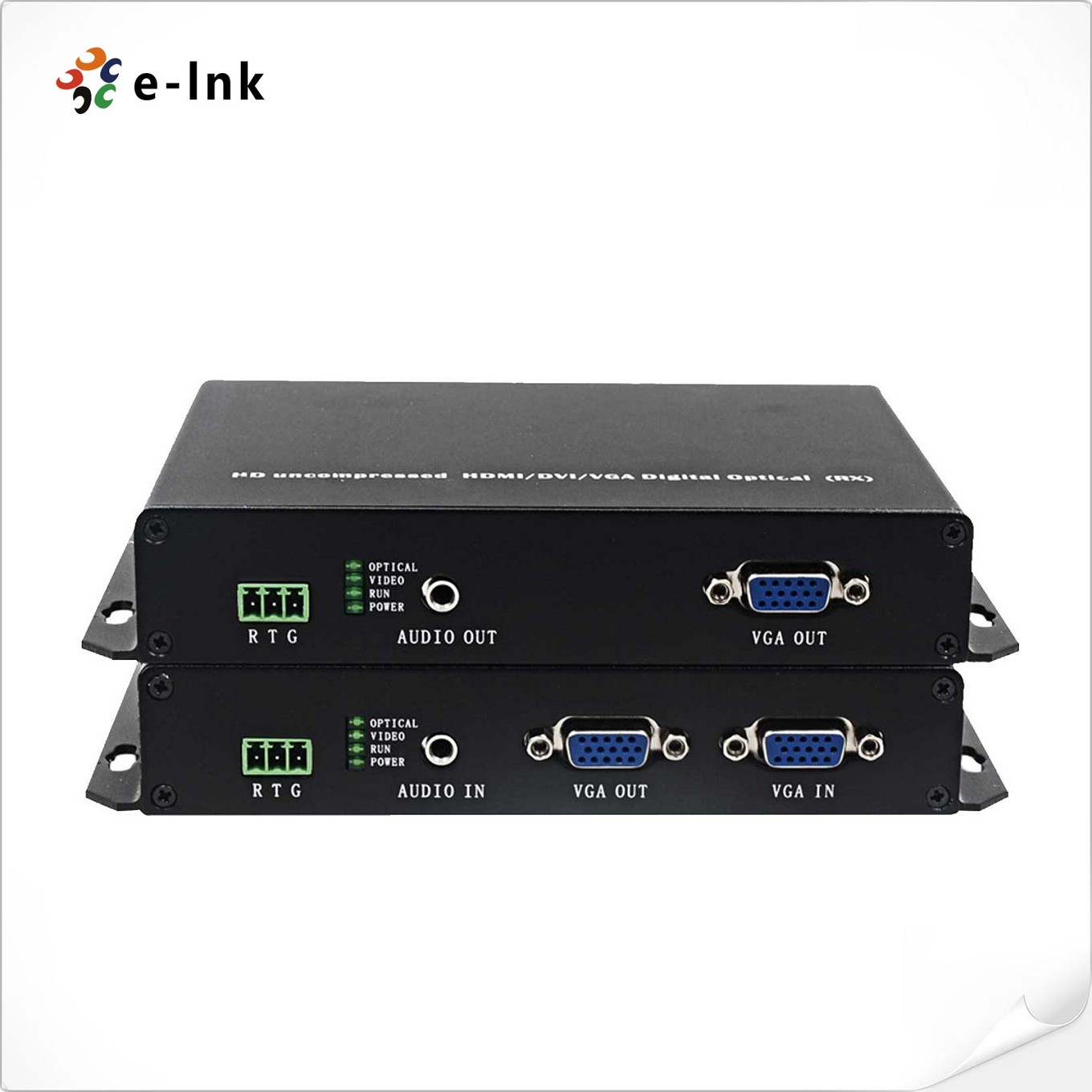

Panel
Transmitter
Receiver
Port name
|
Description
|
VGA IN/OUT
|
VGA signal
input/output
|
AUDIO IN/OUT
|
Stereo audio
signal input/output
|
RS232
|
Serial port(G: Ground, T: transmit, R: receive)
|
DC/5V
|
Power adapter
socket
|
FIBER
|
SFP
module---LC connector
|
LED indicator
|
Description
|
VIDEO
|
Video signal
connection indicator
|
LOCK
|
Video signal
lock indicator
|
RUN
|
System status
indicator
|
POWER
|
System power
indicator
|
-
Download
FileName:E-link LNK-FVGA VGA Fiber Optic Extender Datasheet V1.0.pdf
Size:
396KB
-
Download
FileName:E-link VGA Fiber Optic Extender User Manual V2.0.pdf
Size:
576KB
Ordering Information
Model
|
Description of product
|
LNK-FVGA-T
|
1080P VGA Fiber Optic Extender Transmitter
|
LNK-FVGA-R
|
1080P VGA Fiber Optic Extender Receiver
|
