Parameter

Specifications

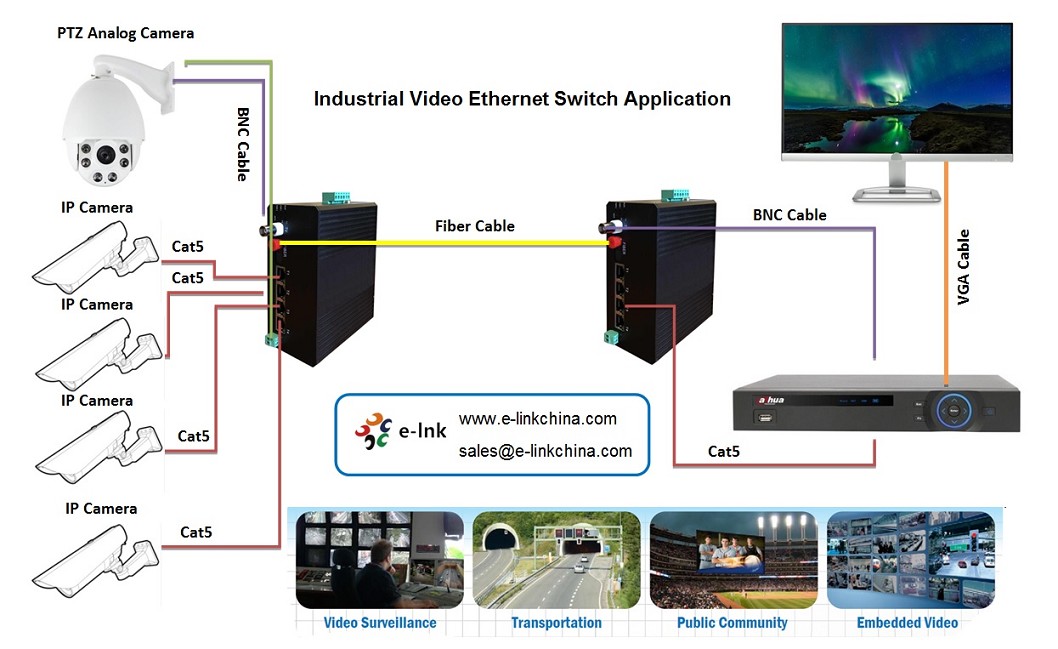

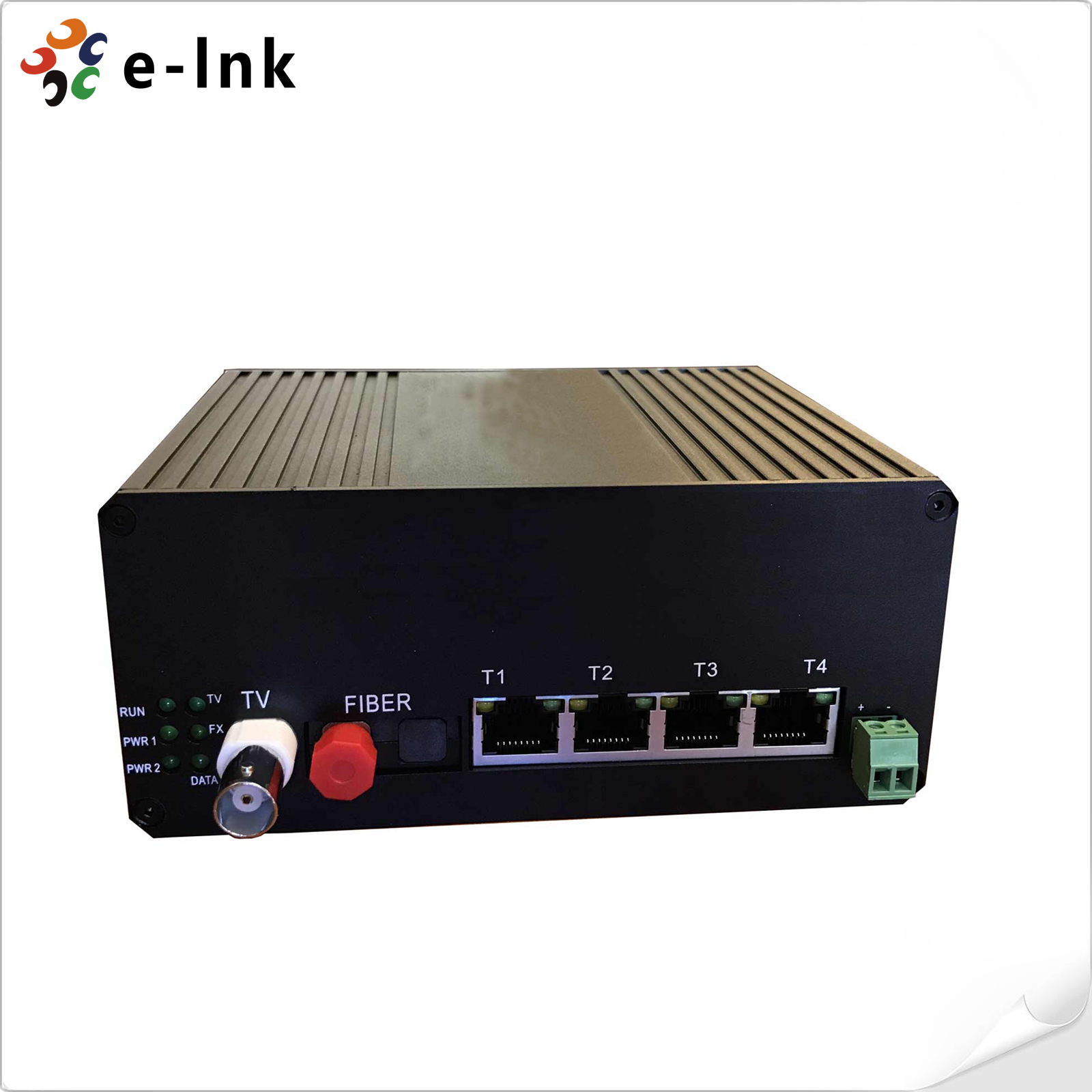

Ports

1 x Gigabit Fiber Port (FC default)

4 x 10/100M Ethernet Port with physical isolation to share 100M speed

1 x Analog Video

1 x RS485 Return Data

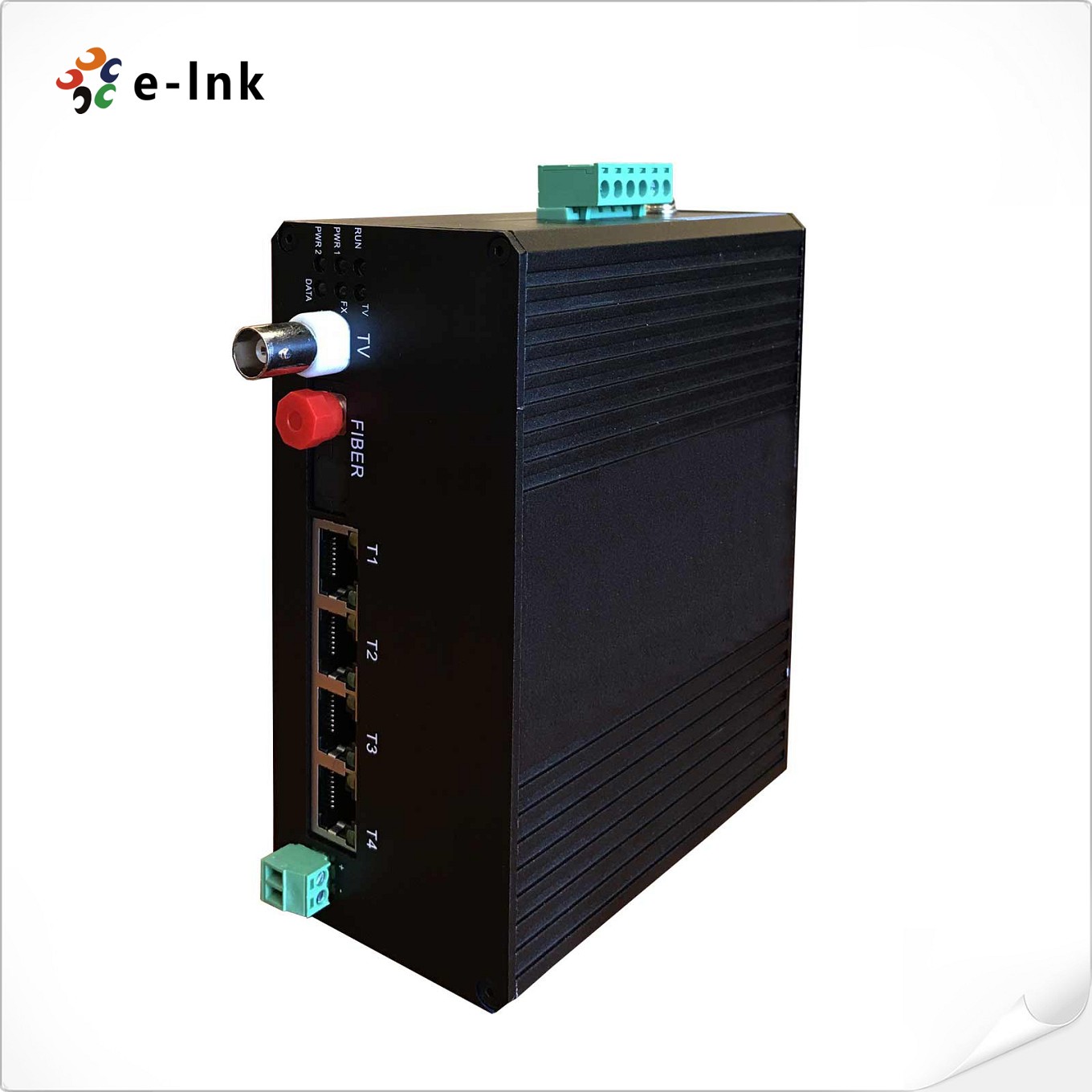

Physical Characteristics

Housing: Aluminum Alloy material with IP40 Protection

Dimension: 138mm(L) X 112mm(W) X 60mm(H)

Weight: 690g

Installation: Din-Rail mounting, Wall mounting

Interfaces

4 RJ45 Ports

Comply with IEEE802.3, IEEE802.3u, 10/100Base-T(X)

10/100Base-T(X) auto negotiation speed

Full/Half duplex mode

Auto MDI-MDI-X connection

Up to 100M Cat-5 transmission distance

1 BNC Port

Video format PAL/NTSC/SECAM

Video Impedance 75Ω

1 Data Port

Data Format RS485

1 Fiber Port

Comply with IEEE802.3u, 1000Base-FX

Rate: 1000Mbps

Wavelength: 1310nm/1550nm

Up to 500m transmission distance with multi-mode

Up to 20km,40km,60km,80km transmission distance with single-mode

SC/ST/FC interfaces optional

Power

Input Voltage: 24VDC(18-36VDC), Redundant dual inputs

Input Current: <0.5A @24VDC

Overload Current Protection: Support

Reverse Polarity Protection: Support

Redundant Protection: Support

Connection: 6-pin terminal blocks

Environmental Limits

Operating Temperature: -40℃-85℃

Storage Temperature: -40℃-85℃

Ambient Relative Humidity: 5%-95% (non-condensing)

Approvals

Safety:

UL 60950-1

EMI:

FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:

 •EN61000-4-2 (ESD) , Level 3

 •EN61000-4-3 (RS) , Level 3

 •EN61000-4-4 (EFT) , Level 3

 •EN61000-4-5 (Surge), Level 3

 •EN61000-4-6 (CS) , Level 3

 •EN61000-4-8, Level 3

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Industry: IEC61000-6-2

Rail: EN50155, EN50121-4

Traffic: NEMA TS-2

Warranty

5-year
