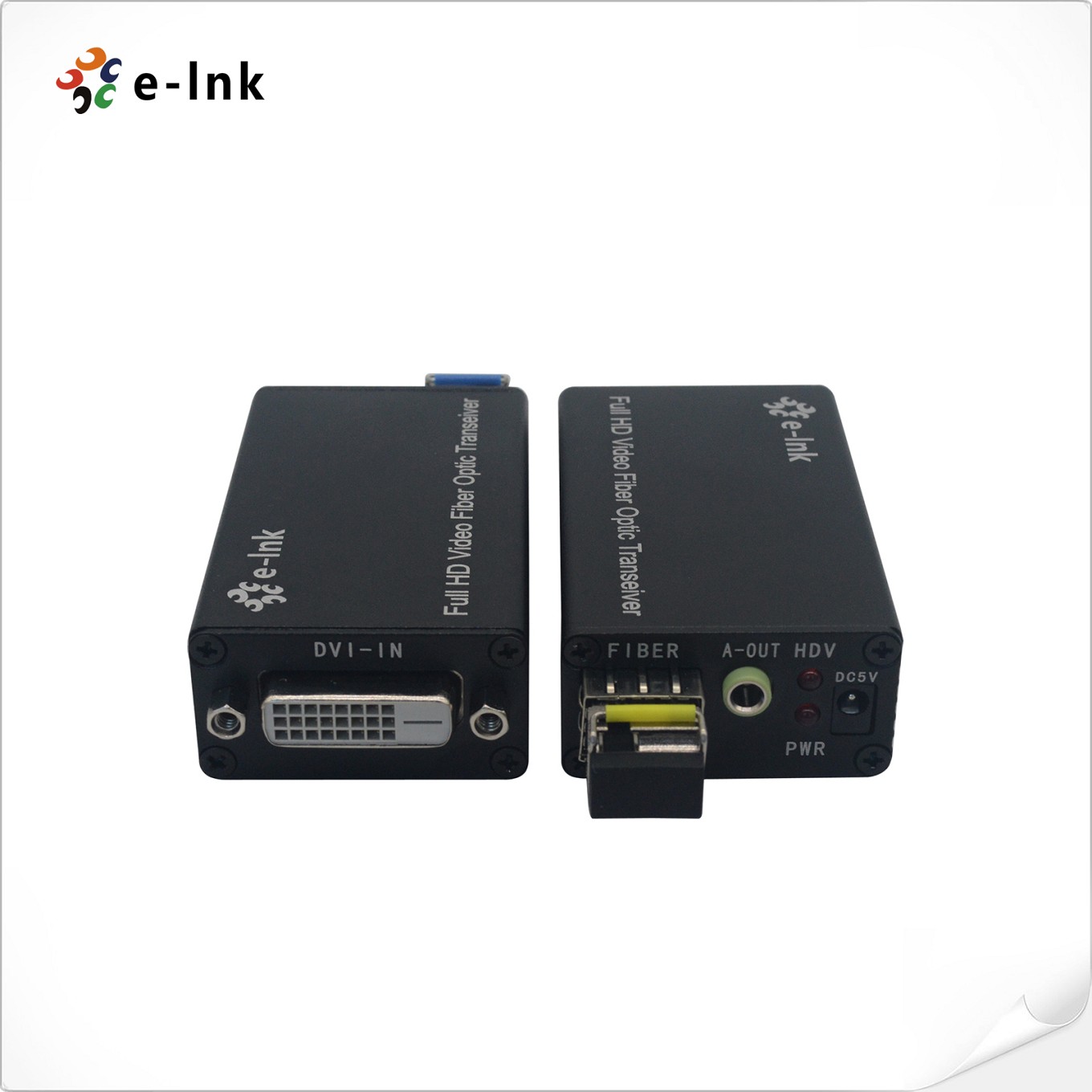

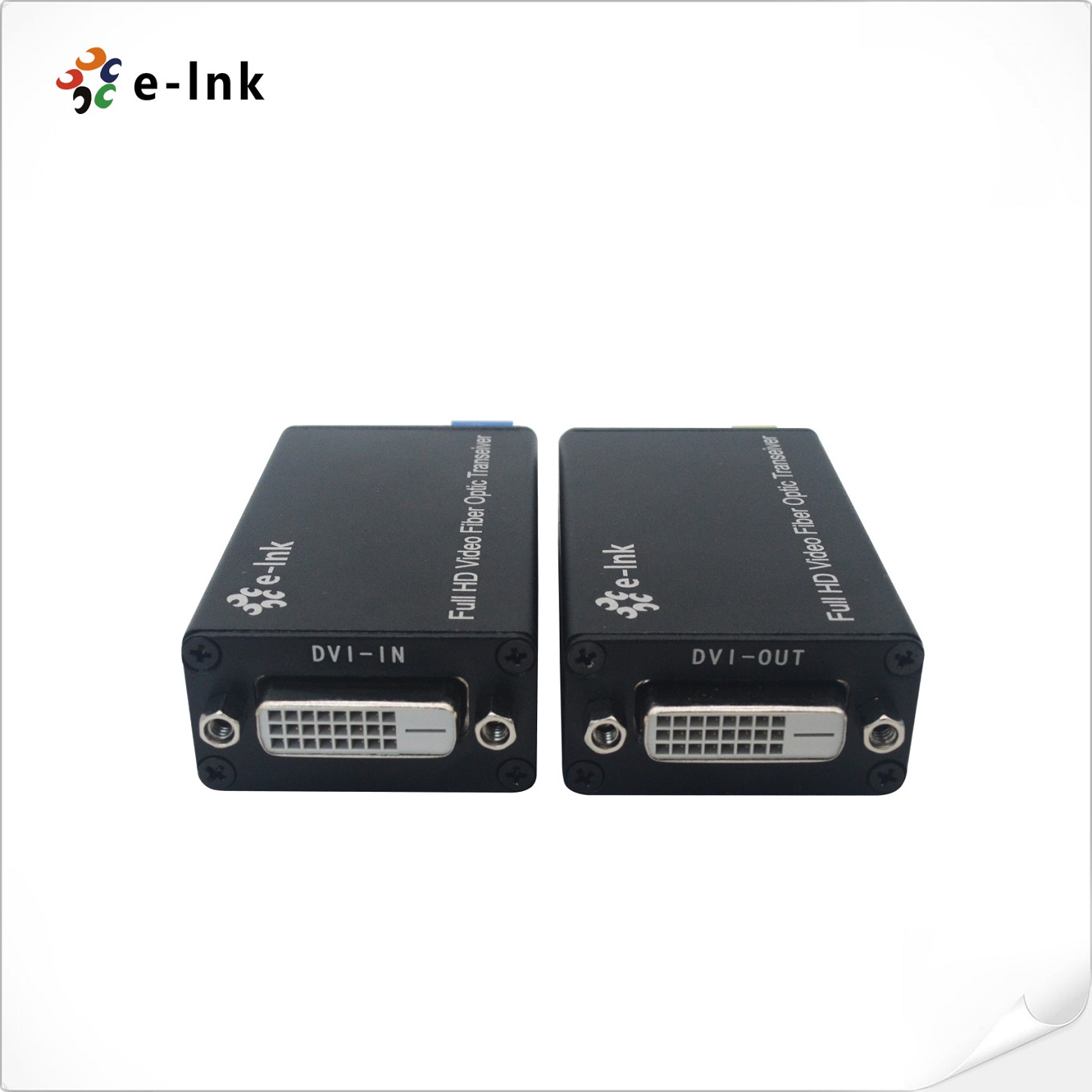

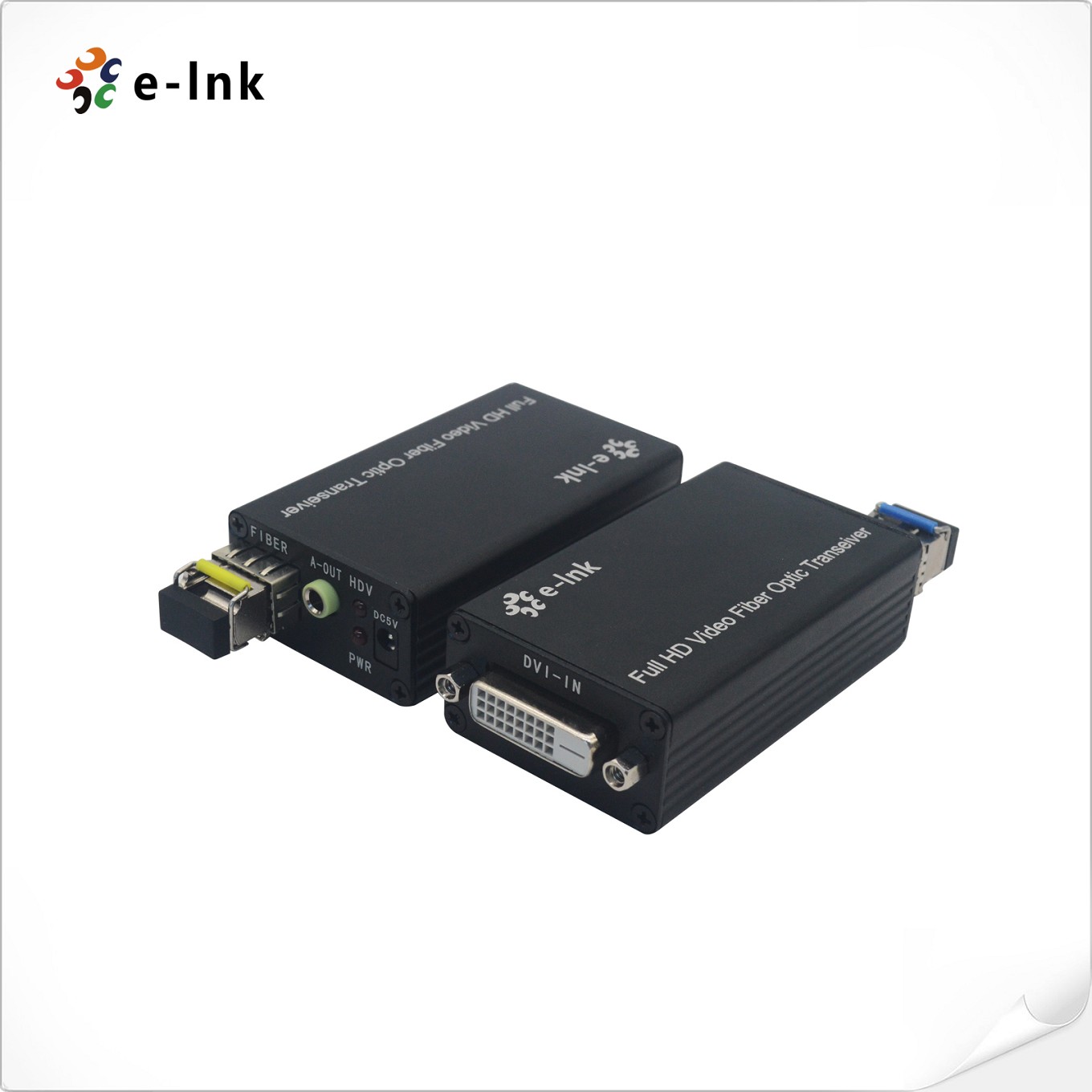

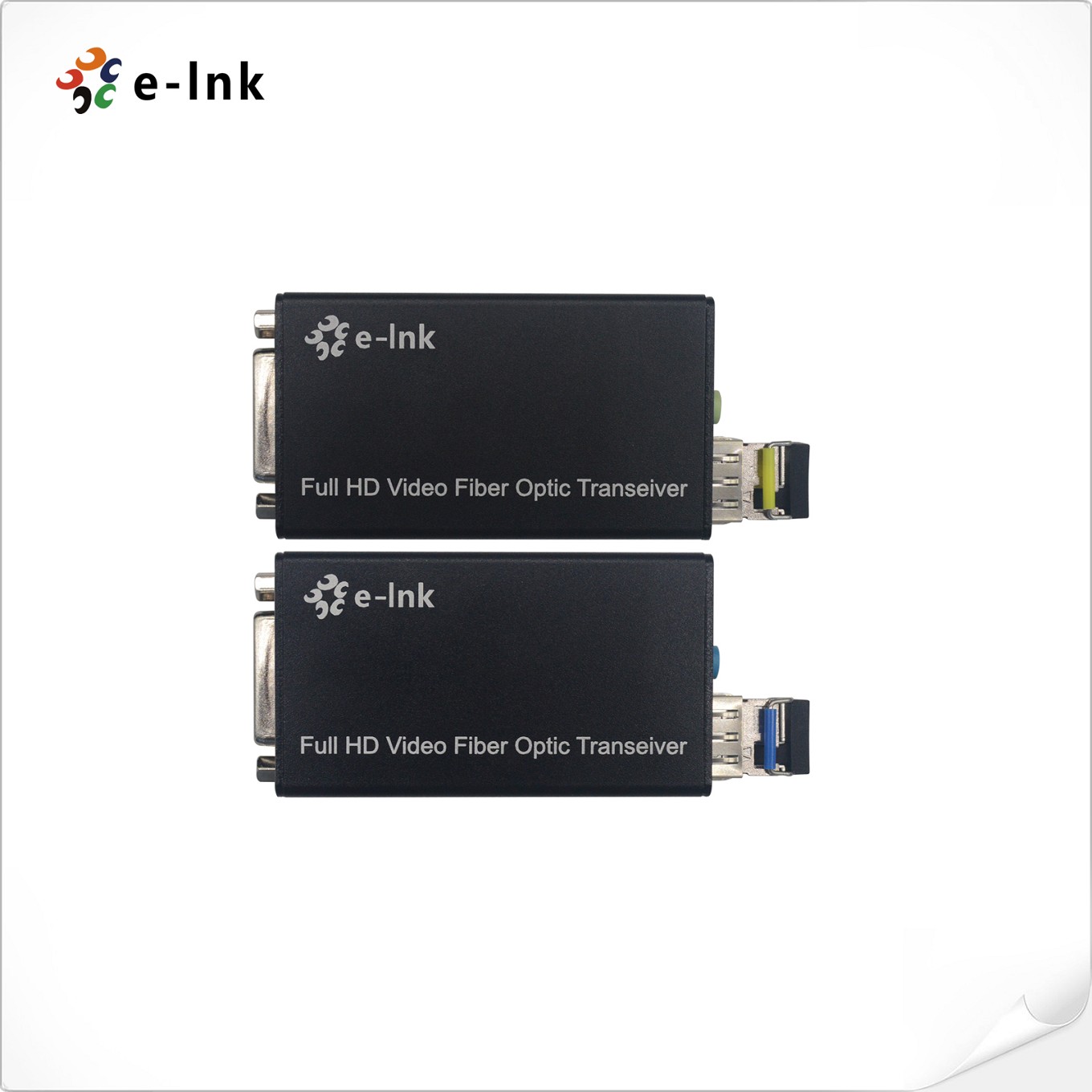

Mini-type DVI Fiber Optic Extender with external stereo audio

Model:LNK-MDF100 Series

► Support DVI video resolution up to 1920*1080@60Hz ;

► Support external stereo audio transmission;

► Compliance with DVI 1.0 and HDCP 1.2 standard

上一张

下一张

Overview

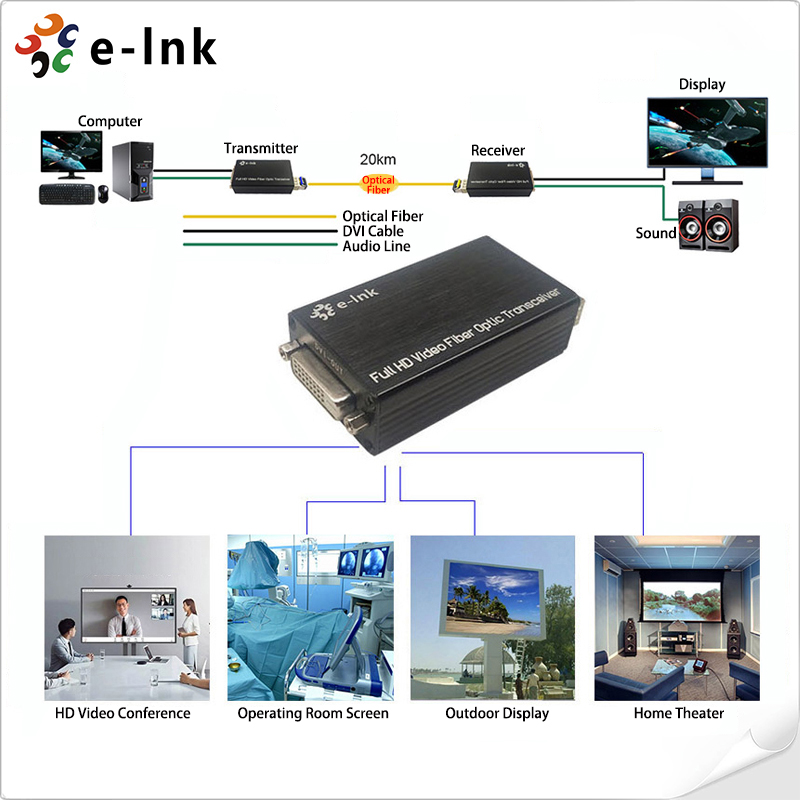

The LNK-MDF100 Series Mini-type DVI Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Technical Indexes

Parameter		Description
Video	Standards	DVI1.0; HDCP1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	1920x1080P 1280 x 720 1024 x 768 1280 x 1024 1440 x 900 1680 x 1050 800 x 600

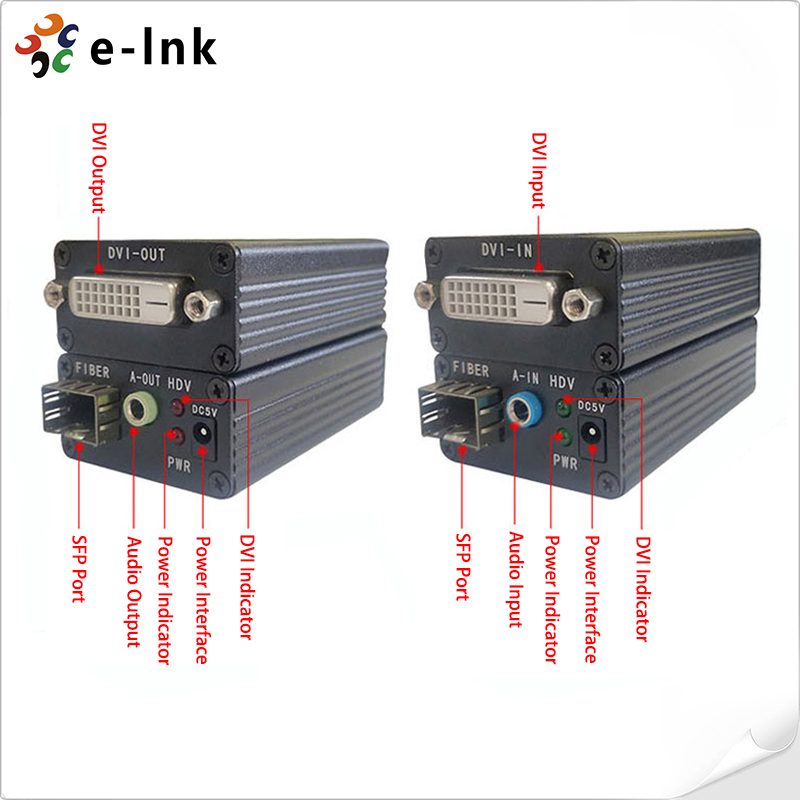

	Connector	DVI-D
	Impedance	100Ω
	DVI Cable Range	<5Meter (Resolution up to 1920*1080@60Hz)

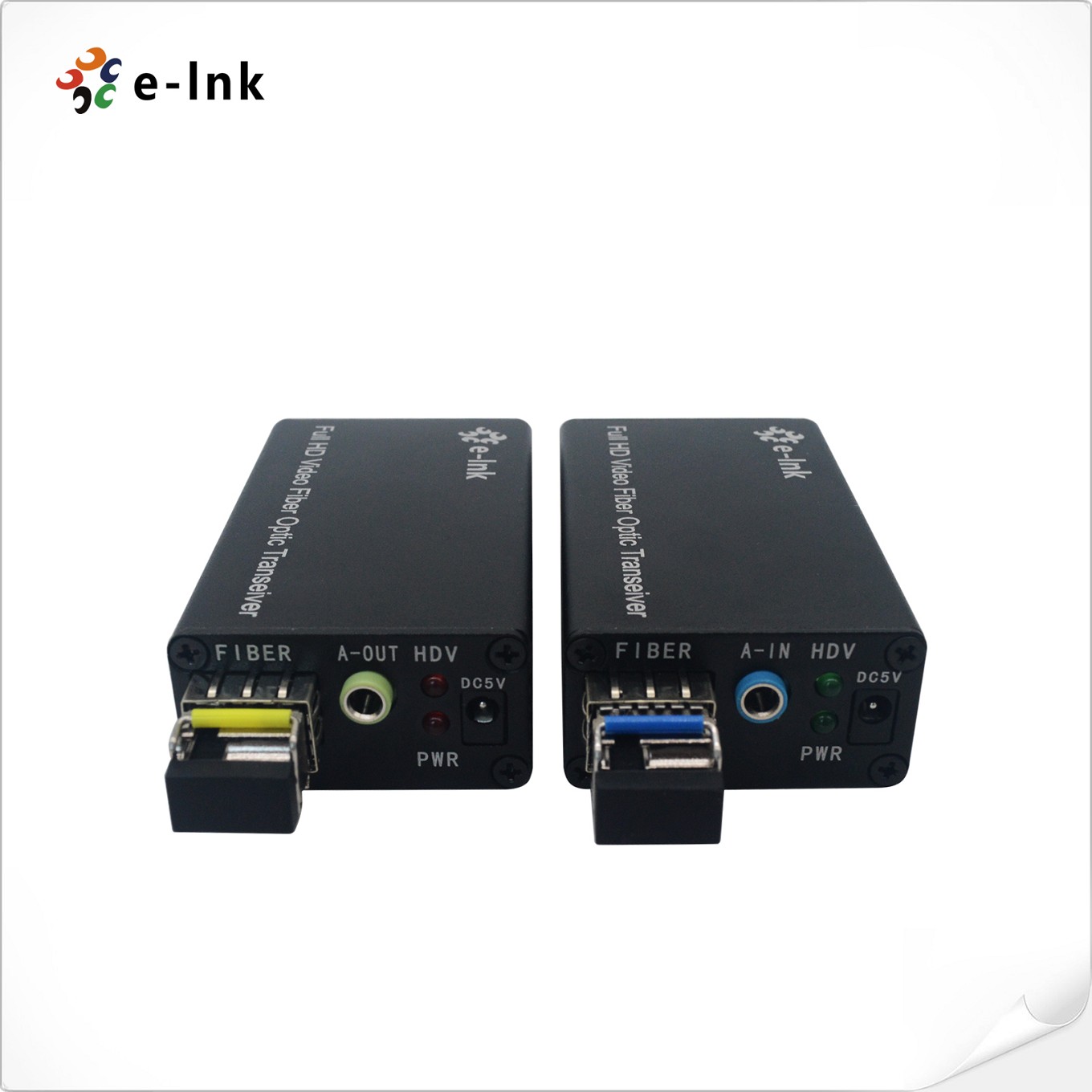

Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	850nm/1310nm
	Interface bandwidth	3 Gbps
	Transmission distance	Transmission@1920*1080@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km
Other	Power supply	The power adapter:DC 5V
	Power dissipation	MAX 6W
	Temperature	Operating: -20℃~ +70℃
	Humidity	Operating: 5% ~ 90%

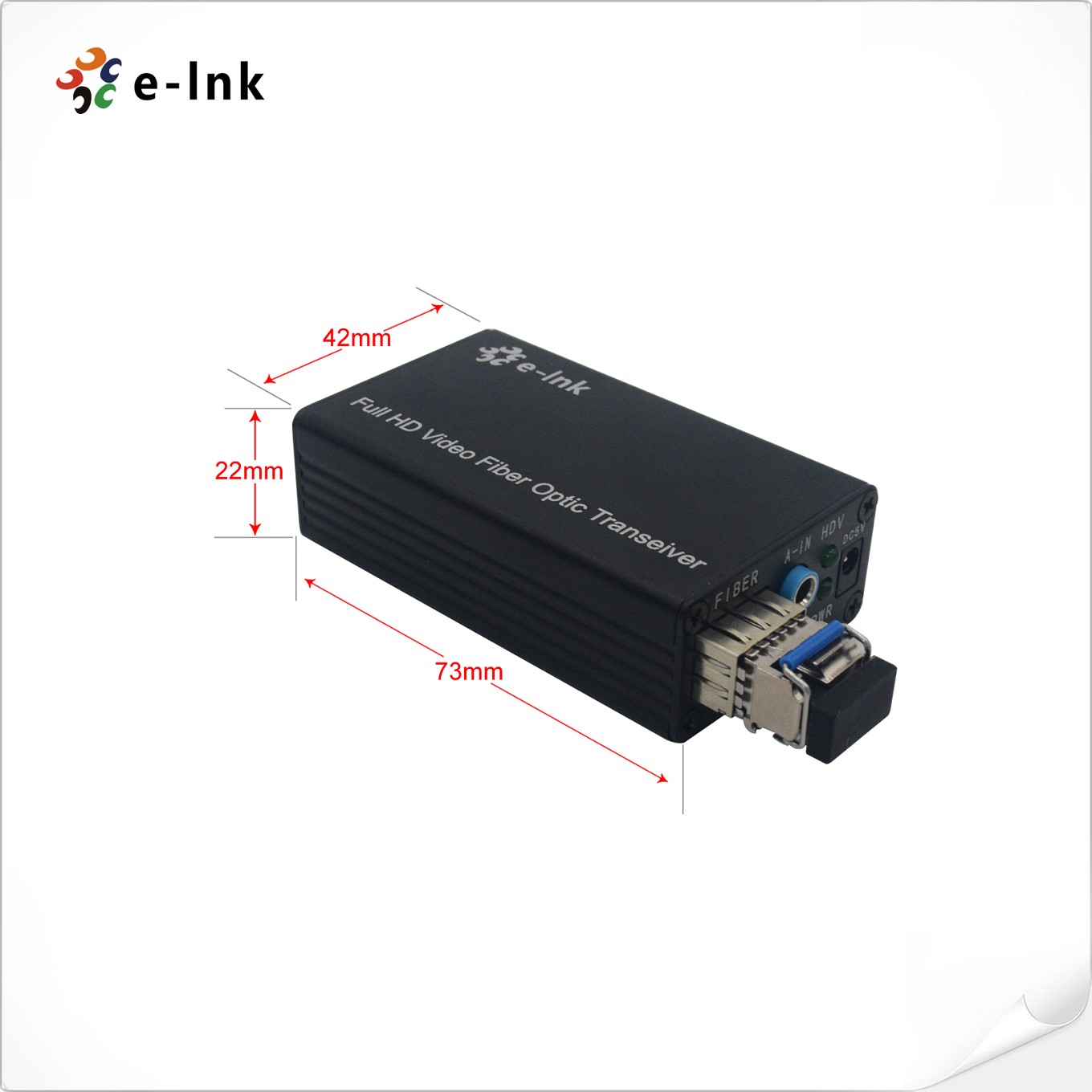

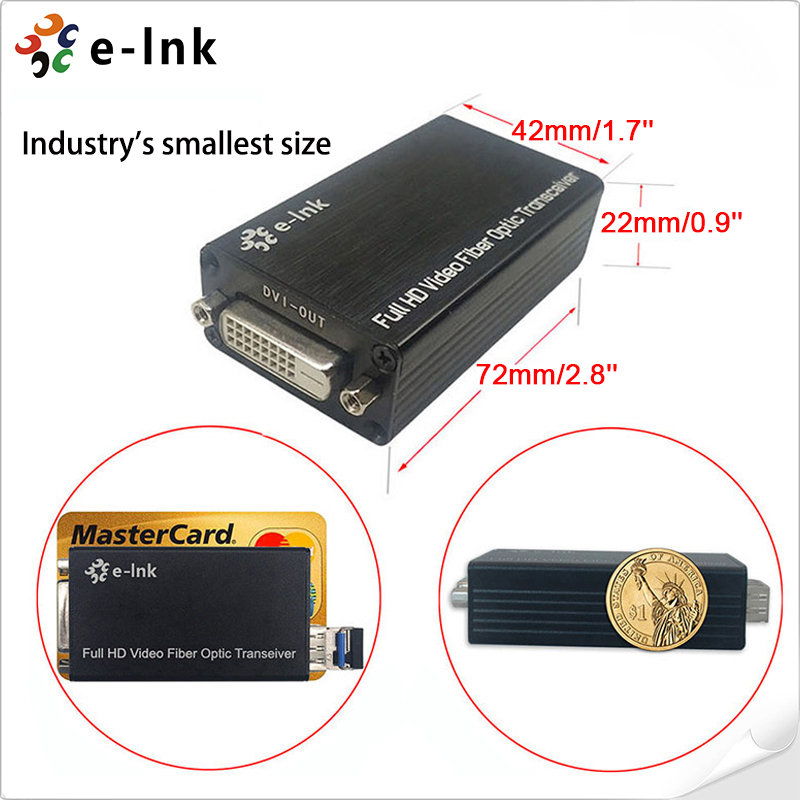

	Dimension (LxWxH)	80 x 40 x 20 (mm)

Item	Description
Item	Description
LNK-MDF100	DVI Fiber Optic Extender with external stereo audio:1920*1080P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), Multimode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs
LNK-MDF100S	DVI Fiber Optic Extender with external stereo audio:1920*1080P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), single mode, single fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
