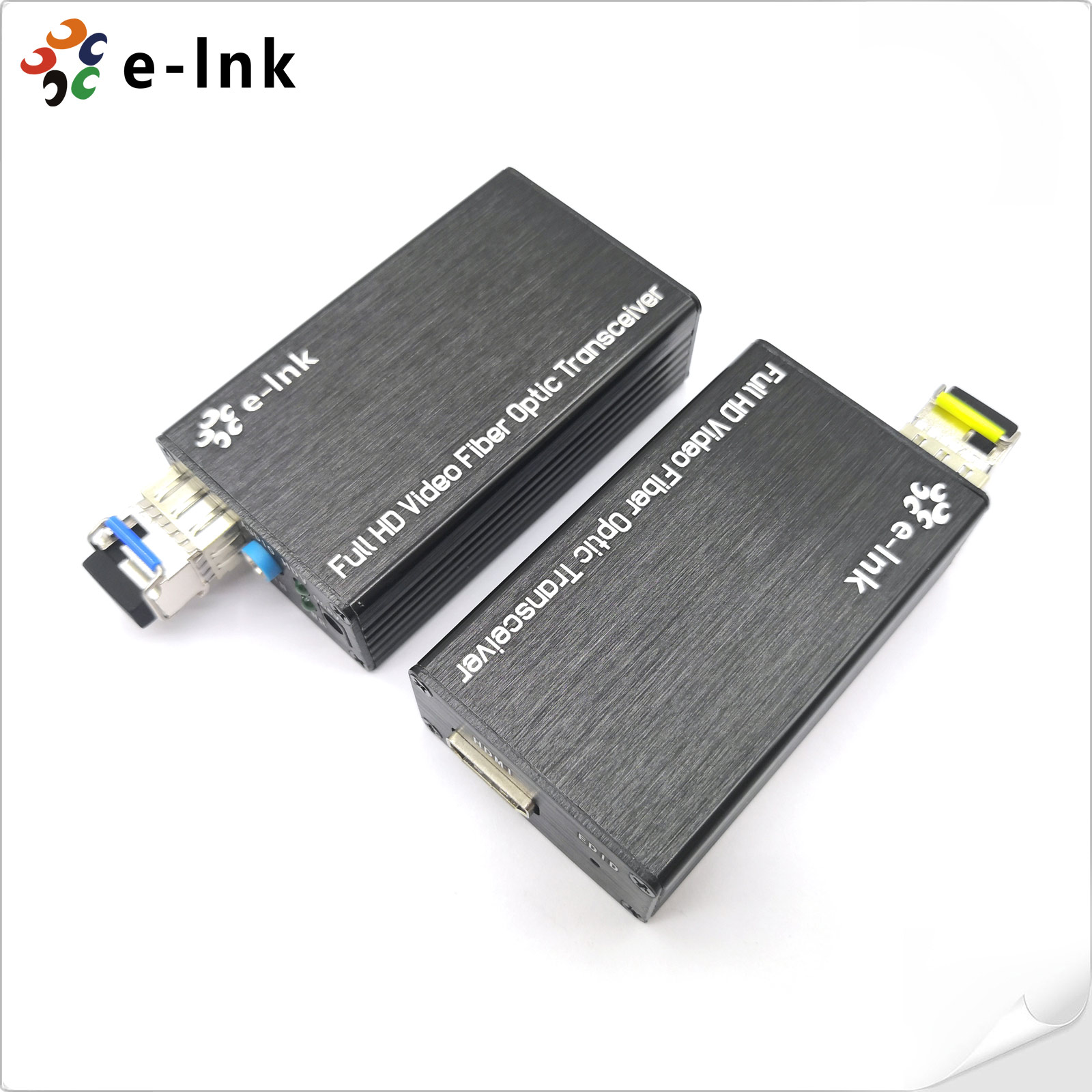

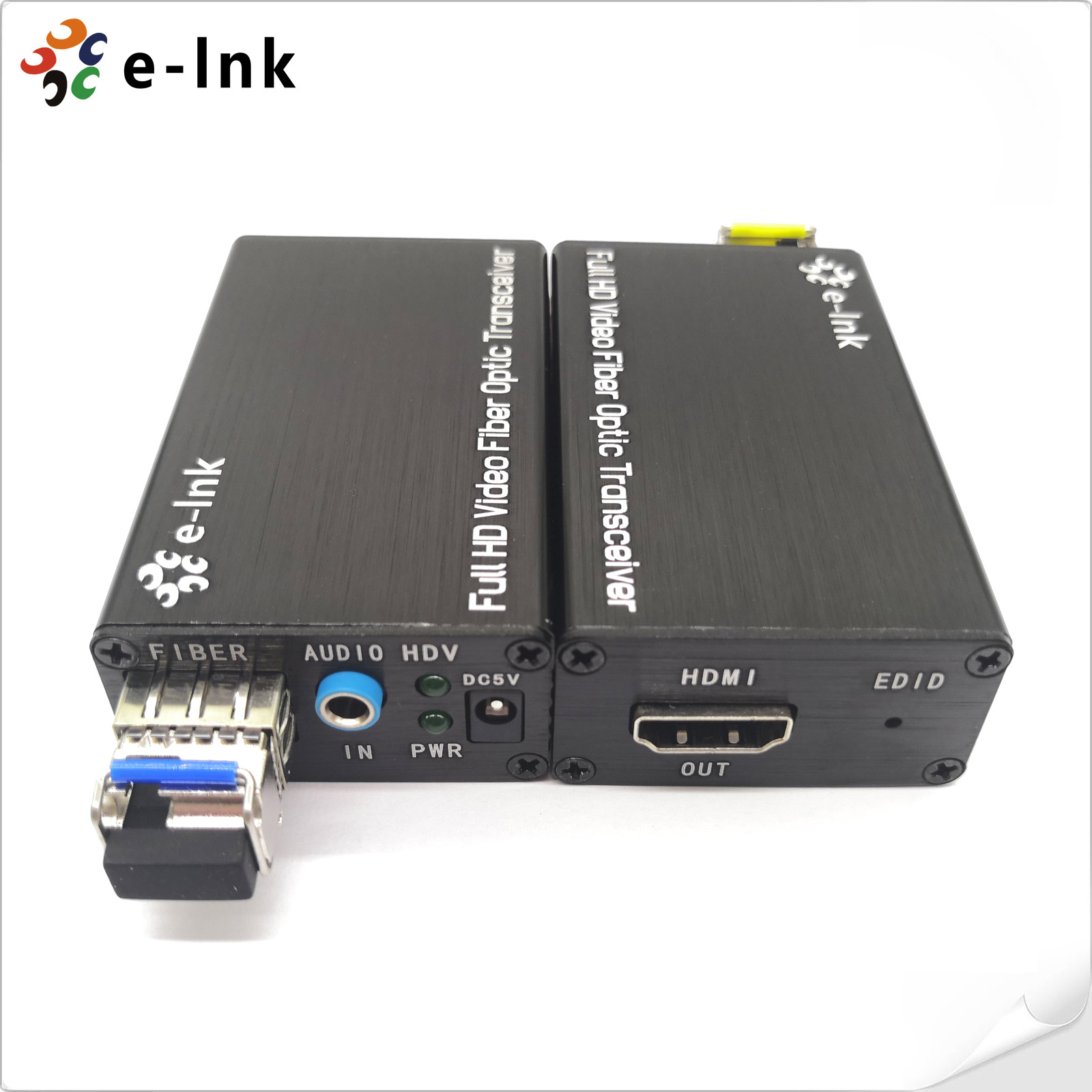

Mini-type HDMI Fiber Optic Extender with external stereo audio

Model:LNK-MHF100 Series

► Support video resolution up to 1920*1080@60Hz ;

► Support external stereo audio transmission;

► Compliance with HDMI 1.3 and HDCP 1.2 standard;

上一张

下一张

Overview

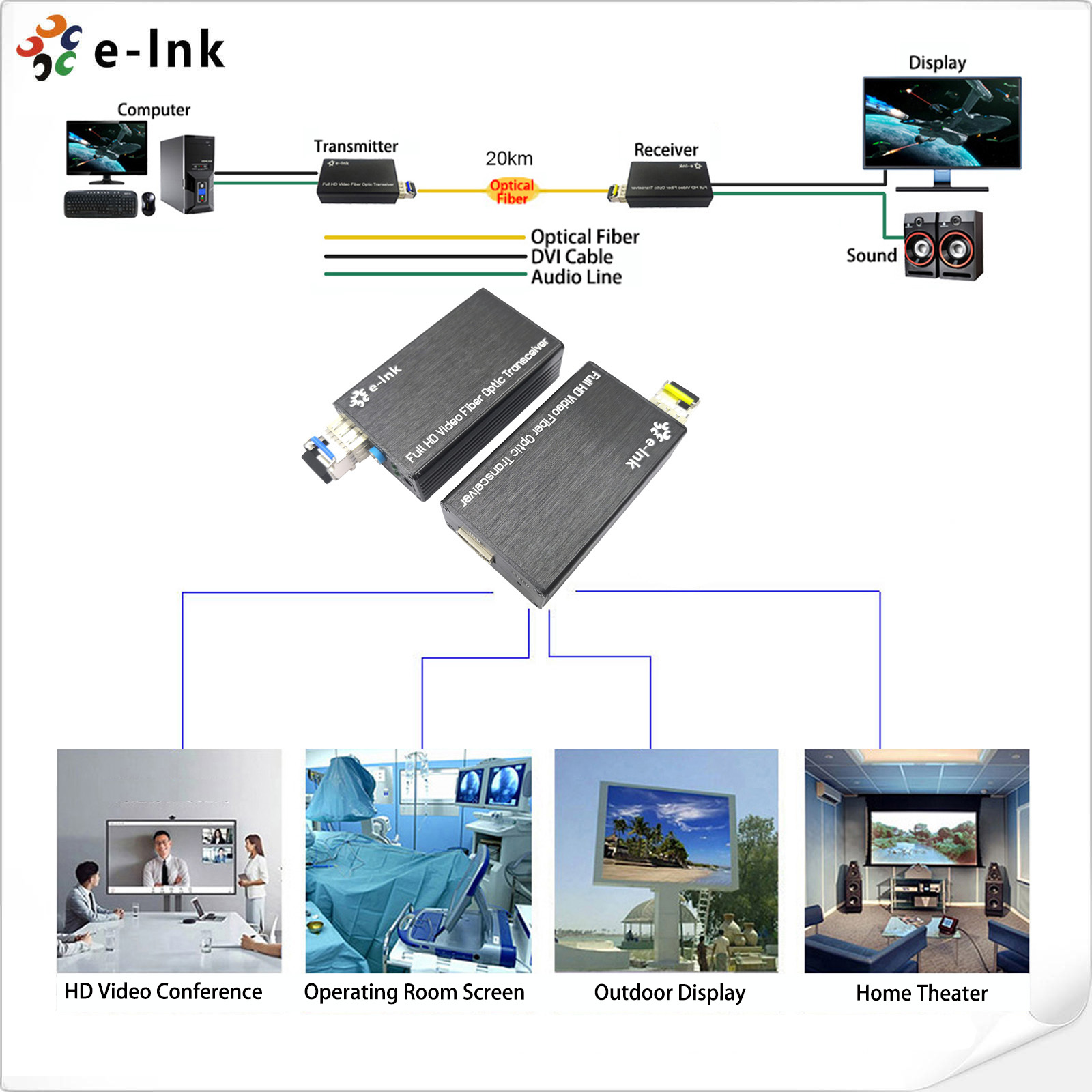

The LNK-MHF100 Series Mini-type HDMI Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Technical Indexes

Parameter		Description
Video	Standards	HDMI1.3; HDCP1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	1920x1080P 1280 x 720 1024 x 768 1280 x 1024 1440 x 900 1680 x 1050 800 x 600

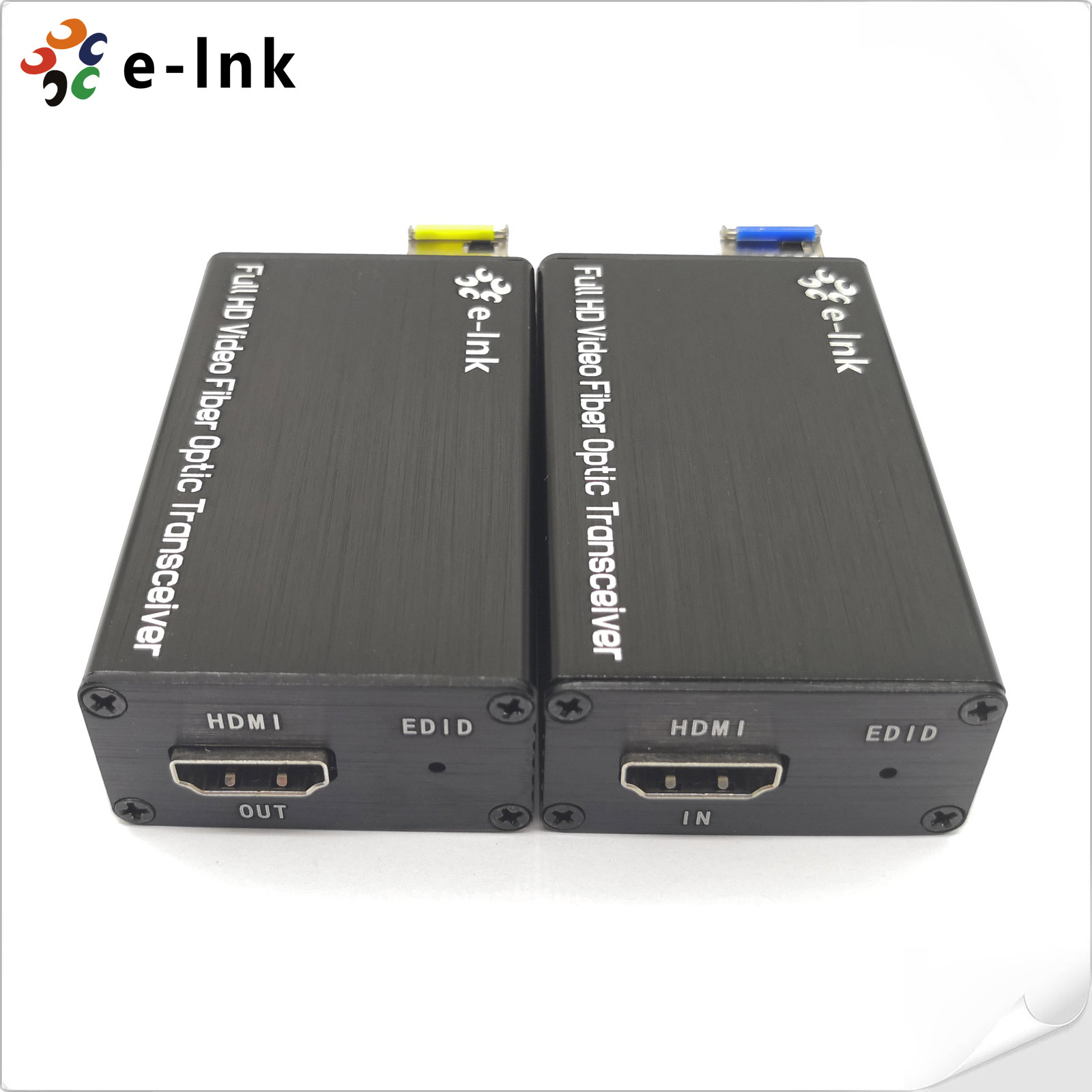

	Connector	Female HDMI type A
	Impedance	100Ω
	HDMI Cable Range	<5Meter (Resolution up to *19201080@60Hz**)

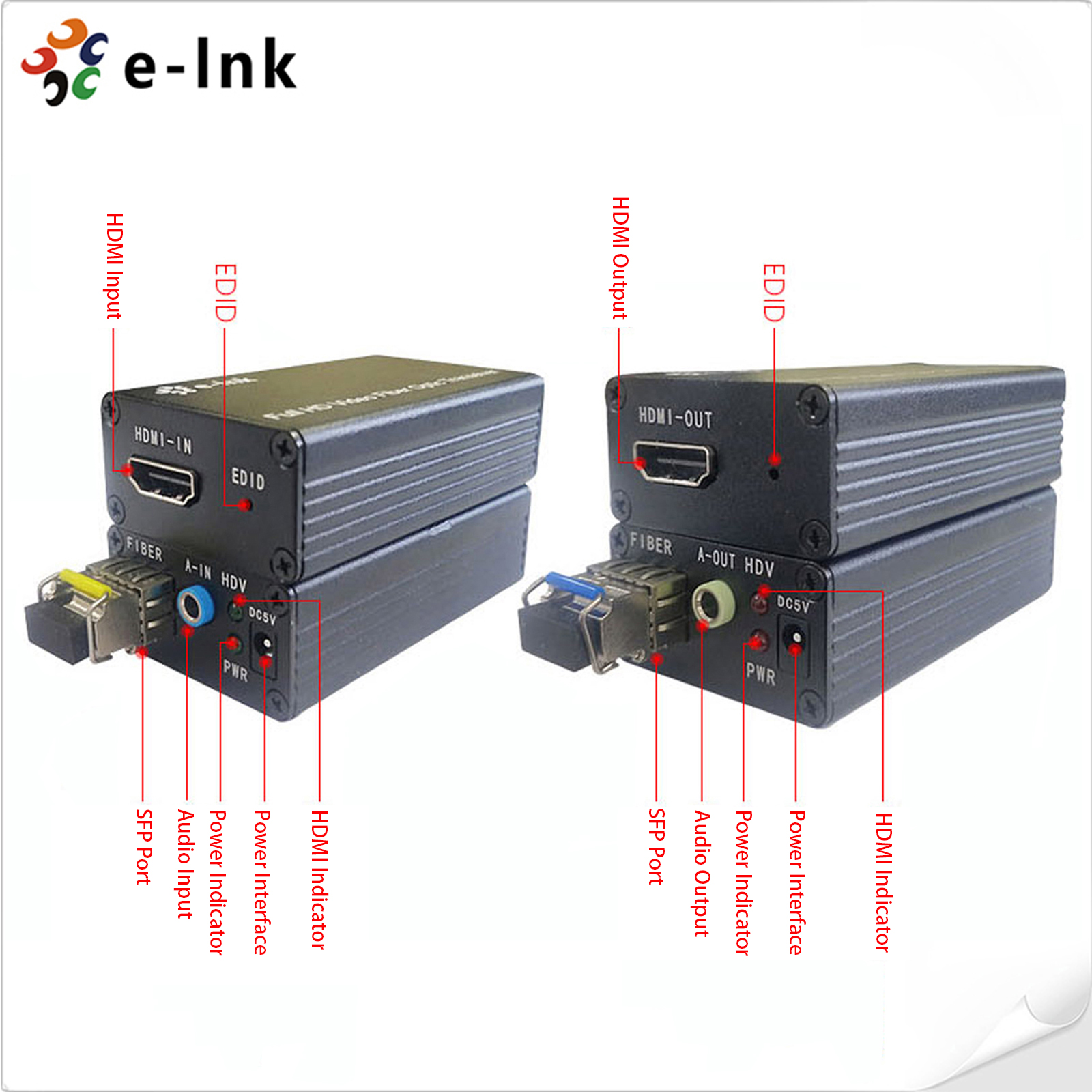

Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	850nm/1310nm
	Interface bandwidth	1.25Gbps
	Transmission distance	Transmission@1920*1080@60Hz Multi-mode fiber: <300M Single-mode fiber: 20km
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 6W
	Temperature	Operating: -20℃~ +70℃
	Humidity	Operating: 5% ~ 90%

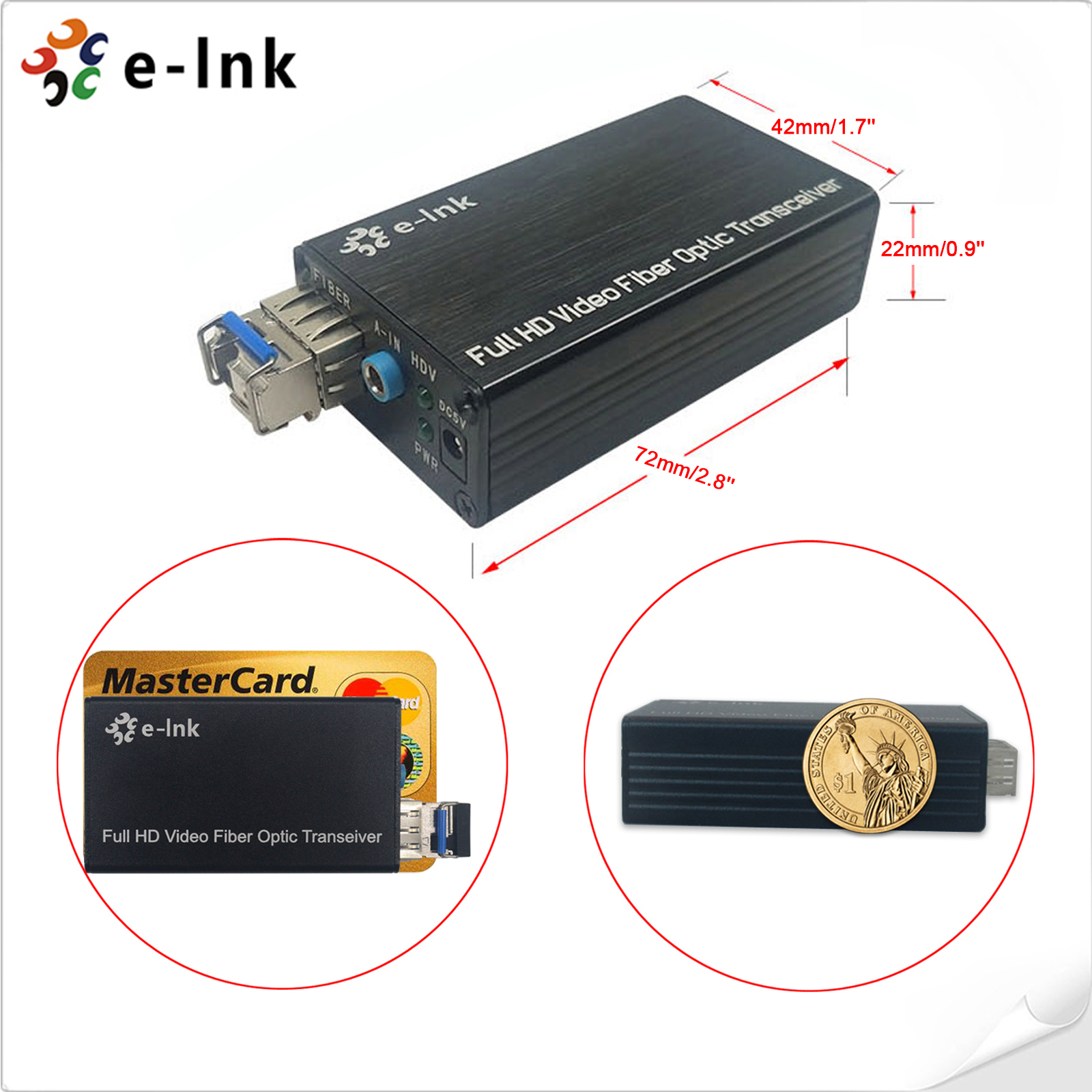

	Dimension (LxWxH)	80 x 40 x 20 (mm)

Item	Description
Item	Description
LNK-MHF100	HDMI Fiber Optic Extender with external stereo audio: 19201080P@60Hz, Compliance with HDMI 1.3 & HDCP1.2 standard, LC(SFP), Multimode fiber*, 300m, including 1 transmitter & 1 receiver, used by pairs
LNK-MHF100S	HDMI Fiber Optic Extender with external stereo audio: 19201080P@60Hz, Compliance with HDMI 1.3 & HDCP1.2 standard, LC(SFP), single mode, single fiber,* 20km, including 1 transmitter & 1 receiver, used by pairs
