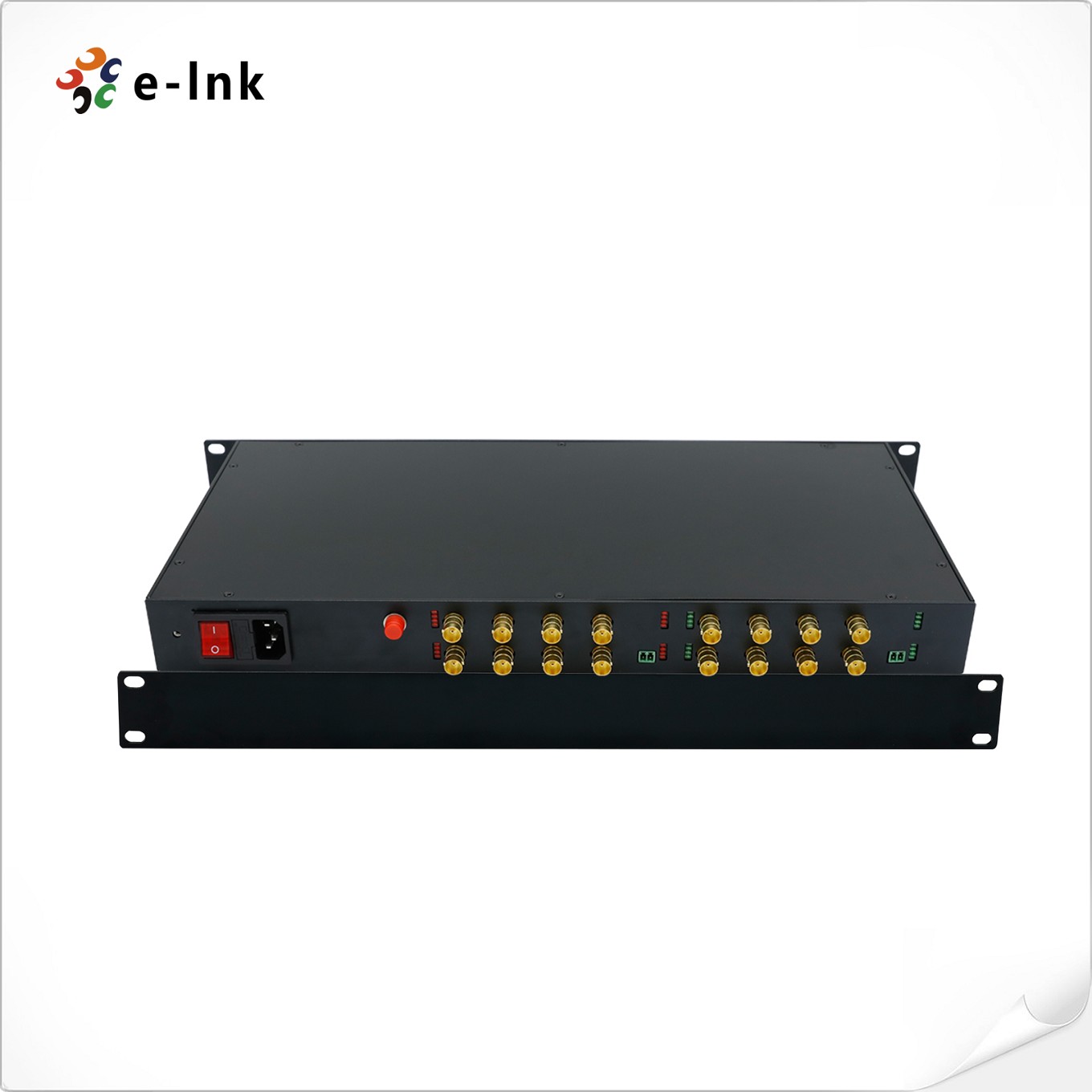

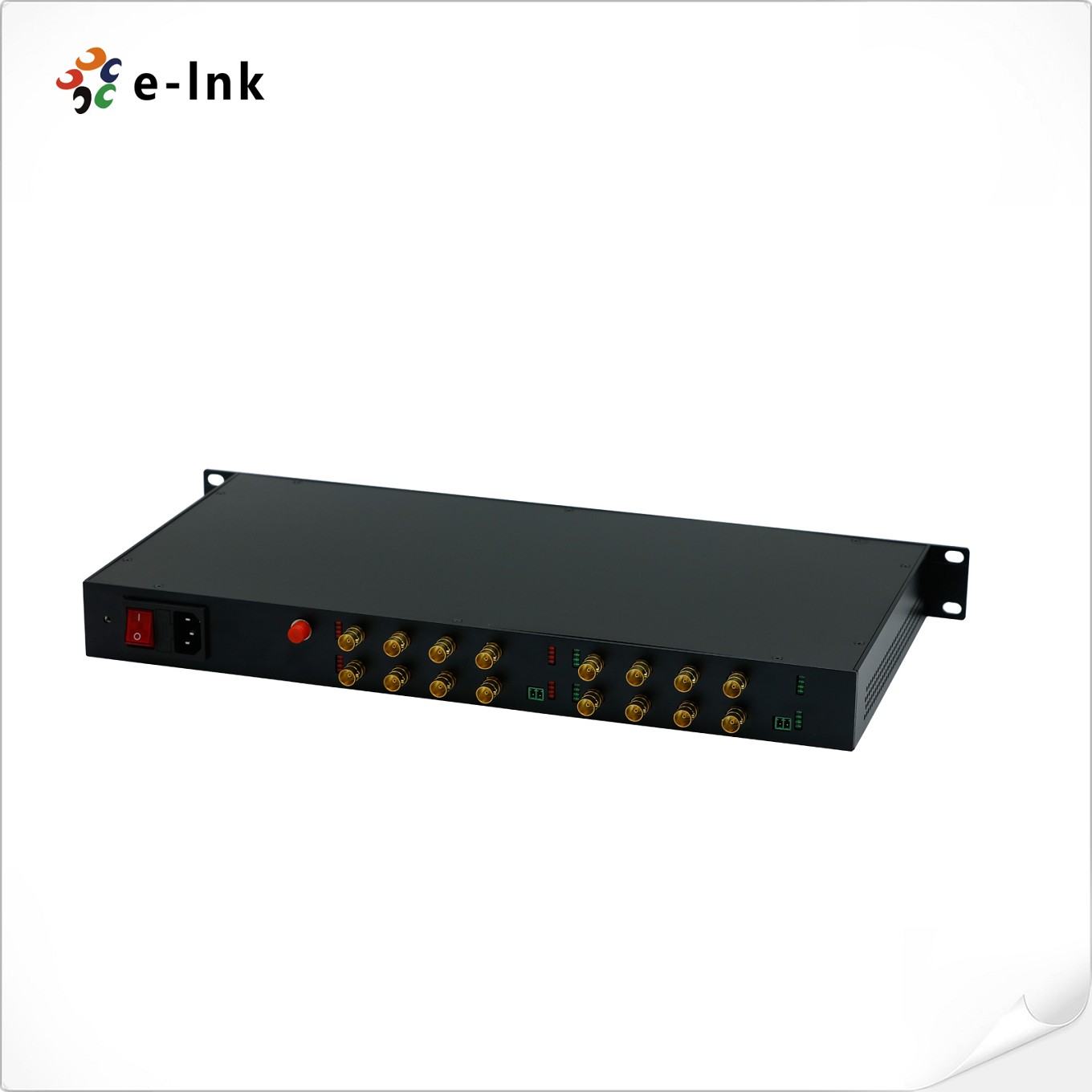

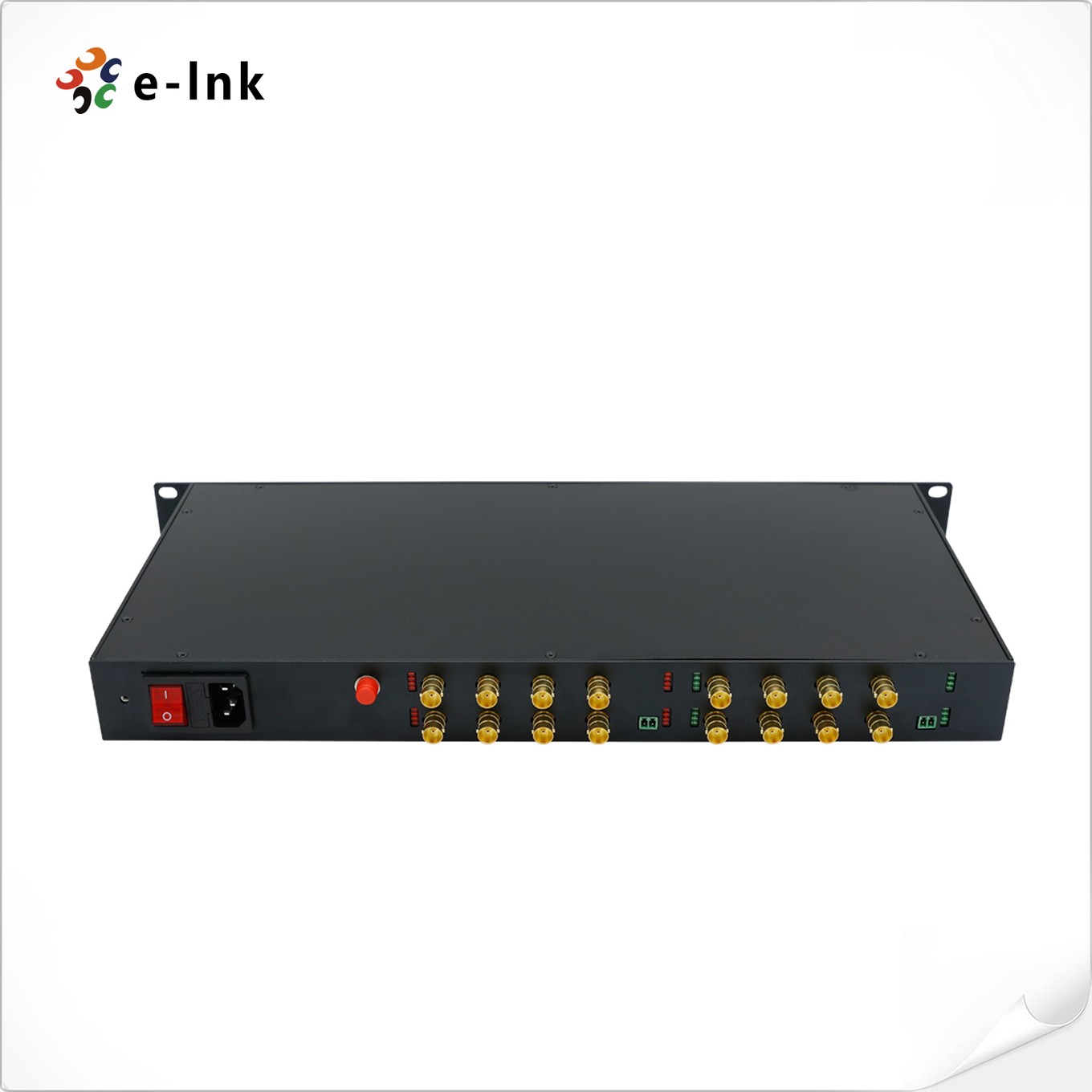

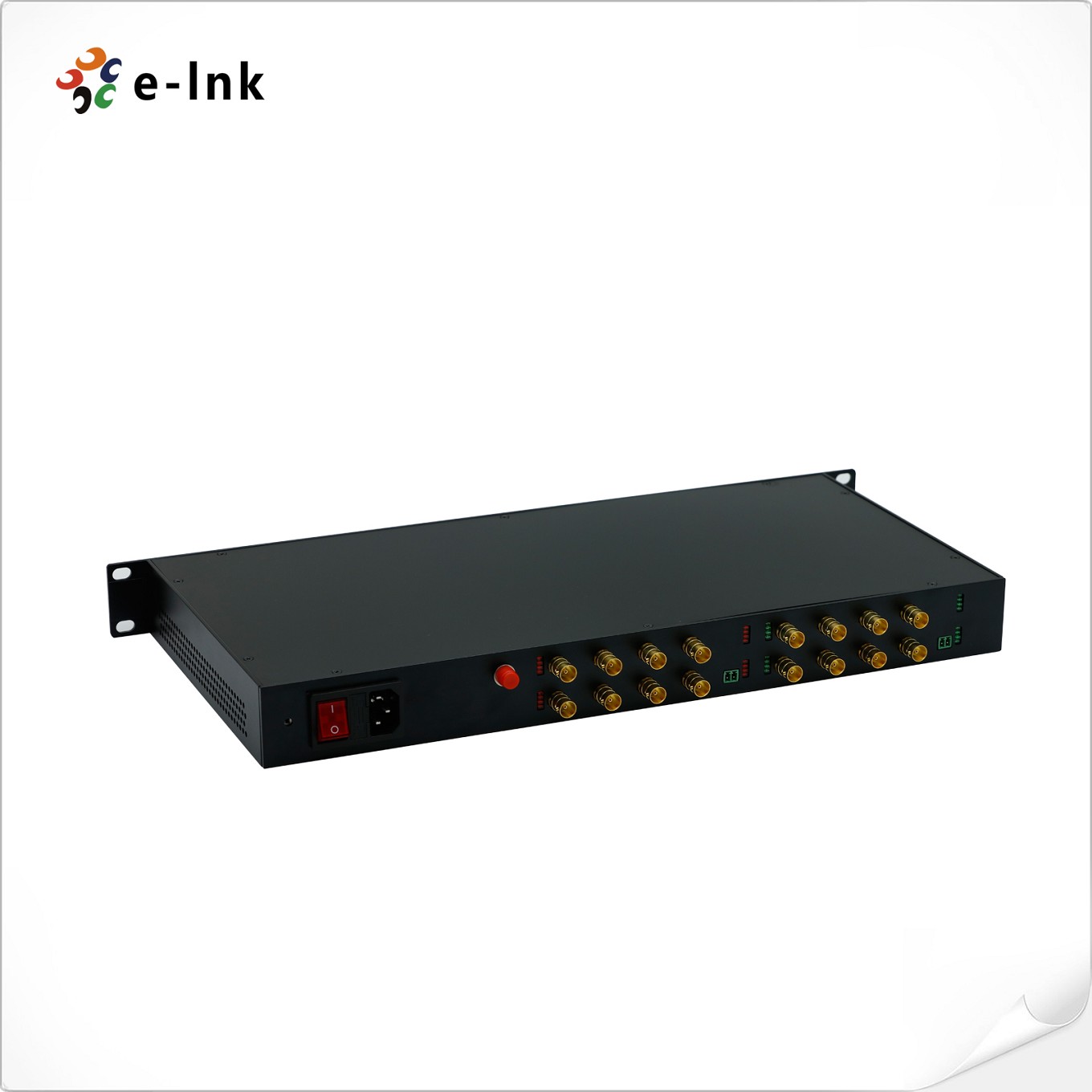

16-Channel HD-SDI Fiber Converter

Model:LNK-SDI-16V Series

►16 channel HD-SDI video transmission over optic fiber
►Automatic reclocking 270Mbit/s - 1.48Gbit/s
►Directly compatible with HD-SDI camera systems and support Reverse RS-485 data protocols

上一张

下一张

Overview

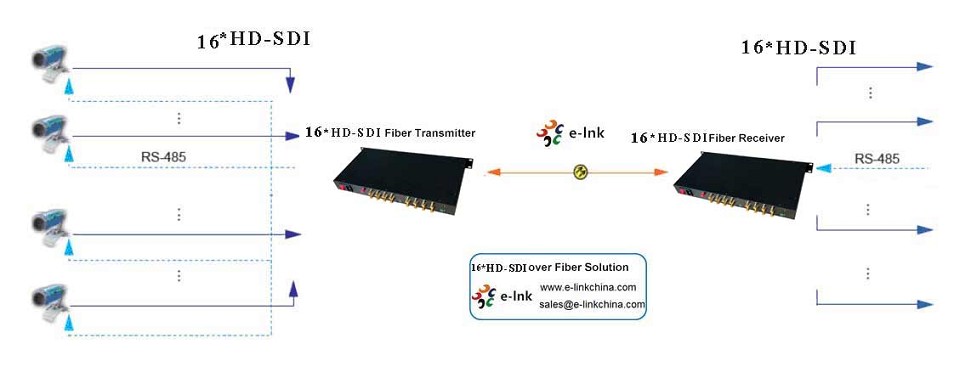

LNK-SDI-16V Series supports 16-channel HD-SDI standard high-definition video signal transmitted via single fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P HD-SDI signal. E-link HD-SDI Fiber Converters can simultaneously transmit 16-Ch HD-SDI Video, 1-Ch Reverse RS-485 data, signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level, supports Reverse RS-485 data communication format.

Technical Indexes

Serial TV, BNC Input	SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom
	270Mbit/s - 1.48Gbit/s
	Input number:16
	Reflection loss: >15DB
	Equilibrium: 0-150m @1.485Gb/s
	Connector: FC/PC（SC/PC optional）
Optics	Channel: 1
	Type: single-mode (multimode optional)
	Wavelength: 1310nm /1550nm
	Transmission distance (550m-120Km
	Reflection loss: > 15dB
	Dithering: < 0.2UI
	Connector:FC/PC (SC/PC optional)
Serial TV, BNC output (EO/OE)	Output number:16
	Signal level: 800mV nominal
	Rise/fall time: 200ps indication
	Overshoot: < 10% amplitude
	Reflection loss: >15dB
	Dithering: < 0.2UI
	Connector: 75Ω BNC
Data	Channel: 1
	Data format:ReverseRS-485 (full/half duplex) and support NRZ, RZI and Manchester
	Data rate: DC to 100 Kb/s
	Mode: Full/half duplex
	Connector: wire connecting terminal
Power and environmental indication	Operating temperature: -40℃～＋85℃
	Pressure:1A@12VDC
	Power: 12 W
	EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
	Average time trouble-free: >100000 hours
SDI video format supports	625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;

LNK-SDI-16V	16-Ch SDI Video, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-SDI-16V1R	16-Ch SDI Video + 1-Ch RS485 Reverse Data, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs
