Overview

PoE Injector is also called as Power over Ethernet mid-span devices. 16-Port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 16x RJ45 PoE ports for these 16-Port PoE injectors. This mid-span have 16x2 Standard RJ45 network ports, one group of network ports will use for upper Ethernet switches or other network devices, another group of network ports will support POE power supply output with network data output.

These 16-Port PoE injectors provide a simple, economical, high-performance and intelligent way for Ethernet PoE power supply and data communication. It’s ideal choice for those who need the superior quality project because of its simple use, easy to install, superior performance and cost-effective. They can supply power to HD webcam through Cat5 Ethernet cable, in order that make it more flexible for the places difficult to connect to power supply, and provide with more efficient solutions.

Features

►    Supply power to HD network surveillance cameras with Cat5e (PoE)

►    32x 10/100M RJ45 ports; 1x AC input port;16x PoE Ports

►    AC input:90V~264V

►    Compatible withIEEE 802.3af standard(15.4W) , IEEE 802.3at standard(25.4W)

►    Coming with the Ethernet network port and PoE output port, and the power input port with lighting-proof function (meet the secondary lightning protection)

►    Can supply power with the spare line pair(4/5 (+), 7/8 (-)method or the data line pair1/2(+), 3/6(-)method

►    No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall

►    Automatic Detection and Protection of Non–standard Ethernet Terminals

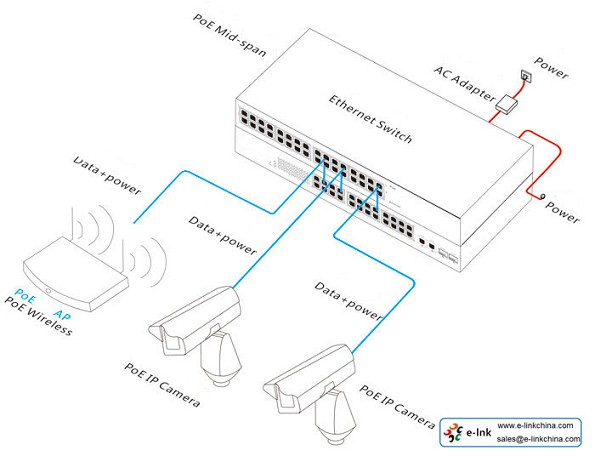

Application

Technical Indexes

• Download FileName：E-link LNK-POE216 LNK-POE316 Series 16-Port PoE Injector Datasheet V1.0.pdf Size： 462KB

Ordering Information
