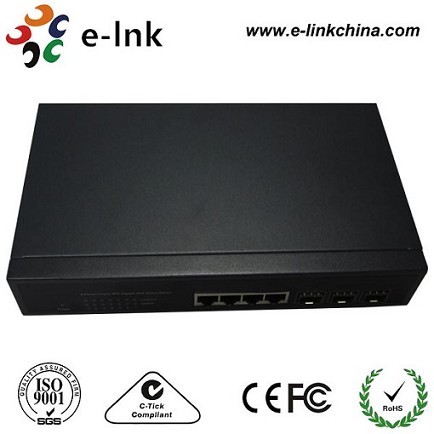

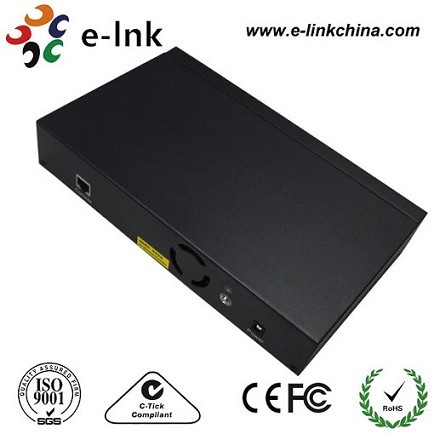

10/100/1000M Media Converter 4-TX + 3-FX(SFP) Port Fiber Ethernet Switch

Model:LNK-3400

►Complies with IEEE802.3，IEEE802.3u，IEEE802.3ab standards;

►4 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX and 3 SFP independent expansion slots supporting Mini GBIC module;

上一张

下一张

Overview

The LNK-3400 Series Gigabit Web Smart Switch fully complies with IEEE 802.3/802.3u/802.3ab Ethernet standards. It provides 4 10/100/1000Mbps Auto-Negotiation RJ45 ports and 3 SFP independence expansion slots supporting Mini GBIC. It also provides Web-based management functions including the system, port network, VLAN, Trunk, Priority and security etc. Its standard 11-inch rack-mountable steel case and intelligent management makes it is suitable for small, middle and large networks.

Technical Indexes

Parameter	Specifications
Standards	IEEE802.3, 802.3u, 802.3ab, 802.3x
Basic Function	Wire-speed Performance MAC Address Auto-Learning and Auto-aging IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth	14Gbps
MAC Address Table	8k
Forwarding Rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-T: 1488000pps/port
Transmission Method	Store-and-Forward
Ports	4 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) and 3 SFP independence expansion slots supporting MiniGBIC modules
Network Media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators	Power, Link/Act, Speed
Dimensions (WDH)	250mm × 150mm × 44mm
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Input Consumption	Power: 100-240VAC 50-60Hz Max:13W
Detailed Management Function
General Specs	5%~90%
Switching fabric	store and forward
Flash	1M
Max No. of 1000Base-T/FX	4+3
Jumbo Frame	9600Bytes
IGMP Snooping	support
IGMP v1/v2/v3	V1,V2
Availability
802.1w RSTP	support
802.3ad Link (LACP)	support
Static Aggregation	support
VLAN	support
Port-based VLAN	support
802.1Q VLAN	support, VID(1-4094)
Max no. of VLAN	support 7 groups，VID(1-4094)
QoS
802.1p	support
Port based Rate Limiting	support
Broadcast Storm Control	support
Multicast Storm Control	support
Unknowable Unicast Control	support
WRR	support
COS	support
DiffServ (DSCP)	support
Security
802.1x	support
IP Filtering	support
Management
SNMP	V1,V2
Web Management	support
Console Port	support
DHCP Relay	support
TFTP	support
Port Mirroring	Support
Package Contents
1 piece of Ethernet Switch
1 piece of external power adapter
1 piece of console cable
4 pieces of rubber padding
User’s manual

Item	Description

LNK-3400SFP	4-Port 10/100/1000T + 3-Port 1000X SFP Managed Switch
