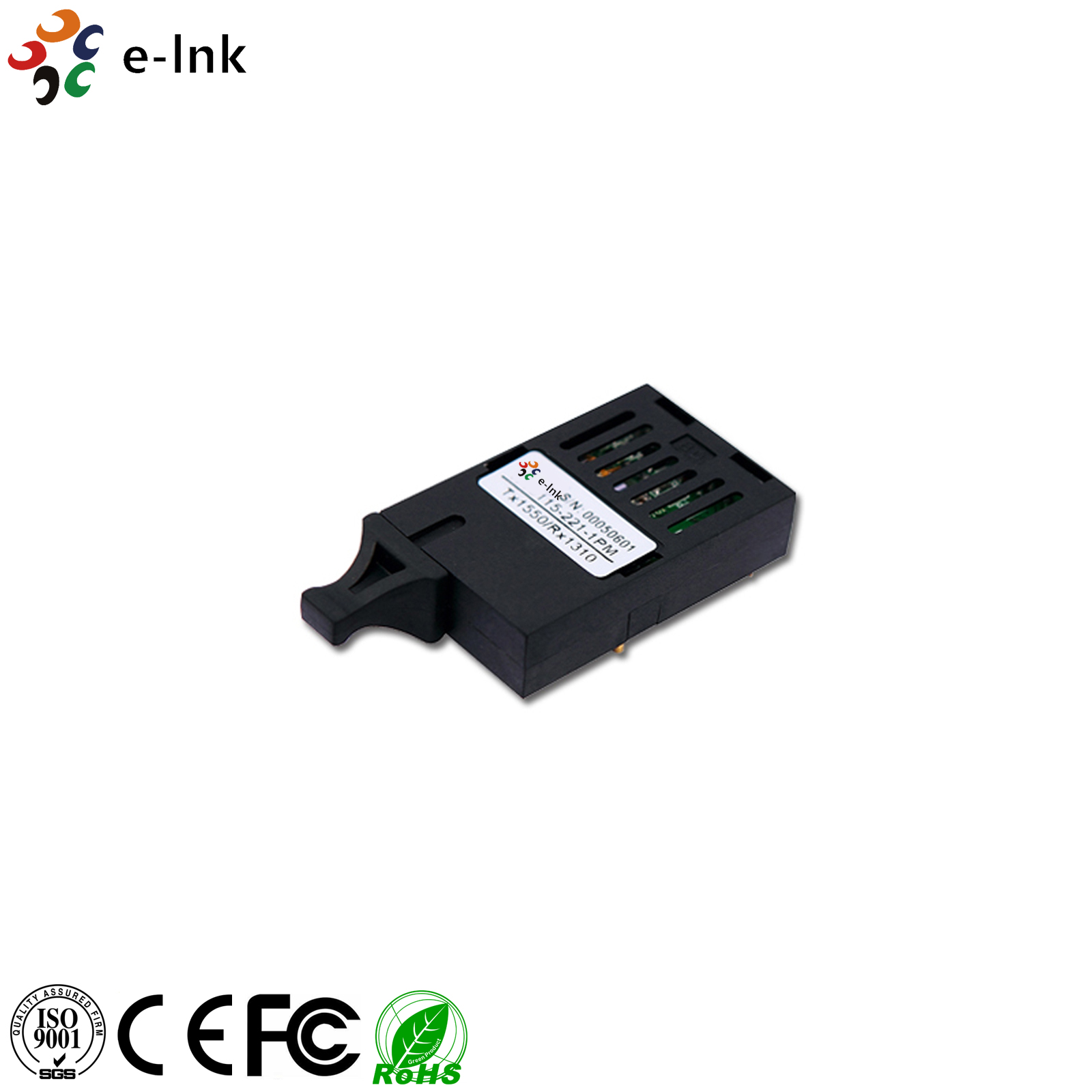

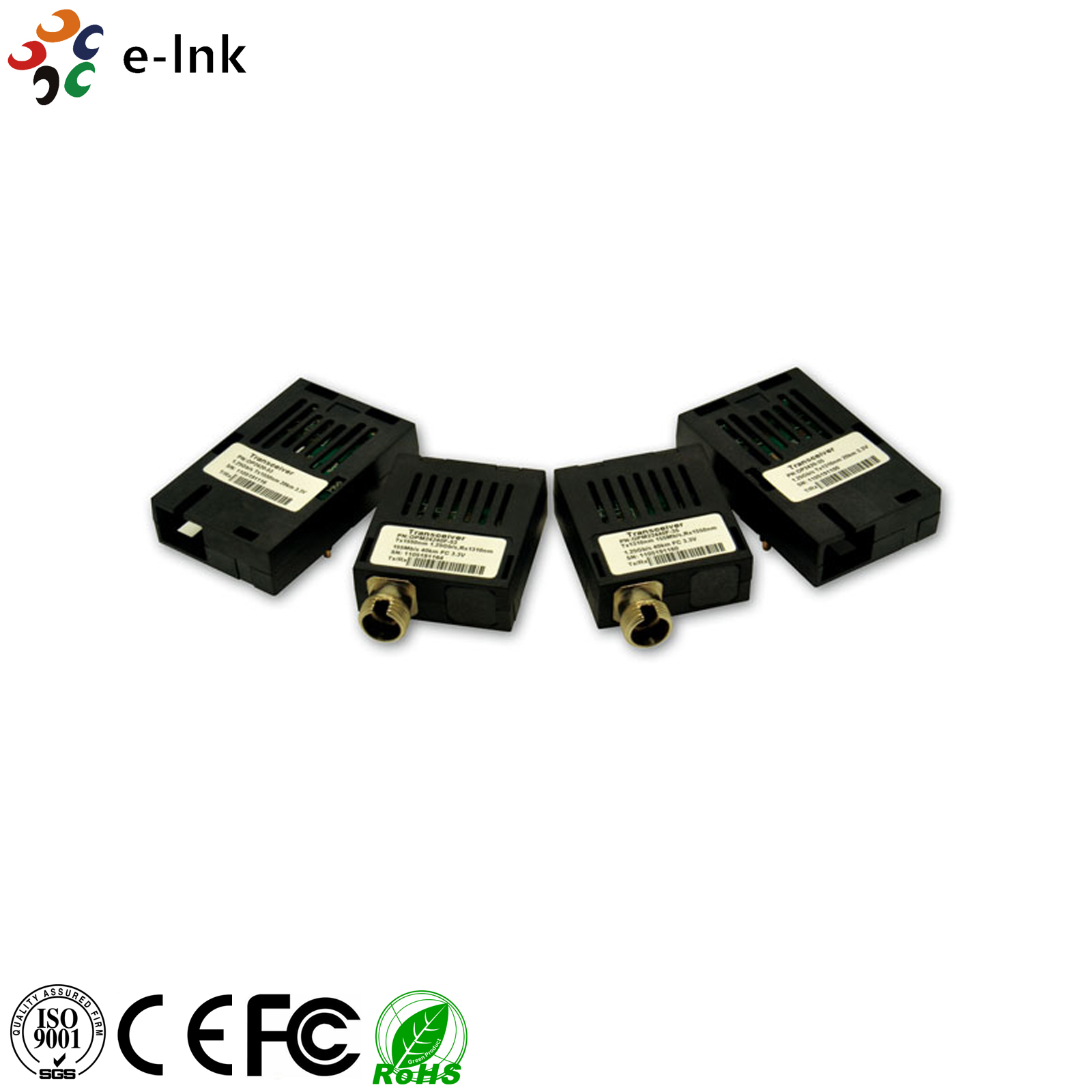

155M Single Fiber BIDI 1x9 Optical Transceiver

Model:LNK-BD9-155 Series

►1×9 package with FC connector

►+3.3V single power supply

►LVPECL compatible data input/output interface

上一张

下一张

Description

The 1×9 transceiver supports 155Mbps and 20km transmission distance with SMF.

The transceiver consists of two sections: The transmitter section incorporates aFP laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).

Transmitter Section

(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)

Parameter		Symbol	Min.	Typ.	Max.	Units
Data rate		-	-	155	-	Mb/s
Center Wavelength	Tx 1310	lo	1260	1310	1360	nm
Center Wavelength	Tx 1550	lo	1500	1550	1600	nm
Output Spectral width		Dl	-	-	4	nm
Average Optical Output Power	Tx 1310	Po	-15	-	-3	dBm
Average Optical Output Power	Tx 1550	Po	-15		-3	dBm
Extinction Ratio	Tx 1310	Er	12	-	18	dB
Extinction Ratio	Tx 1550	Er	12	-	18	dB
Rise/Fall Time(20%~80%)		Tr/Tf			0.26	ns
Total jitter		Tj			0.43	UI
Optical Eye Diagram		IEEE 802.3u and ANSI Fibre Channel Compatible
Input differential impendence		Zdiff		100		Ohm

Receiver Section

(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)

Parameter		Symbol	Min.	Typ.	Max.	unit
Data rate				155		Mb/s
Wavelength	1550 Rx	l	1500	1550	1600	nm
Wavelength	1310 Rx	l	1260	1310	1360	nm
Maximum Input Power		Pmax	-3	-	-	dBm
Receiver Sensitivity		Pmin	-		-34	dBm
Output differential impendence		Zdiff		100		Ohm
LOSS Thresholds		LOSSD	-	-	-34	dBm
LOSS Thresholds		LOSSA	-45

Part Number	Product Description
LNK-BD9-155T3R5	155M Single Fiber BIDI 1x9 Optical Transceiver1310TX/1550RX, SC,20km, 0°C~+70°C
LNK-BD9-155T5R3	155M Single Fiber BIDI 1x9 Optical Transceiver1550TX/1310RX, SC,20km, 0°C~+70°C

LNK-BD9-155T3R5L	155M Single Fiber BIDI 1x9 Optical Transceiver1310TX/1550RX, SC,20km, -40°C~+85°C
LNK-BD9-155T5R3L	155M Single Fiber BIDI 1x9 Optical Transceiver1550TX/1310RX, SC,20km, -40°C~+85°C
