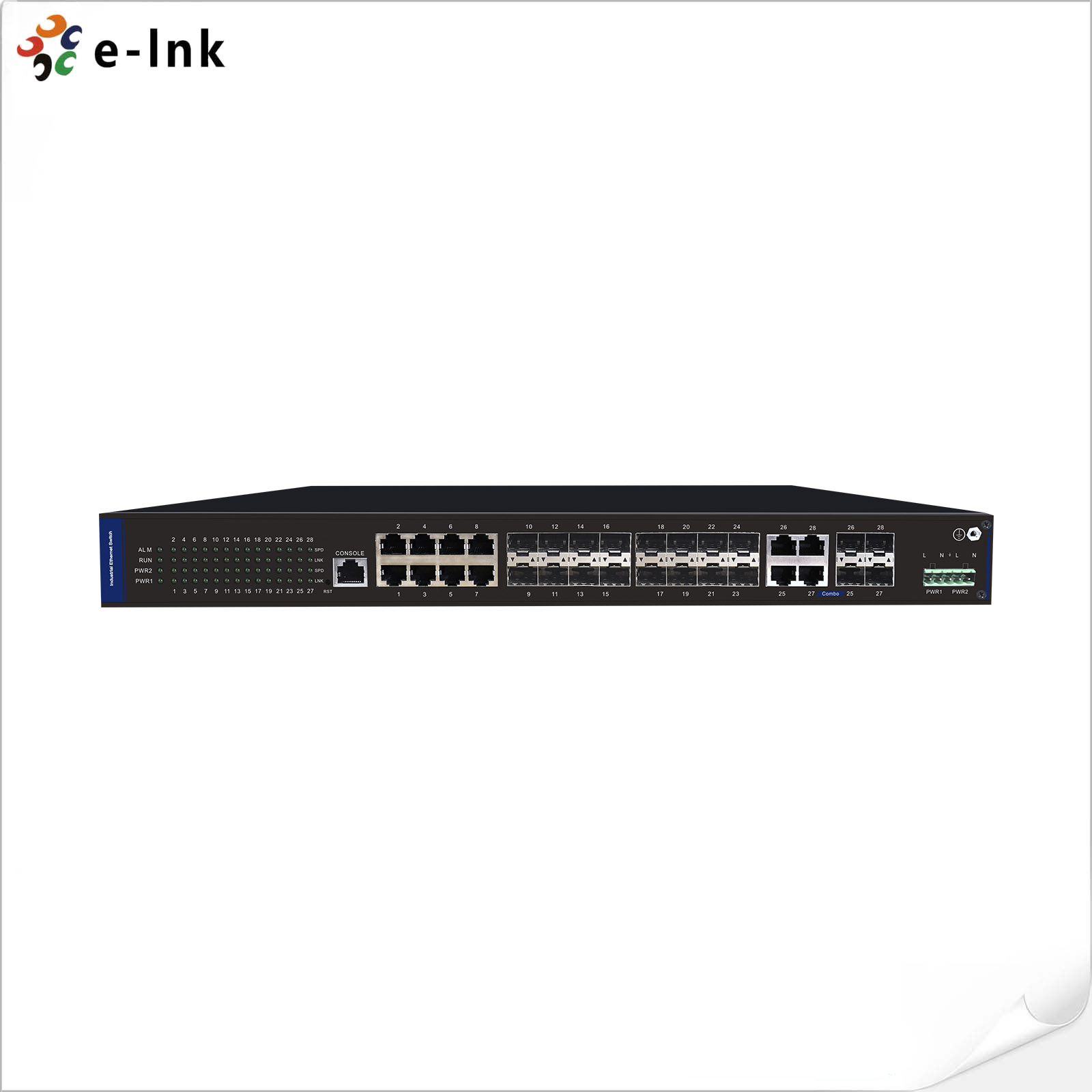

Network Managed Industrial 16 Port SFP + 4 Port TP/SFP Combo + 8 Port TP Gigabit Ethernet Switch

Model:LNK-GYM7168G-SFP

► 8x10/100/1000Base-TX RJ45 ports, 16x100/1000Base-X SFP ports and 4xTP/SFP Combo ports

► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection

上一张

下一张

Overview

LNK-GYM7168G-SFP is a new generation Managed Industrial Ethernet Switch with 8-Port 10/100/1000Base-TX and 16-Port 100/1000Base-FX SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

With dual power input design, LNK-GYM7168G-SFP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 75°C. Housed in rack mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

Technical Indexes

Physical Port
RJ45 port and speed	8x10/100/1000Base-TX 4x10/100/1000Base-TX Combo
Fiber port and speed	16x100/1000Base-FX SFP(Dual Mode, Auto Detection) 4x100/1000Base-FX SFP Combo
Parameters
Ethernet standards	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3az Energy Efficient Ethernet IEEE 802.3ad port trunk with LACP IEEE 802.3ah Configuring Ethernet OAM IEEE 802.1D Spanning Tree Protocol IEEE 802.1x Port Authentication Network Control IEEE 802.1Q VLAN tagging IEEE 1588
Packet buffer	4Mbits
Maximum packet length	Up to 10K Bytes
MAC address table	8K
Transmission mode	Store and Forward(full/half duplex mode)
Exchange property	Delay time: < 7μs Backplane bandwidth: 1Gbps Packet forwarding rate: 148810 (64Byte)
LED Indicator
Power	Connect-always
RJ45	Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber	Link/Act: connect-always; Data exchange-twinkle
Power Information
Power access mode	Phoenix terminal, DC seat
Redundant power input	DC 9-56V / AC100-240V
Overload protection	Yes
Power reverse	Support
Power consumption	Full-load<15W
Physical Property
Protection grade	IP40 aluminum case
Cooling mode	Natural cooling, no fan design
Dimensions	440mm x 305mm x 45mm (L x W x H)
Installation mode	Rack-mountable
Weight	3.6KG
Working Environment
Operating Temperature	-40℃~80℃
Operating Humidity	5%~90% non-condensing
Storage Temperature	-40℃~85℃
Warranty
MTBF	500,000 hours
Defects Liability Period	3 year warranty, lifetime technical support
Certification Standard
EMI	FCC Part15 Subpart B Class A, EN 55022 Class A
EMS	EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11
Collision	IEC60068-2-27
Drop	IEC60068-2-32
Vibration	IEC60068-2-6
Safety grade	EN60950-1
Software
Software Features	Redundant network: STP, EAPS/ERPS
	Multicast: IGMP Snooping V1/V2/V3, GMRP
	VLAN: IEEE 802.1Q 4K VLAN, QINQ
	Link Aggregation: manual / static / LACP
	QOS: COS, DSCP, 8 queues, WRR/SP/WFQ scheduling, QOS Policy
	Management Function: CLI/WEB/SNMP, and Primestone NIS management system
	Diagnostic Maintenance: Port mirroring, Syslog, Ping
	Alarm management: 1 way relay alarm output, RMON, SNMP Trap
	Security DHCP Snooping, Option 82, 802.1X, User hierarchical management, ACL,DDOS, port based MAC filtering / binding
	Data control: Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control. Broadcast storm suppression, Unknown-Multicast suppression and Unknown-Unicast suppression.

Model	Description
LNK-GYM7168G-SFP	Managed Industrial 16-port 100/1000BASE-X SFP + 4-Port TP/SFP Combo + 8-port 10/100/1000BASE-T Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Rack Mount, Rack Mount Bracket is included.
Power Options	►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
