16-Port 10/100/1000Mbps 60W Ultra POE Injector
Model:LNK-PSE1601GH
► Complies with IEEE802.3af/at standard
► Up to maximum output voltage 60 watts (Power supply of 4 pairs wire)
► Auto-detection for IEEE802.3af/at receiving end
► Support 10/100/1000 Base-T application
Overview

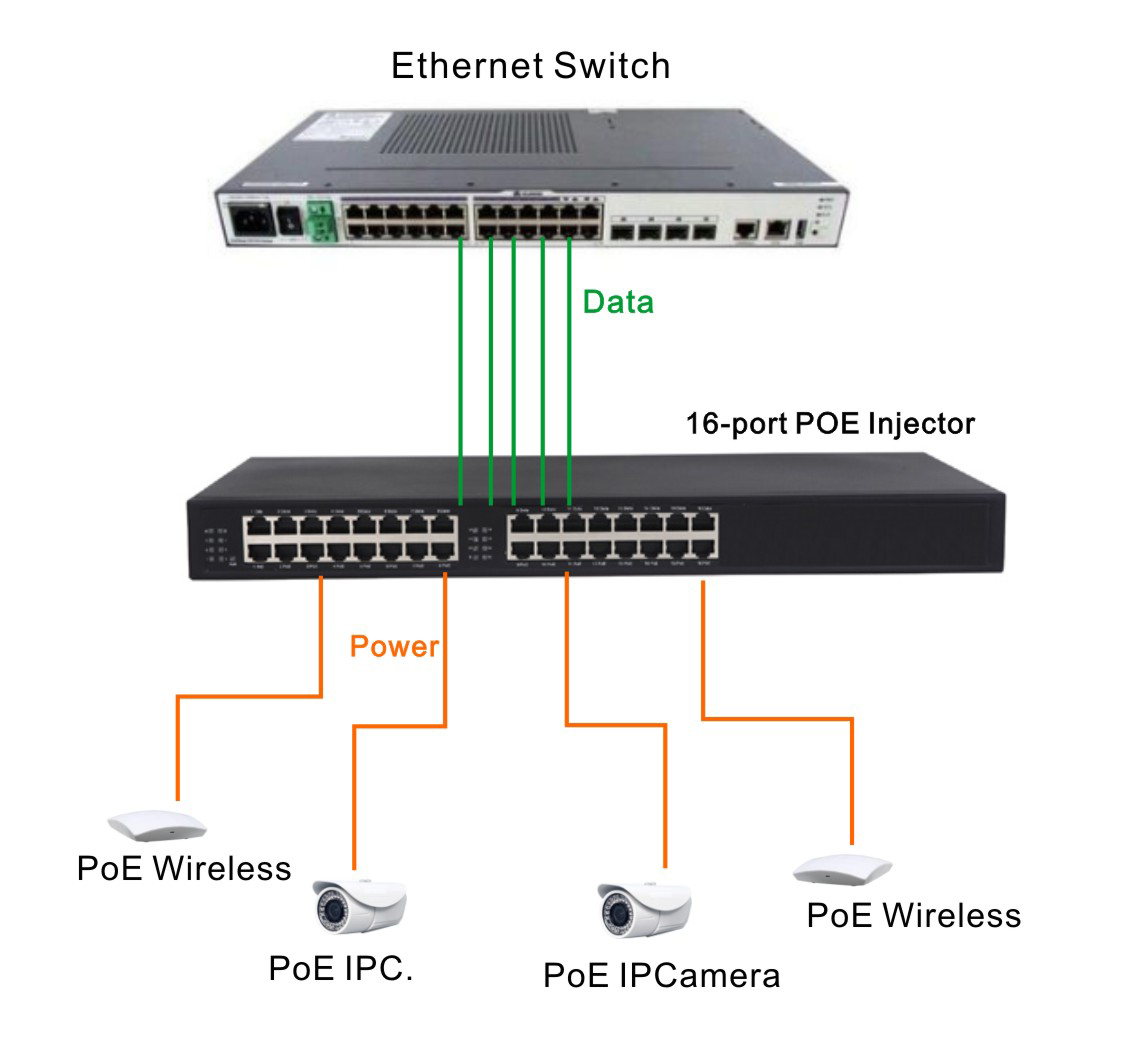

E-link 16 port PoE injector, strictly conforms IEEE802.3af/at standard, its single port supports 60 watts maximum power. This PoE injector can coordinate the applications of traditional network system/security product/LED light. It transmits signal and electric power to terminal devices by using CAT5 or CAT6 cables，and then make the traditional wiring more simple, convenient, safe and reliable.
It’s indoor used and can work properly between input voltage 100VAC-240VAC. The PoE Injectors are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals with 60W of power. The solutions support IEEE802.3af/at powered devices and are also backward compatible and safe to use with any IEEE 802.3af/at terminal. With plug and-play installation, they are easy and cost effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
